Specifications
|
|
Price
|
|
|
|
Rear Shock |
Fox RP23 |
|
|
Fork |
Fox 36 Float RC2 Tapered |
|
|
Headset |
Cane Creek S-3 |
|
|
Cassette |
Shimano SLX 11-34 |
|
|
Crankarms |
Shimano SLX 36-22 |
|
|
Rear Derailleur |
Shimano XTR Shadow |
|
|
Chain |
Shimano 116 Links |
|
|
Front Derailleur |
Shimano SLX E-Type |
|
|
Shifter Pods |
Shimano XT w/o OGD |
|
|
Handlebar |
Easton Monkey Lite |
|
|
Stem |
Thomson x4 70mm |
|
|
Grips |
ODI Hard Core |
|
|
Brakes |
Shimano XT 180mm front, 160mm Rear |
|
|
Wheelset |
Mavic Cross Line/ front: 20mm Rear: 12mm Thru |
|
|
Tires |
Maxxis High Roller / Larsen TT. |
|
|
Seat |
SDG Ti Fly BLack |
|
|
Seatpost |
Thomson Elite |
|
|
Size:
|
SM |
MD |
LG |
|
Frame Weight:
|
7.5 lbs |
7.5 lbs |
7.5 lbs |
|
Bike Weight:
|
|
|
|
|
Headtube Angle:
|
67 ° |
67 ° |
67 ° |
|
Seattube Angle:
|
66.8 ° |
66.8 ° |
66.8 ° |
|
Headtube Length:
|
114.3 mm |
114.3 mm |
129.54 mm |
|
Chainstay Length:
|
429.26 mm |
429.26 mm |
429.26 mm |
|
BB Height:
|
350.52 mm |
350.52 mm |
350.52 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
30.9 " |
30.9 " |
30.9 " |
|
Front Derailleur Width:
|
E-Type mm |
E-Type mm |
E-Type mm |
|
HeadTube Diameter:
|
1.125 |
1.125 |
1.125 |
|
Top Tube Length:
|
574.04 mm |
599.44 mm |
624.84 mm |
|
WheelBase:
|
1 130.3 mm |
1 155.7 mm |
1 181.1 mm |
|
Standover Height:
|
800.1 mm |
812.8 mm |
812.8 mm |
|

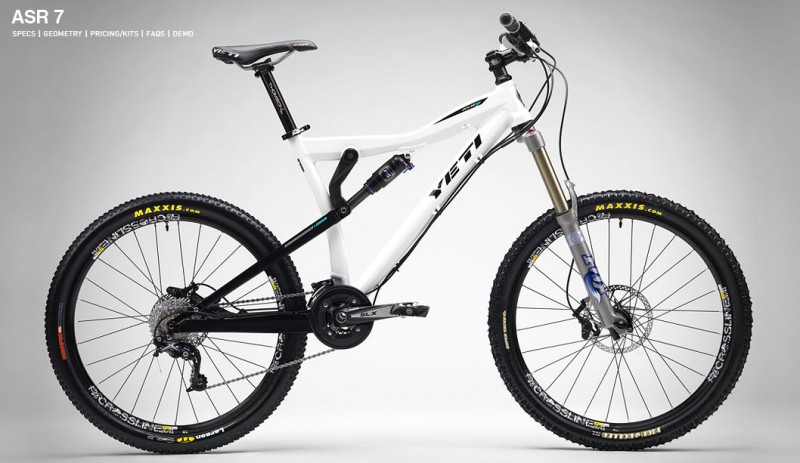

Yeti ASR-7 (MSRP $0) - Yeti's ASR-7 is an introduction to the single sided swing arm. Using a single sided chain stay, the ASR-7 is extremely light, yet is very responsive.
