Dartmoor 2012 alu hardtails

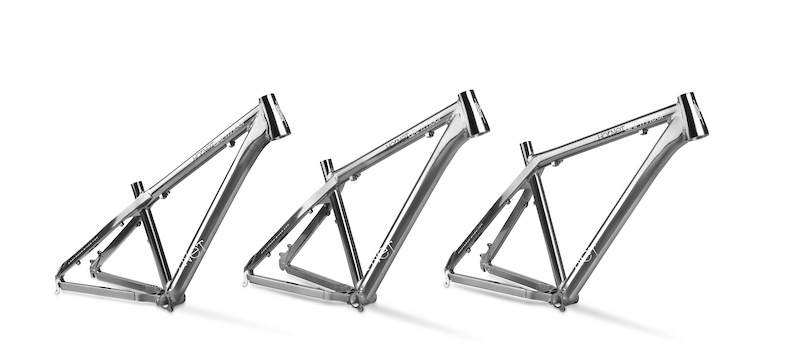

As the new 2012 Dartmoor alu hardtails collection will become available in a very short time we wanted to introduce you what is new in these unique frames – part of the ever growing product range from Dartmoor Bikes. This progressive company have shown an ability to produce well designed and thought out products all suited to today’s riding styles. 2012 line totally confirms this.

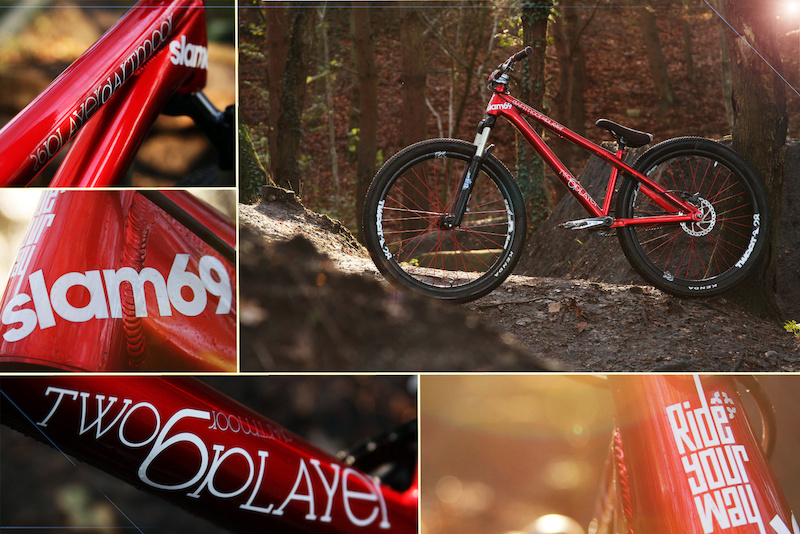

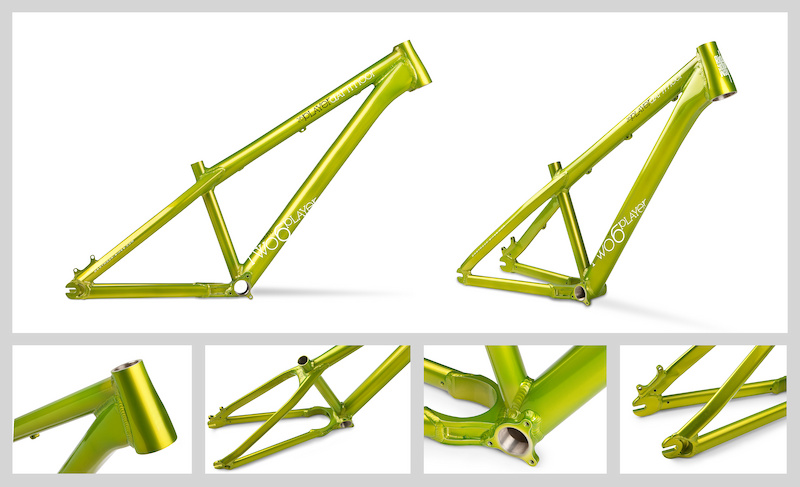

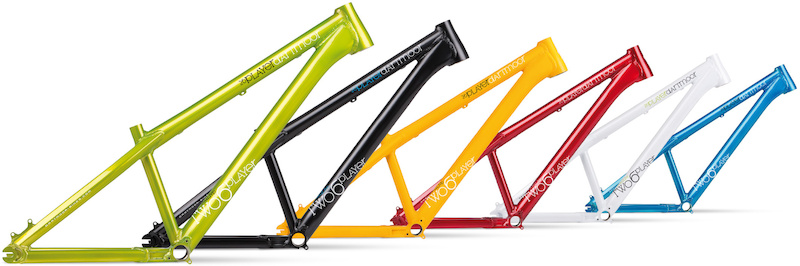

TWO6PLAYER
Lightweight dirt/skatepark/slopestyle frame for 26” wheels made of butted and heat treated 7005 aluminium tubes.
Evolution of probably the world’s most popular alu dirt jump frame continues with our custom hydroformed down tube perfectly fitted to the new tapered head tube. This gives a much stronger connection than a standard welded gusset and looks much cleaner. Head tube takes the Blaze or Flash headsets and all forks with 1.1/8” or tapered steerer. New double butted top tube with increased thickness in the head tube area. New custom BB-CS yoke and new chain stay tubes with even more space for the tire plus increased stiffness. New profiled curved seat stay gusset.


Two6Player specification
Dropouts: 135x10mm; BB: Euro 68mm; Headsets: tapered (34mm/49,57mm); Seat post diam.: 27.2mm; Seat clamp diam.: 31.8mm; Size: 12.2”; Weight: 2.10kg.
Recommended fork travel: 90-130mm.

Two6Player geometry
Top tube: 571mm
Rear triangle: 385mm
Head tube: 115mm
Seat tube: 310mm
BB height (80mm travel): -15mm
BB height (100mm travel): -9mm
BB height (130mm travel): +1mm
WB (80mm travel): 1045mm
WB (100mm travel): 1051mm
WB (130mm travel): 1062mm
HT angle (80mm travel): 70°
HT angle (100mm travel): 69.5°
HT angle (130mm travel): 67°
Geometry calculated for the forks with 80mm travel (471mm height); with 100mm travel (491mm height) and with 130mm travel (521mm height).

In 2012 season you can expect to see some of our top class riders including Tomas Zejda and Mehdi Gani using this frame in their bikes during upcoming FMB dirt jump events.

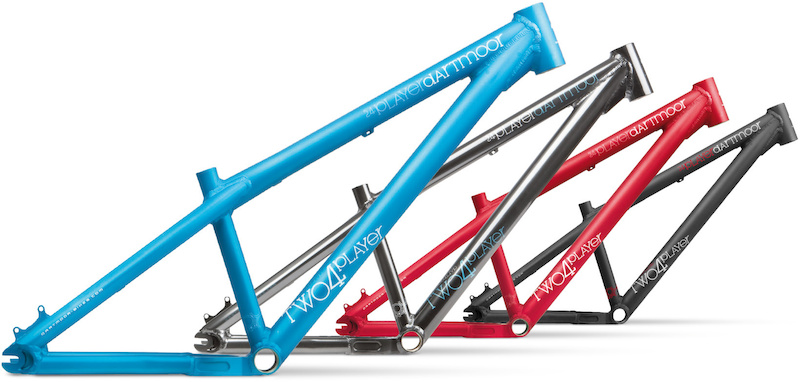

TWO4PLAYER
Ultra light dirt/skatepark frame for 24” wheels. Smaller brother of the Two6Player frame. Made of butted and heat treated 7005 aluminium tubes. New double butted top tube with increased thickness in the head tube area. Head tube still takes standard 1.1/8” headsets. In 2012 it comes with a new red satin color.

Two4Player specification
Dropouts: 135x10mm; BB: Euro 68mm; Headsets: a-head 1.1/8”; Seat post diam.: 27.2mm; Seat clamp diam.: 31.8mm; Size: 11.8”; Weight: 1.98kg.
Recommended fork travel: 70-100mm (for 24” wheels).

Two4Player geometry
Top tube: 546mm
Rear triangle: 370mm
Head tube: 105mm
Seat tube: 300mm
BB height (80mm travel): -3mm
BB height (100mm travel): +3mm
BB height (130mm travel): +13.5mm
WB (80mm travel): 1010mm
WB (100mm travel): 1016mm
WB (130mm travel): 1028mm
HT angle (80mm travel): 70°
HT angle (100mm travel): 69°
HT angle (130mm travel): 67°
Geometry calculated for the forks with 80mm travel (471mm height); with 100mm travel (491mm height) and with 130mm travel (521mm height).

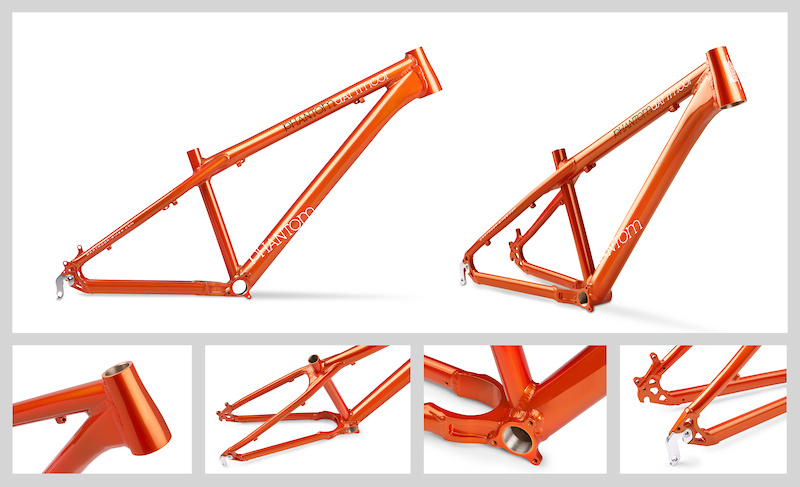

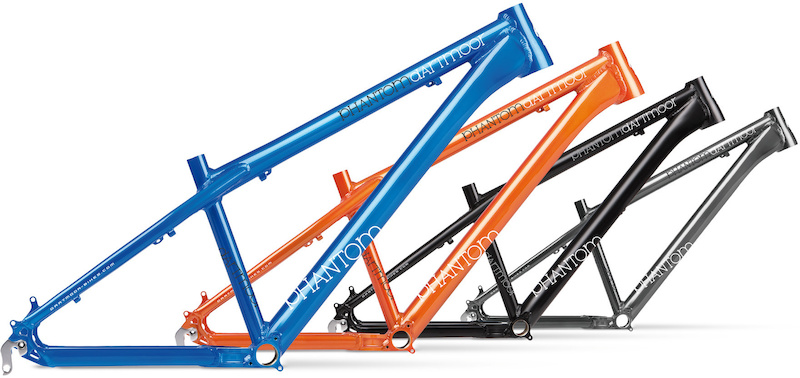

PHANTOM
2011 saw the introduction of the Dartmoor Phantom world class 4X frame. Coming off the back of a fantastic season the Phantom racked up many podiums including the UK National Championships with Dartmoor UK rider Luke Limbrick taking the crown.
Now with a new 4X season looming on the horizon, the guys at Dartmoor HQ bring you the new updated Phantom, with tapered head tube, hydroformed down tube, revised BB yoke and a new profile to the seat-stay bridge.
The strength is even better now despite the super-light weight of just 2.05kg making this fame well worthy of any pro class rider.


The Phantom doesn’t come as a complete bike but don’t let this put you off as Dartmoor make just about every component you could need to build a race winning machine.
With Dartmoor components coming in a massive range of colours, it’s not hard to build your own unique custom race bike. This mixed with rigorous testing and race proven design, you too could be stood on the top spot of the podium in 2012.

Phantom specification
Dropouts: 135x10mm; BB: Euro 68mm; Headsets: tapered (34mm/49,57mm); Seat post diam.: 27.2mm; Seat clamp diam.: 31.8mm; Size: 13.5”; Weight: 2.05kg.
Recommended fork travel: 80-130mm.

Phantom geometry
Top tube: 580mm
Rear triangle: 400mm
Head tube: 115mm
Seat tube: 340mm
BB height (80mm travel): -20mm
BB height (100mm travel): -13mm
BB height (130mm travel): 0mm
WB (80mm travel): 1069mm
WB (100mm travel): 1078mm
WB (130mm travel): 1089mm
HT angle (80mm travel): 69°
HT angle (100mm travel): 67°
HT angle (130mm travel): 66°
Geometry calculated for the forks with 80mm travel (471mm height); 100mm travel (491mm height) and 130mm travel (521mm height).

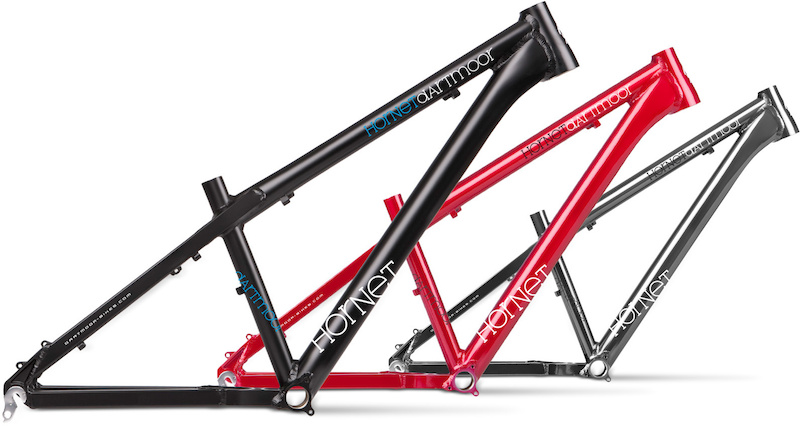

HORNET

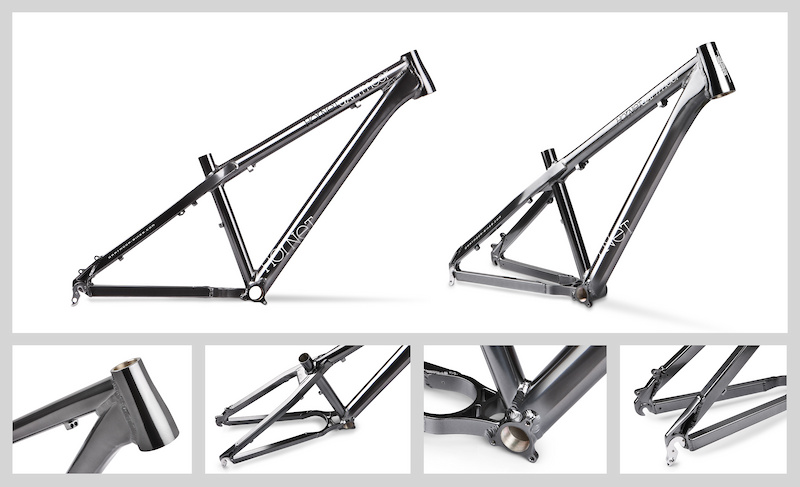

Lightweight freeride/all mountain hardtail frame made of butted and heat treated 7075 aluminium tubes. Hornet 2012 comes with a hydroformed down tube, new tapered head tube, new oval top tube and a new dropout designed to take the re-shaped chain stay and seat stay tubes.


Hornet specification
Dropouts: 135x10mm; BB: Euro 68mm; Headsets: tapered (34mm/49,57mm); Seat post diam.: 31.6mm; Seat clamp diam.: 34.9mm; Sizes: 14”, 16”, 18”; Weight: 2.20kg (14”), 2.24kg (16”), 2.30kg (18”).
Recommended fork travel: 100-150mm.

Hornet geometry
Top tube (14”): 570mm
Top tube (16”): 575mm
Top tube (18”): 604mm
Rear triangle: 420mm
Head tube: 115mm
Seat tube (14”): 356mm
Seat tube (16”): 406mm
Seat tube (18”): 460mm
BB height (100mm travel): -26mm
BB height (150mm travel): -8mm
WB (100mm travel/14”): 1066mm
WB (150mm travel/14”): 1086mm
WB (100mm travel/16”): 1078mm
WB (150mm travel/16”): 1096mm
WB (100mm travel/18”): 1118mm
WB (150mm travel/18”): 1131mm
HT angle (100mm travel): 69.5°
HT angle (150mm travel): 67.5°
ST angle (100mm travel): 71.5°
ST angle (150mm travel): 69.5°
Geometry calculated for the forks with 100mm travel (491mm height) and with 150mm travel (541mm height).
