hi i am making this thread so that people with home made frames can show there designs

********EDIT BY MODERATOR***********
-DRACO-

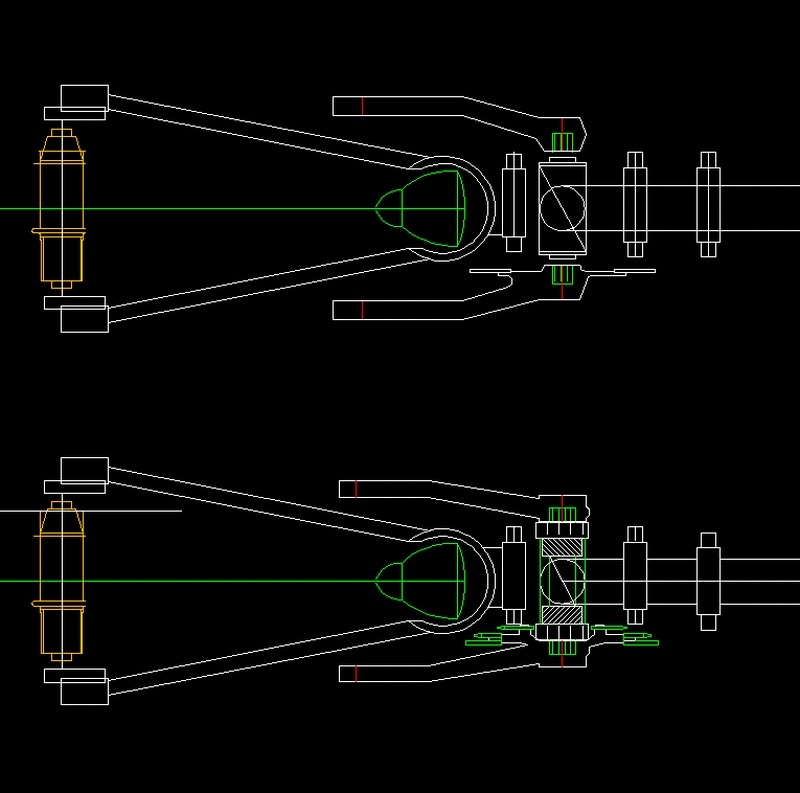

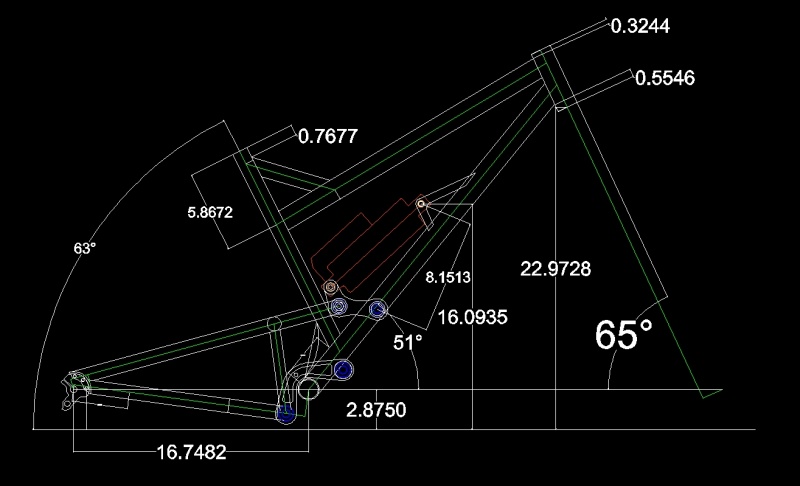

I have added a couple pics from page 261 right at the beginning so you can see what we are talking about!

draco wrote:

Considerations for design- seriously, guys, there is a ton of things you need to consider/keep in mind and think about.

Once i was happy with the angles and geometry, and had the linkage worked out, it was time to figure out how the frame was going to be built. Tube placement, diameters, angles of the tubes that dont affect geometry.. etc.

The lower rightmost one above was the final.

So then you check axle path and tire clearance.

Then you check chainstay clearance, chainring clearance, crankarm clearance, chainguide clearance.. eeeeesh

Then you design pivots!

Then you design a jig to hold the pivots in place!

Then a jig to hold the frame in place.

Then you're more on your way.

lotta stuff to consider!

Graphxxx

Posted: Jun 27, 2008 at 18:20	Quote
Yeah hopefully we'll get to nice awesome designs

HBMman

Posted: Jun 27, 2008 at 18:25	Quote
I'm building a dj hardtail ill post pics soon

doctorz

Posted: Jun 27, 2008 at 19:06	Quote
here are mine im up to 3 handmades so far 2188711 2129479 2129478

ninjatarian

Posted: Jul 11, 2008 at 16:11	Quote
i love that first frame. im building a custom transmission so i may build a custom frame too.

curlxupxandxdle

Posted: Jul 11, 2008 at 16:16	Quote
sick bikes dude

tacobell123

Posted: Jul 11, 2008 at 16:17	Quote
i was wondering how do you make a homemade bike

blackpantherparty

Posted: Jul 11, 2008 at 16:25	Quote
The linkage in number 1 looks a little wonky. Maybe it's just me. Kinda seems that it needs to decompress before it can be compressed.

ninjatarian

Posted: Jul 11, 2008 at 16:26

Quote

blackpantherparty wrote:

The linkage in number 1 looks a little wonky. Maybe it's just me.

Kinda seems that it needs to decompress before it can be compressed.

i dont think thats where the shock is supposed to go, its not finished. notice the two holes in the other linkage and the one in the top tube support, it probably goes there

pinky420024

Posted: Jul 11, 2008 at 16:28	Quote
SICK BIKES MAN!!!!!! I LIKE THE BOTTOM ONE ITS SWEET

curlxupxandxdle

Posted: Jul 11, 2008 at 16:30

Quote

ninjatarian wrote:

blackpantherparty wrote:

The linkage in number 1 looks a little wonky. Maybe it's just me.

Kinda seems that it needs to decompress before it can be compressed.

i dont think thats where the shock is supposed to go, its not finished. notice the two holes in the other linkage and the one in the top tube support, it probably goes there

it does at first look like it would have to but it doesnt have to... i thought it at first too

bennett12luke

Posted: Jul 11, 2008 at 16:41	Quote
im building some stuff out of foam/fiberglass, i was thinking a frame and rigid forks, but i dunna how well that gunna work out, i made a trials frame just for shits one day last yeah and that was pretty fun, maybe ill actually try to make a n actual frame to use now, proly a street hardtail, ill take pics if i can/do P.S those are some sweet bikes for being home made man, keep it up(Y)

wtp51

Posted: Jul 11, 2008 at 16:48	Quote
the first one reminds me of a bighit if the shock goes in those holes

curlxupxandxdle

Posted: Jul 11, 2008 at 16:50	Quote
for some reason i dont think theres gonna be many bikes on this thread :/ lol

doctorz

Posted: Jul 11, 2008 at 19:00	Quote
Does anyone here really wants to know how to build there own bike ,. let me know and i'll show you on a diaporama
