2010 Kona Shonky and Lacondeguy first photos!

Aug 8, 2009
by Jordan Holmes

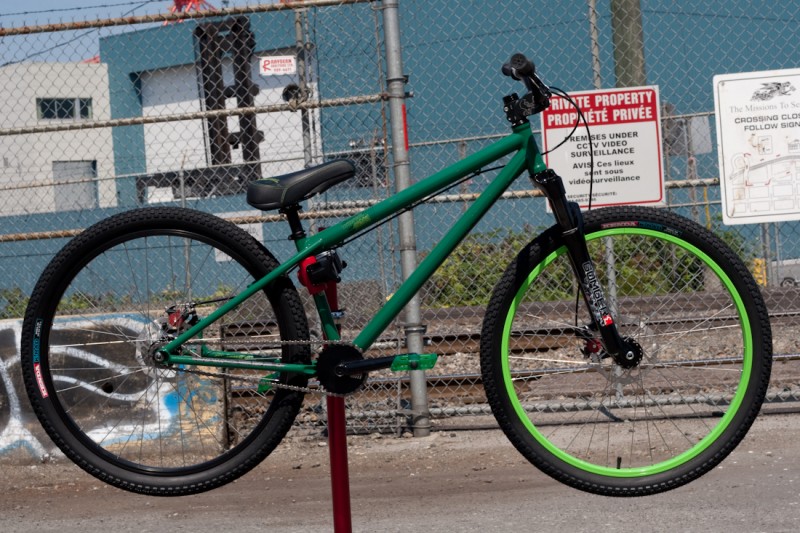

2010 Kona Shonky

2010 Kona Shonky


Minor Changes:
Removable V-Brake mounts

Component Changes:
-27/13T gearing (Changed from 32/14T in 2009)

-Marzocchi Dirt Jumper 3 -Was a fully rigid bike last year

-Avid BB5 FR Disc brakes -Had v-brakes front and back

-No longer pivotal seat and post -Standard Kona seat and post


Visual Changes:
Changed from flashy blue, to neutral green
Color matched components - pedals, front wheel, frame


2010 Shonky, 23.1 inch top tube
Shonky20092010Change
Head tube Angle69 deg69.5 deg+ 0.5 deg
Seat tube Angle71.5 deg72 deg+ 0.5 deg
Chainstay Length15.9 in15.7 in- 0.2 in
Wheelbase41.3 in41.4 in+ 0.1 in
Standover28.6 in28.4 in- 0.2 in
Bottom Bracket Height12.2 in12 in- 0.2 in

Price
$849
$899
Rear Shock
N/A
N/A
Fork
Kona P2 Dirt Jump Disc
Marzocchi Dirt Jumper 3 80mm
Headset
FSA Internal
FSA Internal ZST-NO-8BE
Cassette
Formula 14T (singlespeed)
Formula 13T
Crankarms
Aricle YC-CR-736-1
Aricle YC-CR-720
Chainguide
N/A
27T
Bottom Bracket
Aricle YC-CR-736-1
Aricle YC-CR-720
Pedals
Kona Jackshit Deluxe
Kona Jackshit
Chain
KMC Z-50
Yaban MK918N
Rear Derailleur
N/A
N/A
Front Derailleur
N/A
N/A
Shifter Pods
N/A
N/A
Handlebar
Kona Cowan Signature
Kona Cowan Signature (25.4mm, 63mm Rise, 710mm Wide)
Stem
Kona Clump
Kona Clump (0° x 60mm)
Grips
Cowan Signature
Cowan Signature
Brakes
Avid SD-3 (w/Avid FR-5 levers)
Avid BB5 Disc 6"
Wheelset
N/A
N/A
Hubs
Formula Disc
Formula Disc
Spokes
Sandvik Stainless 14g
Sandvik Stainless 14g
Rim
Alex DM-24
Alex DM-24
Tires
Maxxis Holy Roller 26x2.2
Kenda K-Rad 26x2.3
Seat
Alienation Recliner/Pivotal
Kona DJ
Seatpost
Alienation Billy Club/Pivotal
Kona Thumb

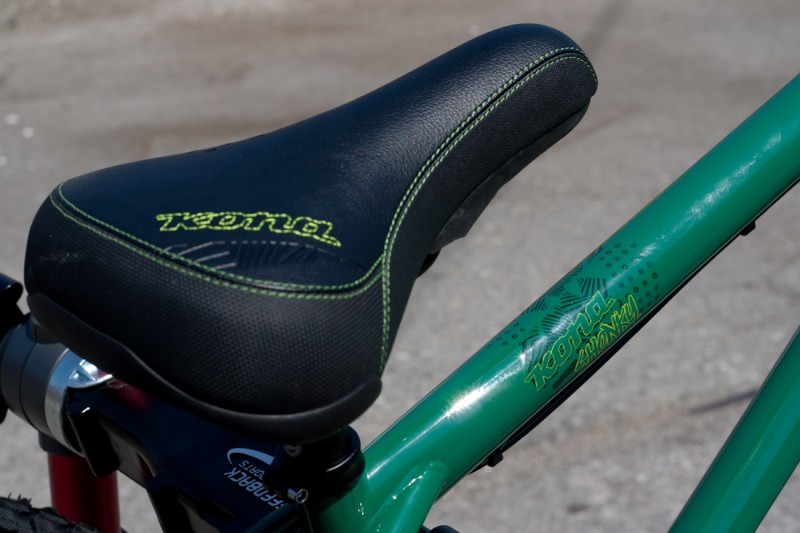

Custom saddle

Custom saddle

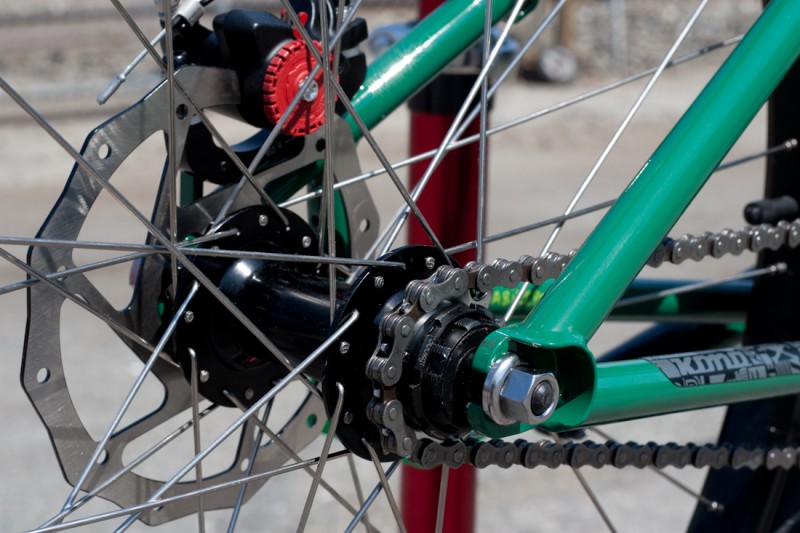

Drop outs

Drop outs

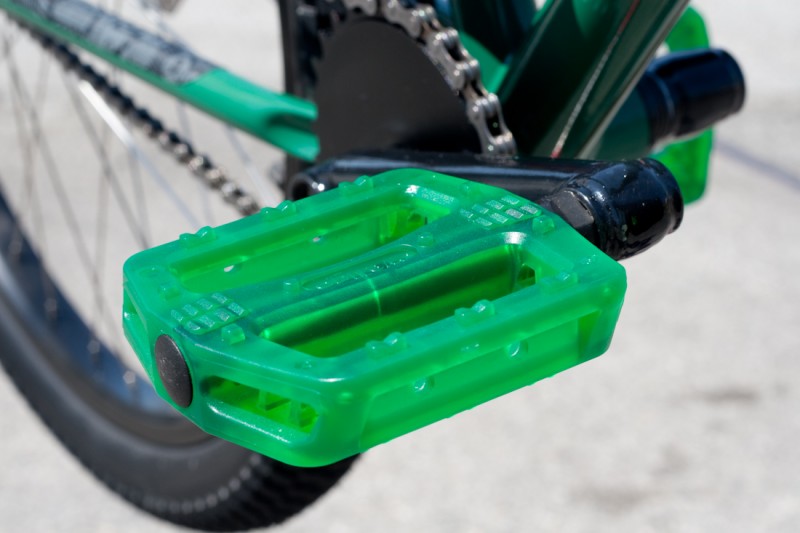

Plastic Pedals

Plastic Pedals


Custom saddle

Custom saddle


Kona Clump Aluminum

Kona Clump Aluminum

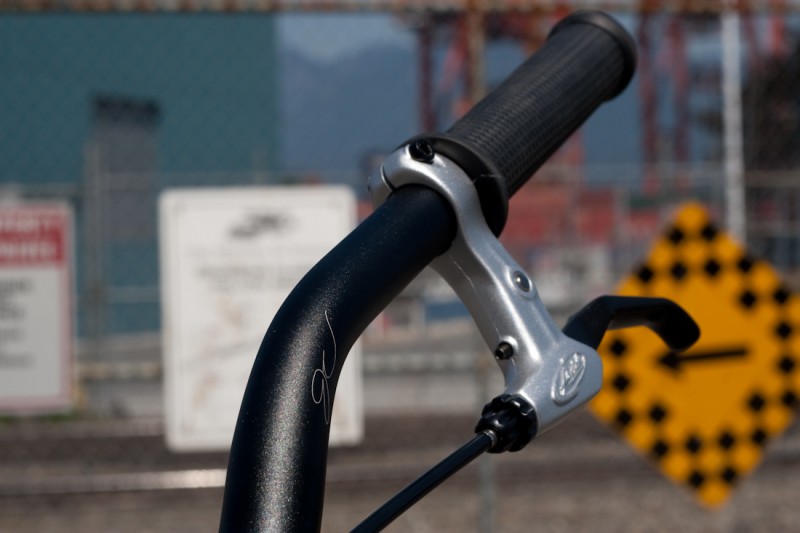

Cowan signature bars

Cowan signature bars

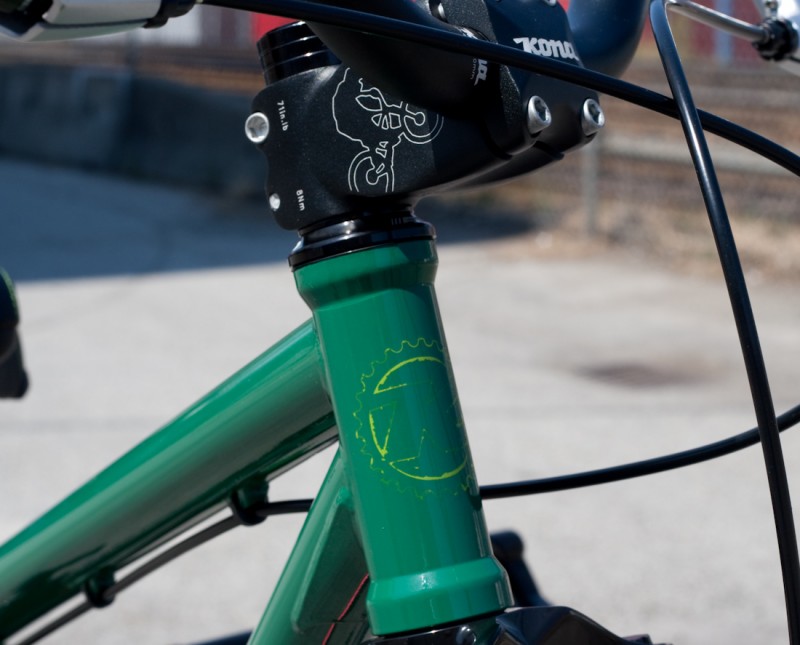

Internal headset

Internal headset

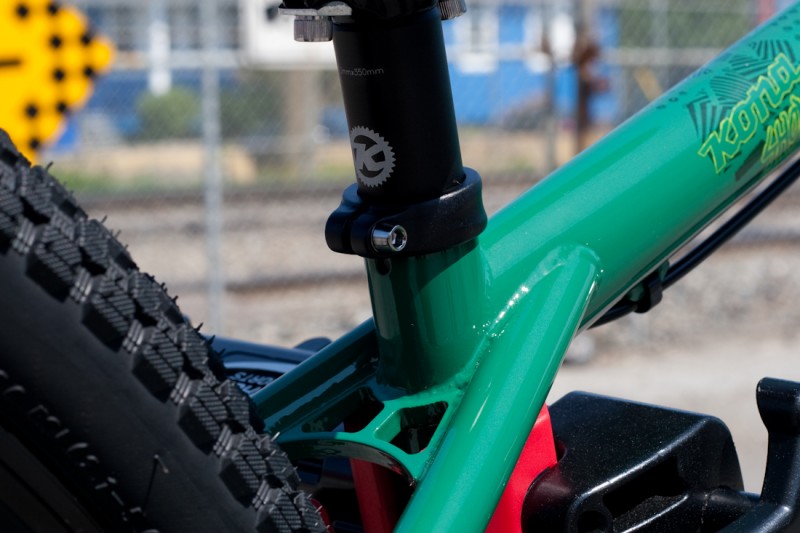

Top tube and seat tube junction

Top tube and seat tube junction






Here's a sneak peak at what the Lacondeguy brothers will be riding in 2010:

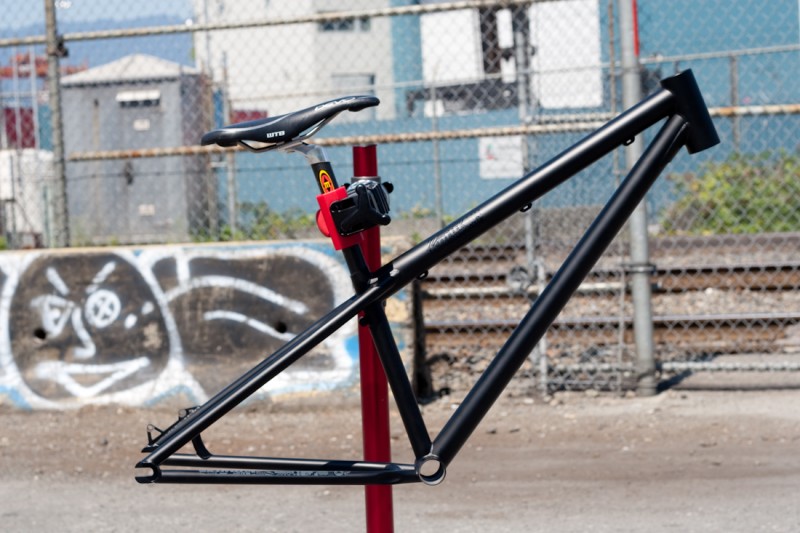

Full Frame

Full Frame

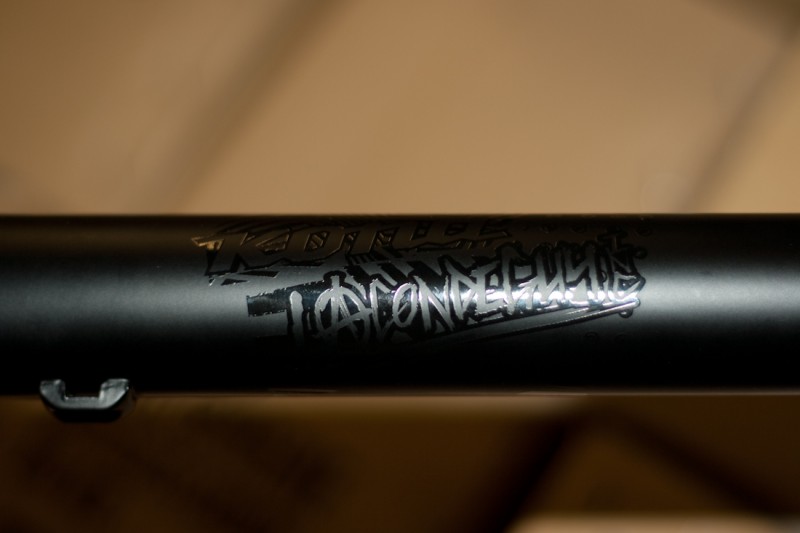

Decal detail

Decal detail

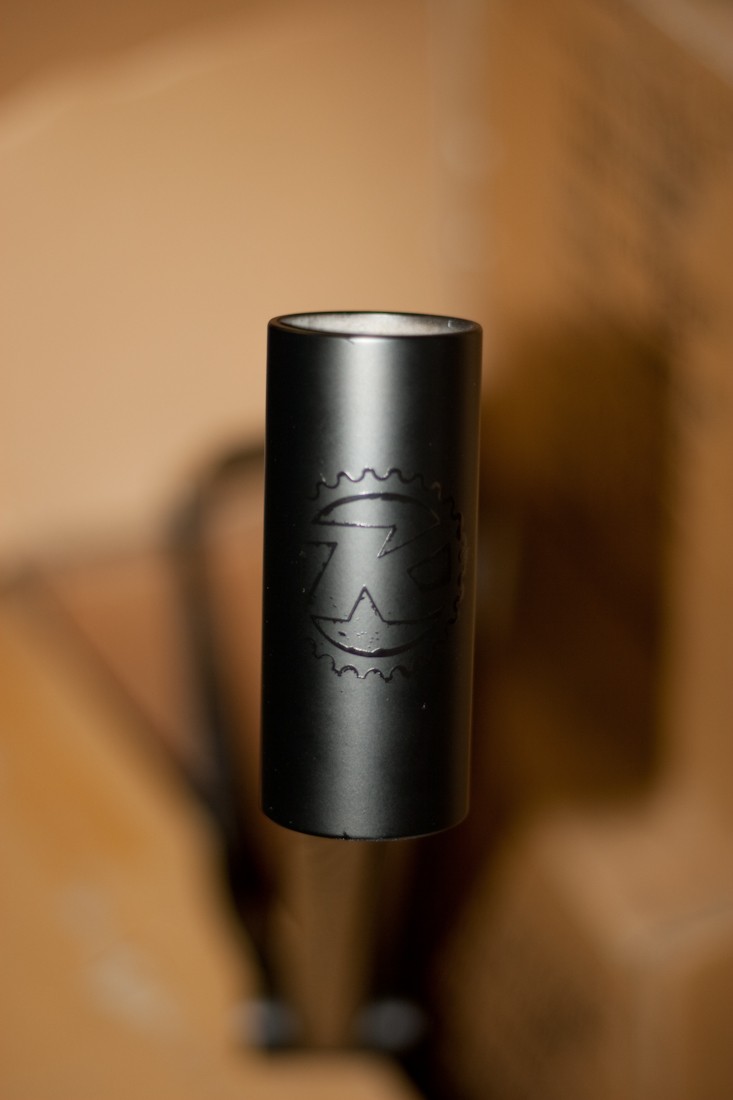

Head tube badge

Head tube badge

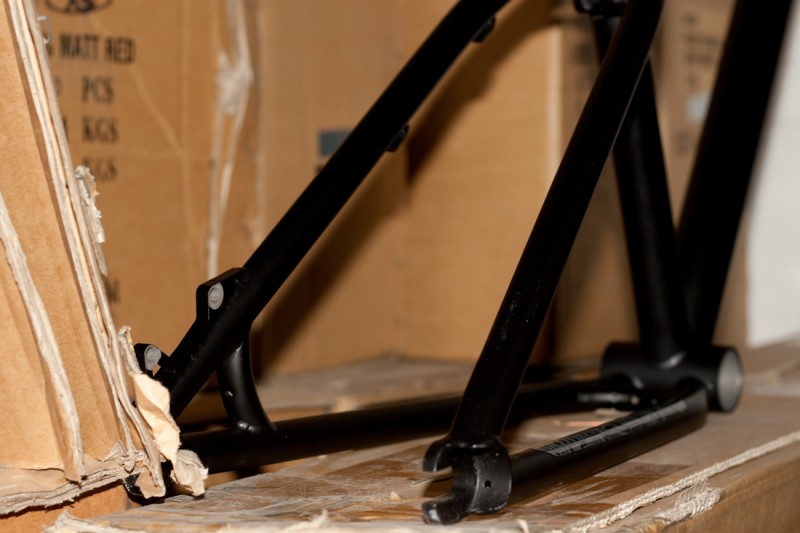

Rear stays

Rear stays

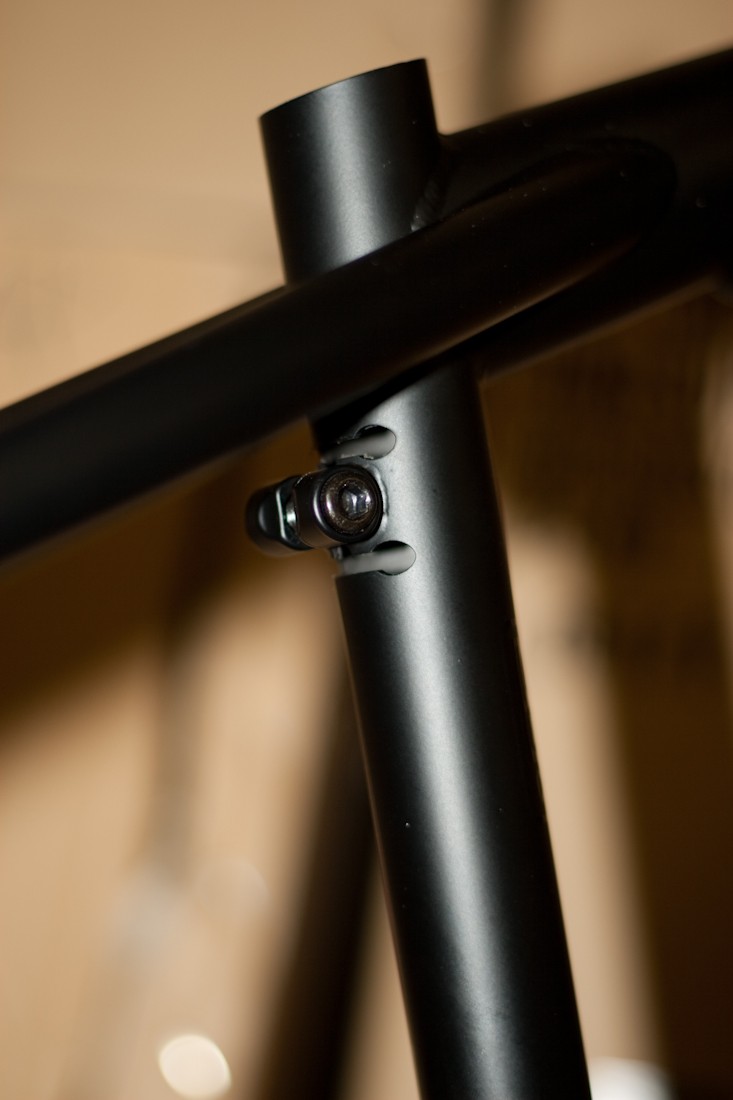

Custom seat post clamp

Custom seat post clamp
