Rocky Mountain Flatline - Full Specs and Photos

Aug 21, 2009
by Jordan Holmes
The New 2010 Rocky Mountain Flatline is down to 39 lbs, reducing the weight by 7 lbs from last year. Redesigned frame geometry with a more linear rate curve, new down tube without a mud flap, new shock mount position, and a 2 lbs lower frame weight. Entry level Flatline Pro available with Boxxer Race/Vivid 4.1 suspension, and SRAM drive train. Flatline World Cup available with 40 RC2/RC4 suspension, Saint drive train and high-end components.

Read on for more info on the 2010 Flatline...In 2009 we got a chance to test one of the Rocky Mountain Flatline Pro's, and were pleased with the overall build and feel of the bike, but disappointed with the weight. In 2009 The Flatline Pro tipped the scales at 46 lbs 3 ounces, which made it overweight. Rocky Mountain used the Maxxis team riders, Luke Strobel, Cameron Cole, and Sabrina Jonnier to redesign the Flatline as a race bike for 2010. Now at 39 lbs and dialed in for the race season Rocky Mountain is ready to release the 2010 Flatline Pro and 2010 Flatline World Cup.

Old Flatline Pro
Old Flatline Pro

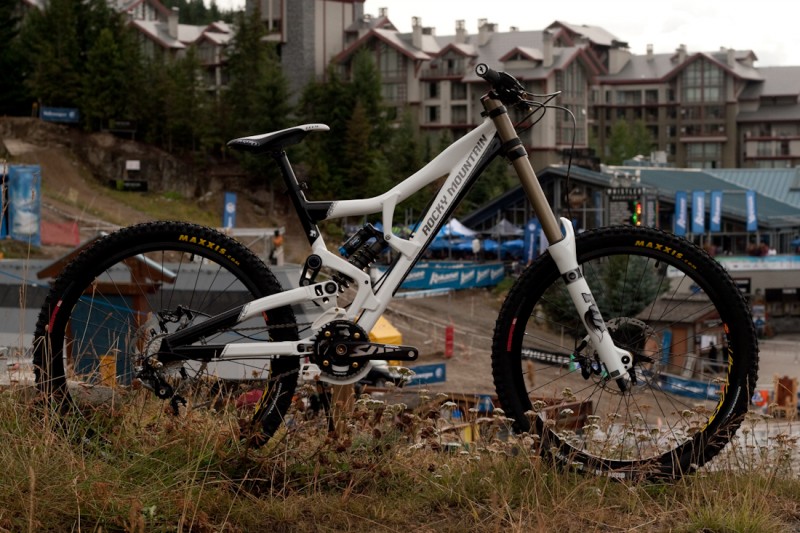

New Flatline World Cup
New Flatline World Cup

This new design will not put an end to the previous Flatline design as it will still be available in 2010 as Rockys freeride bike, and labeled the Flatline FR. The Flatline World Cup and Pro feature a refined geometry with input from the Maxxis Rocky Team, integrated headsets, and a specific (non-adjustable) geometry. Also the head tube angle is also effected by the fork length (axle to crown) and with the Flatline's lower stack height you get more adjustment for a steeper or slacker head tube over other bikes, by simply raising or lowering the stanchions. This simple 15mm adjustment will adjust the head tube 1 degree slacker, or steeper.

Flatline World Cup - $5999 MSRP - 40.5 lbs
- Fox 40 RC2 fork with RC4 shock
- Saint Component Groupo
- Ultra low stack height from factory
- Flip flop direct mount stem with a 30" wide bar
- SDG IBeam seat and Post
- Integrated Saint axle drop outs - Maxle available

Flatline Pro - $3999 MSRP - 39 lbs
- Entry Level build kit
- RockShox Boxxer Race fork with Vivid 4.1 shock
- SRAM Component Groupo
- Ultra low stack height from factory
- SDG IBeam seat and Post
- Integrated Maxle axle drop outs - Saint available

Changes from previous Flatline
- Complete LC2R suspension design has been re designed for a better shock rates
- Removed 4 bearings from linkage area/replaced with Igus bushings.
- 2 lbs removed off of frame
- Front to Center is 2 inches shorter
- Flattened out the Rates curve for a more progressive suspension
- New rear end is lighter and features built in axle - Compatible with previous Flatline

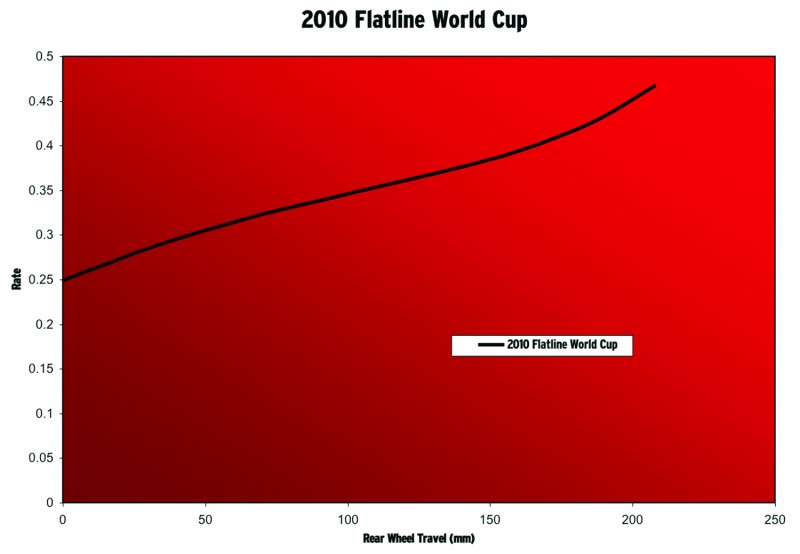

Rate Curve
Rate Curve

2010 Flatline World Cup Geometry
FlatlineMedium Frame
Head tube Angle65 deg
Seat tube Angle74 deg
Chainstay Length445 mm
Wheelbase1176 mm
Standover734 mm
Bottom Bracket Rise25.4 mm

Price
$5049
$3999
$5999
Travel
170-213mm
200mm
200mm
Rear Shock
Marzocchi ROCO TST-R, 170-213mm
RockShox Vivid 4.1
Fox RC4
Fork
Marzocchi 888 ATA World Cup, 200mm, Air Travel adjust, rebound, hi-lo compression
RockShox Boxxer Race
Fox 40 RC2
Headset
FSA Orbit Z1.5 / 1 1/8
FSA Orbit Z1.5/1 1/8
FSA orbit Extreme Pro 1.5R
Cassette
Shimano SLX-9 11-28T
SRAM Pg-950-9 11-28T
Shimano SLX-9 11-28T
Crankarms
Shimano Saint 170-175mm 36T
Race Face Respond 170-175mm
Shimano Saint 170-175mm
Chainguide
E13 LG1 Guide
E13 LS1
e13 LG1 Guide
Bottom Bracket
Shimano Saint
Race Face Respond X-Type
Shimano Saint
Pedals
RMB Team Flat
RMB Low Pro Flat
N/A
Chain
Shimano HG53
SRAM PC951
Shimano HG53
Rear Derailleur
Shimano Saint
SRAM x9
Shimano Saint
Front Derailleur
N/A
N/A
none
Shifter Pods
New Saint Rapid fire 9spd
SRAM x9
Shimano Saint Rapid Fire
Handlebar
Easton Havoc DH 31.8mm 20mm rise 711mm
Easton Vice Low Rise
Race Face Atlas FR 785mm
Stem
Marzocchi Integrated 31.6mm
e13 Ali Integrated 45-55mm
Race Face Atlas Direct Mount
Grips
N/A
RMB Lock On Knurled
RMB Lock On Knurled
Brakes
Shimano Saint hydraulic disc
Avid Elixir 5
Shimano Saint
Wheelset
N/A
N/A
N/A
Hubs
Shimano Saint disc W/12mm Thru axle
Wheeltech Disc hubs
Shimano Saint Disc
Spokes
DT Champion
DT Swiss Champion
DT Swiss Champion
Rim
Mavic EX729
Alex FR32 Disc
Mavic EX721
Tires
WTB Prowler MX 2.5 Comp FT / Dissent 2.5 Team RR A.V.
Maxxis Minion DHF / DHR rear
Maxxis Minion DHF / DHR rear
Seat
WTB Pure V Race
SDG I Fly I Beam
SDG I Fly I Beam
Seatpost
Easton Havoc 30.9mm
SDG I Beam Micro 30.9
SDG I Beam Micro 30.9



Full Bike
Full Bike

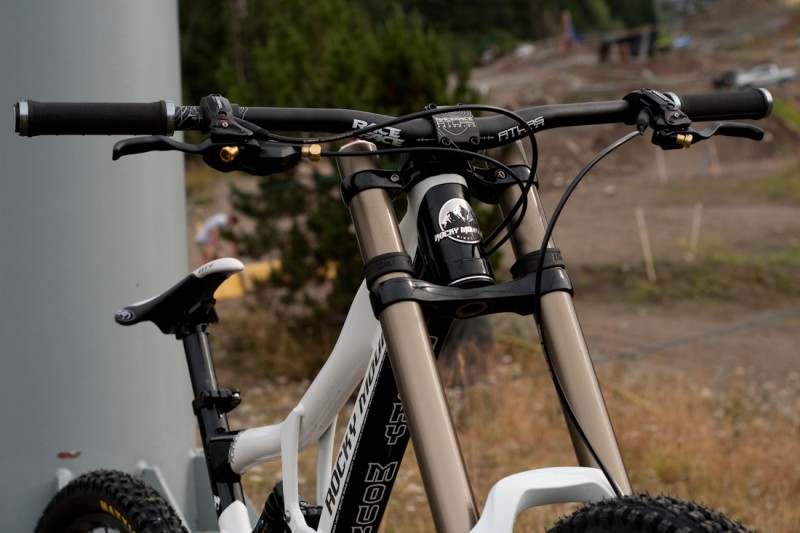

Cockpit Setup
Cockpit Setup

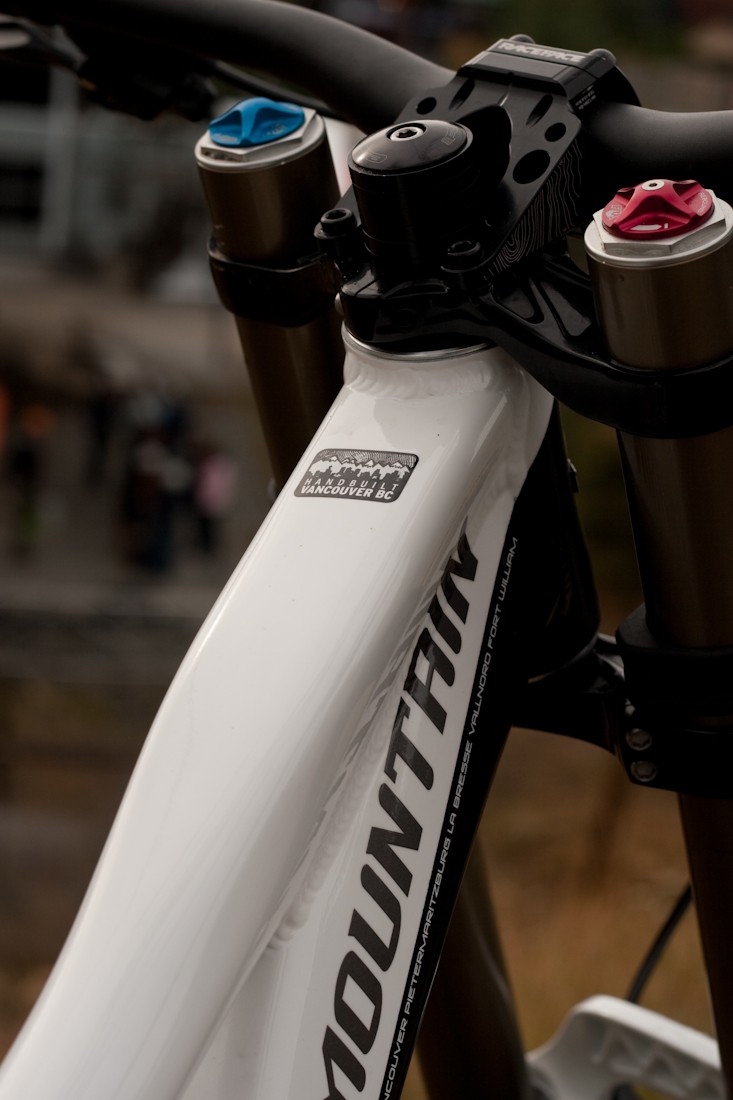

Low Stack Height
Low Stack Height

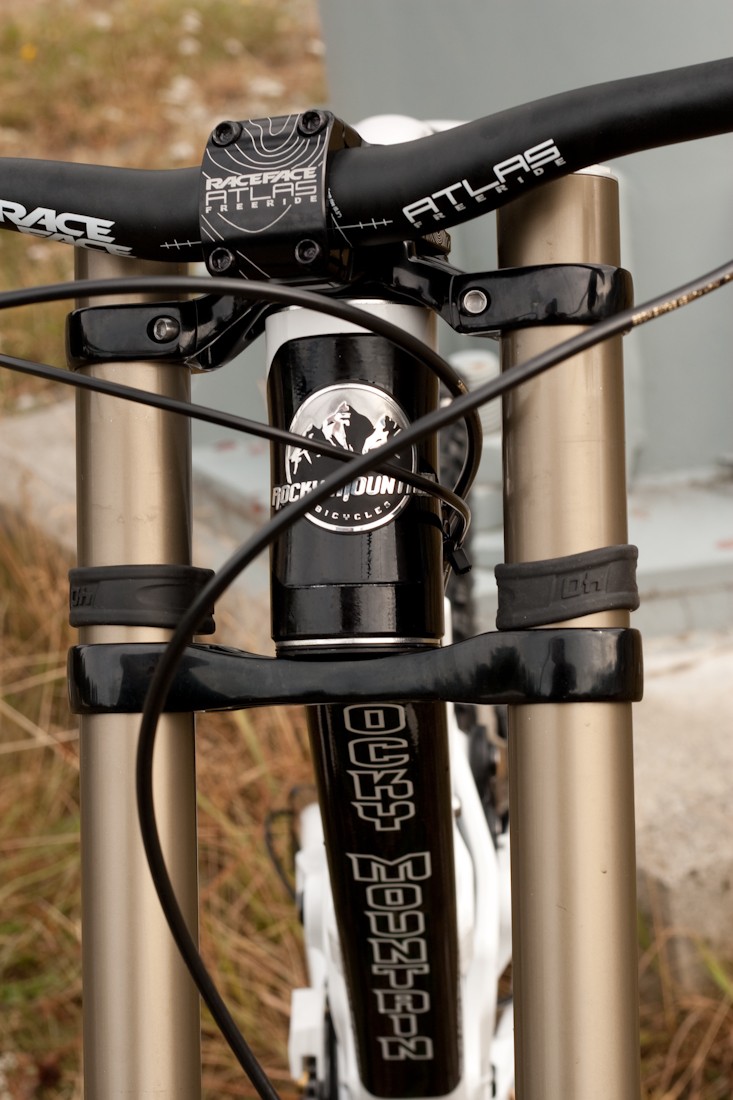

1.5
1.5" Headtube

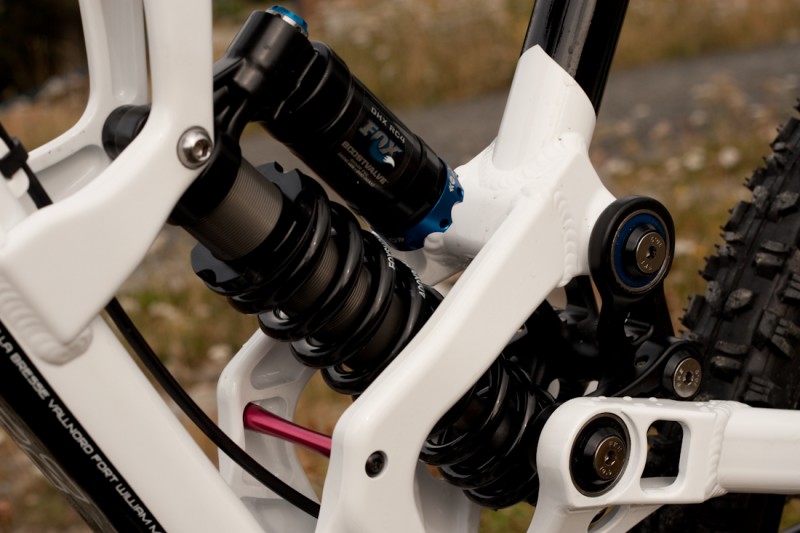

LC2R Suspension Technology
LC2R Suspension Technology

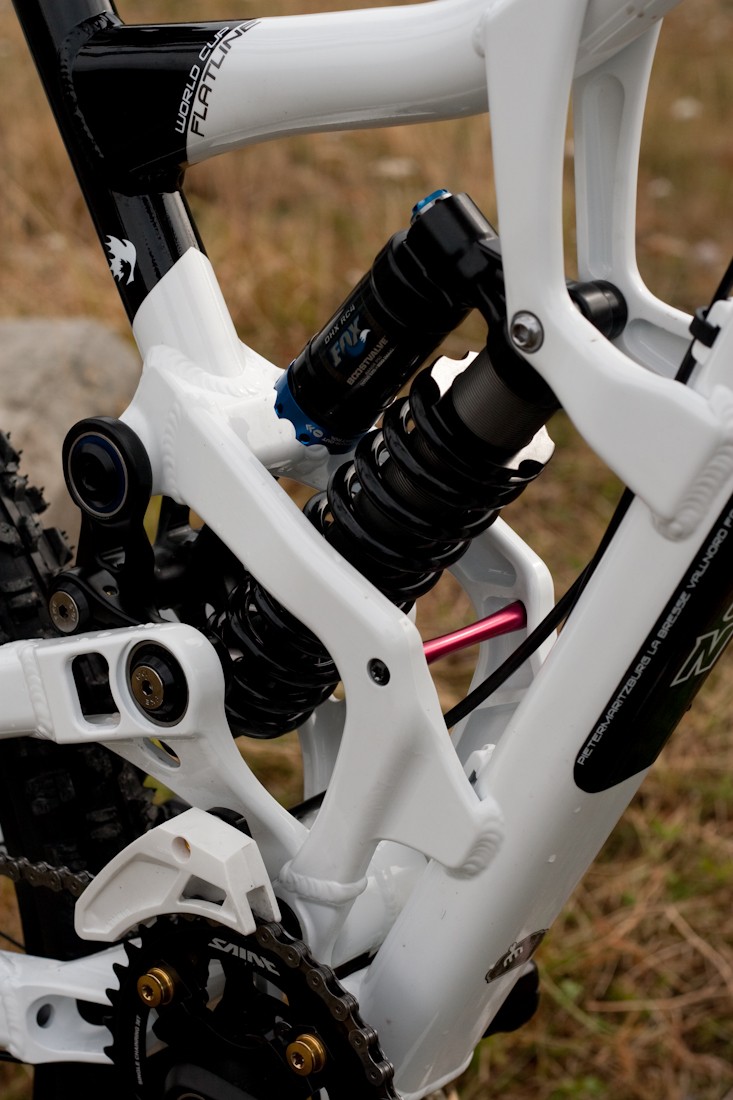

LC2R Suspension Technology
LC2R Suspension Technology

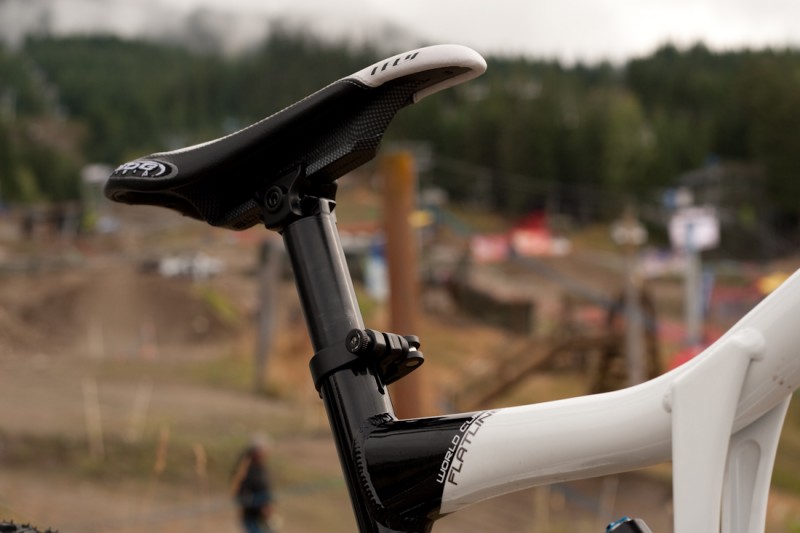

IBeam saddle
IBeam saddle

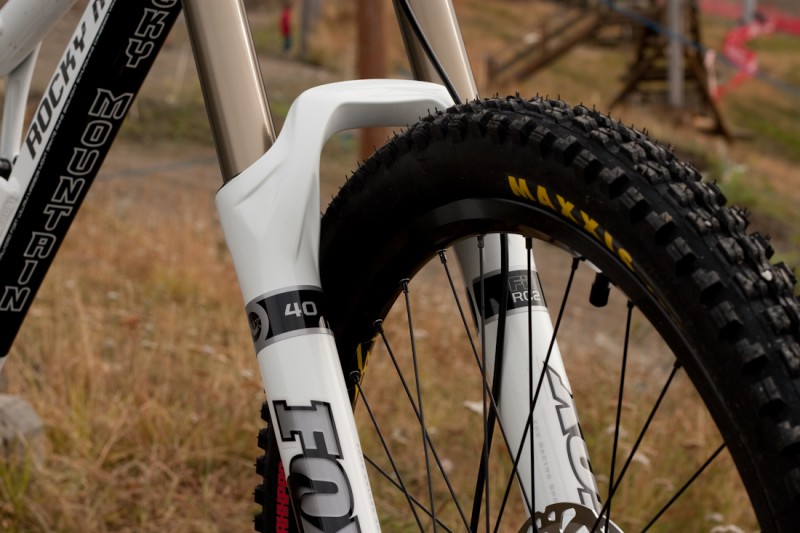

Fox 40 RC2
Fox 40 RC2

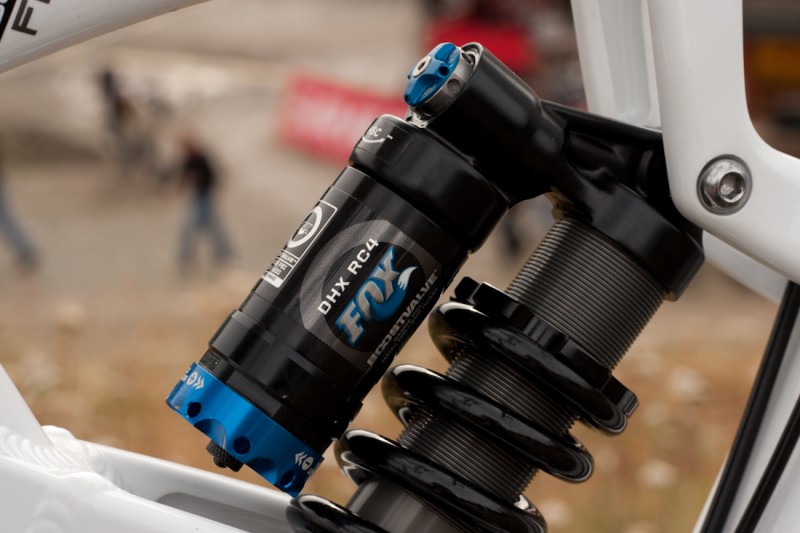

Fox RC4
Fox RC4

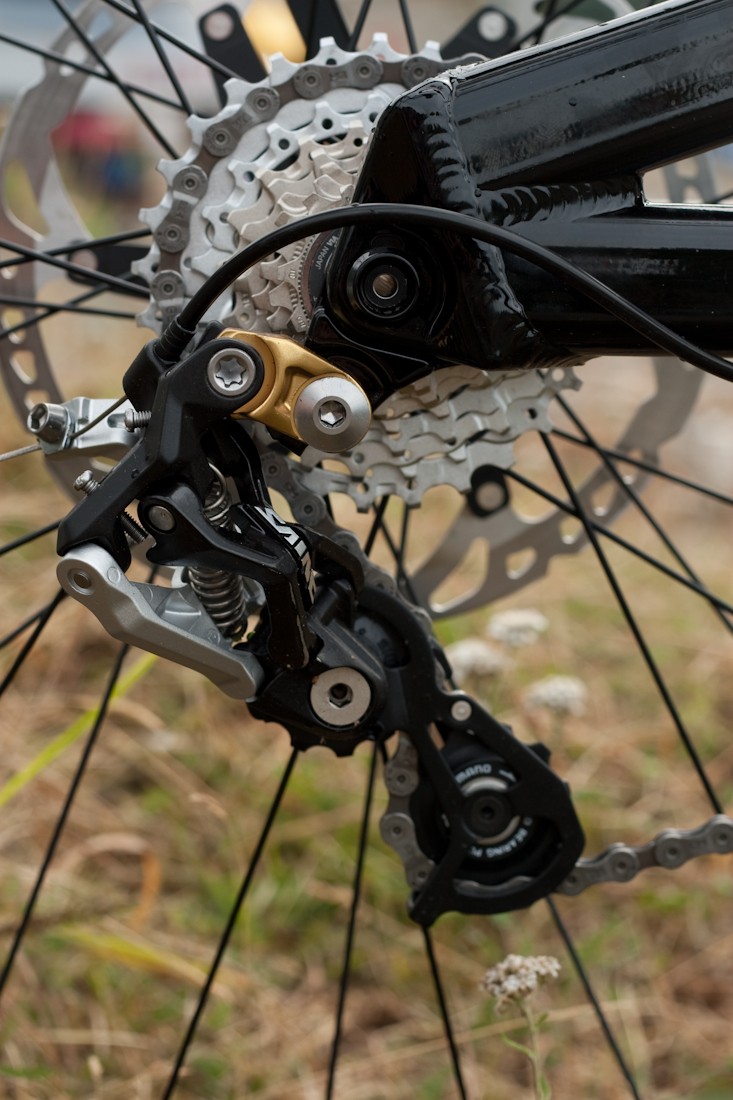

Integrated Thru-Axle
Integrated Thru-Axle

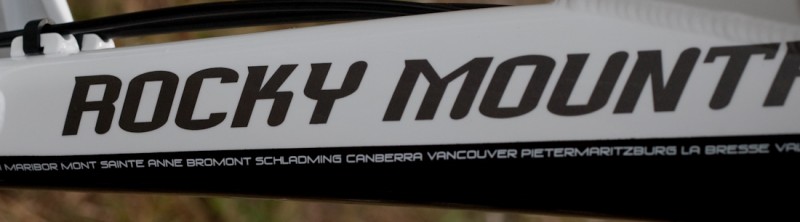

Decal Detail
Decal Detail

The 2010 Flatline will be offered in two race ready packages, the Flatline Pro and the Flatline World Cup. The Pro has a SRAM build including a Boxxer Race and Vivid 4.1 rear shock. The World Cup has a Fox and Shimano build, equip with the all new DHX RC4 and the Fox 40 RC2 fork.

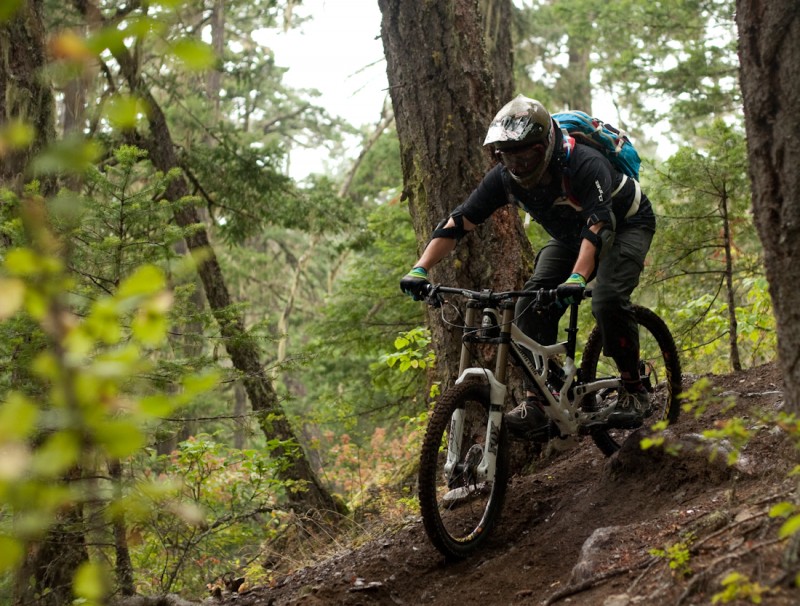

Dropping In
Dropping In

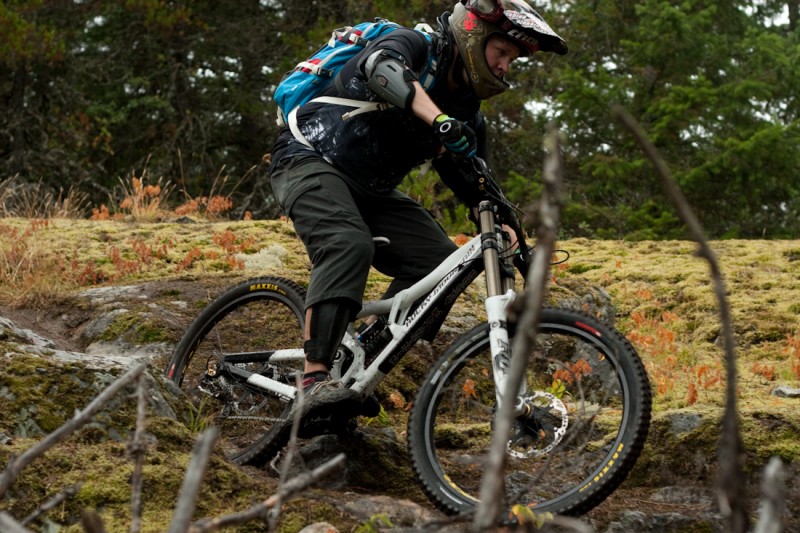

Setting up
Setting up

Monster trucking
Monster trucking

The Rocky Mountain Flatline launch took place in Pemberton where the trails are confined by tree's and branches, littered with rocks and rough lines, and were slightly damp. The Flatline, despite its 785mm wide bars and slightly steeper head angle felt stable when descending, and not twitchy or unpredictable at high speeds. The new Flatline is 2 inches shorter front to center than the previous frame design, so if you were not planted behind the bike when descending it felt easy to get over the bars in a uncomfortable fashion, this could have been a result of the low stack height. However when you were planted behind the bike descending the front tire tracked fine, while the suspension did all the work to keep you upright.

I got a chance to take the Flatline up into the Whistler Bike Park area for a couple laps on the jump intensive trails, and was impressed with how it rode up there. The Flatlines LC2R suspension design felt great under pre-load and landing of jumps, and still stayed plenty active when it was being piloted over extremely rugged or brake rutted sections.

The Flatline lineup for Rocky Mountain is going to be a contender on the race circuit in the 2010 race season for sure, so if your in the market for a new race bike, or just looking to try something different take a look at the all new Flatline.
