Tech Tuesday - Overhaul a BB30 Bottom Bracket

Jun 19, 2012 at 0:05
Jun 19, 2012
by Richard Cunningham

You must login to Pinkbike.
Don't have an account? Sign up

Join Pinkbike  Login

Today's Tech Tuesday is brought to you by Samuel Hardie, a PB member who wanted to know how to change the bearings in a BB30 bottom bracket, and also, the folks at Park Tool, who sent me bottom bracket tools for BB30 and for Shimano's PressFit BB system. Most modern press-in BB bearing systems use a cup or a housing that surrounds the actual bearing, which helps 'cushion' the ultra tight tolerances that frame makers would have to adhere to to press the bearings directly into the frame's BB shell. The cup also makes it easier to remove and replace the bearings, because it is a larger, easier-to-handle piece. Either way, removing and replacing the bearings in threadless bottom bracket shells is a simple process when armed with the proper tools.

what you ll need II

How To and How Not To Service a Press Fit BB

There are a couple of methods to remove and replace pressed-in bottom bracket bearings: The first is the crude, but simple BMX method (also called, the Dad Method), that entails pounding out the old bearings with a framing hammer and a BFS (rather large screwdriver) and then pounding the new bearings back in place with a block of wood and a positive, winning attitude. Hey, it works in a pinch, but the probability that you will damage a bearing by pitting the races as you pound on the bearing is almost certain. We recommend the second method - using the Park BBT-30.3 tool and a simple-to-make press using a threaded rod to remove and install press-fit bottom bracket bearings. (Park Tool offers a ready-made press for this task.) The basic technique is a much-evolved version of the Dad Method that it is gentle on the bearings and far more precise when it comes to keeping all the bits aligned during the process.

Before We Get Started, Meet the Key Players

The removal tool has a stepped plastic guide that ensures the business end is aligned perpendicular to the bearing. The metal rounds are used to keep the bearings in alignment as they are being pressed into the frame.
The Park BBT-30.3 removal tool has a stepped plastic guide that ensures the business end is aligned perpendicular to the bearing. The metal rounds are used to keep the bearings in alignment as they are being pressed into the frame.
Assemble the press by tightening the washers between two nuts about five inches inboard. This forms a crude handle. Use a wrench on the opposite nut to press the bearings in.
Assemble the press by tightening the washers between two nuts about five inches inboard. This forms a crude handle. Use a wrench on the opposite nut to press the bearings in.



How to Remove and Replace BB30 Bottom Bracket Bearings


Remove the crankset n this case a 10mm Allen key is all that is necessary because Truvativ cranks are self-releasing . Note how all the bits go together and set the assembly aside.
Step 1 - Remove the crankset. In this case, a 10mm Allen key is all that is necessary because Truvativ cranks are self-releasing. Note how all the bits go together and then set the assembly aside.
Angle the removal tool into the bearing and then slide the guide into its ID. Feel around until you get the business end locked into the bearing on the opposite side.
Step 2 - Angle the removal tool into the bearing and then slide the guide in place. Feel around until you get the business end locked into the opposite bearing's ID.
Before you start hammering check the tool to be certain that the business end is aligned with the inner race of the bearing. It should not take much force to tap out the cups with the hammer.
Step 3 - Before you start hammering, check the tool to be certain that the business end is aligned with the inner race of the bearing. It should not take much force to tap out the cups with the hammer.
After the first bearing is pressed out the larger flange on the stepped tool guide fits in to the empty BB shell.
Step 4 - After the first bearing is pressed out, the larger flange on the stepped tool guide fits in to the empty BB shell.
Clean everything and then put a thin film of grease on the cups where the bearings will press in to prevent creaking.
Step 5- Clean everything and then put a thin film of grease on the cups where the bearings will press in to prevent creaking.

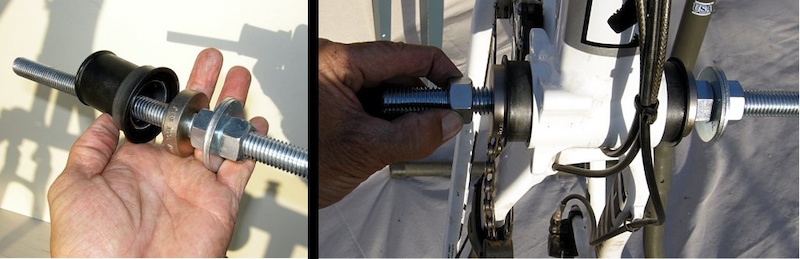

Slide one bearing assembly onto the threaded shaft and slide everything into place on the bottom bracket shell.
Step 6 - Slide one bearing assembly onto the threaded shaft and assemble the opposite bearing into place on the bottom bracket shell. Snug up the press finger tight and check that the cups are not canted in the frame before you start cranking with the wrench.
Tighten the press slowly while checking that the bearings are not canted as they enter the shell. here should be no gaps around the circumference of the cup.
Step 7 - Tighten the press slowly while checking that the bearings are perfectly aligned as they enter the shell. There should be no gaps around the circumference of the cup when you are done. (some BB shells have internal snap rings that the bearing assembly presses up against. In this case, you'll want a snug fit against the snap ring - don't overdo it.)

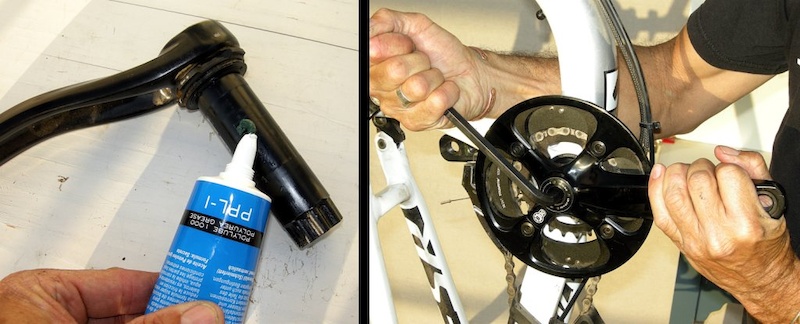

Put a thin film of grease on the crank axle and spline but don t overdo it. Reassemble the bits in the reverse order and torque the crank bolt to the maker s specification. The cranks should spin freely.
Step 8 - Put a thin film of grease on the crank axle and spline. Reassemble the bits in the reverse order and torque the crank bolt to the maker's specification. The cranks should spin freely. If not, check the left-side for an end-play adjustment (Truvativ and Shimano have them) and readjust the bearing preload. Otherwise, check for a misaligned bearing or cup and reset that bearing if necessary.


Want the Short Version? Watch the Park Tool Video
