Tech Tuesday: Six measurements that every rider should know.

Jul 12, 2011
by Richard Cunningham
Those who travel with their bikes, or anyone who has had to borrow a bike in a pinch will understand that knowing a few basic measurements, like saddle height and the distance from the handlebar to the saddle, could save a lot of setup time and prevent some mid-ride frustration. In this Tech Tuesday, Pinkbike covers six basic measurements that every rider should memorize (or keep handy) that will make it possible to set up a reasonably correct sized bike to fit your body and riding style.

Use these measurements to get your personal bike perfect after shipping, or to adjust an unfamiliar bike to fit you as closely as possible. Remember that small differences in geometry and component spec can make big changes in your position on a different bike. In this situation, Pinkbike's setup guides will get you close to optimum in the shortest amount of time. If you require perfection to ride a borrowed bike for one day, don't expect your friends to circle around in the parking lot for an hour waiting for Mister Fuss Butt. Consult a psychotherapist and a bike-fit professional.

tools

What you'll need:
- Measuring tape
- A Sharpie or other permanent marking pen
- Sturdy writing paper that will stand the test of time in your wallet
- Your personal bike, set up exactly how you like it (you'll be measuring this)
- Positive, winning attitude


Step one: Get a pen and paper ready and find a place where you can prop your bike up on level ground. The level ground part is important.

Step two: Measure the distance from the imaginary center of the bottom bracket axle to the center of the top of the saddle. You will have to guess where the middle of the saddle is, or pick the point where an imaginary line through the center of the seatpost intersects the top of the saddle. Write this down.


seat height full
Step two
Seat height
Step two detail

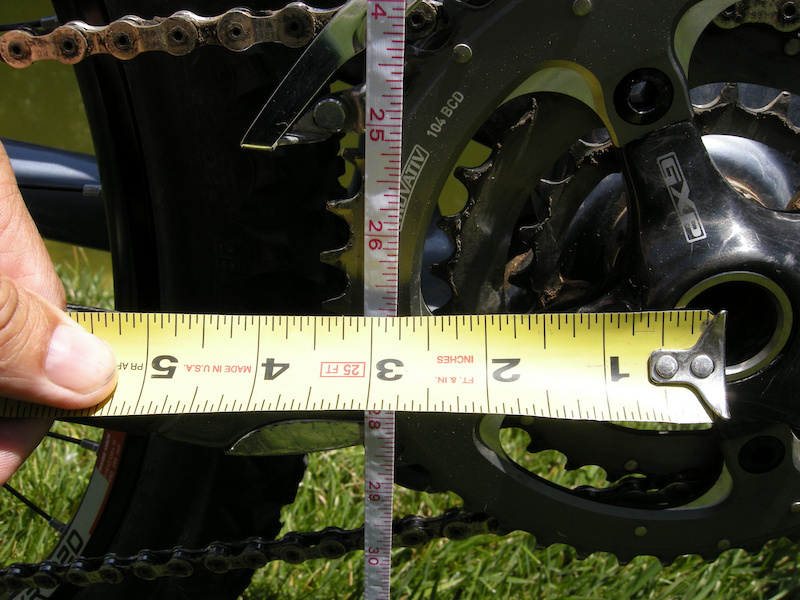

Step three: Measure your saddle setback from the bottom bracket center to compensate for different seat tube angles. Use the measuring tape as a plumb line from the tip of the saddle. Mark the crankset with a Sharpie where the edge of the tape passes behind the bottom bracket axle and then measure the distance horizontally from the mark to the center of the bottom bracket - write this down. First, set your proper seat height, and then use this measurement to establish if the saddle needs to be moved fore or aft on the seat post. I would not recommend worrying about this unless you plan to race XC or ride trail for extended distances.


pendulum
Step three - first part
seat offset
Step three - second part


Step four:Measure the distance between the nose of the saddle and the center of the handlebar where it passes through the stem and jot it down. In most cases, you won't be able to change out your stem, so try to slide the saddle on the seat post to get this distance as close as possible. Your bike will steer and handle better if you get this measurement right, and in most cases, it's better to abandon the step-three measurement in favor of step four.


top tube
Step Four


Step five: Most bikes have too many spacers between the stem and fork steerer tube, but in this case, it’s a good thing. Measure from the ground to the handlebar and switch the spacers around to achieve a bar height that approximates your own bike.

Tip: A more accurate bar height reading is to measure the top of the saddle to the ground and subtract that number from the bar height. This compensates for various BB heights, but because they only vary by ¾ of an inch, it’s a moot point for a one-day ride.


Bar to ground
Step Five


Step six: Before you set out, check these three component adjustments. Measure where the distance between the kink in the brake lever blade and the inboard edge of the grip. Memorize the angle of the brake levers by sight, and count how many clicks you use to set your clipless-pedal engagement tension (providing there is such an adjustment).

Tip: Most shifters work best when angled about the same as, or a little steeper than the brake levers.


lever set
Step Six - A
lever angle
Step Six - B
Pedal
Step Six - C


Got any more tips to make that quick bike setup even easier? Pinkbike would like to hear about them.
