Trek 2011 Scratch Air 8 - Previewed

May 3, 2011

by Brad Walton

What it is:
Trek's 2011 Scratch Air series addresses the more aggressive side of the all-mountain spectrum - aimed at conquering gravity on the climb, but with the primary emphasis on getting rowdy on the way back down. The new Scratch Air 8 and 9 feature the same rugged 170-millimeter-travel frame that Trek introduced last year, but in a lighter-weight package. Highlights of the Scratch chassis include adjustable frame geometry; Trek's Active Braking Pivot (ABP) and Full Floater suspension; Fox air-sprung suspension front and rear; a tapered steerer tube; a Bontrager tubeless wheelset; and a 20-millimeter front axle, with a 142x12millimeter through-axle in the rear. Add a roller-guide-equipped 2x10 drivetrain, and the Scratch Air will surely be of interest to those who earn their turns.

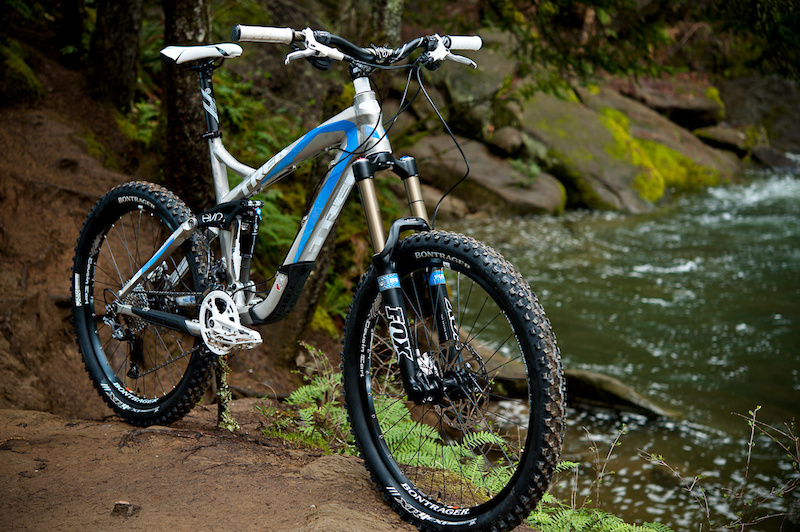

The 2011 Trek Scratch Air is quite the versatile steed to consider if you are a full-mountain assaulter who can only own, or only wants to maintain, one bike.

Trek Scratch Air details:

- Designed to be a middle ground between an all-mountain bike and a gravity bike
- 170mm (6.7 inches) of rear wheel travel
- 160mm (6.3 inches) or fork travel
- Fox 36 Float R fork and Fox Float RP-2 shock
- Adjustable geometry (66/66.6 degree head angle)
- Uses Trek's ABP and Full Floater suspension
- MSRP $3879.99 USD

Scratch Air Frame:
Flowing hydroformed top and down tubes perfectly fit the volume of the Scratch Air's massive tapered head tube, and that is not for looks. Trek's rigid frame design begins at the oversized head tube junction with internal bearings at both ends that cradle the Fox 36' fork's tapered steerer tube. The tapered head tube and fork steerer increase stiffness over a traditional 1-1/8-inch arrangement, while making for easier stem selection. Trek's beefy Evo rocker link further boosts the rigidity of the Scratch chassis, while alloy hardware at the main pivot points help to reduce weight. Asymmetrical chainstays on the Scratch beef up the rigidity in the back end, adding to the lateral stiffness that enables the bike to hold a line under hard cornering. The chainstay design allows plenty of room for a direct-mount front derailleur, which keeps the bike shifting even when packed with mud. A reversible chip on the Evo Link's seatstay pivot allows slight changes in the bike's geometry. The factory setting is the steeper, 66.5 degree head angle which also sets the bottom bracket height at 14.5". After one ride, I swapped it to the slacker/lower 66-degree setting and the bike really came alive on the descents.

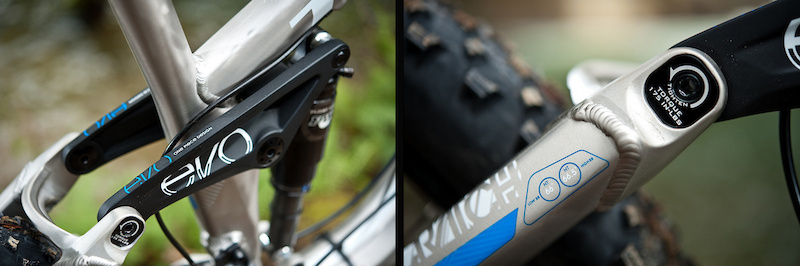

The Scratch's welded, one-piece Evo Link features inserts that allow you to adjust the head angle between 66 and 66.6 degrees, which slightly alters the bottom bracket height.

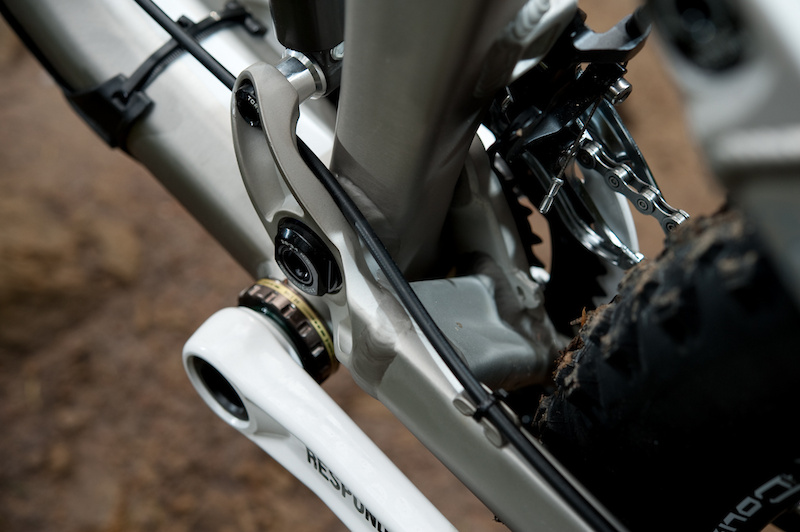

The asymmetrical chainstays extend forward of the main pivot and become the shock's lower mounting point, meaning that the shock is not mounted directly to the front triangle.

Suspension and Braking:
Trek's Full Floater suspension design is based on the concept that the shock 'floats' between the upper rocker link and the swingarm. The top of the shock is mounted to the Evo link rocker, while the bottom of the shock mounts to a section of the swingarm that extends ahead of the main frame pivot. This keeps the stress of the suspension concentrated on the already reinforced swingarm and rocker link and away from the lighter-weight front-triangle of the frame. Trek's Active Braking Pivot (ABP) design places the rear seatstay pivot as a concentric point around the 142x12mm axle. The location of the Scratch's EVO rocker geometry and ABP concentric dropout design work together to isolate braking forces from affecting the suspension.

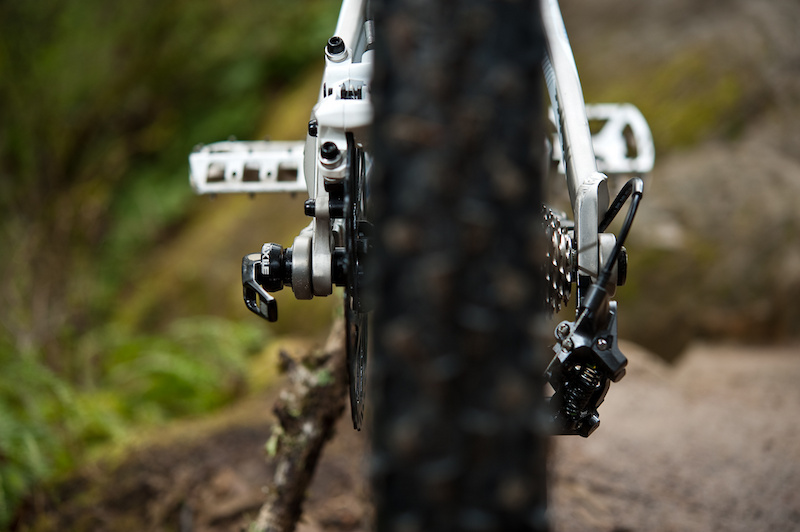

The Scratch's Active Braking Pivot (ABP) allows the rear pivot to rotate concentrically around the axle which, Trek says, allows the bike to remain active under braking.

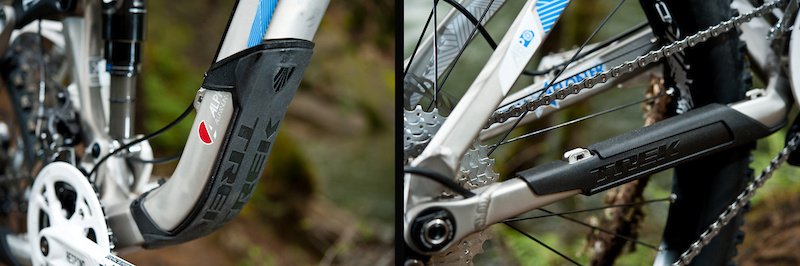

Trek thought ahead in the frame protection department. While all the cable attachment points are held securely with zip-ties, the chainstay and lower downtube have their own custom frame armor to keep the critical wear points in check for the long haul. I wasn't able to obtain a frame cut-away of the Scratch, but I'd suspect these oversized hydroform tubes are thinner than most alloy tubesets. Probably a good idea to keep the armor on.

Scratch Air Spec:
Up front is a Fox 36 Float R fork with 20mm axle and tapered 1.5" to 1-1/8" steer tube. The Float R fork features an air spring and rebound adjustment. The R series does not have any compression adjustability, but it's simplicity is matched with the Fox RP-2 shock which is valved similarly. The Scratch's 142x12mm rear axle standard, found on many of Trek's bikes for 2011, finds a happy medium between the convenience of the 135mm quick-release axle and the added stiffness of the 150mm bolt-on DH standard. Utilizing a Maxle through-axle, in the back end of the Scratch Air makes for a stiff, lightweight, and very convenient wheel installation. Trek also provides adapters so you can run a standard 135x10-millimeter quick-release axle if you'd like. Bontrager is Trek's in-house brand of components, which includes the seatpost, stem, handlebar, grips, tires, saddle, and Cousin Earl wheels on the Scratch Air 8. In-house parts are a good way for a company to keep the MSRP down without sacrificing on spec, and Bontrager quality is well-known even in the aftermarket segment. The 80mm stem and 28" handlebar are borrowed from Scratch's little brother Remedy, but both seem a bit inconsistent with the Air 8's downhill capabilities. Time will tell!

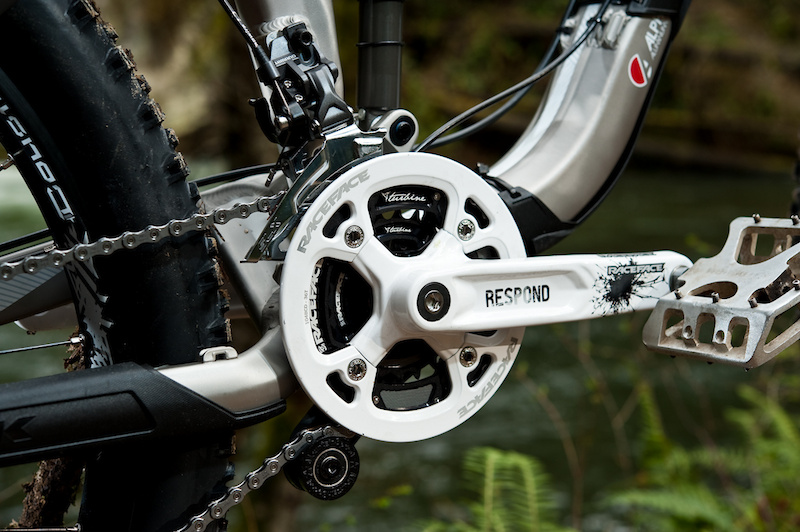

Race Face Respond cranks offer a solid connection between rider and bike, while the MRP LRP chain roller keeps the 2x10 drivetrain in check. The direct-mount front derailleur could not be any easier to adjust, and really cleans up the basement of the bike as compared to the usual clamp-on style.

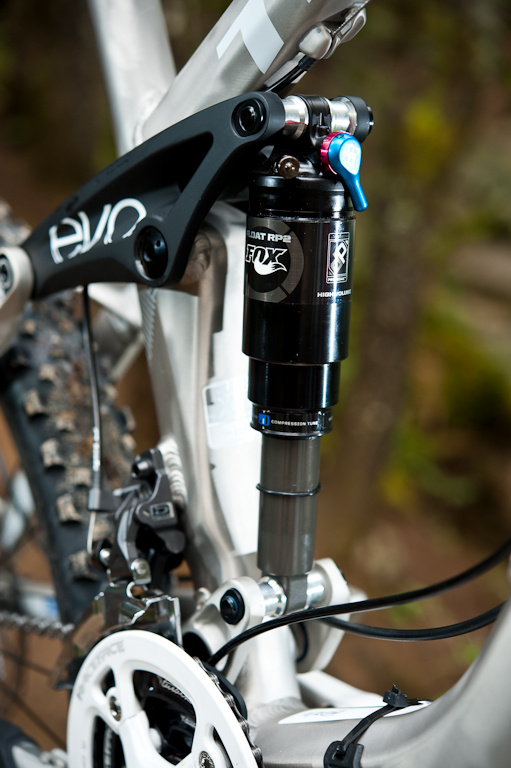

The bike is air sprung on both the front and rear, with a custom tuned Fox RP-2 out back that is equipped with a high volume XV air canister.

Specifications
Release Date	2011
Price	$3879.99
Travel	170mm
Rear Shock	Fox Float RP-2
Fork	Fox 36 Float R
Headset	FSA Sealed Bearing
Cassette	Shimano HG8110 11-36, 10 speed
Crankarms	Race Face Ride
Chainguide	MRP LRP
Rear Derailleur	Shimano SLX
Front Derailleur	Shimano SLX
Shifter Pods	Shimano SLX, 10 speed
Handlebar	Bontrager Rhythm Pro, 31.8mm, 50mm rise, 9 degree sweep
Stem	Bontrager Rhythm
Brakes	Avid Elixir 5
Wheelset	Bontrager Cousin Earl Disc
Tires	Bontrager XR4 Expert, 26x2.35
Seat	Bontrager Evoke 2
Seatpost	Bontrager Rhythm Elite, 31.6mm

Compare to other All Mountain/Enduro/XC

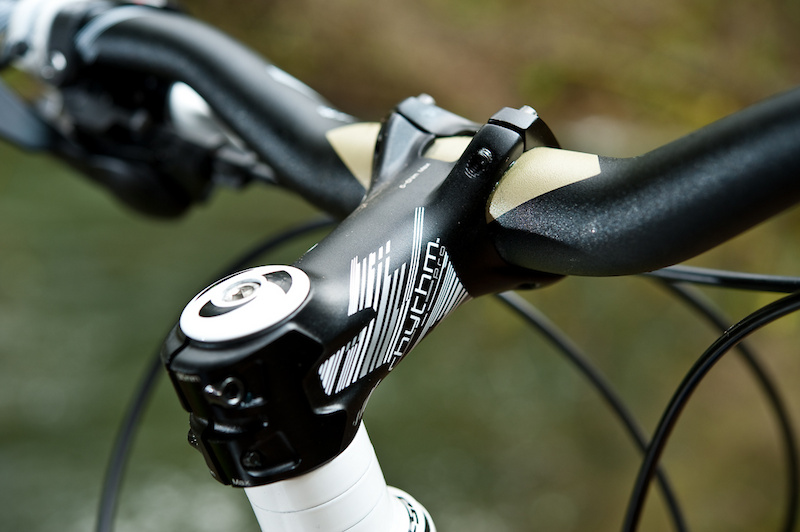

An array of Bontrager parts helps to keep the asking price reasonable, and while they may not be as sexy as some other components, they look to be more than up to the task

A word on sizing the Scratch: Trek has scaled down the Scratch series using their Virtual Seat Tube measurement. Pretty much every bike I've ridden has been a "Large", 19.5-inch, but the top tube length of Trek's size Large 19.5-inch Scratch Air is over an inch shorter than what I am used to. For that reason, I went with a XL, 21.5-inch-sized frame, which fits me perfectly. The geometry charts don't lie, so know your numbers or try on a bike at your local shop before purchasing.

At MSRP $3879.99 USD, the Scratch Air 8 has a very well-rounded component spec with part selection based on stiffness and durability. For a little over a thousand bucks more, the bike gets even lighter with the Scratch Air 9, previewed by Mike Levy.

Look for a complete test of the 2011 Trek Scratch Air 8 soon.

Pinkbike's first take on the 2011 Scratch Air:
Overall, I am highly impressed with the Scratch Air 8 based on Trek's forethought in building a bike around advances in stiff, light components that continue to emerge in our industry, and taking those same concepts and incorporating them into their own product for seamless integration. While products similar to the Air 8 were available 5 years ago, Trek's advances in hydroform tubing and the utilization of new systems such as ABP, 142x12mm axle, and tapered steer tube allow the Scratch to be significantly stiffer, stronger, and lighter than anything they've produced before. The growing quest for the ultimate do-everything bike is definitely not without competition, but the Trek Scratch Air 8 certainly seems like a solid contender. Look forward to a thorough review in the near future.

Visit the Trek website to see their entire lineup.

Photos by Brad Walton.
