Bike Check: Jolanda Neff's Olympics-Winning Trek Supercaliber

Aug 27, 2021
by Alicia Leggett

BIKE CHECK
Jolanda Neff's
Trek Supercaliber
Photography by Ross Bell

Anyone's story of winning the Olympics is bound to be a good one. After all, it is arguably the most prestigious achievement in all of mountain biking. That said, Jolanda Neff's victory in Tokyo last month was especially sweet, given that she's suffered from a string of setbacks that have kept her off the World Cup podium for some time now.

In late 2019, Neff crashed brutally while training and injured her spleen, collapsed a lung, and broke a rib. It was a long road to recovery. When normal World Cup racing resumed in 2021, it seemed as if Neff was climbing back up the results to once again contend for the win, but she crashed and broke her hand in Leogang, just six weeks out from the Olympics.

So, then, when she took the lead early in the Olympic XCO race and continued to lead until she had claimed gold as her own, it had been a long time coming. Let's take a look at the bike that carried her there.

Jolanda Neff // Trek Factory Racing
Height: 169cm
Weight: 53kg
Instagram: @jolandaneff

When photographed, the bike still had Tokyo mud on it.

The "First Light" color scheme: "It starts with red hot passion, moves to bright yellow joy, fades into subtle mysterious white, and finishes off with a sky full of flowing energy," Neff posted on Instagram.
Details
Frame: Trek Supercaliber, size 17.5"
Shock: Trek's Fox-made IsoStrut, 60mm, 105psi, 9 clicks rebound
Fork: RockShox SID Ultimate, 100mm, 66psi, 8-10 clicks rebound
Wheels: 29" Kovee XXX
Tires: Bontrager XR2 2.2", 16psi F, 18psi R w/ inserts
Drivetrain: SRAM Eagle AXS XX1
Brakes: SRAM Level Ultimate, 140/160mm rotors
Cockpit: Trek RSL integrated cockpit, 80mm stem, -13 degree drop, 690mm bars
Weight: 10.2kg
More info: trekbikes.com

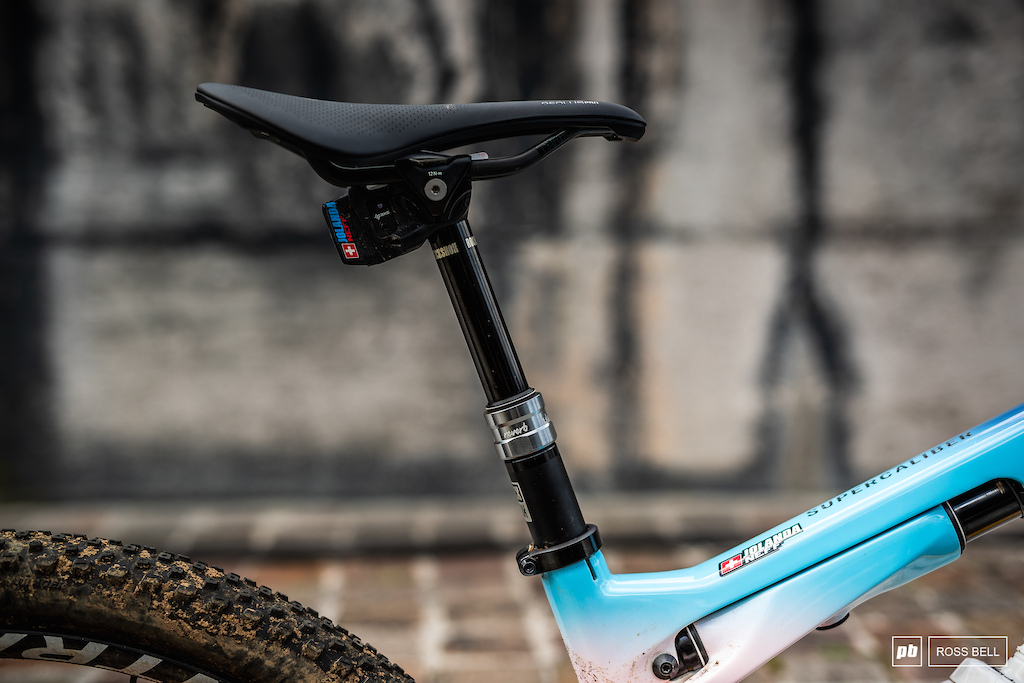

Dropper post, always. While many of her fellow cross country racers still eschew dropper posts, Neff started riding with one years ago and won't go back.

Many speculated about the wavy tape on Neff's downtube at the Olympics. The idea is to make it more difficult for mud to stick to the frame, but in the event that mud does collect on the tape, pulling the tape off the bike would be an easy way to cut the bike's weight back down, even mid-race.

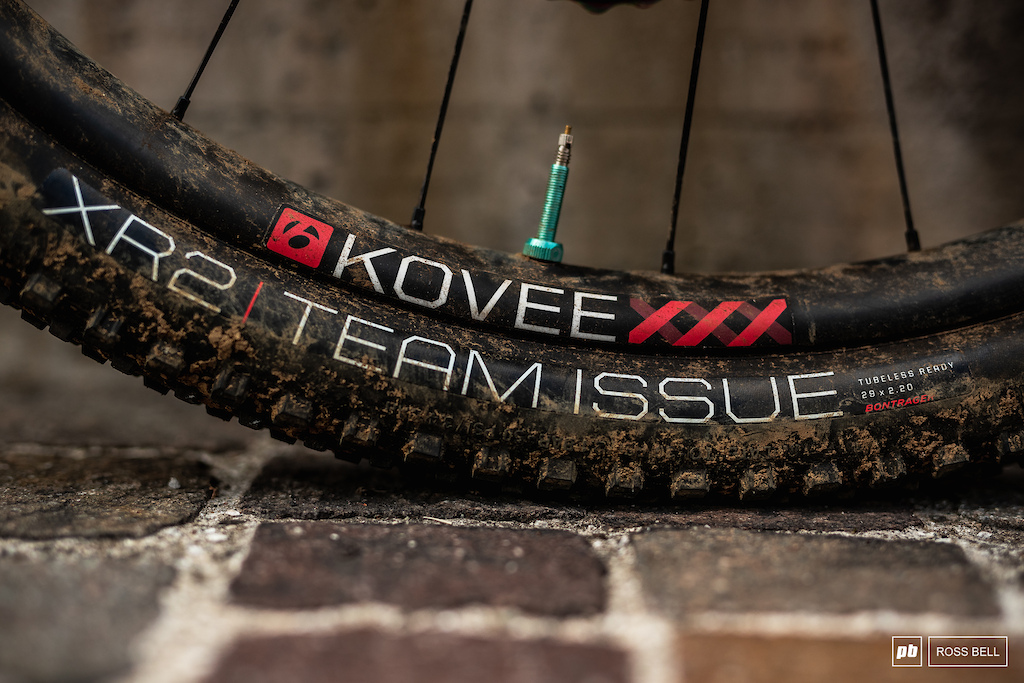

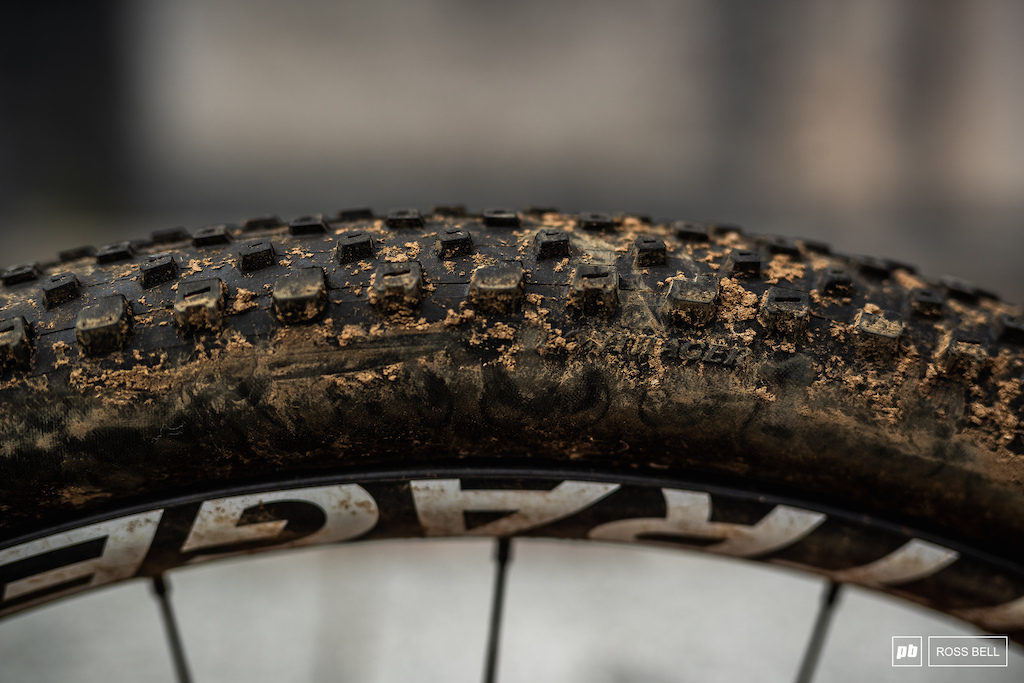

Neff typically runs Bontrager's XR1 or XR3 tires in dry conditions, but opted for the more robust XR2 set because of Tokyo's mud.

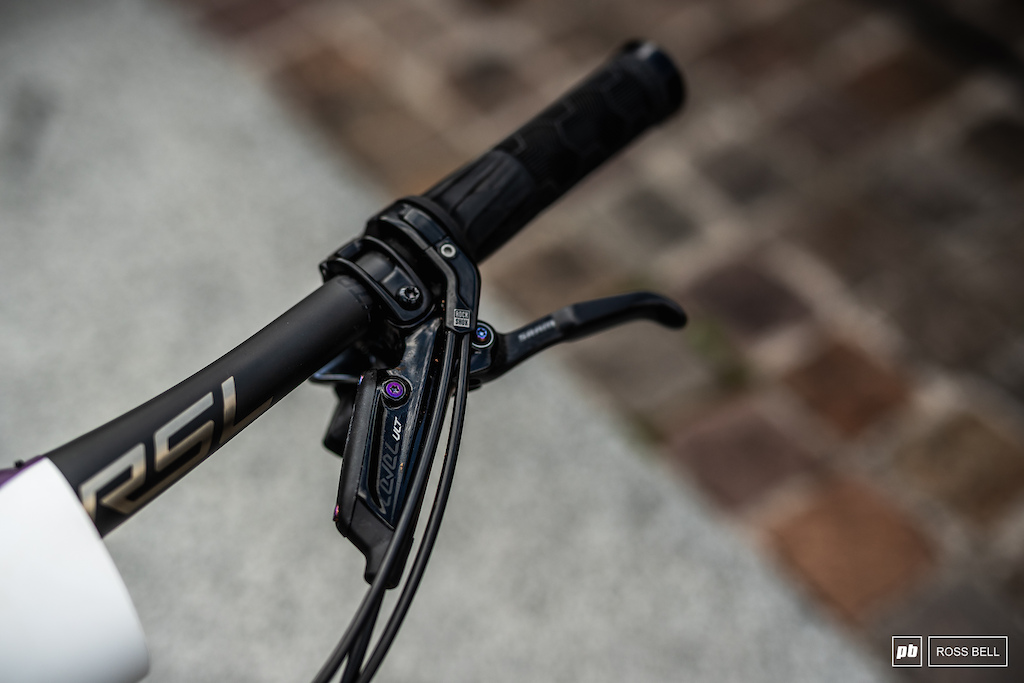

Neff's Level Ultimate brakes have titanium bolts to help shave a bit of extra weight. The front and rear suspension locks out with RockShox's TwistLoc system, and Trek designed the Supercaliber to ride more like a hardtail than a locked out full suspension bike when the IsoStrut is locked.

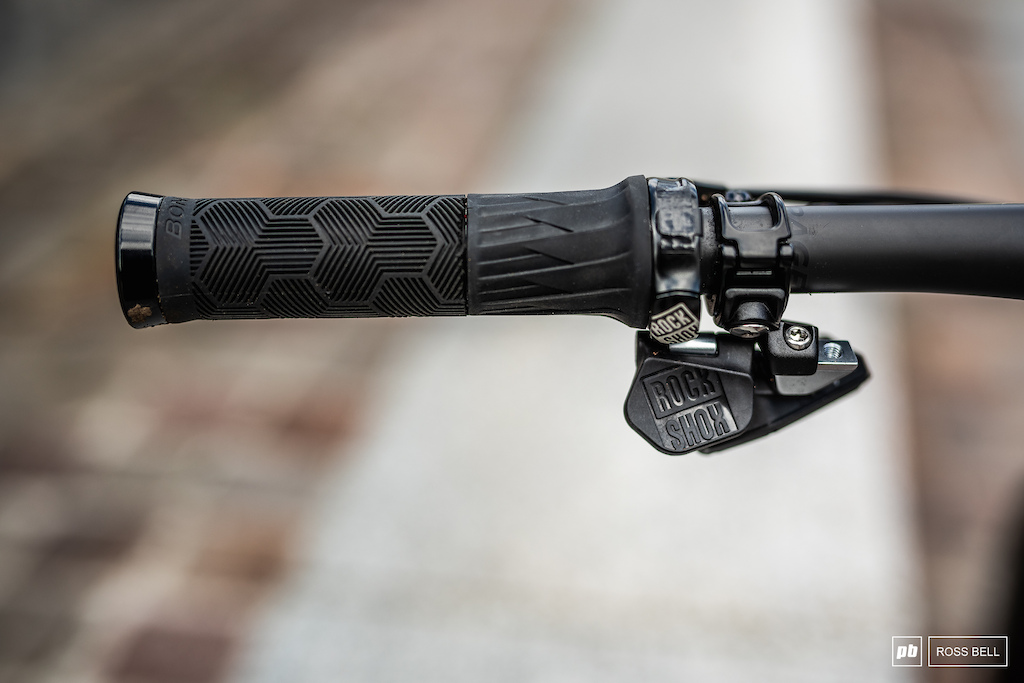

Neff has said in the past that she is quite particular about her setup and likes to keep things extremely consistent when she moves from bike to bike. Although she just recently started running Bontrager's new RSL integrated cockpit, the measurements are the same as what she's run for a while.

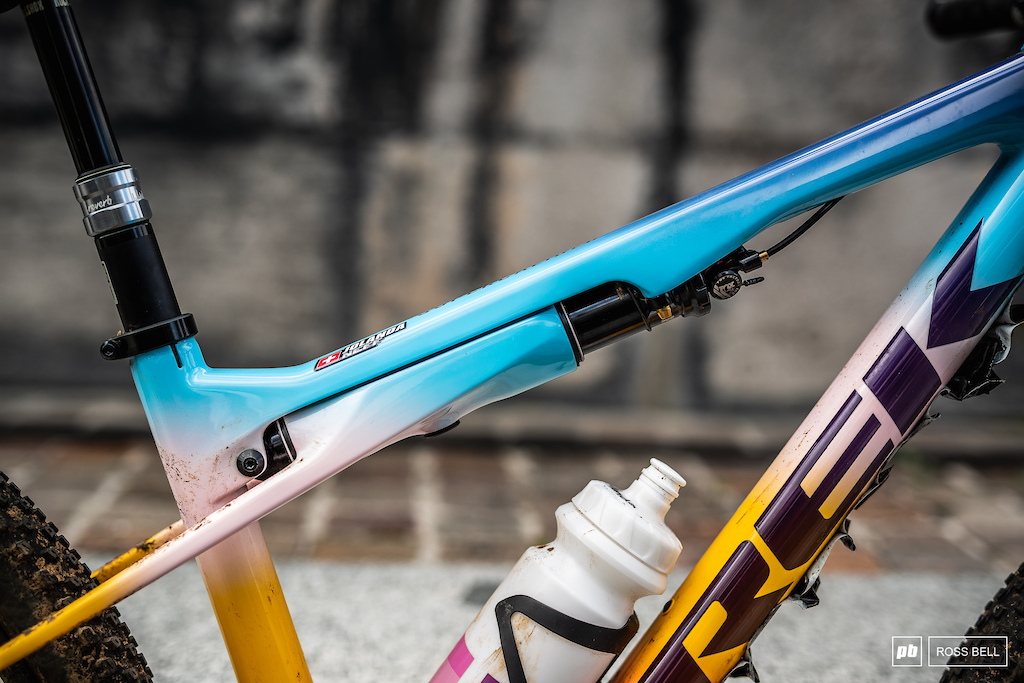

The Supercaliber's IsoStrut serves as a structural part of the frame and was designed in collaboration with Fox. Unlike most rear shocks, it isn't driven by a linkage. The seatstays are pivotless and flex to move with the suspension.

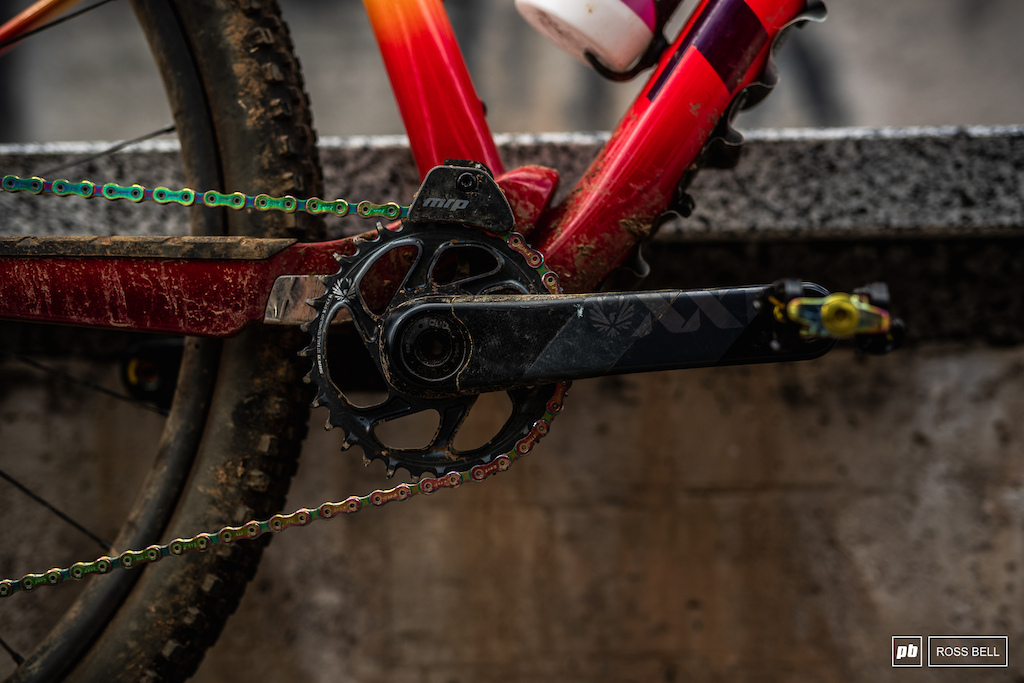

Neff runs a 32t chainring and 10-52t cassette with her Eagle XX1 AXS setup, though she changes the chainring size depending on the course, especially between short, flat XCC and long, steep XCO races.

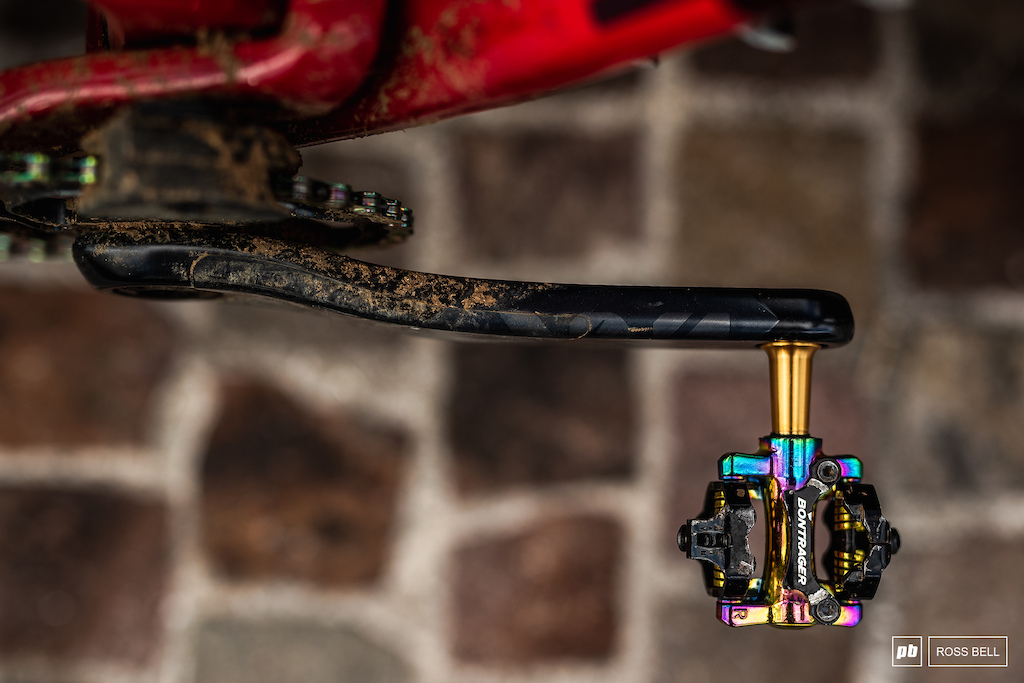

An MRP chainguide and Bontrager titanium pedals finish it off.

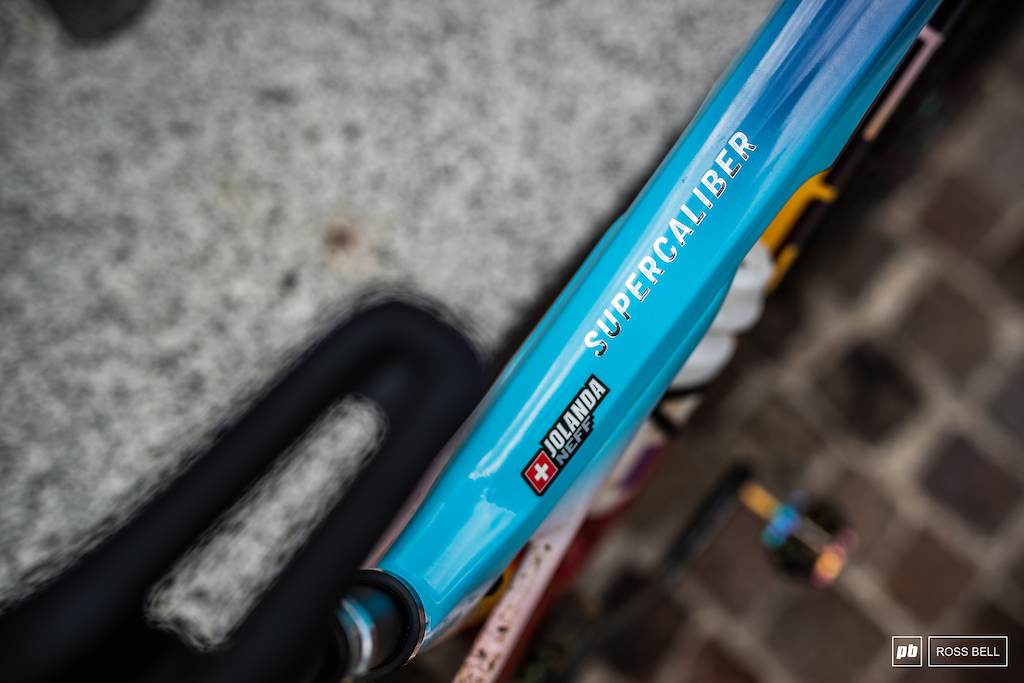

Some personal touches, of course. It's only fitting for the rider who is now the Olympic champion.

Now the Olympic champion, Neff may be able to brush off her slump of the past year and climb back up onto the podium at World Champs this weekend.
