First Look: Angeles' Spade Prototype Was Designed by a 19-Year-Old

Mar 22, 2023
by Matt Beer
Angeles Spade

The future looks bright for the youth that take advantage of the technology we have at our finger tips today. Take for example, nineteen year-old Ethan Eggert of Bend, Oregon who is producing his own enduro frame under the brand name Angeles. The 170mm of travel “Spade” prototype a CNC'd frame built for enduro racing and freeriding.

Ethan admits he’s had friends help him bring the prototype to fruition with photography, marketing, and 3D printing test models. However, he did design the frame, linkage, and graphics himself.

Angeles Spade Details
• Wheel size: Dual 29", MX, or dual 27.5"
• Frame material: CNC'd 7075-T6 alloy (and more)
• Travel: 160-170mm, 160-200mm
• 63° head tube angle
• Reach: 475-485mm
• Chainstay length: 440, 450, 460mm
• Sizes: L
• Pricing: TBD
• Weight: TBD
angelesbikes.com

The brand’s name and theme come from Port Angeles, home of the Northwest Cup - one of Ethan’s favorite places to ride. After that, he happened upon a suiting model name when he picked up an ace of spades, Bicycle branded playing card, complete with angels on the back.

bigquotesThe idea started when I was helping a friend fix his bike and I was trying to explain how the linkage on his frame could be better but he just looked at me very confused and just said you should make your own frame and here we are.Ethan Eggert


Angeles Spade
Angeles Spade
Angeles Spade
Angeles Spade

Frame Details

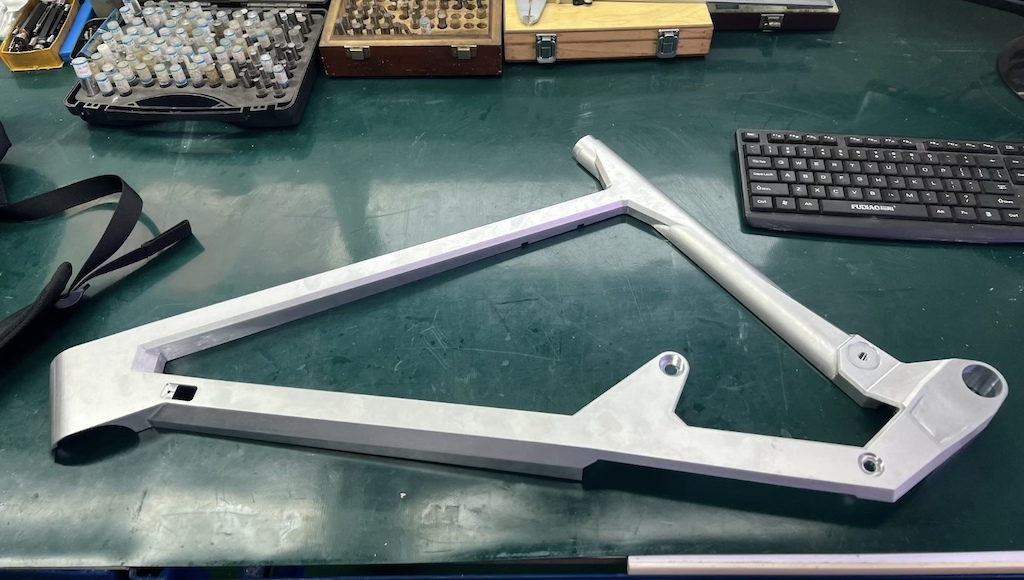

Taking cues from recent manufacturing methods, the Spade is machined from large blocks of billet aluminum to form halves and is then bonded together. Focus will be placed on building the frames sustainably by machining 7075-T6 into shape, but Ethan hints that Angeles bikes won’t be limited to aluminum construction. There's also a strong emphasis on this frame being a prototype and that it is subject to change.

A driving factor in the kinematics for the Spade were a primarily vertical axle path and also a frame that allowed for versatility in the setup, depending on the rider’s style. Basic functions haven’t been left out of the equation either, so the frame can hold two water bottles.

Angeles Bikes weren’t ready to share the kinematics just yet, but the design uses two short links where the upper component is only half visible from the side profile. This upper arm acts as a rocker link to compress the shock from above, similar to Cannodale’s Jekyll.

Angeles Spade
Angeles Spade

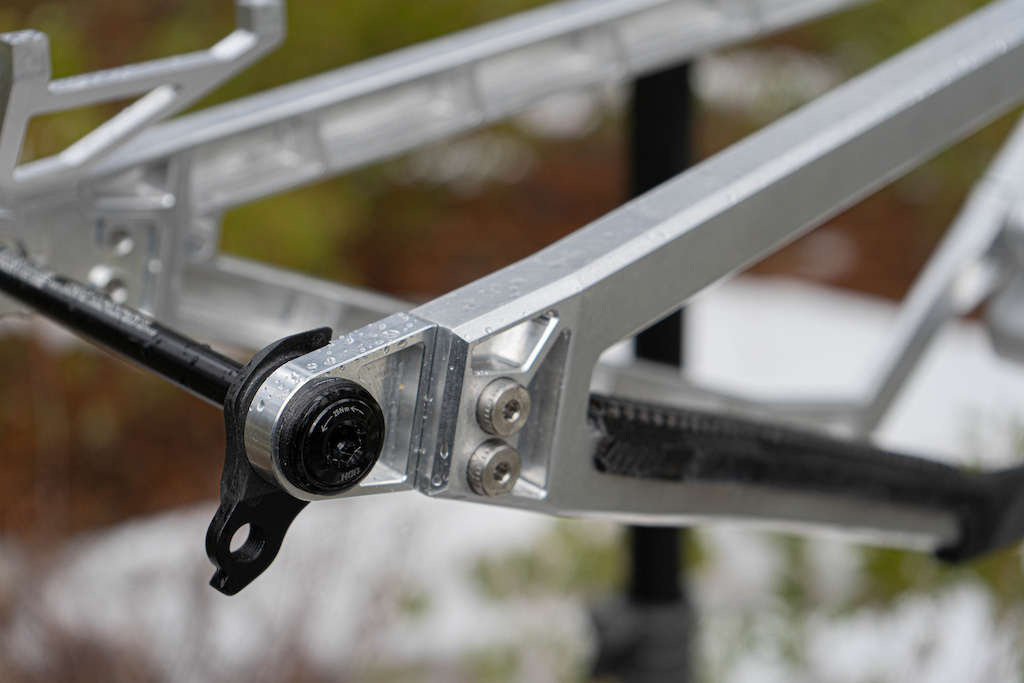

Between the interchangeable dropouts, geometry flip-chip, and shock travel spacers, the frame to be set up in eight unique configurations. The base is a full 29er enduro bike with 170mm of travel at either end by using a 205x65mm stroke shock. That can be dropped to 160mm by reducing the stroke to 57.5mm and matched with an equal length fork. At the opposite end of the spectrum, the Spade can run multiple dual-crown builds as well; 200/170mm with MX wheels, or 190/170mm with either rear wheel size.

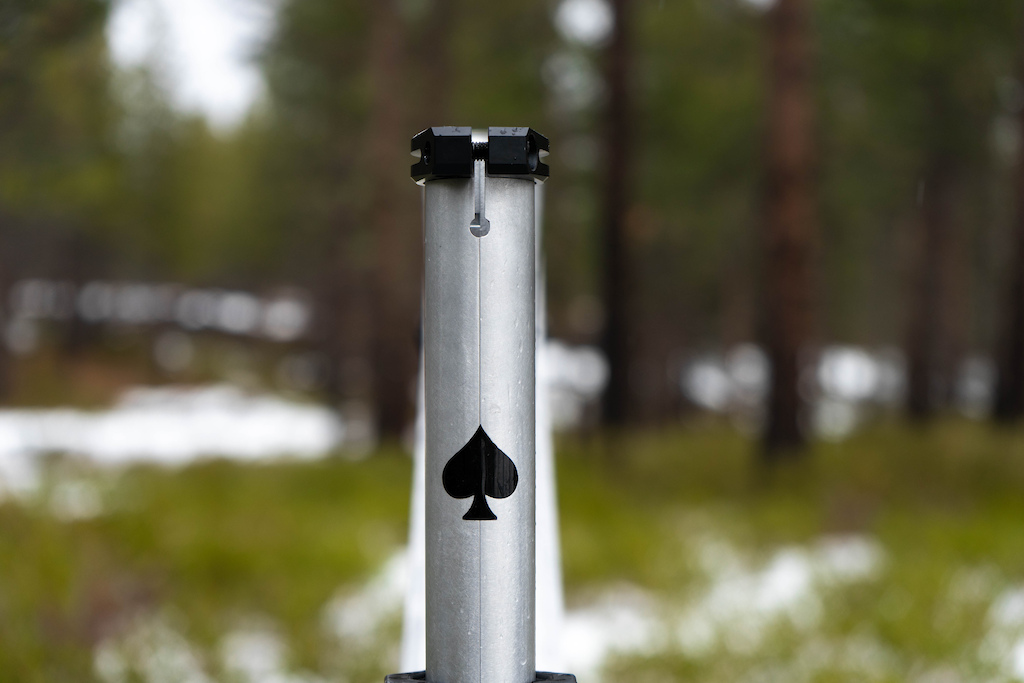

Then, there are the reversible head set cups that give you 5mm of reach adjustment to tune the fit and style of the bike. Ethan claims that the Spade is both, “A race weapon and a freeriders dream.”

Normal standards are also part of the equation with a threaded 73mm BSA BB, 52mm chainline, and UDH-compatible dropout. There are also ISCG tabs and the cables run internally through the front triangle.

Angeles Spade
Angeles Spade
Angeles Spade

Geometry

As it stands, the single prototype is deemed to be a size large frame with a base reach measurement of 480mm (+/- 5mm) and a stack height of 635, which aligns in the middle of most other brands’ offerings.

The seat tube holds a few numbers that jump off the page with a taller 450mm length and 82-degree angle. Then the head tube is also on the attack side being 100mm long and tipped back to a slack 63 degrees.

Thanks to the interchangeable dropouts, the chainstay length can vary between 440, 450, or 460mm. There’s also a vertically offset dropout to compensate for the drop a 27.5” rear wheel would produce. In the full 29er mode, the BB drop is 25mm

All of those numbers add up to a 1289mm wheelbase (in the 450mm chainstay setting) to keep things in check for enduro racing and freeriding alike.

Availability

At this time, Angeles has not yet determined a price but says they will have a small batch of frames ready to sell by the end of the year. To get in touch with Angeles Bikes, you can contact them by email at: Angelesbicycles@gmail.com

Angeles Spade

Photo credit: Tyler Winans
