There is something to be said for things that are still made by hand. So many of the components made in the bike industry are built and assembled by machine "somewhere else" these days. Ten years ago, Industry Nine came on to the scene and started producing rather beautiful hubs and wheel sets. They were unique in that they used thick one piece aluminum spokes. They also had amazing engagement and were built by hand down in Asheville, North Carolina. Today, Industry Nine has proven that their design wasn't just a flash in the pan. They have continued to improve the design of their hubs and drivers, and they still build their wheel sets by hand to spec. We took a tour of Industry Nine with Clint Spiegel and watched the whole construction process. To be honest, it was a little like Charlie and the Chocolate Factory, rainbow colors and all. Just not edible.
 |
 Clint Spiegel, the man behind Industry Nine outside the company's discrete Asheville, North Carolina, headquarters. It is now Industry Nine's tenth year building some of the best wheels in the business. |
 |
| Clint still has a very hands-on approach in the design of every product that comes out of Industry Nine. |
 |
| Industry Nine isn't a name without meaning. It is the ninth business born out of this machine shop in Asheville and the most successful to date. |
 |
| This is how an Industry Nine hub starts out, with a twelve foot long bar of 7075 aluminum. |
 |
| The aluminum bar is then cut to length according to what hub it will become. |
 |
| The first and second turning processes. The blank is bored out, and then a hub starts to take shape. The hubs go through three turning and two milling steps. |
 |
| More material is cut away in the second turning process. |
 |
| About sixty percent of the original blank has now been milled away. What we have now can be easily recognized as an Industry Nine hub. |
 |
| After each step, the hubs are measured to assure everything is on point for the next process. |
 |
| Next, spoke mount posts are milled out in a five axis milling machine. |
 |
| Rotor mount holes are tapped. |
 |

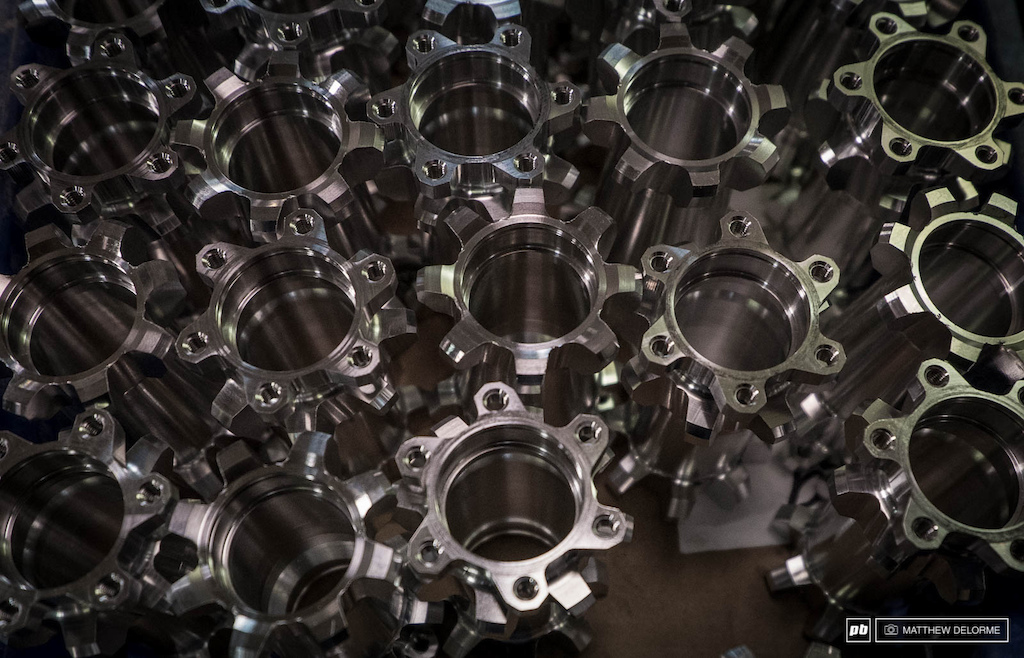

| The hubs are nearing the completion of the milling process. When they are done here, they will go onto polishing before they get their ano bath. |
 |

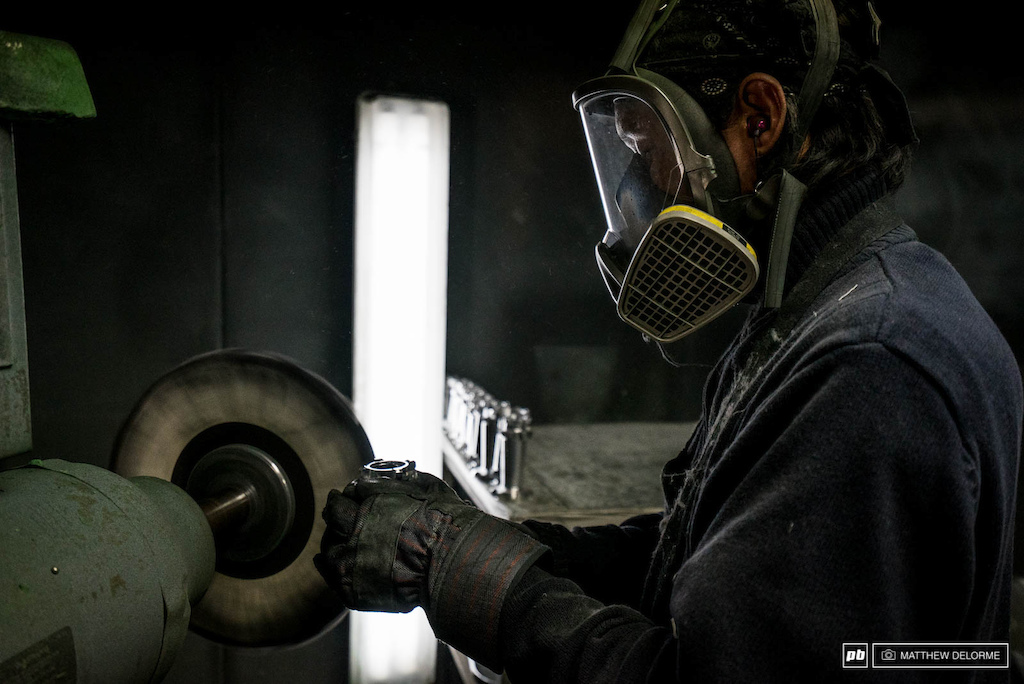

| After the hubs are milled, each one is polished by hand. |
 |
| Polished and ready for the anodizing process. |
 |

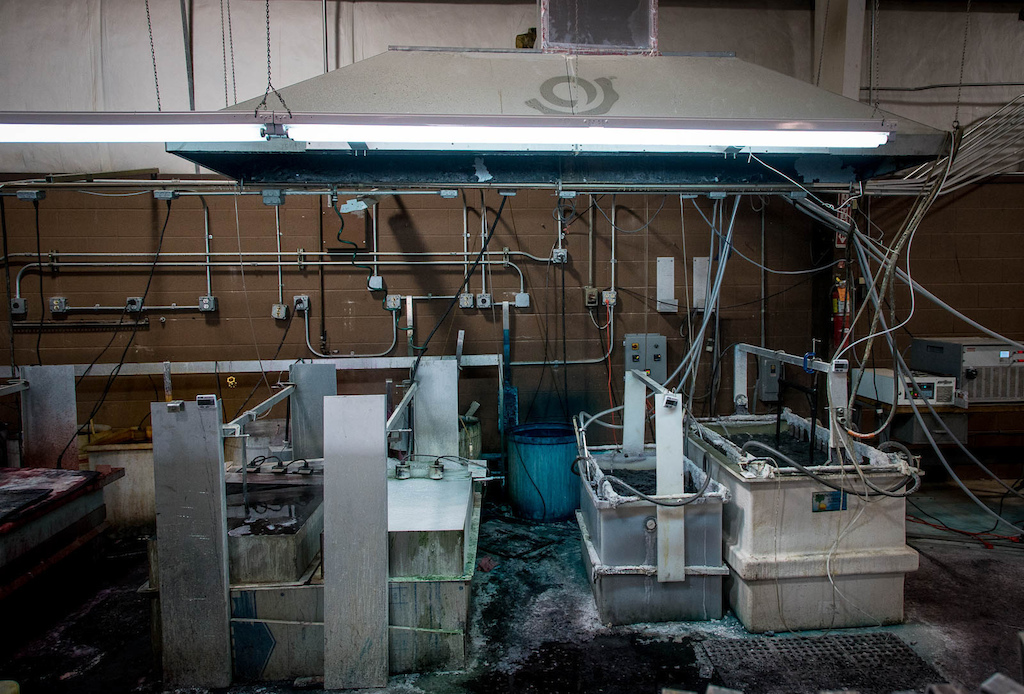

| The anodizing tanks. It's an electro-chemical process that bonds color to the porous aluminum. Think of it as dipping aluminum Easter eggs in dye. |
 |
| After polishing, the hubs are then loaded onto these trees and lowered into the anodizing tanks for coloring and sealing. |
 |
| End caps coming out of a black anodizing bath. It typically takes about two hours to anodize hubs; the longer they stay in the bath, the deeper the color. |
 |
| In a process that is unique to Industry Nine, the driver rings are hardened before the teeth are cut. This makes the steel strong and insures that the part will maintain its shape, but makes cutting the teeth a bit more difficult. That's where EDM wire comes in. |
 |

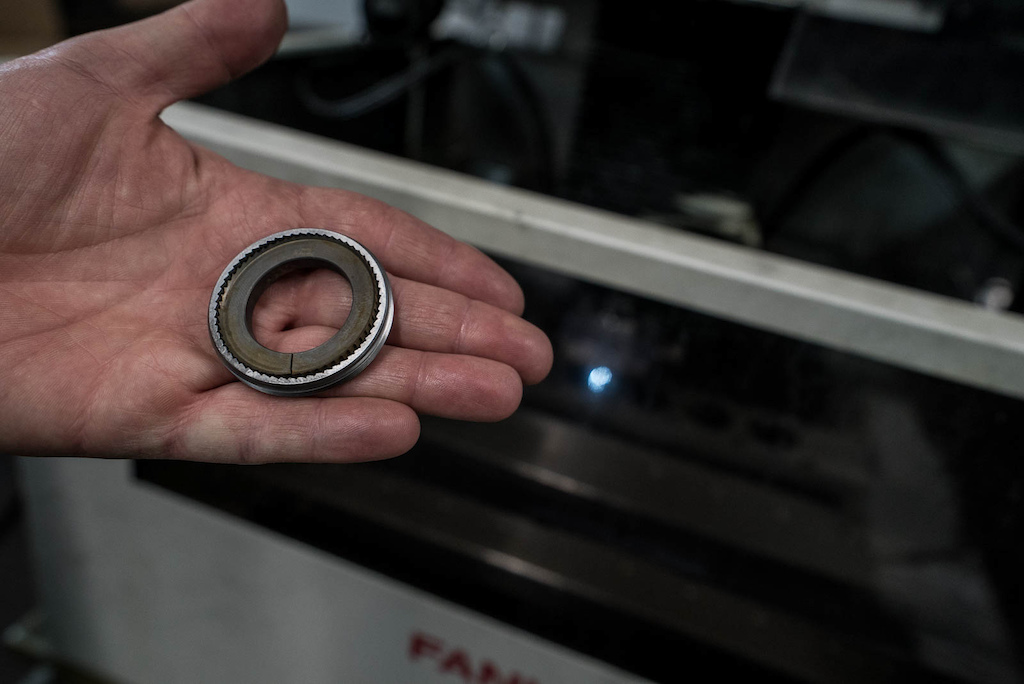

| A spool of copper wire as thick as two strands of hair is electrified, and cuts teeth into the hardened steel ring. The process takes longer, about one every thirty minutes, but the resulting part is much more durable. Each machine makes about thirty of these per day. |
 |
| Spent EDM wire. It will be recycled, turned back into copper wire, and live to cut hardened steel another day. |
 |
| Pawls are cut out of a solid hardened steel bar. |
 |

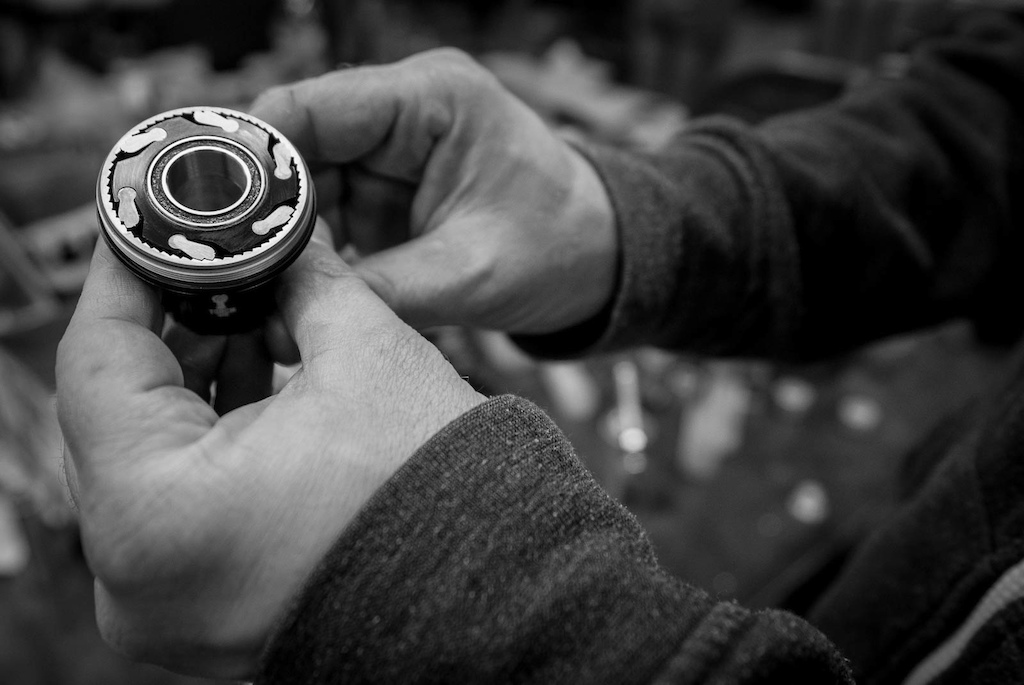

| The assembled Torch driver body. There are always three points of engagement and the system can withstand over seven hundred foot pounds of torque. |
 |
| Industry Nine is unique in that they use aluminum spokes. The spokes are thicker than steel and, because of their thickness, have a similar tensile strength. They also make for an overall stiffer wheel. These are spokes in their raw state, 7075-T6 aluminum. The spokes are then loaded into the milling machines. Industry Nine has four machines dedicated to making spokes. They churn out roughly 2,000 spokes per day. |
 |
| From aluminum rod to spoke. One piece, light and strong. |
 |
| The final step in spoke production, laser etching Industry Nine into the spoke. Usually the tray is full and the spokes are all lined up correctly. This was only for photo purposes. |
 |

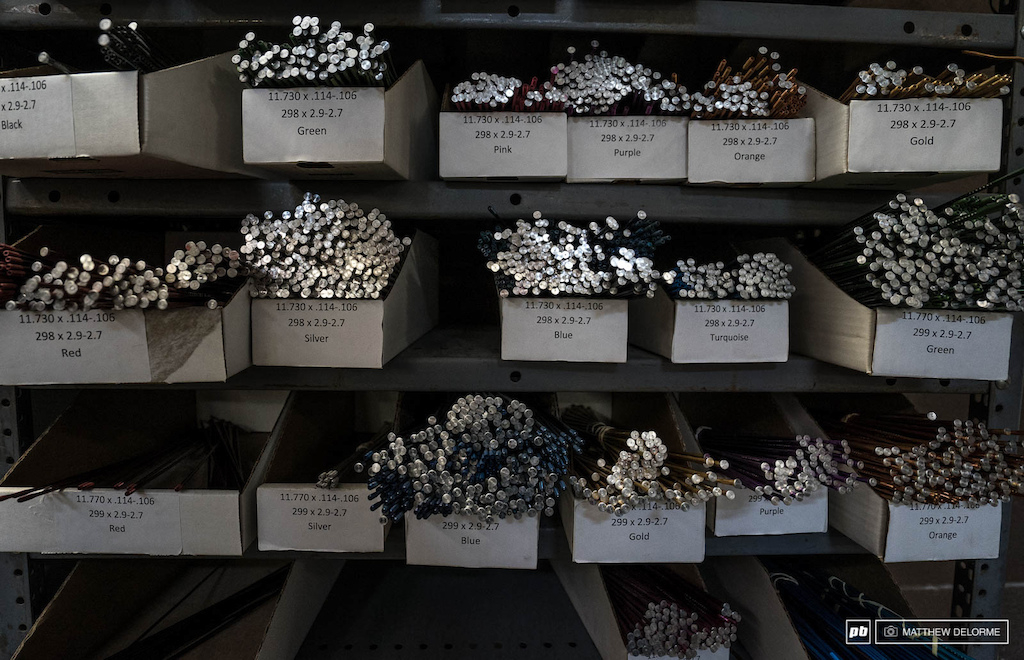

| Spokes of every size and color. Your imagination is the only limit to color combinations. |
 |
| Every wheel set that comes out of Industry Nine is built by hand. Some are built by a man with a rather impressive beard. |
 |
| Taste the rainbow. Some incredible bling for your bike, Industry Nine hubs are really quite beautiful to look at. They happen to work pretty well, too. |
 |
| Besides bearings, rims are the only part of an Industry Nine wheel set that is outsourced. |
 |
| For those of you into fat bikes, Industry Nine is now building some ridiculously light fat bike wheels. |
 |
| Industry Nine employees have a pump track out back, which is handy when they are on break. It's also handy for some quick light duty testing. |
 |
| All wheels are trued by hand and then stressed in-house before being boxed up and shipped out to happy customers. |
