MDEBIKES 2011

Sep 13, 2010
by Matteo Ganora
MDE BIKES is a small company located in the heart of the Piedmont’s Alps, a place rich in historical trails for Italian mountain biking. It is in these places that they come to develop their ideas and their products and along these trails the first tests of the new frames are made. The frames are designed, developed and manufactured entirely handcrafted in Italy.

More details inside,

This means that each frame gets started and finished at the same time and very often by the same welder. They make extensive use of parts made by CNC, with milling machining centers of last generation. The tubes are made to MDE's own specifications using the latest technologies such as hydroforming and are designed to ensure the appropriate response to stress according to the part of the frame where they are placed. The tubes that they use are made by the major leading companies of the world such as Easton, Dedacciai etc.

MDE uses three suspension systems, two of which are theirs: I-link and Dh-link. These are applied on high-end frames. Monopivot is used for mid-range frames. The two owner systems are virtual pivot of last generation and ensuring high efficiency in pedaling and are completely active under braking. These systems ensure the right fitting of the compression curve on the frames. I-Link has a marked progression along all the curve of compression, Dh-link is linear in the first step only to became very progressive at the end. Some frames use the MDS (MDE dropout system) that lets you choose six different options for the rear dropouts.

Each frame can be custom built, (including the full-suspension) to the rider's personal requirements - this is much appreciated between professional racers.


69 DH-Link
Type: downhill race
Rear travel= 210mm (8.3”)
Head Tube Angle= 64°
Bottom Bracket Height= 360mm (14.17”)
ChainStay Length= 444mm (17.48”)
Frame Weight: 3700g (8.2lb) ( (w/o shox)
Seatpost : 30mm
Headtube: 1.5”
Bottom Bracket: Bsa 83mm
Extra: Iscg 03 e 05
Dropout: MDS (MDE Dropouts System)
Standard colors: Royal White, Racing Red, Raw


PUSHER I-Link
Type: downhill trail park oriented
Rear travel= 190mm (7.5”)
Head Tube Angle= 65°
Bottom Bracket Height= 367mm (14.44”)
ChainStay Length= 442mm (17.40”)
Frame Weight: 3600g (7.95lb) (w/o shox)
Seatpost : 30.9mm
Headtube: 1.5”
Bottom Bracket: Bsa 83mm
Dropout: MDS (MDE Dropouts System)
Standard colors: Fluo Yellow, Deep blue, Racing Red
Extra: Hammershimdt ready , Iscg 03 e 05
Front Derailleur: none


DAMPER SX I-link
Type: All-Mountain/Enduro/Freeride
Rear travel= 170mm (6.7”)
Head Tube Angle= 66.5°
Bottom Bracket Height= 353mm (13.89”)
ChainStay Length= 435mm (17.1”)
Frame Weight: 3280g (7.24lb) (w/o shox)
Seatpost : 30.9mm
Headtube: tapared 1 1/8 semintegrated upper, 1.5” standard down
Bottom Bracket: 73mm Bsa
Dropout: MDS (MDE Dropouts System)
Standard colors: Pearl Grey, Racing Red, Royal White
Extra: Hammershimdt ready, Iscg 03 e 05
Front Derailleur: 34,9 Top swing


PLAYER I-link
Tipo: Slope Style, trail parking
Rear travel= 140mm (5.5”) (7.875”x2.25” shox)- 110mm (4.3”) (7.5”x2.00” shox)
Head Tube Angle= 67.5° (160mm fork)
Bottom Bracket Height= 345mm (13.58”)
ChainStay Length= 427mm (16.8”)
Frame Weight: 2900g (6.40lb) (w/o shox)
Seatpost : 30.9mm
Headtube: tapared 1 1/8 semi integrated upper, 1.5” standard down
Bottom Bracket: 73mm Bsa
Dropout: MDS (MDE Dropouts System)
Standard colors: Fluo Yellow, Wc Green, Royal Purple
Extra: Iscg 03 e 05
Front Derailleur: none

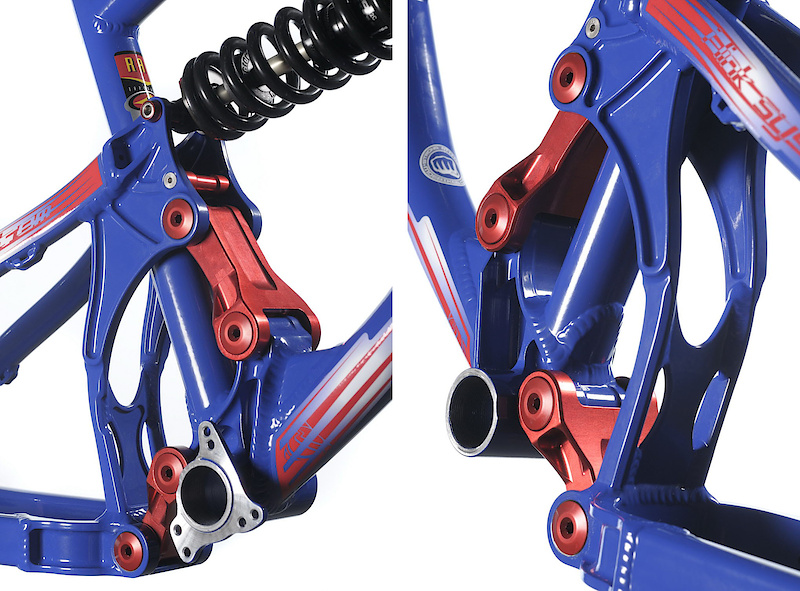

MDE I-LINK VIEW
MDE I-LINK VIEW

Federico Biora The Boss (center), and Matteo The Welder (right)

You can have more info at www.mdebikes.com
