XC Bike Checks: 4 World Cup Race Machines

May 24, 2014
by Matthew DeLorme
Nove Mesto is the first standalone XC World Cup of the season. We took a stroll through the pits and found some interesting new goodies, namely from Shimano and in the form of the Rock Shox RS1. Nove Nesto lacks some of the super technical terrain of PMB and Cairns, and the track has plenty of roots and soft loamy dirt off the main lines. Most of the field is opting for the hardtail this weekend, with a few dual suspension hold outs for the rock gardens.

Kulhavy s S-Works Epic. This bike is set-up pretty close to stock. Note the mega steep seat angle and low front end.
  Kulhavy's S-Works Epic. This bike is set-up pretty close to stock. Note the mega steep seat angle and low front end.


Carbon Roval rims and S-WORKS Renegade 1.95 tires. Kulhavy will likely stick with this tire set-up unless the rains come.
  Carbon Roval rims and S-WORKS Renegade 1.95 tires. Kulhavy will likely stick with this tire set-up unless the rains come.


FOX Specialized Future shock on Kuhlhavy s bike. For the most part the bike is stock with only a few minor adjustments.
  FOX Specialized Future shock on Kuhlhavy's bike. For the most part, the bike is stock with only a few minor adjustments.

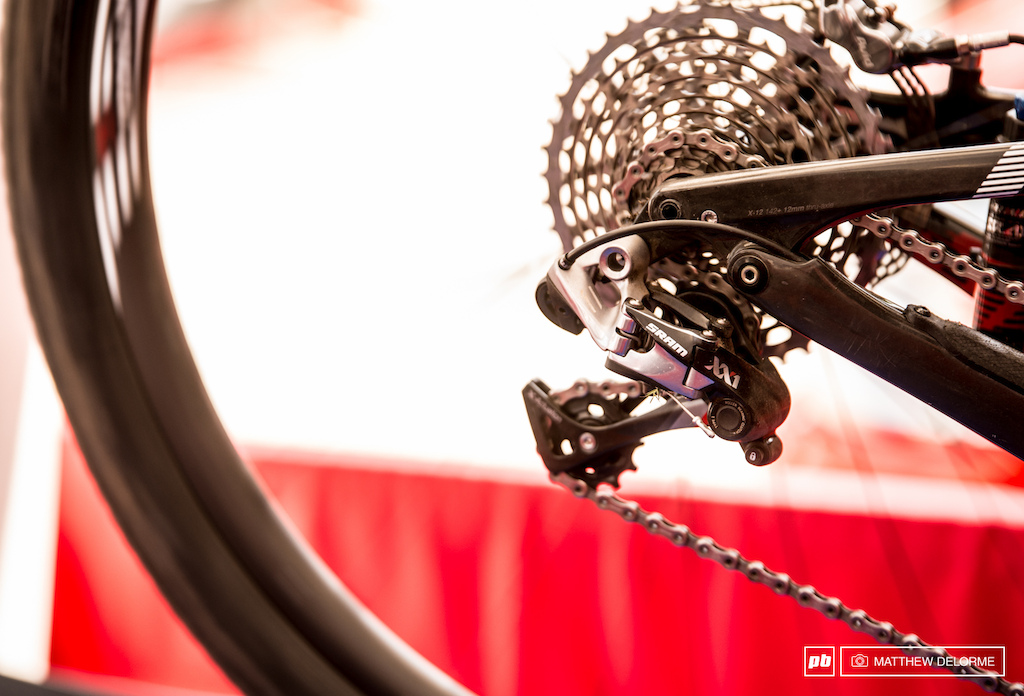

SRAM XX1 out back on Kulhavy s bike.
  SRAM XX1 out back on Kulhavy's bike.


Custom levers on Kulhavy s Avid XX brakes in memory of Burry.
  Custom levers on Kulhavy's Avid XX brakes in memory of Burry.

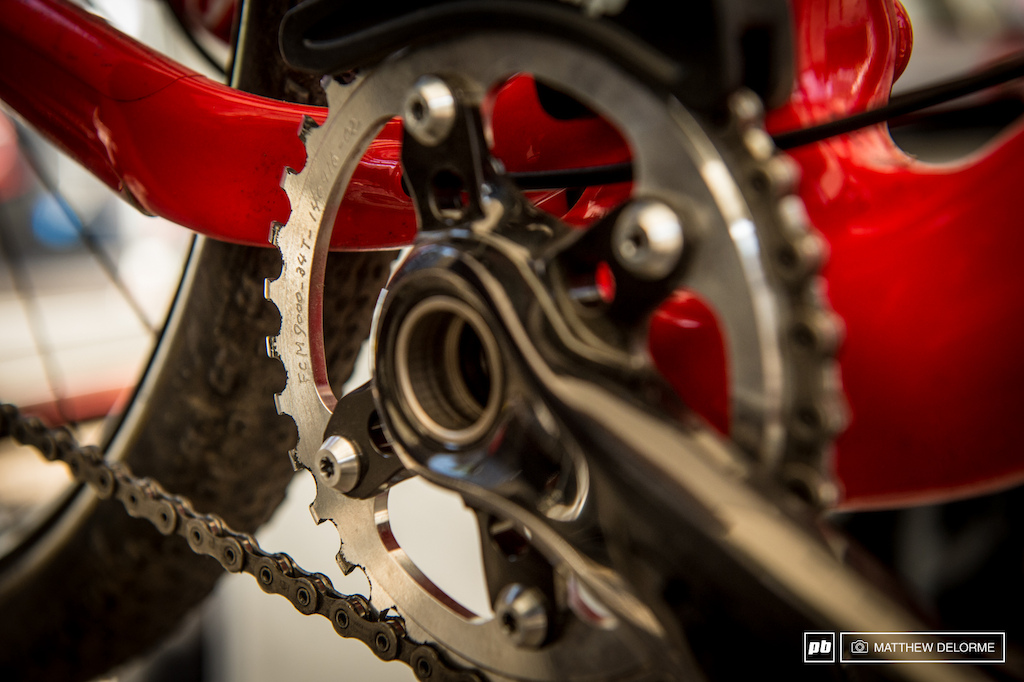

So far Kulhavy is the only one pushing a 38 tooth ring up front. While there isn t a ton of elevation here in Nove Mesto the course does pack in a fair amount of climbing. That could change by Sunday but for now 38 it is.
  So far, Kulhavy is the only one pushing a 38 tooth ring up front. While there isn't a ton of elevation here in Nove Mesto, the course does pack in a fair amount of climbing. That could change by Sunday, but for now 38 it is.


Nino Schurter is back for race three and looking for a win. This is the steed he aims to take it on. He is the only elite to run 650b in a sea of 29 inch wheels which makes his Spark rather interesting.
  Nino Schurter is back for race three and looking for a win. This is the steed he aims to take it on. He is the only elite to run 650b in a sea of 29 inch wheels, which makes his Scale rather interesting.


Just in case Nino needs a reminder it s there on his top tube.
  Just in case Nino needs a reminder, it's there on his top tube.


Schurter s ultra light Ritchey Paradigm Pro titanium pedals. 240 grams per pair and SPD cleat compatible though they work best with Ritchey s cleats.
  Schurter's ultra light Ritchey Paradigm Pro titanium pedals. 240 grams per pair and SPD cleat compatible, though they work best with Ritchey's cleats.


Nino and Dugast have created these tires from the ground up. They started with the carbon 650b DT Swiss wheels and then specially molded these tires. Nino has three tread patterns to choose from including a snake skin with ultra low profile side knobs for hard pack.
  Nino and Dugast created Nino's 27.5 tubular tires from the ground up. They are mounted to carbon 650b DT Swiss wheels. Nino has three tread patterns to choose from, including this snake skin with ultra low profile side knobs for hard pack. Dugast bonds the tread to hand-made casings for an undisclosed sum.


Schurter keeps track of all his training stats with a Garmin Edge 510
  Schurter keeps track of all his training stats with a Garmin Edge 510.


DT Swiss remote lockout on Schurter s Scale.
  DT Swiss XRC fork with carbon lowers and a remote lockout on Schurter's Scale.


Schurter is running a full XX1 group with a 36 tooth ring up front.
  Schurter is running a full XX1 group with a 36 tooth ring up front.


Behold the Shimano XTR 9000. The newly designed crankset allows for 3x 2x or 1x11. Shimano opted for an 11 X 40 cassette stating that 40 is a much shorter shifting distance than 42 and therefore more efficient.
  Behold the Shimano XTR 9000. The newly designed crankset allows for 3x, 2x, or 1x11. Shimano opted for an 11 X 40 cassette, stating that 40 is a much shorter shifting distance than 42, and therefore more efficient.

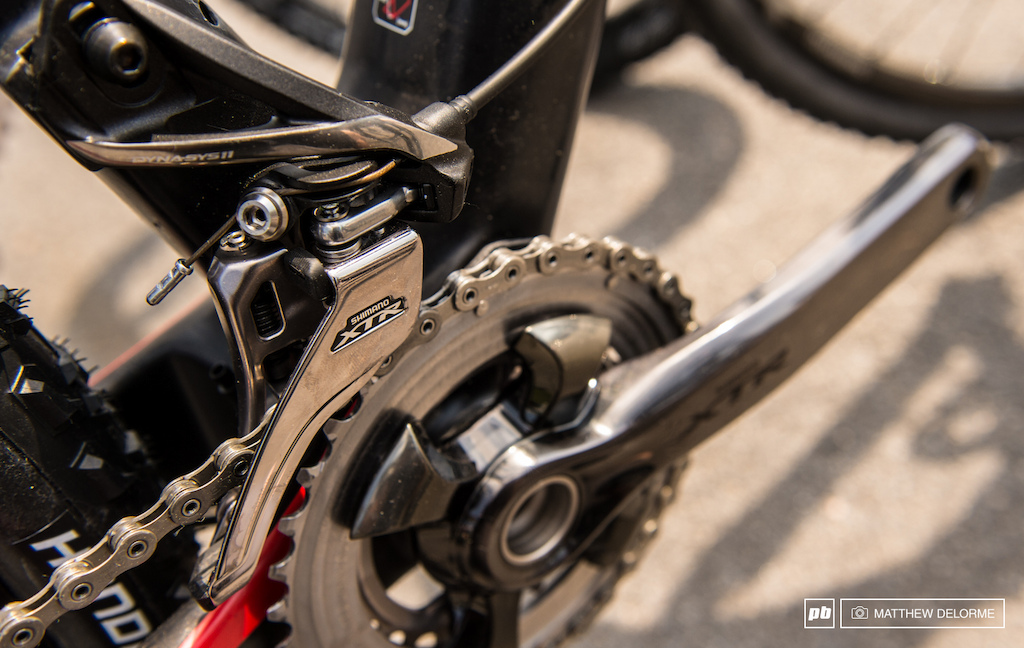

Shimano s new side-pull front derailleur delivers super strong quick shifting.
  Shimano's new side-pull front derailleur delivers super strong, quick shifting.


The BMC Team Elite of Julien Absalon. This bike already has two victories to its name this season and it just got some upgrades.
  The BMC Team Elite of Julien Absalon. This bike already has two victories to its name this season, and it just got some upgrades.


Julien is running a prototype BMC carbon guide and a prototype XTR 36 tooth chain ring.
  Julien is running a prototype BMC carbon guide, and a prototype XTR 36 tooth chain ring.

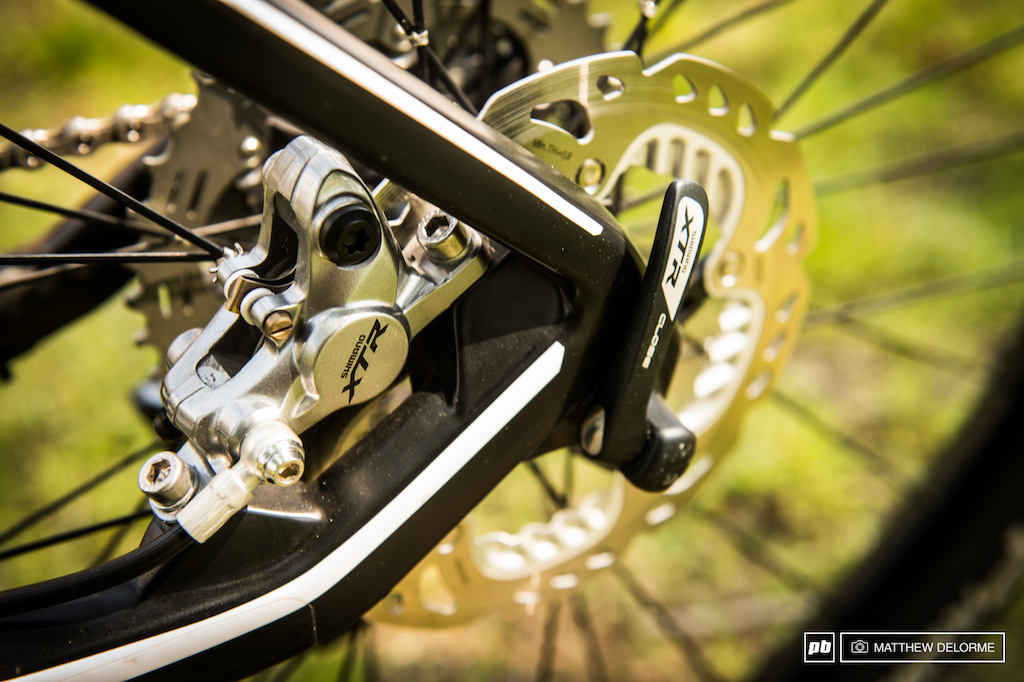

New XTR brakes are lighter and feature carbon levers. The Team Elite also has 3T carbon bars and stem.
  New XTR brakes are lighter and feature carbon levers. The Team Elite also has 3T carbon bars and stem.

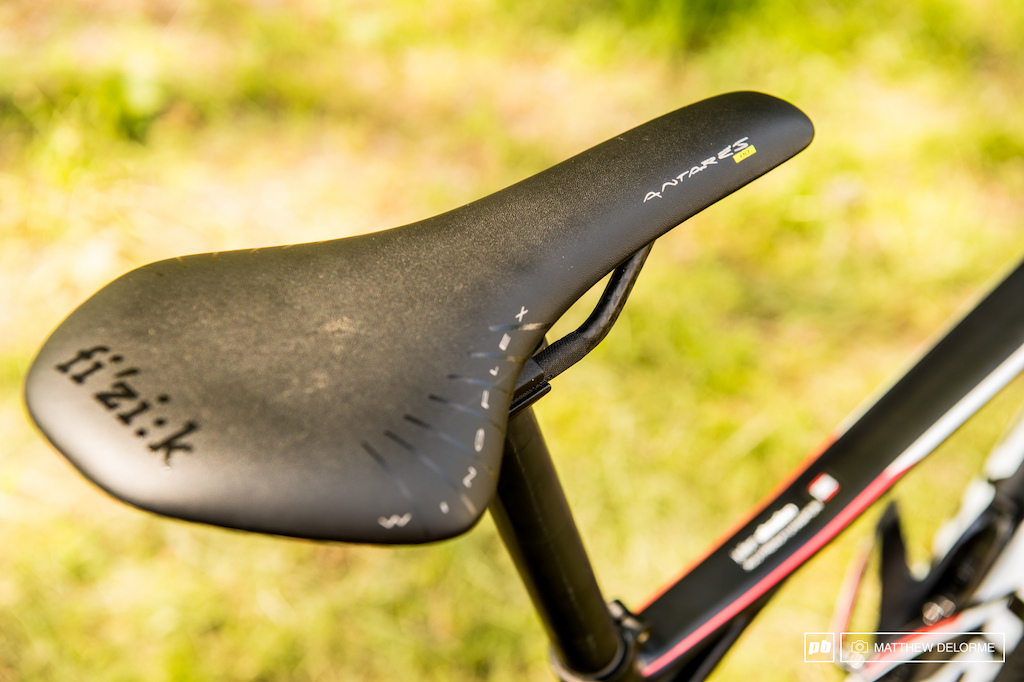

The Fizik Antares is Absalon s saddle of choice.
  The Fizik Antares is Absalon's saddle of choice.


Absalon s BMC Team Elite gets the full XTR treatment down to wheels and hubs.
  Absalon's BMC Team Elite gets the full XTR treatment down to wheels and hubs.


FOX Racing Shox has been making these lighter non-QR XC axles for a couple years now. Julian Absalon is running one on his BMC Team Elite. According to the team in a flat situation there isn t a noticeable time penalty compared to to standard QR.
  FOX Racing Shox has been making these lighter, non-QR XC axles for a couple years now. Julian Absalon is running one on his BMC Team Elite. According to the team, in a flat situation, there isn't a noticeable time penalty compared to to standard QR.


Jose Antonio Hermida s Merida Big Nine race bike. With the addition of the RS1 Jose is running an aluminum wheel up front because Fulcrum doesn t have the carbon wheel ready for the RS1 just yet. Hermida says the aluminum wheel actually works well with the RS1 because it has the right amount of forgiveness to compliment the fork stiffness. Hermida is one of three riders running the RS1 in Nove Mesto the other two are TLD SRAM s Russell Finsterwald and Unior Trek s Tanya Zakelj.
  Jose Antonio Hermida's Merida Big Nine race bike. With the addition of the RS1, Jose is running an aluminum wheel up front because Fulcrum doesn't have the carbon wheel ready for the RS1 just yet. Hermida says the aluminum wheel actually works well with the RS1 because it has the right amount of forgiveness to complement the fork stiffness. Hermida is one of three riders running the RS1 in Nove Mesto, the other two are TLD SRAM's Russell Finsterwald and Unior Trek's Tanya Zakelj.


Hermida is running XX grip shifts and Procraft bar ends. I m the only one still running bar ends he said no one understands it.
  Hermida is running XX grip shifts and Procraft bar ends. "I'm the only one still running bar ends," he said, "no one understands it."


Rock Shox RS1 on Hermida s bike. It s unlike anything we ve seen said WHO SAID THIS It s light and stiff and requires so much less in service.
  Rock Shox RS1 on Hermida's bike. "It's unlike anything we've seen," said Hermida, "It's light and stiff and requires so much less in service."

36 tooth XX1 and Time ATAC pedals on Hermida s Merida Big Nine.
  36 tooth XX1 and Time ATAC pedals on Hermida's Merida Big Nine.

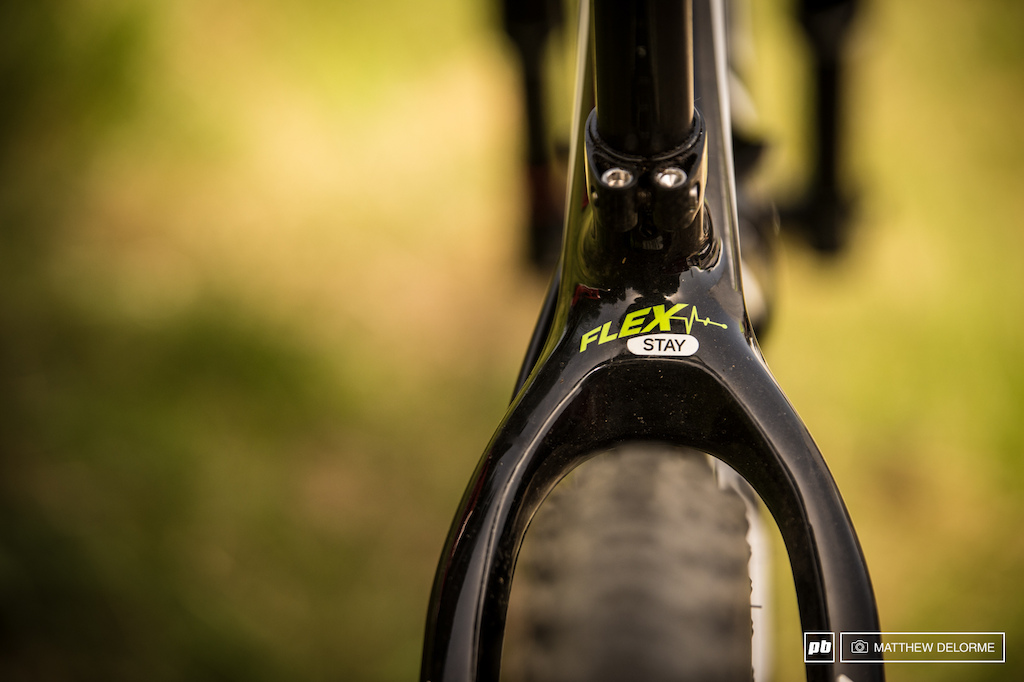

Merida s Flex Stay technology designed to give the bike a bit of the supple suspension feel in the rough stuff.
  Merida's Flex Stay technology, designed to give the bike a bit of the supple suspension feel in the rough stuff.


Prologo Scratch Pro Seat on the Merida Big Nine.
  Prologo Scratch Pro Seat on the Merida Big Nine.


Only three of the New XTR 9000 groups with prototype chainrings are racing this weekend. That s all. Test Pilots include Trek Factory Racing s Dan McConnell BMC s Julien Absalon and Giant s Fabien Giger.
  Only three of the new XTR 9000 groups with prototype chainrings are racing this weekend. That's all. Test Pilots include Trek Factory Racing's Dan McConnell, BMC's Julien Absalon, and Giant's Fabien Giger. All are running some sort of upper chain guide.
