RockShox's New Super Deluxe Shock - First Ride
After last week's somewhat cryptic press release about metric shock sizing from RockShox that didn't do much other than stir up a storm of comments, we’re now finally able to talk about what the announcement means and why RockShox has decided to change things up. Tied to this news is the release of two new air-sprung shocks, the Super Deluxe and the Deluxe, that have been made possible by the shift in shock sizing.
The Super Deluxe and Deluxe names might sound familiar to anyone who's been around for more than a decade, but much like how the new Pike has basically nothing in common with its original namesake, both the Super Deluxe and Deluxe are entirely new from the ground up. They are also an evolution of several years worth of work that involved stripping away the current rear shock sizing constraints, a step the RockShox says was required in order to develop an entirely new product.
The major difference between older designs and the Super Deluxe and Deluxe is a new set of metric eye-to-eye lengths, new metric stroke lengths, and reformed metric hardware options. More than that, though, there’s the claim of improved performance, with RockShox saying that both new shocks have ''drastically reduced friction'' thanks to increased bushing overlap, bearing-equipped eyelets, and new seals. We were told that all that adds up to unparalleled traction, increased durability, and that the new metric sizing will make everyone's lives easier, from suspension companies to the frame designer, right down to the end user.
All that sounds promising, but is it true? We spent three days with RockShox in North Vancouver to find out what the new shocks are all about and, more importantly, to see if they are actually any better than what's currently out there.
Super Deluxe Details
• Intended use: trail / enduro
• Metric sizing
• New bushing design
• New scraper seal
• Three independently tunable compression settings
• Spring: DebonAir or SoloAir
• Mount: trunnion, bearing, Standard DU
• Weight: RC3: 403g / R: 388g
• Will be available on select 2017 bike models
• Intended use: trail / enduro
• Metric sizing
• New bushing design
• New scraper seal
• Three independently tunable compression settings
• Spring: DebonAir or SoloAir
• Mount: trunnion, bearing, Standard DU
• Weight: RC3: 403g / R: 388g
• Will be available on select 2017 bike models
Deluxe Details
• Intended use: XC / trail
• Metric sizing
• New bushing design
• News scraper seal
• Spring: DebonAir or SoloAir
• Mount: trunnion, bearing, Standard DU
• Weight: RT3: 317g / RL: 311g / RT: 311 / R: 294 /
• Will be available on select 2017 bike models
• Intended use: XC / trail
• Metric sizing
• New bushing design
• News scraper seal
• Spring: DebonAir or SoloAir
• Mount: trunnion, bearing, Standard DU
• Weight: RT3: 317g / RL: 311g / RT: 311 / R: 294 /
• Will be available on select 2017 bike models
So what's different between the Super Deluxe and the Deluxe shocks? Both feature increased bushing overlap, new scraper seals, metric sizing, and bearing eyelets, but the Super Deluxe also sports a piggyback for more oil volume, and it has new and independently tunable compression settings. The Deluxe, on the other hand, features the damping system from RockShox's Monarch and is an inline style shock. Both will be available in three mounting styles: bearing eyelet, trunnion, and a standard DU setup. Neither will be available as an aftermarket upgrade, at least not anytime soon.
 |
Metric Sizing and How They Ended Up There
RockShox explained that it all started with one question: ''How can we replicate the success of the Pike fork but in a shock?'' During the development of Pike, RockShox said that they chased every single detail and opportunity for improvement, even if it meant looking beyond what they were doing at the time. So, taking that philosophy, they looked at how they could change and enhance their shock technology.
The first couple of things they wanted to do were to increase the bushing overlap to improve rigidity (which reduces loaded friction), and introduce a bearing into the eyelet. To tackle these changes, they knew they were going to need more space - the sizing framework that currently exists isn’t going to support their wishlist. And if they were going to toy with the notion of no boundaries, what else is possible, they wondered. How can they improve things for the rider, the shops, the designers, and the manufacturers?
Design Engineer Tim Lynch spent a full year looking for patterns and trends in RockShox's Tune Tracker database that includes all details of all the different bikes that they’ve ever worked with. He then isolated the five key suspension parameters that frame designers work within; percent rise, curve shape, average leverage ratio, stroke options, and mounting systems before beginning to hash out the opportunities for integration, design, and performance improvements.
Lynch saw that they could utilize the proposed extra space by developing consistent IFP (internal floating piston) volumes across the size range, a change that should provide a consistent feel between each shock size. The next area to address was to create a logical and evenly spaced size progression - hello, metric. Finally, they wanted to limit and focus the hardware options to make things simpler.
Lynch saw that they could utilize the proposed extra space by developing consistent IFP (internal floating piston) volumes across the size range, a change that should provide a consistent feel between each shock size. The next area to address was to create a logical and evenly spaced size progression - hello, metric. Finally, they wanted to limit and focus the hardware options to make things simpler.
RockShox had enough of a plan at that point that they could approach frame manufacturers to pitch the promise of performance improvements and standardization. It's a bit of a risk on their part, to be fair, as in order to accommodate the new sizing and mounting options, frame designers will have to make some adjustments to their design process. Many of the brands weighed up the options and, seeing the end advantages, agreed that although they will have to make accommodations, it won't impact their designs negatively.
With frame designers open to change, the final piece to this puzzle was going to be inviting the other suspension manufacturers to the party. RockShox says that they went door-knocking with the intention of bringing all of the players into the conversation and present the idea of developing a structured size range along with a hardware overhaul. The majority of the manufacturers saw the potential to make improvements in their own product lines, and together a new framework was built. Change is on its way and it is metric sizing.
 |
Tell Me About The New Sizes Already
Long story short, there is more length per stroke. For years, suspension manufacturers have been reactionary to the frame manufacturer's needs and no one had ever stopped to put a system in place. So now we have a set of shocks based on imperial sizing being converted to metric names that genuinely have no logical organizational structure. The whole bike industry is based in metric and now, with proper metric sizing, rear shocks are as well.
Everything the frame designer needs to develop a bike is still there, but now there is more logic to it. Frame designers will be able to choose shock stroke by 2.5mm increments so they can optimize the percent rise, curve and leverage ration of their frame designs.
 |
New, Simpler Hardware Sizing
Currently, there are eighty-two different hardware sizes to contend with, but the new metric standard uses only eighteen. Starting at 6 x 15mm and finishing at 10 x 40mm, the hardware changes in 5mm increments. This means that it will be more realistic for your local bike shop to stock the hardware sizes that you need, which means less time waiting on orders to come in, less rummaging through containers, filing down pieces, cutting parts with hack saws or wedging pieces in place.
The Tech Explained
Increased Bushing Overlap: So, imagine you are trying to install your thru-axle. It needs to be perfectly lined up otherwise it's going to require a lot of extra force to push it in because there is more friction. An increase in bushing overlap within the shock stiffens the junction between the damper body and the rest of the shock to keep it more in line with everything else, which prevents it from feeling like that misaligned thru-axle. The overlap on the air can bushings has been increased by 30%, and the piston / seal head bushing overlap has been increased by 90%. The theory being that when you’re riding your bike through a corner, and the bike is laid over while you’re hitting bumps and all the parts on your bike are twisting slightly, the extra rigidity will allow the shock to move freer to absorb the bumps and move through its travel.
Monarch Plus bushings overlap.
Super Deluxe bushings overlap.
Consistent IFP Across The Range: Current imperial sizing has inconsistent internal floating piston heights, and therefore varying amounts of room for a gas charge at full compression, which is something that affects spring force and makes it more difficult for a frame designer to predict the feel of the system. Certain size shocks dramatically changed force, so moving through sizes, designers have to change their kinematic or suspension design to accommodate this. However, RockShox says that with a consistent IFP height, there is now a baseline for designers to work within which can be further tuned to their needs.
Now, no matter what size shock you have, you will have the exact same force at bottom out. With the damper now creating a consistent feel, the amount of ramp (air volume) can be precisely controlled through a token system. For example, former Kona Product Manager (now RockShox Product Manager) Chris Mandell mentioned that when Kona was designing their line of Process bikes, there was a significant amount of design work to achieve a consistent feel. This new system would have alleviated some of those challenges.
 |
 On the left is the Monarch shock and on the right is the new Deluxe. Note the increased bushing overlap, and the additional IFP volume found within the Deluxe. |
Spring Systems - DebonAir and Solo Air: Instead of multiple air volume eyelets, air cans and volume spacer types, the Deluxe and Super Deluxe will come with either a built-in DebonAir or Solo Air can and riders can use a token system, just like with RockShox's forks, to tune how their shock's air spring ramps up through its stroke. The air cans feature a lighter and sleeker single walled sleeve as opposed to the double wall sleeve of the Monarch and Monarch Plus DebonAir systems.
 |
| The Super Deluxe from the inside, which now has individual and tunable pistons for open, climb and lockout. |
Super Deluxe's Improved Damper: RockShox's goal was to get that Vivid Air performance out of the Super Deluxe and still have all the necessary features. The patterns in the Tune Tracker showed that frame manufacturers wanted to independently tune a lot of this stuff, so they couldn’t have their firm and locked out settings interfere with the performance of the shock. Each setting now has its own piston that is independently tuneable so a company can set each setting exactly as they’d like for their product.
Sealed Bearing Mounts: When you are riding, your shock will rotate by roughly 70 - 120 degrees on one end of its mount while the other end will only rotate by about 5 - 15 degrees, depending on the design of your bike, of course.
By replacing the DU bushing with a bearing in the mount that sees the most rotation, something that a few aftermarket companies offer for current shocks, friction is greatly reduced and the shock is better able to work. Manufacturers can choose for this to be on either the shaft end or the body end, depending on which sees the most rotation.
By replacing the DU bushing with a bearing in the mount that sees the most rotation, something that a few aftermarket companies offer for current shocks, friction is greatly reduced and the shock is better able to work. Manufacturers can choose for this to be on either the shaft end or the body end, depending on which sees the most rotation.
The Trunnion Mount: Horizontally mounted shocks can deal with a bit of extra length, but vertically mounted shocks cannot, especially in smaller bikes where designers don’t want to adjust the top tube or standover height. A trunnion attachment has a mounting point on either side of the shock, a tactic that reduces the overall eye-to-eye length and opens up some packaging options that wouldn't be possible otherwise.
Designers will mount the bearings into their linkages - picture some Trek full-suspension bikes - and will then thread the mounting bolts into each side of the shock.
Designers will mount the bearings into their linkages - picture some Trek full-suspension bikes - and will then thread the mounting bolts into each side of the shock.
New Scraper Seal: The new scraper seal is physically larger, and RockShox says that it is more durable and performs better in cold weather. And, despite its increased size, they also claim that there is less friction compared to the smaller seals used on previous shocks.
Counter Measure Spring: Initially developed for the Vivid and Vivid Air, the Counter Measure is a negative spring that opposes the back-pressure from the internal floating piston. RockShox says that it is designed to massively reduce the initial breakaway force, something that should make the shock feel more supple at the top of its travel and when the stroke changes direction.
Super Deluxe Damper Shaft: The damper shaft is now larger in diameter and is said to provide added compression control by moving more oil as the shock goes through its travel.
Counter Measure Spring: Initially developed for the Vivid and Vivid Air, the Counter Measure is a negative spring that opposes the back-pressure from the internal floating piston. RockShox says that it is designed to massively reduce the initial breakaway force, something that should make the shock feel more supple at the top of its travel and when the stroke changes direction.
Super Deluxe Damper Shaft: The damper shaft is now larger in diameter and is said to provide added compression control by moving more oil as the shock goes through its travel.
 |
| The rebound adjustment on the Super Deluxe is now a disc that sits on the top of the shock for easier on the fly adjustments. |
A Few Important Questions Answered
Can I buy a Super Deluxe or Deluxe shock on its own? Nope, not yet. To try out the new metric shocks, you'll have to buy a new rig, and 2017 will see a lot of bikes using one of the new shocks.
Can I still use my older shock in a new metric frame? Nope, you can't. Different shock lengths and mounting hardware mean that this isn't possible.
Will RockShox still sell original sized shocks? Yes, they will. RockShox will offer legacy rear shocks until demand decreases, which they forecast to be around four or five years. Basically, they do plan to support the market until the market is no longer there.
Will the rest of the RockShock line be available in metric sizing? At this stage, the answer is no, but you don't need a crystal ball to see where things are going.

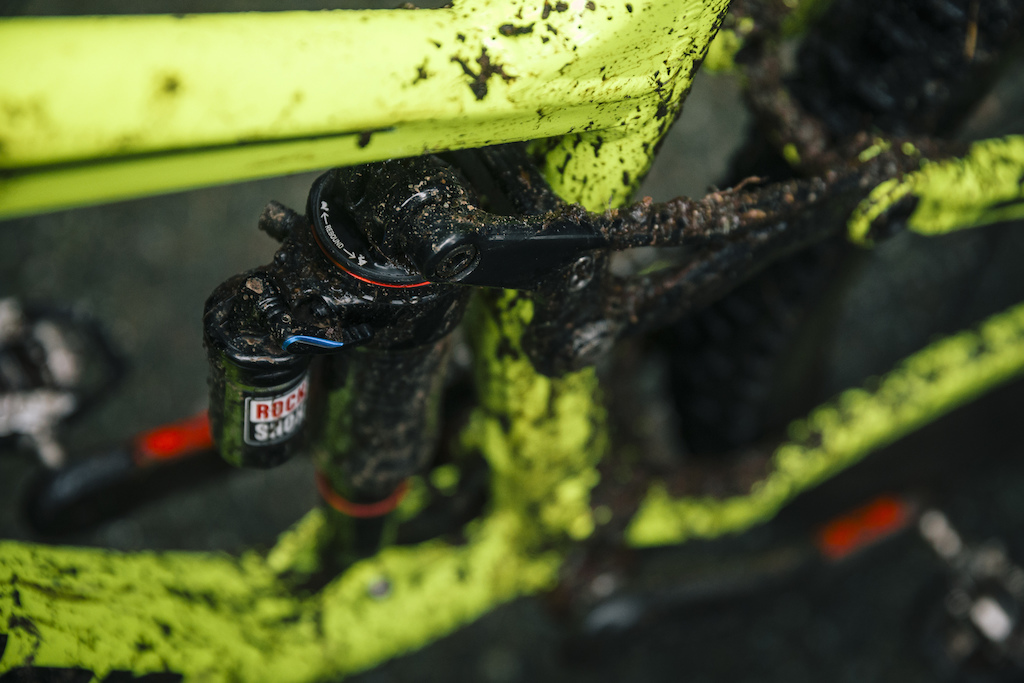

I spent three days riding the Super Deluxe shock on the terminally damp and dewy trails of North Vancouver aboard a Transition Patrol. I first rode the bike with a normal, 216 x 63mm Monarch Plus, which was then swapped out for the new, 230 x 65mm Super Deluxe, a change made possible by the use of a custom machined linkage. After all, what's the point in talking about the new stuff if you aren't comparing it to what came before? It's also worth mentioning that RockShox shared next to no information about the new shock prior to me riding it, with the idea being that I'd be able to come to my own conclusion without "looking for" anything that I might expect to be feeling on the trail.
What did I feel? The difference between the standard Monarch Plus and the Super Deluxe was immediately noticeable, both while climbing and descending.
Sitting in for a long ascent with the Super Deluxe under me, the first thing I noted was the increased stability compared to when the bike had the older shock mounted on it. Stability as in the bike was tracking smoothly over the terrain, with its suspension expanding and contracting as it reached for the uneven and rocky ground like a rock crawler would. I'd describe the sensation as the bike feeling more connected to the ground, and myself feeling more connected to both.
And what about the fun stuff? The first descent that I took the bike down consisted of a succession of perfectly sculpted berms that seemed to be made of hero dirt. Yes, I am talking about North Vancouver. Diving into each corner, something felt different compared to before. Rather than my pumping motions being wasted, every push I made into the bike's suspension was transferred into the trail without the back of the bike cramping up as I exited the corner. Instead, I was carving delicious turns into the dirt. Yes, the bike felt great with the Monarch Plus, but very different things were happening when the Super Deluxe was attached to the same machine.
Next up was some of the more typical trails that you might think of when someone says North Vancouver. Technical, twisting singletrack that seems to be equal parts dirt and roots; the kind of stuff that can cause some clenching anytime of the year, let alone when things are wet and soggy. And things were wet and soggy. The Super Deluxe, however, was anything but soggy as it continued to consent to my commands. The back of the bike tracked the ground immensely well, better than it did when the Monarch Plus was in play, which surely means that traction was improved. Over the next three days, it was all I could do to not shove my clipped-in feet into every bump, hole, and corner on the trail in order to feel the rear wheel track over everything.
Three days of riding does not make a test, and by no means was this a proper test, but it certainly was a thorough introduction on some serious terrain. Real terrain that allows one to know how their suspension is performing. The Transition Patrol felt like the total package once the Super Deluxe was bolted onto it, and this is a bike that is known to be a good performer right out of the box.
In the past, I had been focussed more on what the front of my bikes were doing, and largely letting the rear 'get by' as it was never fully going to respond how I wanted it to. But both ends of the Patrol felt like they were on the same program once the Super Deluxe was installed. The bike felt more complete.
In the past, I had been focussed more on what the front of my bikes were doing, and largely letting the rear 'get by' as it was never fully going to respond how I wanted it to. But both ends of the Patrol felt like they were on the same program once the Super Deluxe was installed. The bike felt more complete.
As mountain bikers, we tend to be a skeptical bunch that like to question the validity of every change, and rightfully so. Parting with our hard earned cash to keep up-to-date with the so-called latest and greatest can really leave a dent in the pocketbook, not to mention your trust. But, after three days on the Super Deluxe, I can tell you that there is a clear difference between it and its predecessor. Granted, it was only three days, and we have no gauge on long-term performance outcomes. But if this new metric sizing change means that all suspension and frame manufacturers can make a better product, then I am intrigued to see what unfolds.
Photos by Adrian Marcoux
