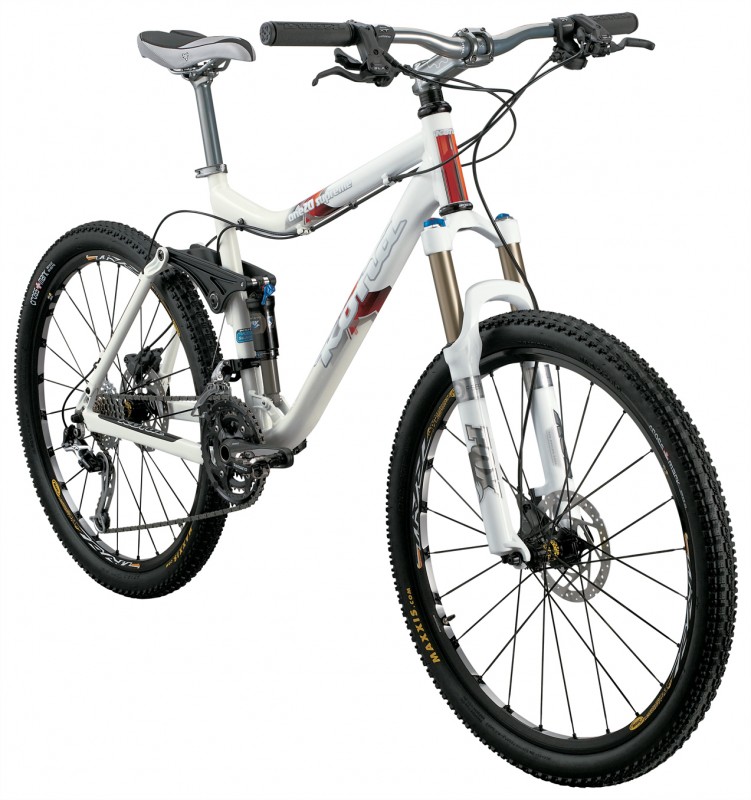

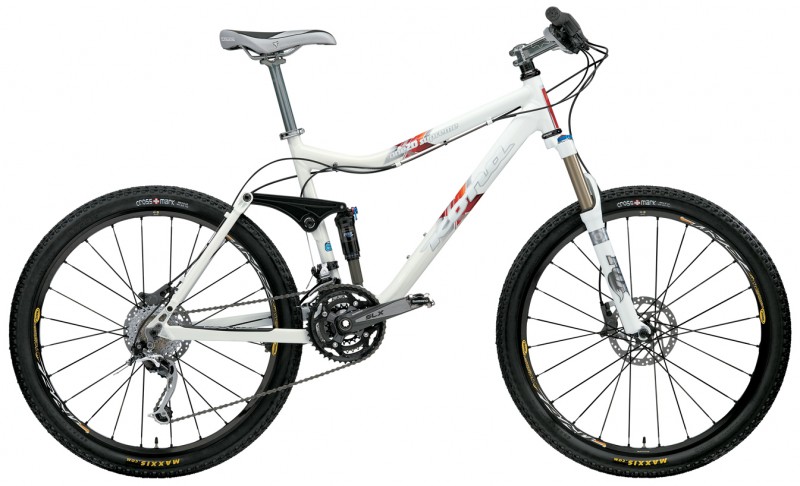

Kona One120 Supreme

Kona One120 Supreme (MSRP $3499) — Kona Race Light Scandium Butted 5” Travel Frame • Fox 32 F120 RL 120mm Travel Fork • Fox Float RP23 Rear Shock • Shimano XT Drivetrain & SLX Hydraulic Disc Brakes • Mavic Crosstrail Wheelset • Maxxis CrossMark 26 x 2.1 Kevlar Tires. Frame sizes: 16", 17", 18" ,19" ,20", 22". Colour: Gloss White/Pearl White

Specifications Compare to other All Mountain/Enduro/XC

Price	$3,499
Travel	5"
Rear Shock	Fox Float RP23
Fork	Fox 32 F120 RL 120mm
Headset	FSA Orbit DL
Cassette	Shimano SLX (11-32, 9spd)
Crankarms	Shimano SLX
Bottom Bracket	Shimano SLX
Pedals	Shimano M520 Clipless
Rear Derailleur	Shimano XT Shadow
Chain	Shimano Deore
Front Derailleur	Shimano XT
Shifter Pods	Shimano XT
Handlebar	Kona XC/BC Deluxe Riser
Stem	Kona XC/BC Deluxe
Grips	Kona Race Light
Brakes	Shimano SLX Hydraulic Disc
Wheelset	Mavic Crosstrail
Tires	Maxxis CrossMark 26x2.1 Kevlar
Seat	WTB Rocket V SLT
Seatpost	Kona XC/BC Deluxe

Dimensions

Size	14.4	16	17	18	19	20	22
Frame Weight
Bike Weight	28.0 lbs	28.0 lbs	28.0 lbs	28.0 lbs	28.0 lbs	28.0 lbs	28.0 lbs
Headtube Angle	69.8 °	69.8 °	69.8 °	69.8 °	69.8 °	69.8 °	69.8 °
Seattube Angle	74.3 °	74.3 °	74.3 °	74.3 °	74.3 °	74.3 °	74.3 °
Headtube Length	125 mm	125 mm	130 mm	130 mm	150 mm	150 mm	150 mm
Chainstay Length	430 mm	430 mm	430 mm	430 mm	430 mm	430 mm	430 mm
BB Height	353 mm	353 mm	353 mm	353 mm	353 mm	353 mm	353 mm
BB Width	73 mm	73 mm	73 mm	73 mm	73 mm	73 mm	73 mm
Seat Post Diameter
Front Derailleur Width	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm
HeadTube Diameter	1.125	1.125	1.125	1.125	1.125	1.125	1.125
Top Tube Length	544 mm	557 mm	570 mm	583 mm	596 mm	607 mm	620 mm
WheelBase	1068 mm	1080 mm	1095 mm	1108 mm	1121 mm	1133 mm	1146 mm
Standover Height	750 mm	757 mm	771 mm	785 mm	798 mm	820 mm	845 mm
