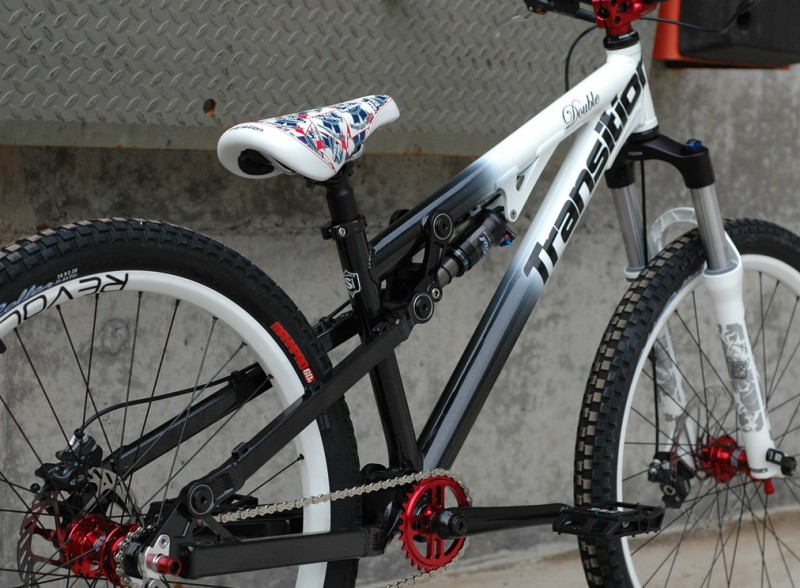

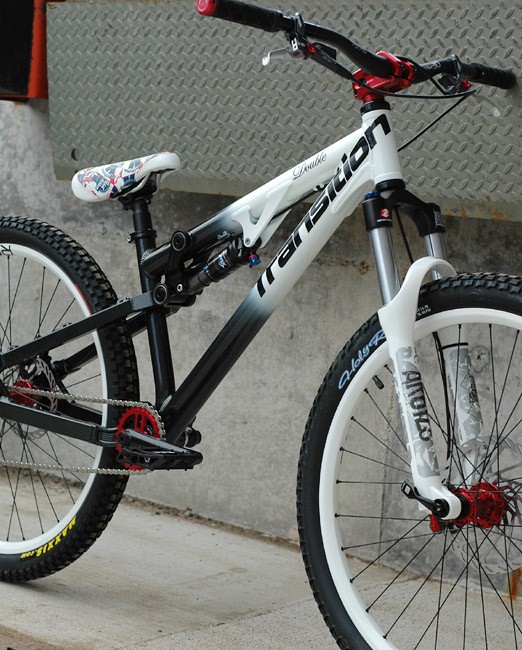

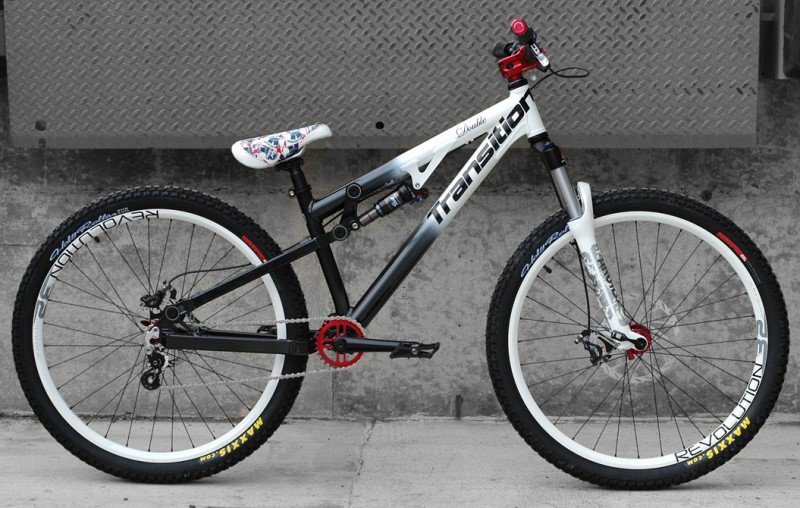

Transition Double
(MSRP $2619)
—
The Double is built for the hardtail junkie looking for the perfect short suspension balance to smooth out dirt jumps biker cross tracks and slopestyle courses. Designed with agressive hardtail geometry, the extremely low slung Double will have you throwing tricks first and worrying about the landing later. If BMX tracks are what you are into, the Double’s super responsive rear end with a low bottom bracket can rail berms like no other full suspension. This could be the funnest bike we have ever designed.

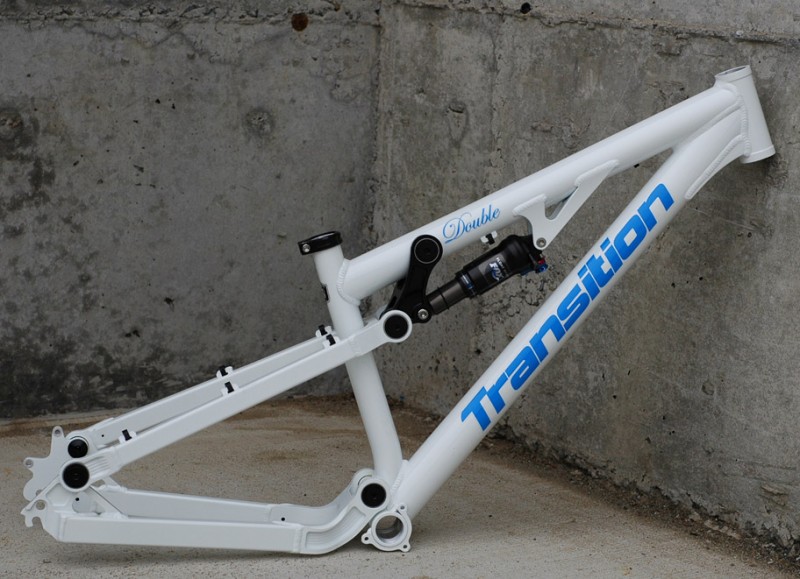

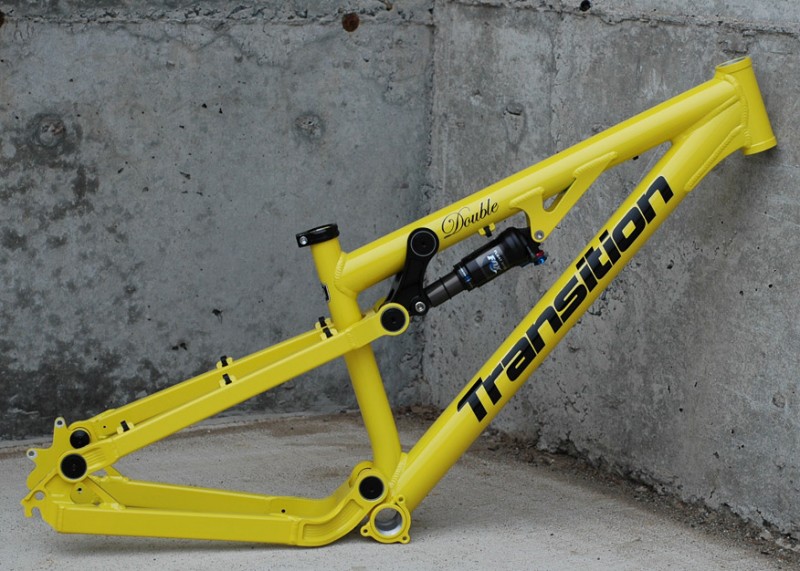

FRAME FEATURES:
100mm (4") Rear Wheel Travel
Fox RP23 6.5" x 1.5"
7005 & 6061 Heat Treated Aluminum
Sizes: Regular (14"), Long (14")
Current Production Run Colors: Black/White Fade, Yellow, White
Last Production Run Colors: Kelley Green, White, Baby Blue
Frame Weight: 7.6 lbs (without rear shock)
Complete Bike Weight Range: 33-35 lbs (Depending on Rear Shock and Fork)
Oversize 5mm thick headtube (1 1/8") and gusset
Custom one-piece CNC rocker arm
Compatible with all single crown forks
Accepts up to 8" Rear Disc Brake Rotors
Easily fits up to 2.5" rear tire
1 year defect warranty, Lifetime crash replacement
BUILD SPECS:
Shock Specs: 6.5 eye-to-eye x 1.5" stroke, Upper Pin 22.2mm x 8mm, Lower Pin 22.2mm x 8mm
Bottom Bracket: Euro 73mm shell x 51mm chainline
Headset: Standard 1 1/8" (1" deep cup compatible)
Seatpost: 31.6mm
Seat Clamp: 34.9mm
Rear Dropout Spacing: 135mm x 10mm (nutted axle & QR compatible)
Disc Brake Mount: International Standard
Chain Guide Mounting: Standard ISCG
Various build options available. Price based on Street/Park/DJ single speed FS spec and RockShox Argyle 318 coil
Price |
$2,619 |
|
Rear Shock |
Fox RP23 |
|
Fork |
RockShox Argyle 318 coil |
|
Headset |
FSA Orbit MX |
|
Cassette |
TBC Single Speed 14T |
|
Crankarms |
TBC 170mm Cr-mo |
|
Chainguide |
Shimano Alfine chain tensioner |
|
Bottom Bracket |
TBC Euro |
|
Pedals |
TBC Stepdown |
|
Chain |
KMC Z410NP single speed |
|
Handlebar |
Truvativ Hussefelt 20mm rise |
|
Stem |
Truvativ Holzfeller 40mm |
|
Grips |
ODI Cross Trainer X Lock-on |
|
Brakes |
Avid Juicy 5 |
|
Wheelset |
TBC Revolution 32 |
|
Tires |
Maxxis Holy Roller 2.2 |
|
Seat |
TBC Park n Ride Jump |
|
Seatpost |
Truvativ XR Dual clamp |
|
