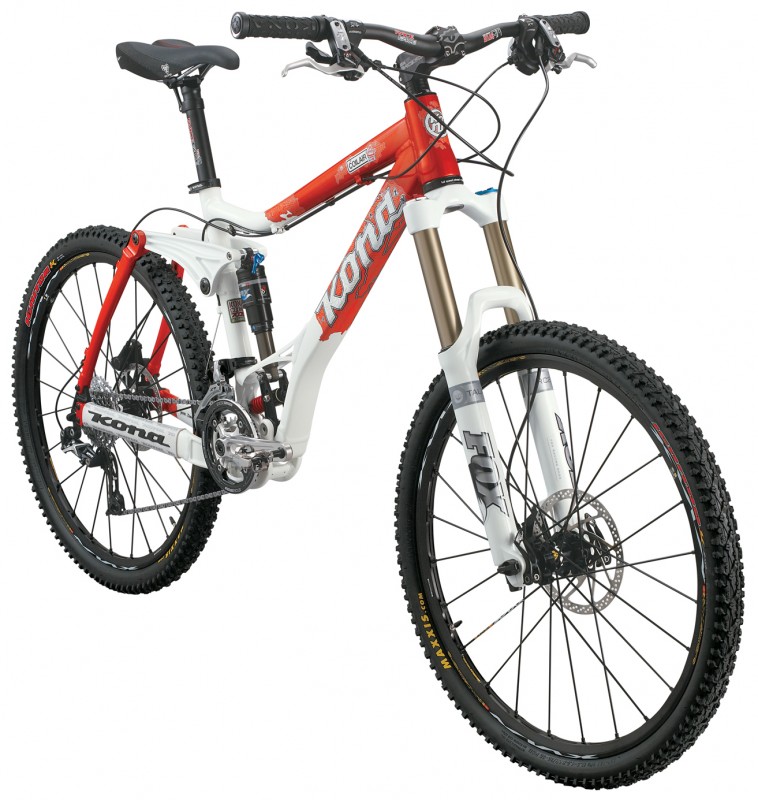

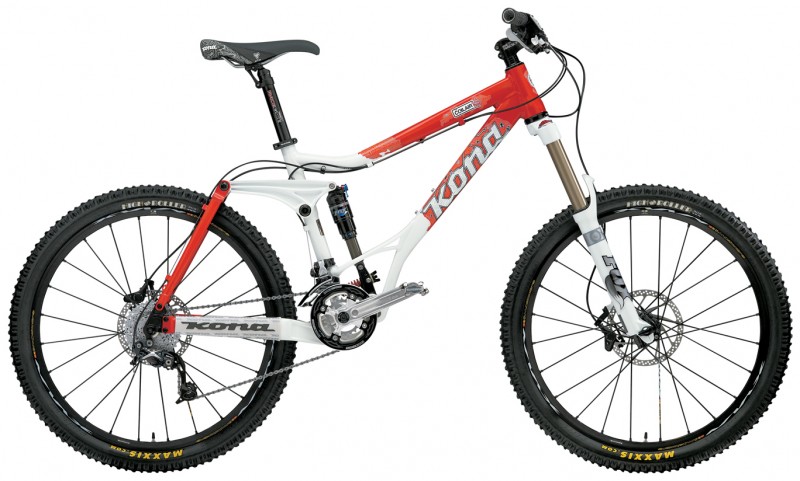

Kona CoilAir Supreme
(MSRP $5799)
—
Enduro/Freeride dual suspension bike. Kona Clump 7005 Aluminum Magic 6+1 System w/DOPE.
Frame sizes: 15", 17", 18", 19", 20"
Colour:Orange Metallic/Pearl White.
Specifications Compare to other DH Bikes
| Price | $5,799 | |
|---|---|---|
| Travel | 6 + 1" | |
| Rear Shock | Fox RP23 w/XV Sleeve | |
| Fork | Fox 36 Talas RC2 165mm (2Omm thru) | |
| Headset | FSA Gravity SX Custom | |
| Cassette | Shimano XT 11-34T | |
| Crankarms | RaceFAce Atlas AM | |
| Bottom Bracket | RaceFace Atlas AM X-type | |
| Pedals | Shimano M540 clipless | |
| Chain | Shimano XT | |
| Rear Derailleur | Shimano XT Shadow | |
| Front Derailleur | Shimano XT | |
| Shifter Pods | Shimano XT | |
| Handlebar | RaceFace Atlas AM Riser OS | |
| Stem | RaceFace Atlas AM OS | |
| Grips | Kona LOG | |
| Brakes | Shimano XT Hydraulic | |
| Wheelset | Mavic Crossmax | |
| Tires | Maxxis High Roller 2.35 | |
| Seat | WTB Pure V Race FR | |
| Seatpost | RaceFace Evolve XC |
Dimensions
| Size | 15 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|
| Frame Weight | |||||
| Bike Weight | 33.0 lbs | 33.0 lbs | 33.0 lbs | 33.0 lbs | 33.0 lbs |
| Headtube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Seattube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Headtube Length | 123 mm | 123 mm | 123 mm | 143 mm | 143 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| BB Height | 358 mm | 358 mm | 358 mm | 358 mm | 358 mm |
| BB Width | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Seat Post Diameter | |||||
| Front Derailleur Width | 34.9 mm | 34.9 mm | 34.9 mm | 34.9 mm | 34.9 mm |
| HeadTube Diameter | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 |
| Top Tube Length | 565 mm | 594 mm | 604 mm | 617 mm | 628 mm |
| WheelBase | 1119 mm | 1147 mm | 1157 mm | 1172 mm | 1185 mm |
| Standover Height | 808 mm | 803 mm | 812 mm | 829 mm | 837 mm |
