Kona One120 Primo

Kona One120 Primo

Review One120 Primo

No reviews yet, be the first to write a review!

Login or Sign Up to write a review.
You must login to Pinkbike.
Don't have an account? Sign up

Join Pinkbike  Login
Write a Review

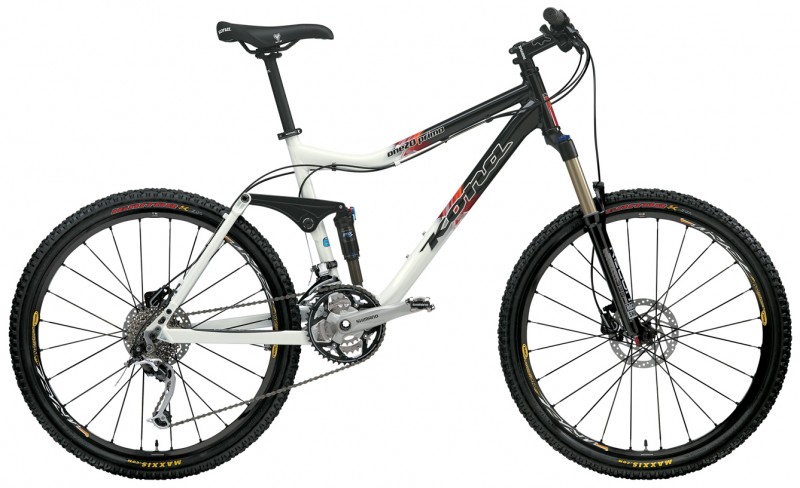

Kona One120 Primo (MSRP $1299) — Kona Race Light Scandium Butted 5” Travel Frame • RockShox Recon 335 120mm Travel Fork • Fox Float RP2 Rear Shock • Mavic Crossride Wheelset • Maxxis Ignitor 26 x 2.1 Kevlar Tires. Frame sizes: 14", 16", 17", 18" ,19" ,20", 22"

Specifications Compare to other All Mountain/Enduro/XC

Price $1,299
Travel 5"
Rear Shock Fox Float RP2
Fork RockShox Recon 335 120mm
Headset TH
Cassette Shimano Deore (11-32, 9spd)
Crankarms Shimano
Bottom Bracket Shimano
Pedals Shimano M520 Clipless
Rear Derailleur Shimano XT Shadow
Chain Shimano Deore
Front Derailleur Shimano Deore
Shifter Pods Shimano Deore
Handlebar Kona XC/BC Riser
Stem Kona XC/BC
Grips Kona Race Light
Brakes Shimano M575 Hydraulic Disc
Wheelset Mavic Crossride
Tires Maxxis Ignitor 26x2.1 Kevlar
Seat WTB Rocket V Comp
Seatpost Kona XC/BC

Dimensions

Size 14.4 16 17 18 19 20 22
Frame Weight
Bike Weight 29.2 lbs 29.2 lbs 29.2 lbs 29.2 lbs 29.2 lbs 29.2 lbs 29.2 lbs
Headtube Angle 69.8 ° 69.8 ° 69.8 ° 69.8 ° 69.8 ° 69.8 ° 69.8 °
Seattube Angle 74.3 ° 74.3 ° 74.3 ° 74.3 ° 74.3 ° 74.3 ° 74.3 °
Headtube Length 125 mm 125 mm 125 mm 130 mm 130 mm 150 mm 150 mm
Chainstay Length 430 mm 430 mm 430 mm 430 mm 430 mm 430 mm 430 mm
BB Height 353 mm 353 mm 353 mm 353 mm 353 mm 353 mm 353 mm
BB Width 73 mm 73 mm 73 mm 73 mm 73 mm 73 mm 73 mm
Seat Post Diameter
Front Derailleur Width 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm
HeadTube Diameter 1.125 1.125 1.125 1.125 1.125 1.125 1.125
Top Tube Length 544 mm 557 mm 570 mm 583 mm 596 mm 607 mm 620 mm
WheelBase 1068 mm 1080 mm 1095 mm 1108 mm 1121 mm 1133 mm 1146 mm
Standover Height 750 mm 757 mm 771 mm 785 mm 798 mm 820 mm 845 mm
