Marin Wolf Ridge 6.9
-
+ 1
NorCalNomad
(Aug 7, 2019 at 14:19)
IMO was way ahead of it's time in terms of pedal ability and downhill ability. I built mine up from a frame with a 160mm front fork and the rp23 got pushed after I blew it up, threw 11spd XT on a few years ago. If it had more modern geometry numbers it would still be able to be sold today as a good alum trail bike. Very similar suspension feel to a DW link bike.

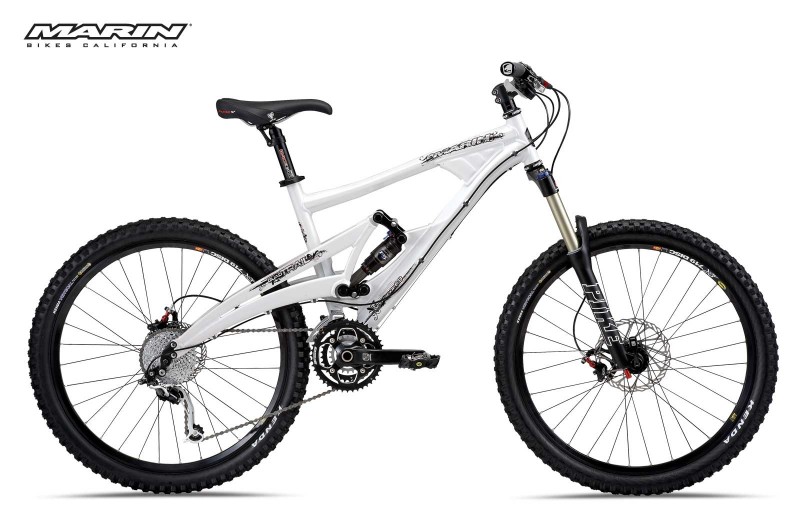

Marin Wolf Ridge 6.9
(MSRP $3799.99)
—
Marin's All Mountain bike. Lightweight design.
Weights are based of Medium frames, with pedals.
Specifications Compare to other All Mountain/Enduro/XC
| Release Date | 2009 | |
|---|---|---|
| Price | $3,800 | |
| Travel | 140 | |
| Rear Shock | Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment | |
| Fork | RockShox Pike 454 Air U-Turn, 110mm-140mm with External Rebound Adjustment, Motion Control with External Floodgate, and 20mm Maxle Through Axle | |
| Headset | Orbit MX, 1 1/8" Threadless, Alloy | |
| Cassette | SRAM PG-980, Power Glide II, 11-34, 9 Speed | |
| Crankarms | FSA Gravity Light MegaExo, 44/32/22 With MegaExo BB | |
| Bottom Bracket | FSA MegaExo System Integrated with Crankset | |
| Pedals | Shimano M424 Clipless | |
| Rear Derailleur | himano Shadow XT, Front: Shimano XT | |
| Chain | SRAM PC-951 | |
| Front Derailleur | Shimano XT | |
| Shifter Pods | Shimano XT, 2 Way and Instant Release, 9 Speed | |
| Handlebar | Race Face Atlas AM, Double Butted Alloy, OS-31.8, 20mm Rise | |
| Stem | Race Face Evolve AM, Threadless, with 31.8mm Bar Clamp | |
| Grips | Marin FR Locking with Alloy Pro Drop Guard End Plug | |
| Brakes | Avid Elixer CR Hydraulic Disc | |
| Hubs | SUNringle Jumping Flea, 32 Hole Disc with 12mm Through Axle, 20mm Front. | |
| Rim | Mavic XM-719, 32 Hole Disc | |
| Tires | Kenda Nevegal, 26" x 2.35", Dual Tread Compound, Kevlar Bead | |
| Seat | WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails | |
| Seatpost | Race Face Evolve, 30.9mm x 375mm |
Dimensions
| Size | S | M | L |
|---|---|---|---|
| Frame Weight | |||
| Bike Weight | 32.5 lbs | 32.5 lbs | 32.5 lbs |
| Headtube Angle | 67 ° | 67 ° | 67 ° |
| Seattube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Headtube Length | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| BB Height | 345.4 mm | 345.4 mm | 345.4 mm |
| BB Width | |||
| Seat Post Diameter | 30.9 " | 30.9 " | 30.9 " |
| Front Derailleur Width | |||
| HeadTube Diameter | 1.125 | 1.125 | 1.125 |
| Top Tube Length | 557.9 mm | 581 mm | 606 mm |
| WheelBase | 1090 mm | 1112 mm | 1138 mm |
| Standover Height | 789 mm | 815 mm | 833.6 mm |
