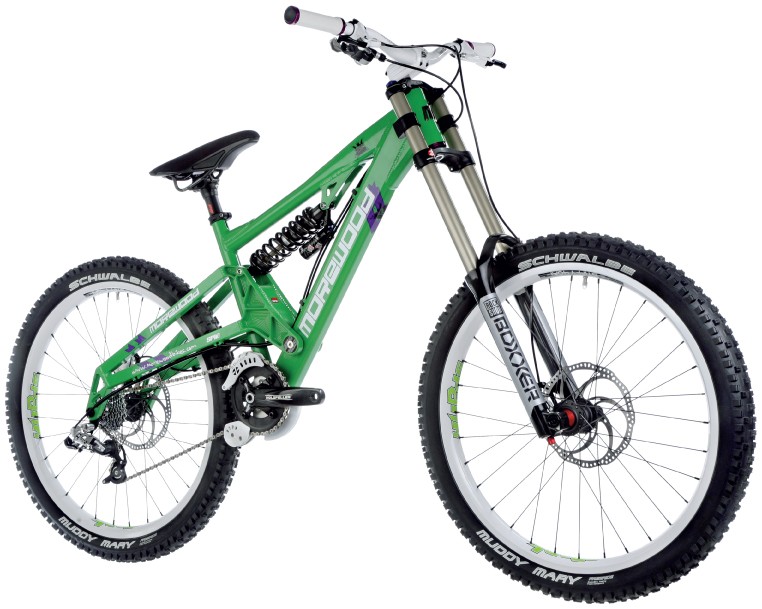

Morewood Izumu
(MSRP $2380)
—

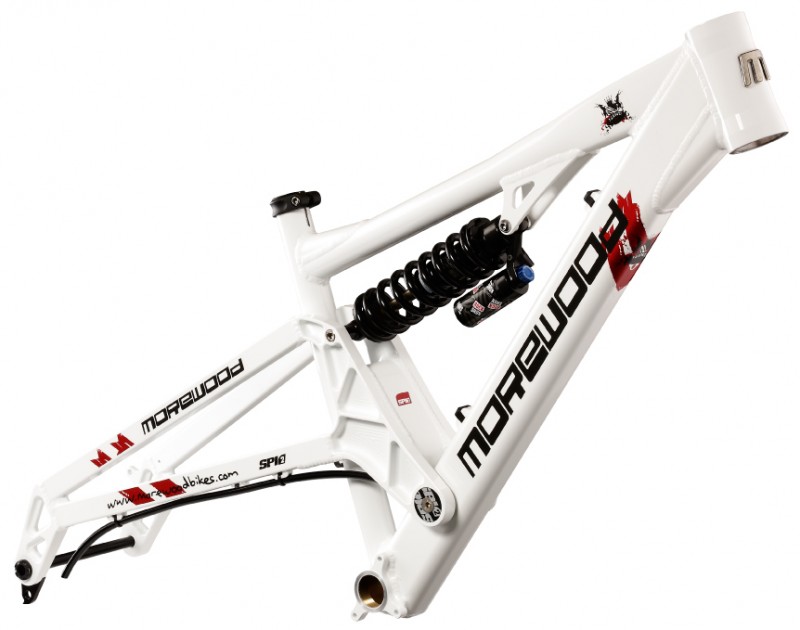

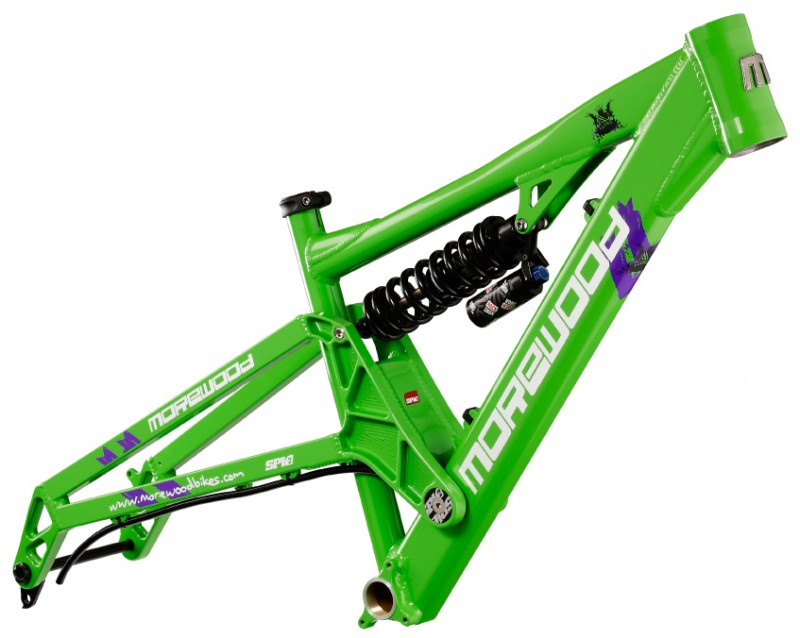

DH Frame:
1.5" headtube
Single position shock mounting
Hydroformed top tube - stronger front junction
73mm ISCG 05 BB
Swingarm:
SP12 - simple, redefined pivot interface
12 x 150mm dropouts, one piece 7075 Ali CNC machined axle
IS brake mount - international standard
Replaceable CNC machine rear derailleur hanger - great strength and durability
Low shock leverage ratio (2.7:1) - more controlled suspension dampening
Tech:
1.5" (120mm long) head tube
Custom drawn Al 6082 T6 tubeset
Hydroformed top tube
73mm ISCG 05 bottom bracket
30.9mm seatpost size
34.9mm seat clamp (provided)
Small and large frame sizes
215mm (8.2") rear wheel travel
*Available with Fox DHX RC4 +$100
Price |
$2,380 |
|
Rear Shock |
Rock Shox Vivid 5.1 |
|
Fork |
Recommended travel: 170mm - 200mm |
|
Seatpost |
30.9mm |
|
Dimensions
Size |
Small |
Large |
Frame Weight |
|
|
Bike Weight |
|
|
Headtube Angle |
65 ° |
65 ° |
Seattube Angle |
70.5 ° |
70.5 ° |
Headtube Length |
|
|
Chainstay Length |
440 mm |
440 mm |
BB Height |
|
|
BB Width |
73 mm |
73 mm |
Seat Post Diameter |
30.9 " |
30.9 " |
Front Derailleur Width |
|
|
HeadTube Diameter |
1.5 |
1.5 |
Top Tube Length |
580 mm |
610 mm |
WheelBase |
1145 mm |
1175 mm |
Standover Height |
|
|
