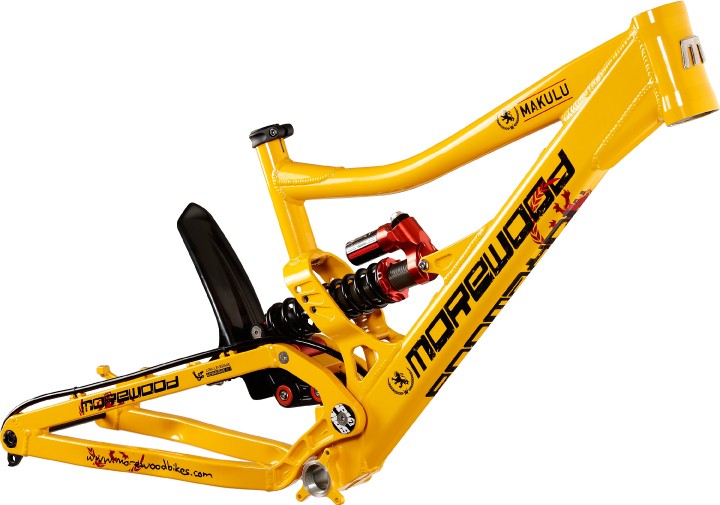

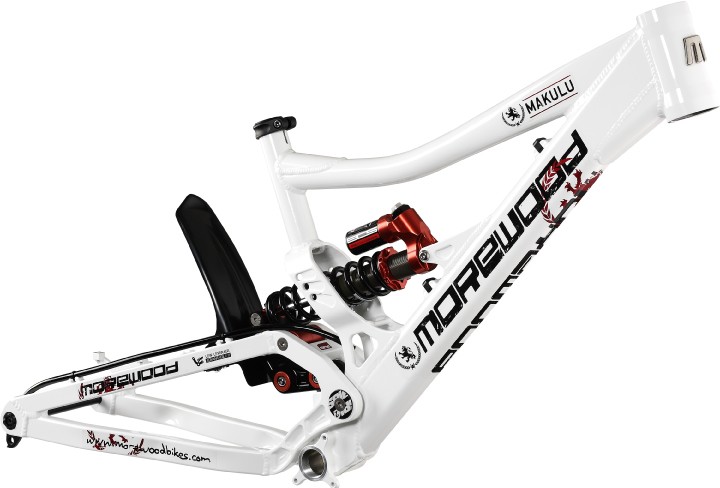

Morewood Makulu
(MSRP $2990)
—
Downhill Race frame only:
1.5" head tube.
Hydroformed top tube - strong front junction
Two piece CNC machined BB and pivot box incorporating linkage design - lightweight, high strength
83mm 05 ISCG BB mounting
Swingarm:
Low Leverage Advantage linkage design - lower centre of gravity, improved suspension kinetics
One piece direct 180mm PM brake tab - international standard
Replaceable CNC machined rear derailleur hanger - great strength and durability
Low shock leverage ratio (2.3:1) - more controlled, tunable suspension dampening
Tech:
1.5" (120mm long) headtube
Custom drawn AL6082 T6 tubeset
Hydroformed top tube
83mm ISCG 05 bottom bracket
30.9mm seatpost size
34.9mm seat clamp (provided)
Small and large frame sizes
203mm (8") rear wheel travel
Low Leverage Advantage linkage with full complement Enduro Max bearings (6901 2RS Max)
Double O-ring seal throughout linkage
266mm x 89mm (10.5" x 3.5") rear shock length
30mm x 8mm front shock-mount
25.4mm x 8mm rear shock-mount
Large sealed pivot bearings (6003 2RS)
Ali 12mm x 150mm rear axle (supplied)
Ali replaceable derailleur hanger (supplied)
One-piece postmount direct 180mm rear brake tab
Rock Shox Maxle compatible.
*Shock options: Cane Creek Double Barrel Makulu Tune - 3,500.00 or Fox DHX RC4 Makulu Tune 3,240.00
Price |
$2,990 |
|
Travel |
203mm (8") |
|
Fork |
Recommended travel 170mm - 200mm |
|
Bottom Bracket |
83mm shell with ISCG 05 tabs |
|
Hubs |
12 x 150 rear (axle only included) |
|
Seatpost |
30.9mm |
|
Dimensions
Size |
Small |
Large |
Frame Weight |
|
|
Bike Weight |
|
|
Headtube Angle |
65 ° |
65 ° |
Seattube Angle |
71 ° |
71 ° |
Headtube Length |
|
|
Chainstay Length |
445 mm |
445 mm |
BB Height |
|
|
BB Width |
83 mm |
93 mm |
Seat Post Diameter |
30.9 " |
30.9 " |
Front Derailleur Width |
|
|
HeadTube Diameter |
1.5 |
1.5 |
Top Tube Length |
580 mm |
610 mm |
WheelBase |
1157 mm |
1187 mm |
Standover Height |
|
|
I could just keep going for ever, but I finish by saying that you will feel comfortable on this bike quiker then any other race bike. It just feels like you've always ridden it, I don't know how to describe it.
