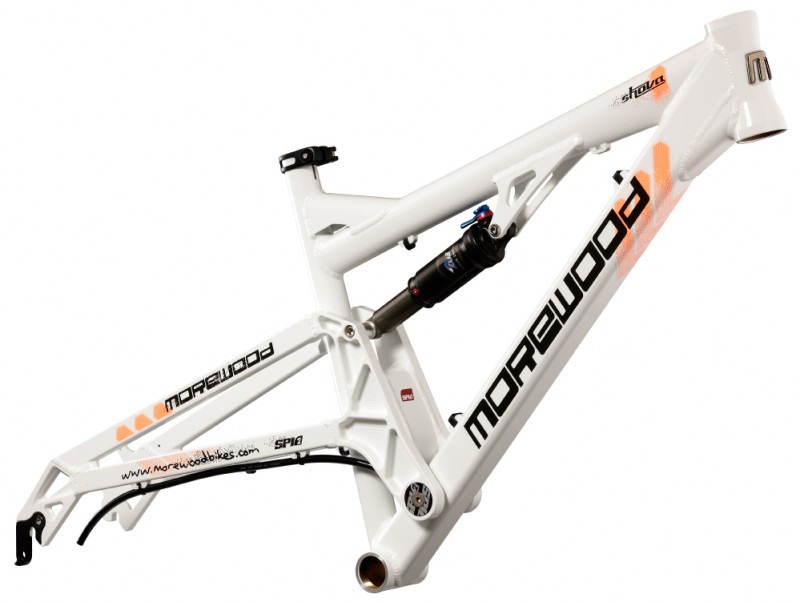

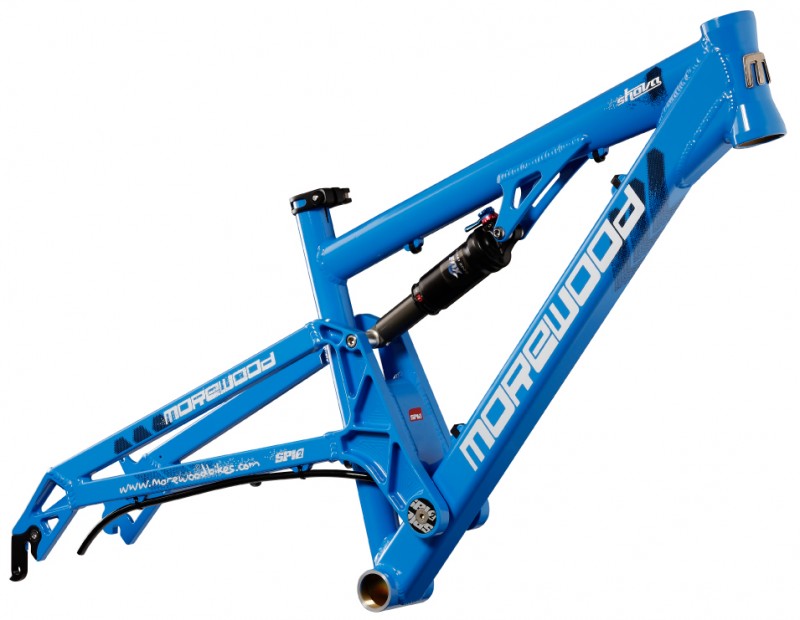

Morewood Shova
(MSRP $1560)
—
All Mountain Frame only:
CNC machined, 44mm semi-integrated headtube.
CNC machined shock mount.
Hydroformed top tube - stronger front junction.
Front derailleur compatible - triple chainring ready.
Swingarm:
SP12 - simple, refined pivot interface.
CNC machined QR dropout.
One piece IS brake mount - user friendly, international standard.
Replaceable CNC machined derailleur hanger - tried and tested strength and durability.
Tech:
44mm semi-integrated 1 1/8" (120mm long) headtube.
Custom drawn AL 6082 T6 tubeset.
Hydroformed toptube.
73mm bottom bracket.
30.9mm seatpost size
34.9mm seatclamp (provided)
34.9mm top pull/low band front derailleur (SRAM compatible).
Small, medium and large frame sizes.
145mm (5.7") rear wheel travel.
200mm x 50mm (7.875" x 2") shock length.
25.4mm x 8mm front shock-mount.
52mm x 8mm rear shock-mount.
Large sealed pivot bearings (6003 2RS).
Ali replaceable derailleur hanger (supplied).
IS rear brake mount.
Price |
$1,560 |
|
Travel |
5.7" (145mm) |
|
Fork |
Recommended travel: 120mm - 140mm |
|
Seatpost |
30.9mm |
|
Dimensions
Size |
Small |
Medium |
Large |
Frame Weight |
|
|
|
Bike Weight |
|
|
|
Headtube Angle |
69 ° |
69 ° |
69 ° |
Seattube Angle |
72 ° |
72 ° |
72 ° |
Headtube Length |
120 mm |
120 mm |
120 mm |
Chainstay Length |
430 mm |
430 mm |
430 mm |
BB Height |
|
|
|
BB Width |
73 mm |
73 mm |
73 mm |
Seat Post Diameter |
30.9 " |
30.9 " |
30.9 " |
Front Derailleur Width |
|
|
|
HeadTube Diameter |
1.125 |
1.125 |
1.125 |
Top Tube Length |
560 mm |
580 mm |
610 mm |
WheelBase |
1070 mm |
1090 mm |
1120 mm |
Standover Height |
|
|
|
