RockShox Revelation 426 Air U-Turn
-
+ 1
tocadacapivara
(May 18, 2009 at 6:00)
Eu utilizo uma Revelation em minha bike de all-moutain e XC. O mais irado deste suspensão, além dos controles de retorno e compressão, é a trava no guidão. E com está trava você pode controlar o "quanto" você quer travar.
Absolutely outstanding fork, I used to have Toras till I broke them and got these. Warning: This fork will seriously improve speed, agility and traction. Its got a positive air chamber and a negative one for fine tuning its also got compression dampening and rebound dampening. So, 4 diferent fine tuning features, two on each leg. Did I forget to mension lock-out and Air U-Turn giving you ajustability from 110mm of travel to 140mm of travel cause its got it too!!! So far I have not found any flaws.
If you want a good, light weight, all mountain fork with adjustable air, negative air, rebound, compresion, lockout, poplock with handlebar lever, and a great overall feel, you won't find one as good a value as this. Feels better than any Fox I've ever felt, and less expensive.
Smoothest forks I've used!! Awesome!! Not heavy ethier!! Don't be afraid to buy the 07 or 08 ones ethier- their butter smooth compared to a fox equivalent. I'm ridin fox 130mm floats at the moment and I'm missing the revelations!!
This fork is good mine came standard on my meta but im thinking of chainging to fox.Mine doesnt have the maxle so that is a down side but they do make other versions with this on it.
got the 2007 model, they are super slick and smooth, would recomend to anyone for a xc and trail riding

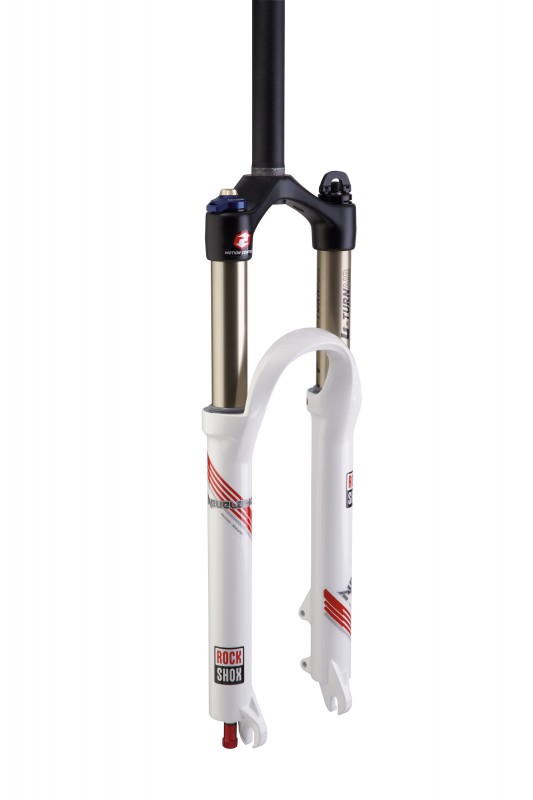

RockShox Revelation 426 Air U-Turn
(MSRP $593)
—
All Mountain Fork.
Specifications Compare to other Forks
| Release Date | 2009 | |
|---|---|---|
| Price | $593 | |
| Weight | 2091.06 g | |
| Color Options | Black, white, silver (20mm) / Black, white | |
| Travel | 110-140 mm |
Travel - refers to the distance the wheel can move in respect to the frame. Typically measured in millimeters, most forks range from 80 to 203 mm of travel
|
| Spring | Air | |
| Crown | Single | |
| Body Type | Magnesium, disc IS, 20mm Maxle Lite (20mm) | |
| Rebound | External Rebound |
Rebound - is how quick your fork returns to a fully extended position after being compressed. Almost all after-market forks feature external rebound adjustment for easy fine tuning.
|
| Stanchion material | 32mm, 7000 series straight wall Aluminum, low friction anodized, travel gradients (20mm) / 32mm, 7000 series straight wall aluminum, low friction anodized with travel gradients | |
| Steer Tube | 1.125 | |
| Damping | Motion Control |
Damping - The process of absorbing the energy of impacts transmitted through the forks or rear shock during the compression stroke, and absorbing the energy of the spring during the rebound stroke.
|
| DropOut Options | Maxle | |
| Compression | Low speed compression to 'Lock' with external Floodgate |
Compression - This is the damping circuit that absorbs the compression energy force on the damper. Compression damping is used to adjust how quickly a fork or rear shock compresses when hitting a bump, and is adjustable on some products. When compression damping is too soft, this condition allows most of the available travel to be used without attaining control of the wheel. When it's adjusted too firmly, the wheel will jump or "dance" about when hitting small bumps, again failing to gain control of the wheel.
|
