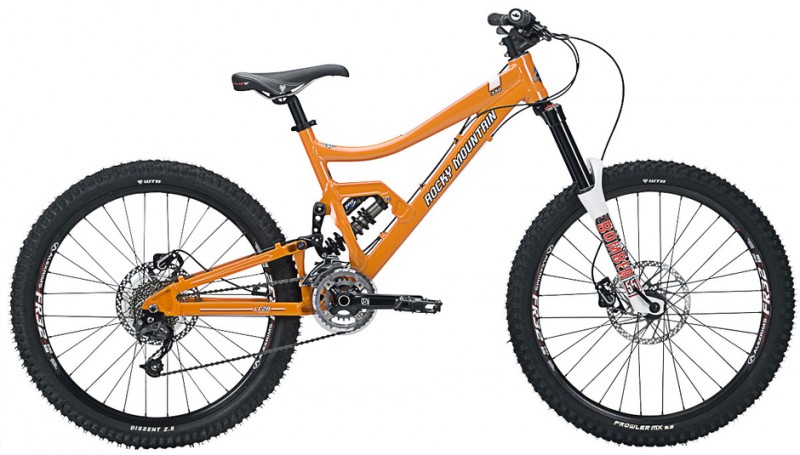

Rocky Mountain Slayer SS 350
(MSRP $2749.99)
—
LC2R
The Low Centre Counter Rotating - LC2R - patented suspension is a laterally stiff design that offers a highly predictable ride in all conditions. Its low sprung weight and concentrated suspension mass allow the LC2R suspension to respond faster to ground forces, such as stutter bumps, and keep the rear wheel glued to the ground during
acceleration.
LC2R suspension is a single pivot design, with the main pivot located just above and behind the bottom bracket. Both chain and brake
forces are concentric to this pivot through-out the suspension travel, which eliminates pedal “bob” and brake jack. A thrust/ tug link engages the top link to create a rising rate suspension and the much-sought-after “infinite travel” feel. We tune LC2R to create an optimal suspension rate for different types of riding – from super cross country to Freeride and to downhill.
LC2R suspension rate is tuned to Slopestyle and bike park riding • Low centre of gravity makes the bike stable and quick handling • Counter rotating top link creates a predictable ride in extreme conditions. • Compact LC2R suspension design eases the ride through bumpy and rough terrain. • Single pivot design creates predictable suspension ride and feel.
FORM Technology
The heart of a bike is its frame. The geometry, the material, the feel, and the way it reacts under the rider are the very essence of the ride. That’s why we’ve introduced FORM™ – the design and manufacturing process of our high-performance frame tubing. Our philosophy behind FORM™ tubing is to push the limits of tube and frame design to create the frame’s unique riding feel.
Engineered Ride Quality : FORM™ tubing is a line of high-performance tubes designed to elevate the superior ride quality for which Rocky Mountain Bicycles are known. Innovative design: With 25 years of innovation, we continue to push the boundaries of bicycle design. FORM™ tubing is the exciting new frontier of our creativity.
Attention to detail: Every detail in a FORM™ tube set is carefully engineered and has a
purpose: from the slightest variations in shape, to wall thickness, tapers, flares and bends.
Uncompromised quality: FORM™ tube sets are manufactured with premium materials and delivered by the best suppliers in the industry to meet Rocky Mountain’s strict requirements.
Release Date |
2009 |
|
Price |
$2,750 |
|
Travel |
152mm |
|
Rear Shock |
FOX Van R Custom Valved, 152mm |
|
Fork |
Marzocchi 55R, 160mm, Rebound |
|
Headset |
FSA Orbit Z 1.5 / 1 1/8 |
|
Cassette |
Shimano Deore-9 11-32T |
|
Crankarms |
FSA Moto X Mega EXO 170-175mm 36/24T |
|
Bottom Bracket |
FSA Mega EXO |
|
Pedals |
RMB Flat |
|
Rear Derailleur |
Shimano Deore |
|
Chain |
Shimano HG53 |
|
Front Derailleur |
Shimano Deore 31.8mm |
|
Shifter Pods |
Shimano Deore Rapid Fire 9spd |
|
Handlebar |
RMB DH Alloy 31.8mm 30mm rise 700mm |
|
Stem |
RMB DH alloy 31.8mm x 10° 50mm |
|
Brakes |
Shimano BRM575 hydraulic disc |
|
Hubs |
Wheeltech disc super sealed W/10mm Thru axle |
|
Spokes |
DT Champion |
|
Rim |
Mavic EN321 |
|
Tires |
WTB Prowler MX 2.5 FT / Dissent 2.5 RR F.V. |
|
Seat |
WTB Pure V Race |
|
Seatpost |
RMB SP-601 2-Bolt 30.9mm |
|
Dimensions
Size |
L |
Frame Weight |
|
Bike Weight |
|
Headtube Angle |
66 ° |
Seattube Angle |
74.7 ° |
Headtube Length |
110 mm |
Chainstay Length |
437 mm |
BB Height |
|
BB Width |
|
Seat Post Diameter |
|
Front Derailleur Width |
|
HeadTube Diameter |
1.5 |
Top Tube Length |
596 mm |
WheelBase |
1184 mm |
Standover Height |
735 mm |
