Dartmoor 2010
Dartmoor is proud to announce there 2010 bike and product lineup! Dartmoor is a young, fast growing company. We create bicycle frames and parts - from bmx, through dirt/street and 4x up to freeride and downhill. Dartmoor is also sponsoring some best polish and international riders.Dartmoor Cody

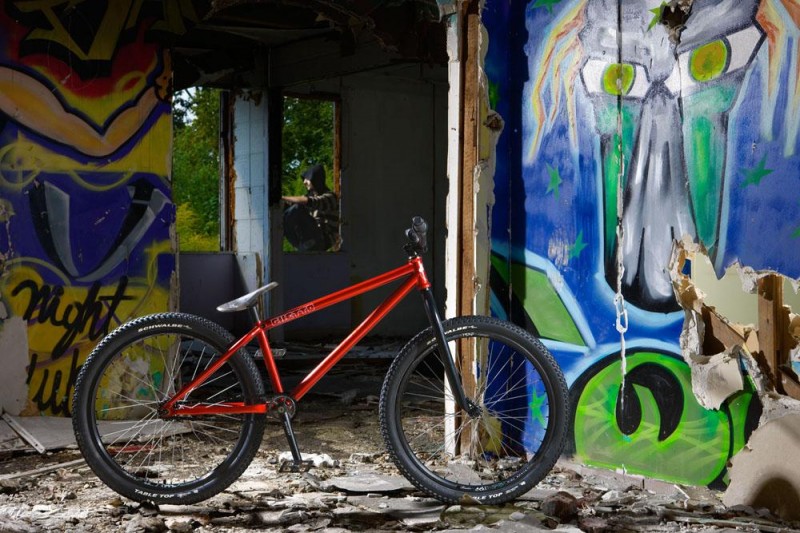

One of the lightest and most technologically advanced dirt/street frames for 26" wheels. Made of multiple butted, seamless Japanese Cr-Mo 4130 tubes. Fully heat treated after welding for best durability. One piece hydro formed chain stay tubes for better stiffness, lower weight and perfect shape. Internal gusset under head tube. New design of top tube integrated seat clamp. Head tube for integrated 45x45 deg. headsets. Gyro tabs holes in head tube. Low profile, machined dropouts.
Dartmoor Ghetto
Ultralight and very strong street frame for 24" wheels and rigid fork or low suspension fork (60-80mm travel). Made of multiple butted, seamless Japanese Cr-Mo 4130 tubes, fully heat treated after welding. One piece hydro formed chain stay tubes for better stiffness, lower weight and optimal shape. Internal gusset under head tube. New design of top tube integrated seat clamp. Head tube for integrated 45x45 deg. headsets. Gyro tabs holes in head tube. Low profile, machined dropouts.
The frame was tested by Przywa - one of the best Polish street riders.
Rear triangle: 360mm. Top tube: 545mm. BB: Spanish 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 10.5". Weight: 1.98kg or 4.4 pounds

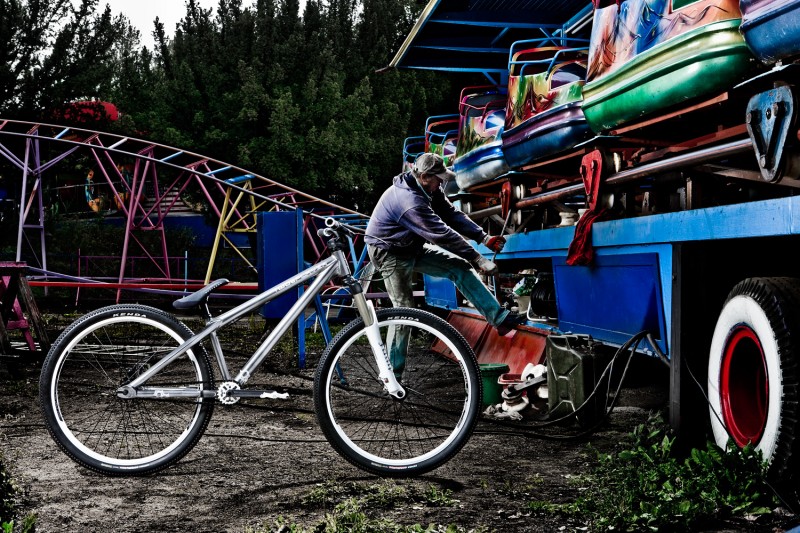

Dartmoor Quinnie
Dirt/street frame for 26" wheels. Perfect base for building up complete bike by both: entry level and experienced riders. Made of butted, seamless Japanese Cr-Mo 4130 tubes. The frame offers the best quality, modern design, perfect geometry and relatively low weight. Internal gusset under head tube. Seat tube integrated seat clamp. Head tube for standard threadless headsets. Low profile dropouts.
The frame was tested in skatepark/street by Oli and on dirts by Kraja.
Rear triangle: 383mm. Top tube: 574mm. BB: Euro 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 12". Weight: 2.4k or 5.3 pounds.
Colors: dark copper, black, lemon, silver.

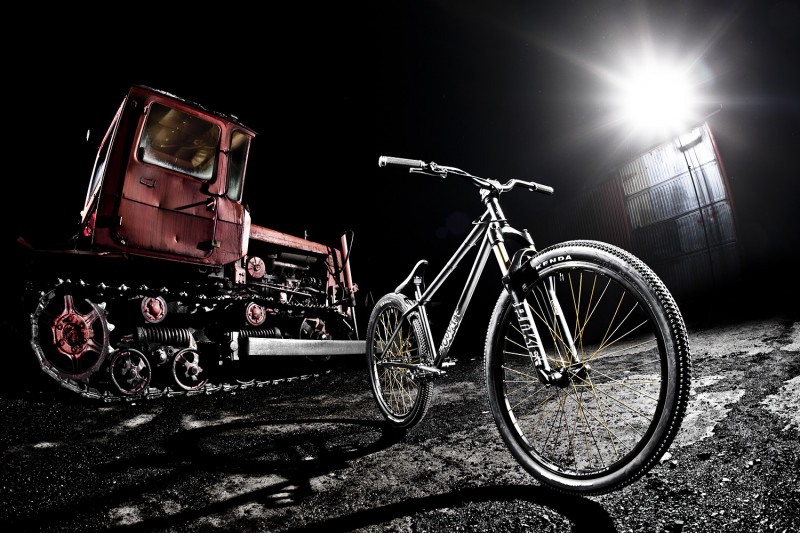

Dartmoor TWO6PLAYER
Ultralight dirt/skatepark/slopestyle frame for 26" wheels. Made of butted and heat treated aluminum 7005 tubes which makes it incredibly light and stiff. The outlook of the frame has been completely re-designed. All main tubes are now oval profiles which look nice together with triangular seat stays. Head tube is made for standard threadless headsets and is now reinforced even more where cups are assembled and butted in the middle section for maximum weight reduction.
Frame was designed by Elvis and uncompromisingly tested by our riders - Turbo, Mop and Kuba Szopa.
This will be also a hardtail frame of our new Canadian rider - Scott Alleyn.
Rear triangle: 385mm. Top tube: 570mm. BB: Euro 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 12.5". Weight: 1.95kg or 4.3 pounds
Colors: graphite, black, green, orange, white.

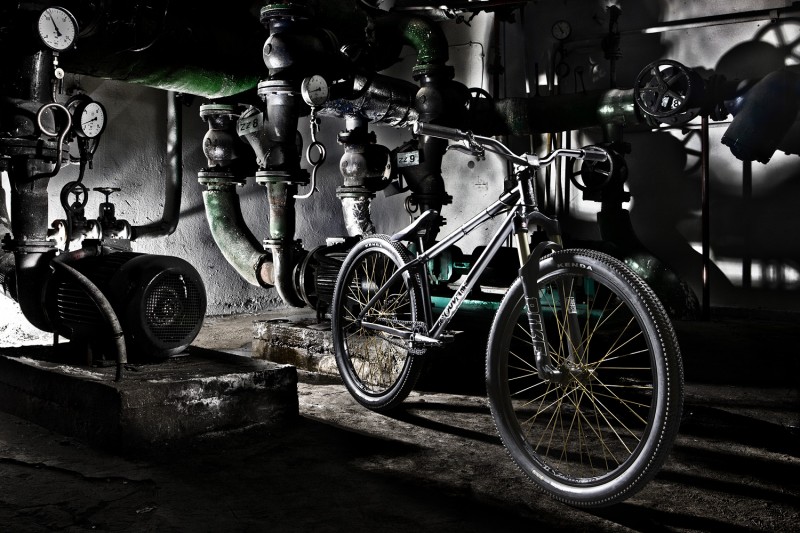

Dartmoor TWO4PLAYER
Ultralight dirt/skatepark frame for 24" wheels. Smaller brother of Two6Player frame. But not the worse one. Butted and heat treated alu 7005 tubes make the frame light and stiff. Also here all main tubes have now oval profiles, seat stays have triangular profiles and head tube is reinforced and butted inside.
Like the Player for 26" also Two4Player was designed by Elvis.
Testing was made by best Polish teenage rider - Szamanek supported also by Odys.
Rear triangle: 370mm. Top tube: 550mm. BB: Euro 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 12". Weight: 1.88kg or 4.1 pounds
Colors: blue, matte black, violet, silver, white.

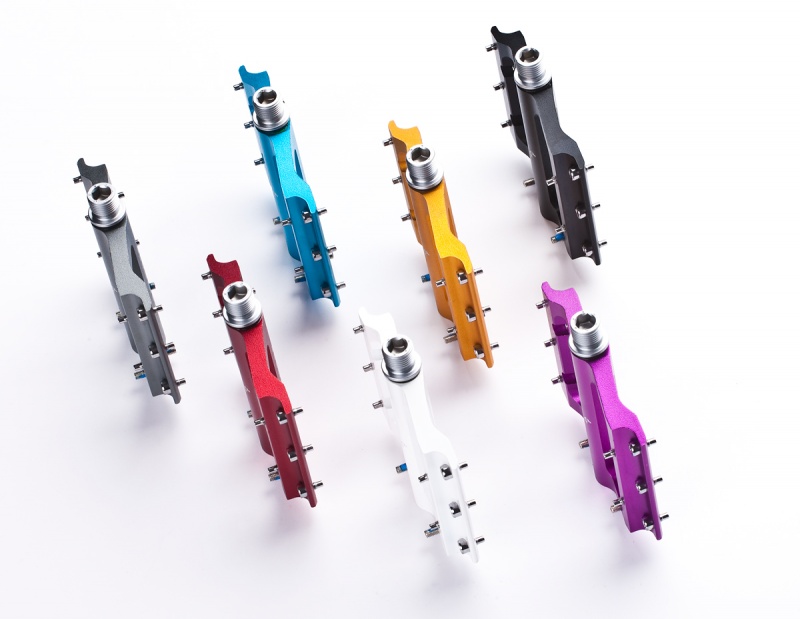

Dartmoor Fever Pedals
Ultralight pedals made of cold forged and CNC machined aluminium. Re-designed custom body shape. Ultraflat profile. Cr-mo steel axle. Two sealed bearings and DU-bushing for perfect and smooth rotation. 7 removable pins per side. Shape of pedals for 2010 is simplified to make the outlook nicer and around the bearings some material is added to avoid breaking in this place.
Approved for heavy duty use by Szaman.
Height: 16mm. Platform size: 90x100mm. Weight: 380g.
Colors: black anodized, red anodized, blue anodized, violet anodized, gold anodized, graphite anodized, white.
Dartmoor SHINE
Full suspension frame which combines riding comfort of suspension frames with modern geometry of dirt jump hardtails. Made of butted and heat treated alu 7005 tubes. This frame makes it possible to build a very light slopestyle/dirt jumping bike which can make riding a lot of fun for amateurs and smoothen the impact caused by the biggest jumps/drops for pro riders. BB-centric pivot and horizontal dropouts lets you run a perfect singlespeed drive where suspension work does not change chain tension. Simple and trouble less suspension design with multipoint linking and big bearings on the BB make the construction as stiff as the typical DJ hardtail frame. Head tube for 1.5" headsets.
Tested by our Czech DJ rider Tomas Zejda. In 2010 you will see it at as Scott Alleyn's slopestyle bike.
Selling options: w/o shock; w/Manitou Metel R shock; w/Manitou ISX-1 shock.
Frame travel: 100mm. Shock: 190x50mm. Suspension ratio: 1:2.
Rear triangle: 410mm. Top tube: 561mm. BB: Euro 73mm. Seat post: 27.2mm.
Dropouts: 135x10mm. Size: 12". Weight: 2.8kg or 6.2 pounds (without shock).

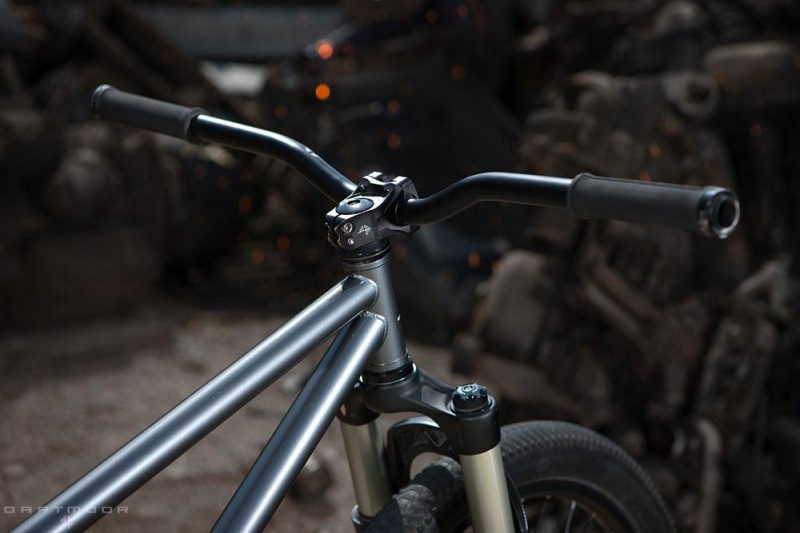

One of the lightest and most technologically advanced dirt/street frames for 26" wheels. Made of multiple butted, seamless Japanese Cr-Mo 4130 tubes. Fully heat treated after welding for best durability. One piece hydro formed chain stay tubes for better stiffness, lower weight and perfect shape. Internal gusset under head tube. New design of top tube integrated seat clamp. Head tube for integrated 45x45 deg. headsets. Gyro tabs holes in head tube. Low profile, machined dropouts.

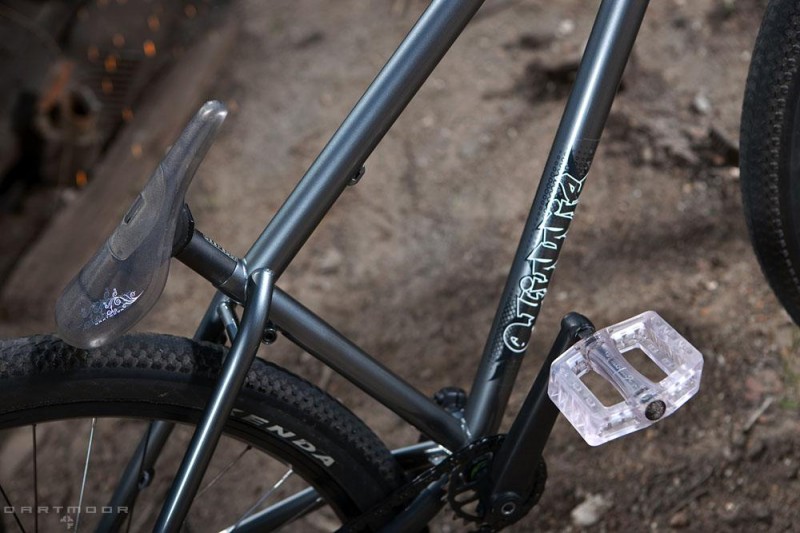

Seamless Japanese Cr-Mo 4130 tubes

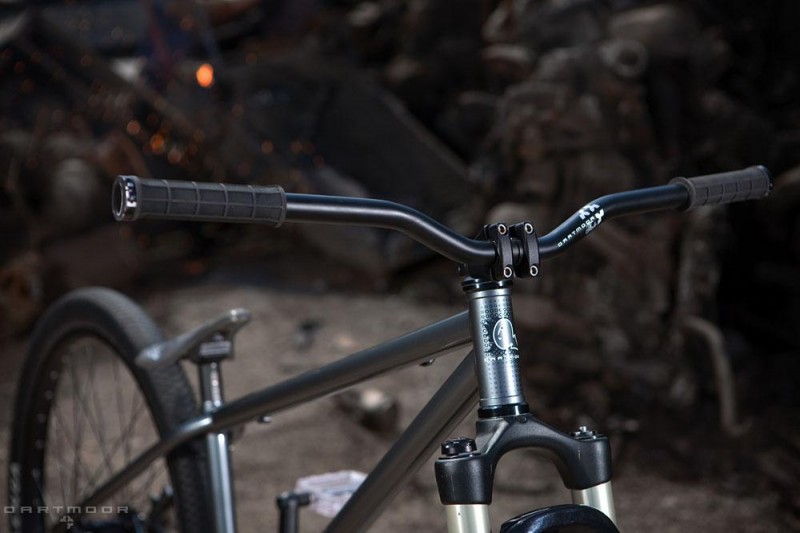

One of the lightest and most technologically advanced dirt/street frames for 26" wheels
Dartmoor Ghetto
Ultralight and very strong street frame for 24" wheels and rigid fork or low suspension fork (60-80mm travel). Made of multiple butted, seamless Japanese Cr-Mo 4130 tubes, fully heat treated after welding. One piece hydro formed chain stay tubes for better stiffness, lower weight and optimal shape. Internal gusset under head tube. New design of top tube integrated seat clamp. Head tube for integrated 45x45 deg. headsets. Gyro tabs holes in head tube. Low profile, machined dropouts.
The frame was tested by Przywa - one of the best Polish street riders.
Rear triangle: 360mm. Top tube: 545mm. BB: Spanish 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 10.5". Weight: 1.98kg or 4.4 pounds

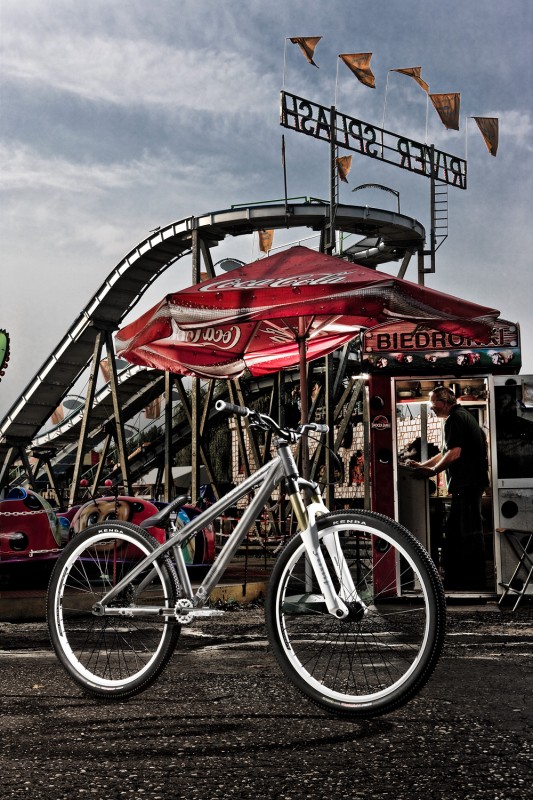

The frame is designed for 24" wheels and a rigid fork or low suspension fork (60-80mm travel)
Dartmoor Quinnie
Dirt/street frame for 26" wheels. Perfect base for building up complete bike by both: entry level and experienced riders. Made of butted, seamless Japanese Cr-Mo 4130 tubes. The frame offers the best quality, modern design, perfect geometry and relatively low weight. Internal gusset under head tube. Seat tube integrated seat clamp. Head tube for standard threadless headsets. Low profile dropouts.
The frame was tested in skatepark/street by Oli and on dirts by Kraja.
Rear triangle: 383mm. Top tube: 574mm. BB: Euro 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 12". Weight: 2.4k or 5.3 pounds.
Colors: dark copper, black, lemon, silver.
Dartmoor TWO6PLAYER
Ultralight dirt/skatepark/slopestyle frame for 26" wheels. Made of butted and heat treated aluminum 7005 tubes which makes it incredibly light and stiff. The outlook of the frame has been completely re-designed. All main tubes are now oval profiles which look nice together with triangular seat stays. Head tube is made for standard threadless headsets and is now reinforced even more where cups are assembled and butted in the middle section for maximum weight reduction.
Frame was designed by Elvis and uncompromisingly tested by our riders - Turbo, Mop and Kuba Szopa.
This will be also a hardtail frame of our new Canadian rider - Scott Alleyn.
Rear triangle: 385mm. Top tube: 570mm. BB: Euro 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 12.5". Weight: 1.95kg or 4.3 pounds
Colors: graphite, black, green, orange, white.
Dartmoor TWO4PLAYER
Ultralight dirt/skatepark frame for 24" wheels. Smaller brother of Two6Player frame. But not the worse one. Butted and heat treated alu 7005 tubes make the frame light and stiff. Also here all main tubes have now oval profiles, seat stays have triangular profiles and head tube is reinforced and butted inside.
Like the Player for 26" also Two4Player was designed by Elvis.
Testing was made by best Polish teenage rider - Szamanek supported also by Odys.
Rear triangle: 370mm. Top tube: 550mm. BB: Euro 68mm.
Seat post: 27.2mm. Dropouts: 135x10mm. Size: 12". Weight: 1.88kg or 4.1 pounds
Colors: blue, matte black, violet, silver, white.
Dartmoor Fever Pedals
Ultralight pedals made of cold forged and CNC machined aluminium. Re-designed custom body shape. Ultraflat profile. Cr-mo steel axle. Two sealed bearings and DU-bushing for perfect and smooth rotation. 7 removable pins per side. Shape of pedals for 2010 is simplified to make the outlook nicer and around the bearings some material is added to avoid breaking in this place.
Approved for heavy duty use by Szaman.
Height: 16mm. Platform size: 90x100mm. Weight: 380g.
Colors: black anodized, red anodized, blue anodized, violet anodized, gold anodized, graphite anodized, white.
Dartmoor SHINE
Full suspension frame which combines riding comfort of suspension frames with modern geometry of dirt jump hardtails. Made of butted and heat treated alu 7005 tubes. This frame makes it possible to build a very light slopestyle/dirt jumping bike which can make riding a lot of fun for amateurs and smoothen the impact caused by the biggest jumps/drops for pro riders. BB-centric pivot and horizontal dropouts lets you run a perfect singlespeed drive where suspension work does not change chain tension. Simple and trouble less suspension design with multipoint linking and big bearings on the BB make the construction as stiff as the typical DJ hardtail frame. Head tube for 1.5" headsets.
Tested by our Czech DJ rider Tomas Zejda. In 2010 you will see it at as Scott Alleyn's slopestyle bike.
Selling options: w/o shock; w/Manitou Metel R shock; w/Manitou ISX-1 shock.
Frame travel: 100mm. Shock: 190x50mm. Suspension ratio: 1:2.
Rear triangle: 410mm. Top tube: 561mm. BB: Euro 73mm. Seat post: 27.2mm.
Dropouts: 135x10mm. Size: 12". Weight: 2.8kg or 6.2 pounds (without shock).

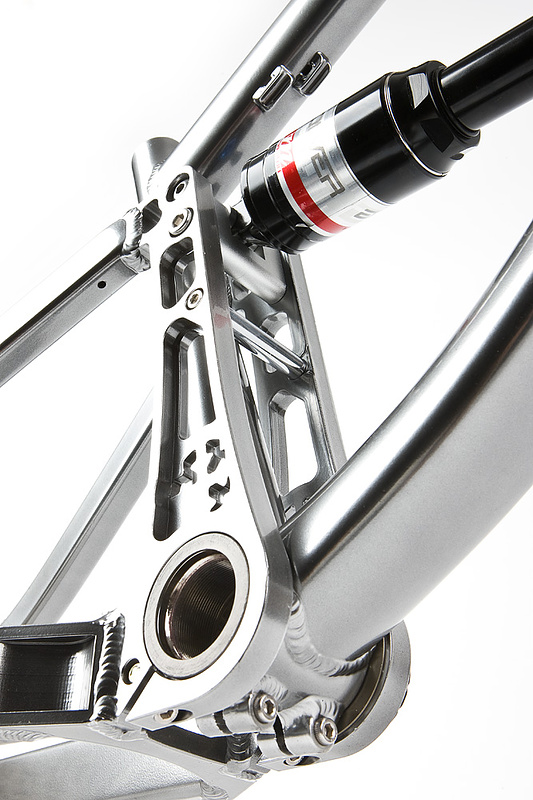

Hardtail Geometry in a single speed compatible full suspension
Offering 100mm of travel in a frame weighing just 2.8kg or 6.2 pounds
