First Look: Orbea Launches Longer Travel Occam LT

Sep 14, 2021 at 9:40
by Seb Stott

Orbea recently overhauled their Rallon enduro bike. Guess what? It's longer and slacker than its predecessor, and it has more travel when compared to the original 150mm-travel Rallon. This has opened the door for something to fill the gap between the 140mm-travel Occam and the 160mm-travel Rallon. Enter the Occam LT (LT stands for long travel - obviously). With 150mm of squish at either end and similar geometry to the 140mm Occam, Orbea says this is the bike for people who think the new Rallon is a bit too much bike.
2022 Occam and Occam LT Details

• Carbon and alloy frames
• Travel: 140mm (regular) / 150mm (LT)
• Wheel size: 29" only
• Head angle: 66-degrees (regular) / 65.5-degrees (LT)
• Sizes: S - XL
• Price: $2,999 - $8,699 USD (regular) / $3,659 - $6,299 (LT)
• orbea.com

The regular Occam (left) continues alongside the new Occam LT (right)

The regular 140mm Occam isn't going anywhere and has also been updated with a new rocker link that is shared with the Occam LT. The new link has fewer parts and allows for a mini tool to be stashed in the hollow pivot axle, but keeps the suspension kinematics the same. The difference between the 140mm and 150mm bikes is in the shock - the LT uses a 210 x 55mm shock, rather than 210mm x 50mm. This is teamed with a 150mm Fox 36 in place of a 140mm Fox 34 fork. It is possible to switch shocks to convert a 2022 Occam to an Occam LT (or vise-versa), but Orbea doesn't recommend fitting the longer shock to an older Occam as it may contact the frame. The 2022 bike has an updated top tube in small and medium sizes to prevent this.
Like the 2022 Rallon, the Occam is now compatible with a little tool that sits inside the rocker link pivot.

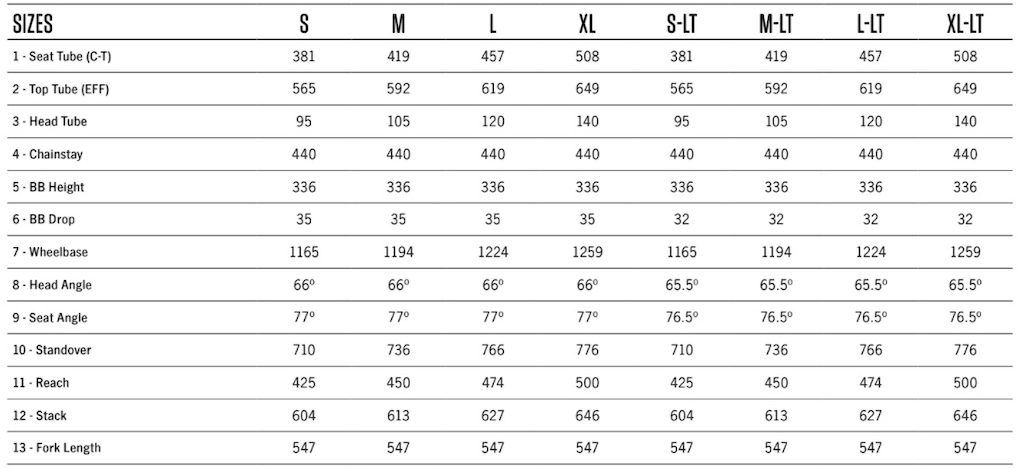

Geometry

The longer fork slackens the seat and head angles by half a degree on the LT, but otherwise the bikes are nearly identical. Technically, the LT's slacker geometry will reduce the reach slightly, but this isn't shown in Orbea's geometry chart. With a head angle of 66-degrees, Orbea insists the Occam LT is not a "mini-Rallon"; it's significantly shorter and steeper, offering a more agile ride.

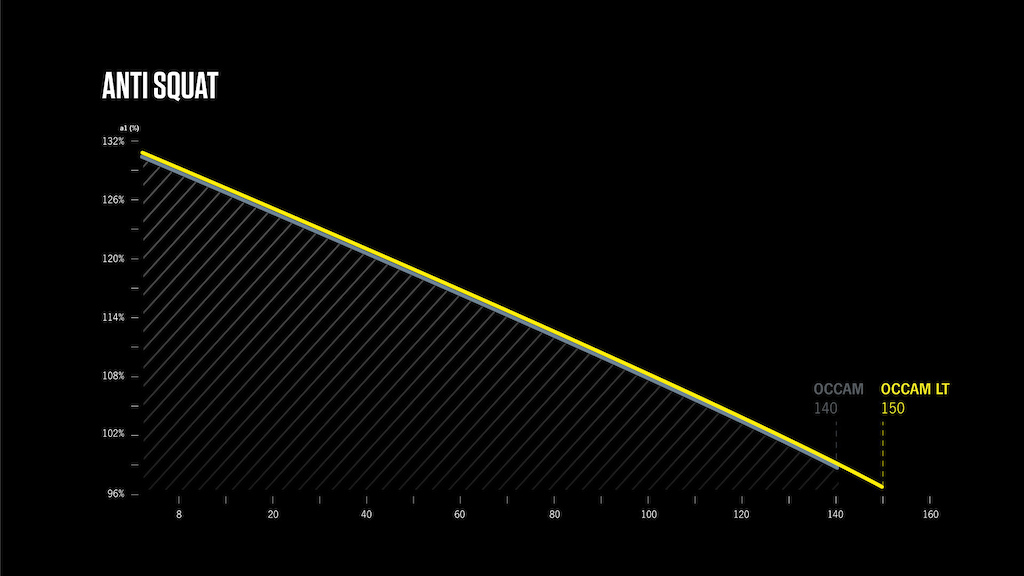

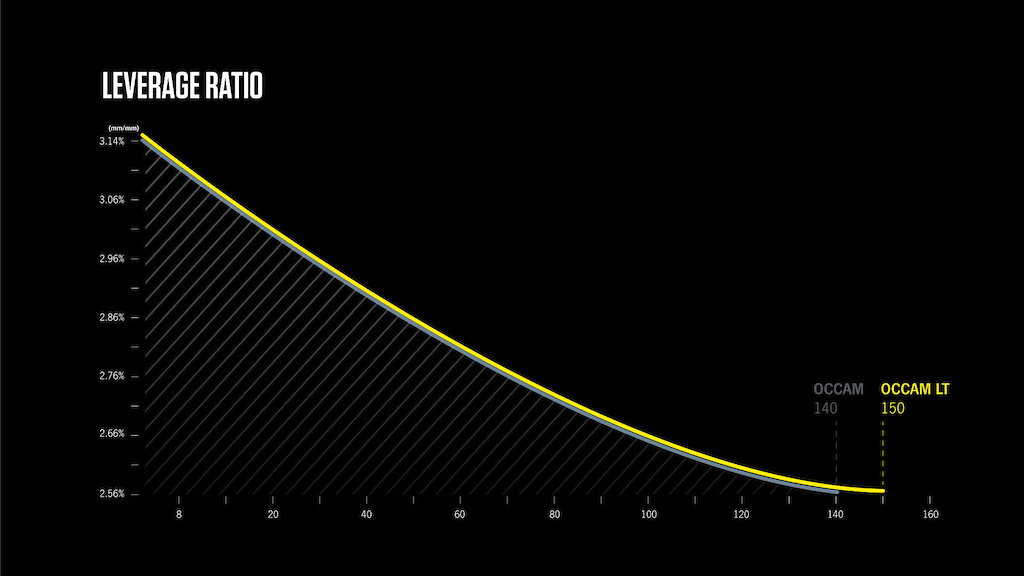

Suspension

The kinematics are nearly identical between both Occams, except for the LT's extra 10mm of suspension travel. Both bikes are progressive throughout the stroke, with about 18% progression from start to finish. Anti-squat is around 120% at sag, although the LT will have slightly less anti-squat if it is set up with the same percentage sag because the anti-squat values drop off deeper into the travel.

Specs

Compared to the standard Occam, the default spec on the LT includes beefier (four-pot) brakes, more aggressive tires and piggyback rather than in-line shocks. But through Orbea's MyO (My Orbea) programme, it's possible to configure different specifications when buying online. It's even possible to swap to a 150mm Fox 36 on a 140mm frame, or up the shock travel on an otherwise standard Occam. On the LT models, you can pick between coil or air shocks, and it's possible to choose between different tire specs (Minion or Assegai) or upgrade certain components like brakes, dropper posts and forks.


Occam LT Builds

OCCAM M10 LT - $6,299 / £5,699 / €5,699
Frame: Orbea OMR Carbon
Fork: Fox 36 GRIP2 Factor
Shock: Fox DHX Factory (Float X option)
Drivetrain: Shimano XT
Wheels: Race Face TURBINE-R30 TLR
Tires: Maxxis Minion DHF 2.50” EXO/Dissector 2.4" EXO
Seatpost OC2 Dropper 31.6mm
Saddle: Fizik Taiga S-alloy rail
Cranks: Shimano XT
Handlebar: Race Face Next R 35 780mm
Stem: Race Face Aeffct, 50mm
Brakes: Shimano XT Four-pot


OCCAM M30 LT - $4,599 / £3,999 / €3,999
Frame: Orbea OMR Carbon
Fork: Fox 36 Performance GRIP
Shock: Fox FLOAT X Factory
Drivetrain: Shimano XT/SLX
Wheels: Race Face AR 30c
Tires: Maxxis Minion DHF 2.50” EXO/Dissector 2.4" EXO
Seatpost OC2 Dropper 31.6mm
Saddle: Fizik Taiga S-alloy rail
Cranks: Race Face Aeffect 32t
Handlebar: Race Face Next R 35 780mm
Stem: Race Face Aeffct, 50mm
Brakes: Shimano Deore Four-pot


OCCAM H20 LT - $3,659 / £3,199 / €3,199
Frame: Orbea Hydro Polished Triple Butted Alloy
Fork: Fox 36 Performance GRIP
Shock: Fox FLOAT X Performance
Drivetrain: Shimano SLX
Wheels: Race Face AR 30c
Tires: Maxxis Minion DHF 2.50” EXO/Dissector 2.4" EXO
Seatpost OC2 Dropper 31.6mm
Saddle: Fizik Taiga S-alloy rail
Cranks: Race Face Aeffect 32t
Handlebar: OC1 35mm 12mm Rise 780mm
Stem: OC1 35mm clamp, 50mm
Brakes: Shimano M6100
