Specifications
|
|
Price
|
$3250
|
|
|
Travel |
203mm |
|
|
Rear Shock |
Fox DHX 4.0 |
|
|
Fork |
Marzocchi 66 RCV, 1.5” Steerer, open bath, external rebound damping adjustor, air preload, 20mm QR thru-axle, 38mm stanchions, 180mm travel |
|
|
Headset |
Aheadset STS external cup, with 20mm shim stack, 1.5” |
|
|
Cassette |
SRAM PowerGlide 950, 9-speed, 11-34 |
|
|
Crankarms |
FSA MegaExo MotoX, 36T x 165mm (all sizes) |
|
|
Chainguide |
e13 LG1 chain guide |
|
|
Bottom Bracket |
FSA Mega Exo integrated |
|
|
Pedals |
Crank Brothers 5050 ball bearing platforms with replaceable plates & pedal spikes |
|
|
Chain |
Sram PowerChain 971 with Gold Power-Link |
|
|
Rear Derailleur |
SRAM X7 mid-cage rear |
|
|
Shifter Pods |
SRAM X7 trigger-shift, 18-speed |
|
|
Handlebar |
Syncros FR 20 OS riser, 31.8 OD x 20mm rise x 710mm |
|
|
Stem |
Syncros AMS Stem, 1.5” steerer bore, 31.8 bar bore x 6˚ rise x 60mm |
|
|
Grips |
WTB MotoTec clamp-on, DNA compound |
|
|
Brakes |
Avid Juicy 5 hydraulic disc brakes with 203mm rotors, Avid Juicy levers |
|
|
Wheelset |
WTB Laser Disc Freeride, eyeletted, 32H, WTB Laser Disc Super Duty disc hubs with 20mm thru-axle front & 150 x 12mm thru-axle rear, WTB 14G stainless steel spokes |
|
|
Tires |
Maxxis Mininon DH, 26 x 2.5” front & 2.35” rear, R3C Compound |
|
|
Seat |
WTB Devo HP Comp, steel rails |
|
|
Seatpost |
Syncros FR 2-piece OS, 31.6 x 350mm with alloy QR clamp |
|
|
Size:
|
16" |
17.5" |
19.5" |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
40.20 lbs |
40.20 lbs |
40.20 lbs |
|
Headtube Angle:
|
65 ° |
65 ° |
65 ° |
|
Seattube Angle:
|
67.5 ° |
67.5 ° |
67.5 ° |
|
Headtube Length:
|
130 mm |
130 mm |
130 mm |
|
Chainstay Length:
|
440 mm |
440 mm |
440 mm |
|
BB Height:
|
368 mm |
368 mm |
368 mm |
|
BB Width:
|
|
|
|
|
Seat Post Diameter:
|
31.6 " |
31.6 " |
31.6 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.5 |
1.5 |
1.5 |
|
Top Tube Length:
|
558 mm |
584 mm |
609 mm |
|
WheelBase:
|
1122 mm |
1147 mm |
1172 mm |
|
Standover Height:
|
809 mm |
818 mm |
830 mm |
|

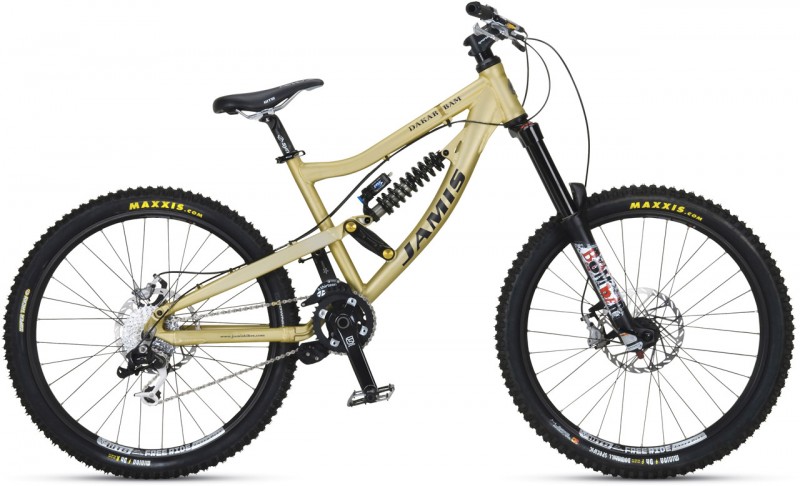

Jamis Dakar BAM I (MSRP $3250) - We took the proven 7-inch mp3 rear suspension from last year’s BAM, pumped it up to 8 inches of terrain-swallowing travel so it’ll take the drops you used to bail on. It’s active and plush thanks to a 2.67:1 leverage ratio that squeezes the most out Fox’s DHX shock, with minimal pedal or brake feedback, keeping you in complete control.
We gave BAM downhill-inspired angles for descending confidence, and a lengthy top tube that lets you breathe on the ascents as you make the most of the mp3 suspension’s stable pedal platform. A new unified bell crank and CNC’ed pivot hardware keeps things laterally stiff and torsionally tight so you can power out of one switchback into the next.
