Morewood Zuza
-
+ 1
ncrider5
(Apr 3, 2009 at 9:19)
i have the 2008 version of this bike (the shova LT 7 inch travel) SICKEST BIKE IVE EVER OWNED. i have it at 40 lbs and its climbs like a 30-35 lb bike. rides down like a world cup DH bike. This bike can do everything and anything!
Built this frame as a 170mm Enduro Bike and it totally fits my needs a strong and playful Bike makes me able to enter the DH trails in my area but I am still able to push it up the mountains and just go for some nice trail riding.
Could be a bit longer so for bigger guys the Zama frame would maybe be the better solution.
Could be a bit longer so for bigger guys the Zama frame would maybe be the better solution.

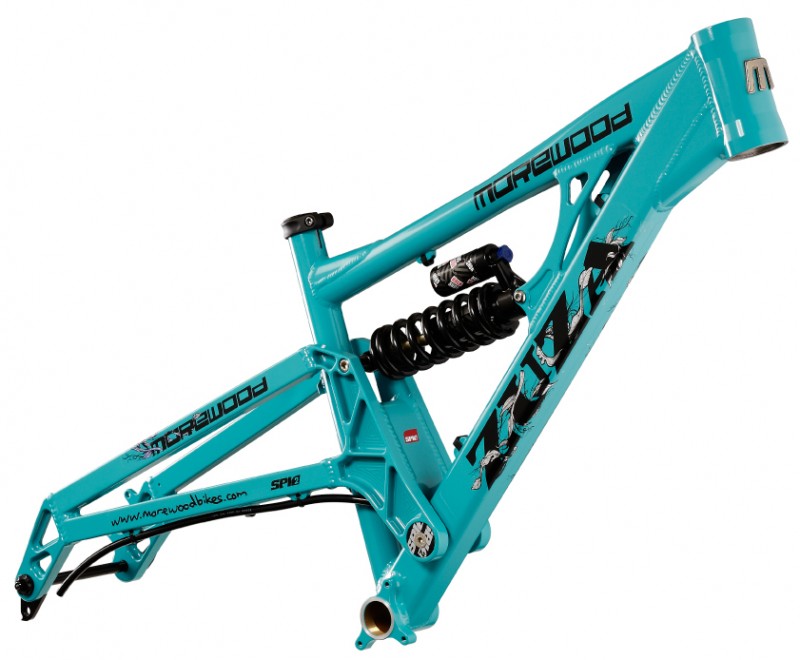

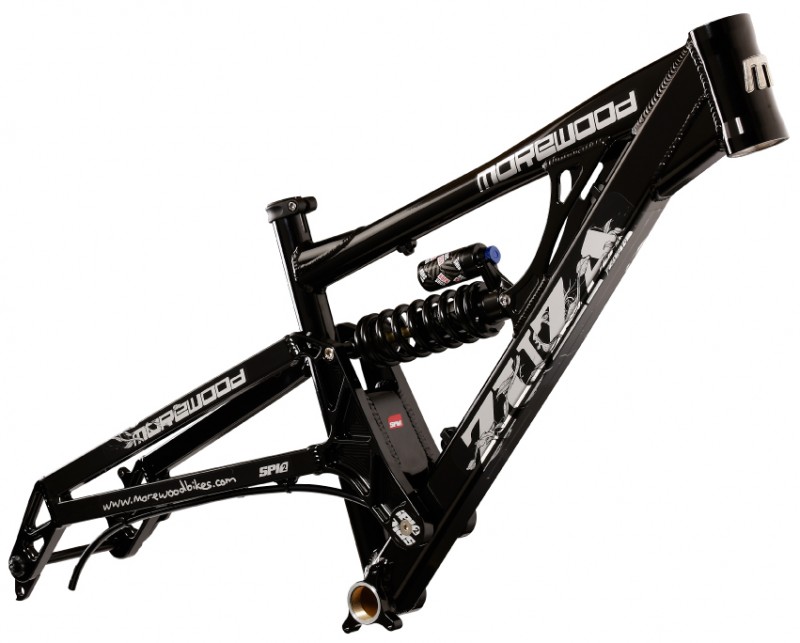

Morewood Zuza
(MSRP $2169)
—
Slopestyle/Freeride Frame:
1.5" head tube
CNC machined shock mount
Hydroformed top tube - stronger front junction
Ultra low top tube - low stand-over height
Front derailleur compatible - triple/dual chainring ready
Swingarm:
SP12 - simple, refined pivot interface
Rock Shox Maxle compatible 12mm x 135mm rear dropouts - Maxle supplied as standard
IS brake mount - international standard
Replaceable CNC machined derailleur hanger - strength and durability
Tech:
1.5" (120mm long) head tube
Custom drawn AL6082 T6 tube set
Hydroformed top tube
73mm ISCG 05 bottom bracket
30.9mm seatpost size
34.9mm seat clamp (provided)
34.9mm top pull/low band front derailleur (SRAM compatible)
Small/medium and medium/large frame sizes
170mm (6.7") rear wheel travel
215mm x 63mm (8.5" x 2.5") rear shock length
30mm x 8mm front shock-mount
52mm x 8mm rear shock-mount
Large sealed pivot bearings (6003 2RS)
Rock Shox MAxle 12 x 135mm axle (supplied)
Ali replaceable derallieur hanger (supplied)
IS rear brake mount
Specifications Compare to other DH Bikes
| Price | $2,169 | |
|---|---|---|
| Rear Shock | Fox DHX RC4 | |
| Fork | Recommended travel 150mm - 180mm | |
| Seatpost | 30.9mm |
Dimensions
| Size | Small | Large |
|---|---|---|
| Frame Weight | ||
| Bike Weight | ||
| Headtube Angle | 67.5 ° | 67.5 ° |
| Seattube Angle | 71.5 ° | 71.5 ° |
| Headtube Length | ||
| Chainstay Length | 430 mm | 430 mm |
| BB Height | ||
| BB Width | 73 mm | 73 mm |
| Seat Post Diameter | 30.9 " | 30.9 " |
| Front Derailleur Width | ||
| HeadTube Diameter | 1.5 | 1.5 |
| Top Tube Length | 568 mm | 593 mm |
| WheelBase | 1094 mm | 1119 mm |
| Standover Height |
