Transition Preston FR
(MSRP $3141)
—
The Preston FR is designed for the agressive trail rider that loves to earn their way to the top by pedaling but also needs a bike that is burly enough for freeriding on the way down. Make no mistake, the Preston FR is no large travel huck bike. It is designed for the rider that still wants to feel the trail and has some finesse for flowing technical freeride lines. We shy away from calling the Preston FR an all mountain bike even though it is superb on long singletrack epics. The Preston FR is built with strength in mind to tackle those rough freeride trails without weighing you down.

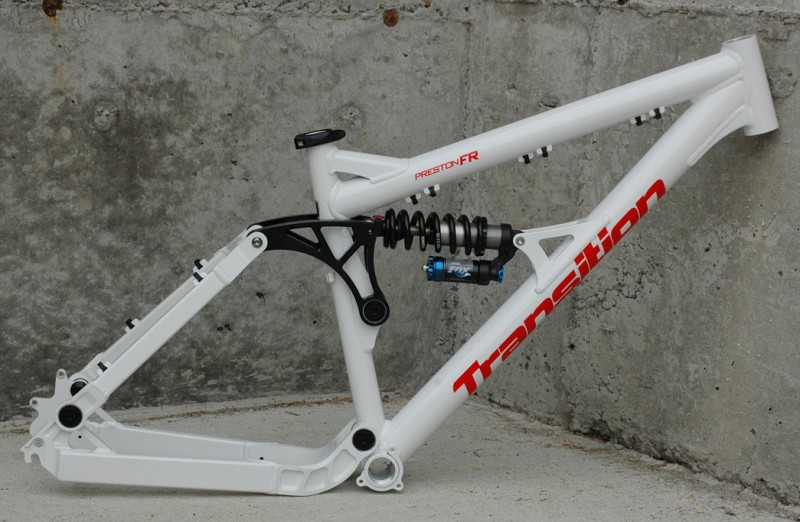

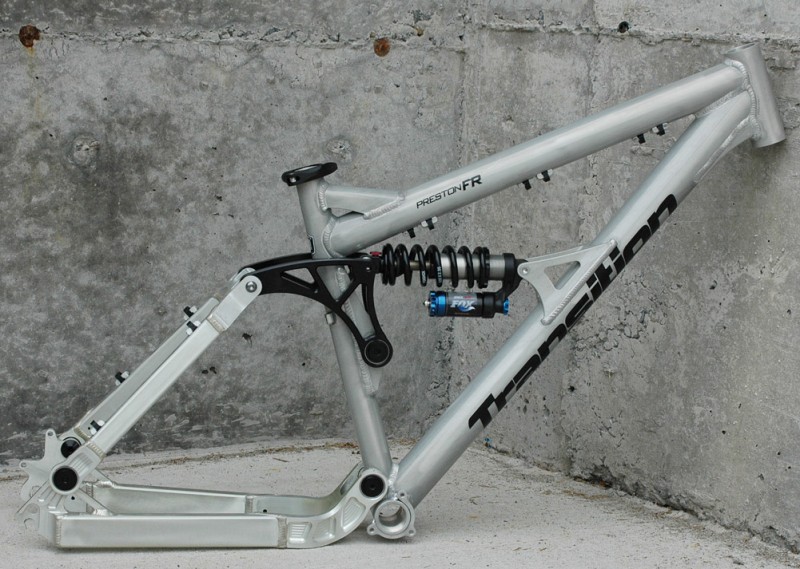

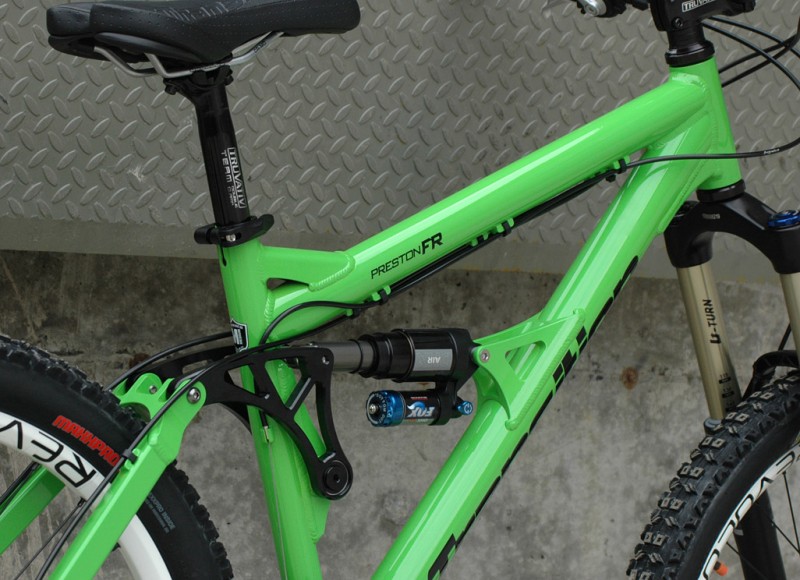

FRAME FEATURES:
130mm (5") Rear Wheel Travel
Fox DHX 5.0 Coil 7.5" x 2" or DHX 5.0 Air 7.5" x 2"
6061 Heat Treated Aluminum
Sizes: Small (15.5"), Medium (17"), Large (18.5")
Current Production Run Colors: White, Raw, Bright Green
Last Production Run Colors: White, Brown, Transparent Green
Frame Weight: 7.8 lbs (without rear shock)
Complete Bike Weight Range: 36-39 lbs (Depending on Rear Shock and Fork)
Oversize 5mm thick headtube (1 1/8") and gusset
Custom CNC rocker arms (Ultra Stiff 15mm thickness)
Compatible with up to 7" Single Crown Forks
Accepts up to 8" Rear Disc Brake Rotors
Easily fits up to 3.0" rear tire
Works with Front Derailleur or Chain Guide
1 year defect warranty, Lifetime crash replacement
BUILD SPECS:
Shock Specs: 7.55 eye-to-eye x 2.0" stroke, Upper Pin 46mm x 8mm, Lower Pin 22.2mm x 8mm
Front Derailleur: 34.9mm Clamp, Top-pull, (Top Swing Shimano or Low Mount SRAM)
Bottom Bracket: Euro 73mm shell x 51mm chainline
Headset: Standard 1 1/8" (1" deep cup compatible)
Seatpost: 30.0mm
Seat Clamp: 34.9mm
Rear Dropout Spacing: 135mm x 10mm (nutted axle & QR compatible)
Disc Brake Mount: International Standard
Chain Guide Mounting: Standard ISCG

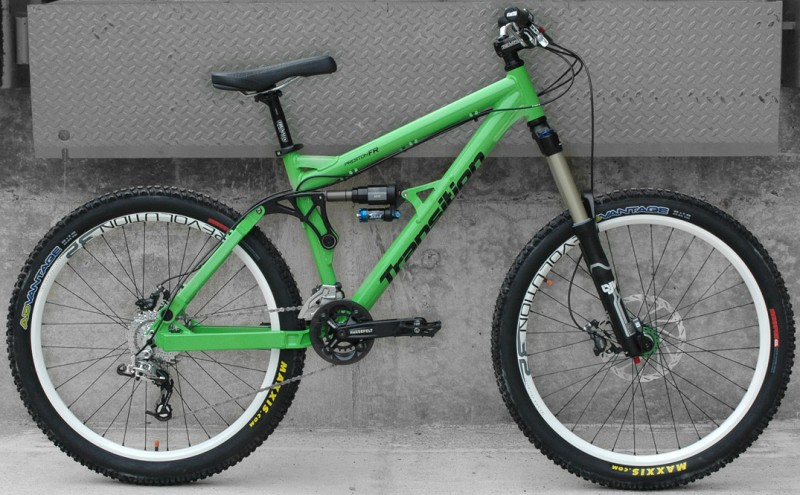

Various build options available. Price based on Freeride dual ring spec with Fox DHX 5.0 Air and RockShox Domain 318 U-turn.
Price |
$3,141 |
|
Travel |
5" (130mm) |
|
Rear Shock |
Fox DHX 5.0 Coil or Fox DHX 5.0 Air |
|
Fork |
RockShox Domain 318 U-Turn |
|
Headset |
FSA Orbit Xtreme Pro or Z1.5R |
|
Cassette |
SRAM PG950 11 - 32 |
|
Crankarms |
Truvativ Hussefelt 170mm |
|
Bottom Bracket |
Truvatin GigaPipe Team |
|
Pedals |
TBC Stepdown |
|
Chain |
KMC Z9000 |
|
Rear Derailleur |
SRAM X9 |
|
Front Derailleur |
SRAM X9 |
|
Shifter Pods |
SRAM X9 |
|
Handlebar |
Truvativ Hussefelt 30mm rise |
|
Stem |
Truvativ Holzfeller 40mm |
|
Grips |
ODI Cross Trainer X Lock-on |
|
Brakes |
Avid Juicy 7 |
|
Wheelset |
TBC Revolution 32 |
|
Tires |
Maxxis ADvantage 2.4 |
|
Seat |
TBC Park n Ride FR |
|
Seatpost |
Truvativ XR Dual clamp |
|
