Transition Revolution Single Speed

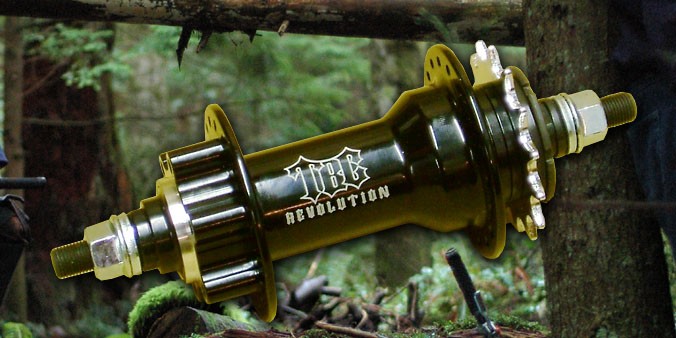

Transition Revolution Single Speed (MSRP $99) — Our Revolution hubs are built with precision and simplicity. Large sealed bearings ensure the hubs roll smoothly and are easy to work on. Our single speed hub is designed to get the perfect chainline and comes with a nutted solid 10mm axle and 16t cog. Hub Features: 6061 Alloy CNC'd body 10mm solid nutted axle Come with 16t Cog Disc compatible Sealed Bearings 36 hole 3 Pawl system with 22 engagement points Colors: Black Flange Diameter: 58mm Center to Flange Right: 37.6mm, Left: 34.6mm

Specifications Compare to other Hubs

Price	$99
Color Options	Black
Hub Bearings	Sealed
Spacing	10mm x 135mm	Spacing - most forks use a 20mm thru-axle (QR20), quick release/QR (9mm), or now, a 15mm hub. It is important to know which hub your fork needs as standard quick release hubs cannot be converted to use with a 20mm compatible fork. However, there are reducers for some hubs that can go from 20mm to standard QR. Rear hubs typically come in two sizes. The first is 150x12 and the second is 135x10. However, some bikes do use a 165mm hub and 135x12. It is important to know which rear hub is required on your bike so it will be compatible.
Engagement count	22 (3 pawl)	Engagement count - Engagement count is determined by the amount of pawls your hub uses. Each click your hub makes while coasting is an engagement. More engagement points means a more responsive hub, but an added weight bonus.
Front or Rear	Rear
Diameter	58mm
