Kona floating brake arm - HELP!!!!

PB Forum :: Kona
Kona floating brake arm - HELP!!!!

 Post Message | Latest Comment
Author Message
flag huckoveraduck
Posted: Nov 27, 2007 at 11:13 Quote
hey guys, sorry to be a retard and all - but i was taking my back wheel out of my 2007 Kona stab when i messed up....

the floating brake arm ( at the end where it slots up against the rear wheel) fell open and the bearing race and spacers came out onto the floor.

now i put it all back together the way i thought it would go - but when i tightened my wheel up and everything, it went really tight and wouldn't freewheel very well at all.

basically ive assembled the brake arm spacers and bearings incorrectly - so does anyone know the right order for it all? starting from the wheel and working out towards the brake.

e.g- 3 spacers then a roller bearing race, etc etc.


any replies would be greatly appreciated!!!!!
flag mcnaughty
Posted: Nov 27, 2007 at 11:22 Quote

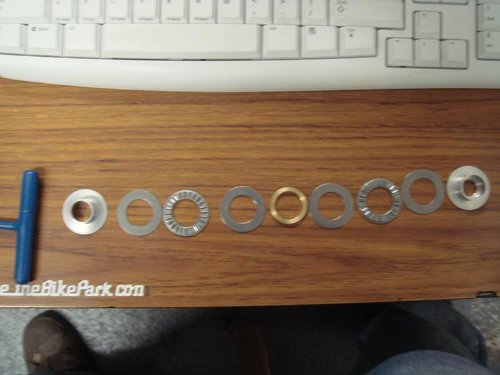

heres a pic hope it helps

1620306
flag mcnaughty
Posted: Nov 27, 2007 at 11:24 Quote
Make sure you use some grease and you dont need to crank down on the 8mm axle that just needs to be snug.
flag huckoveraduck
Posted: Nov 27, 2007 at 11:28 Quote
YESS!

lol dude i love you long time for this. you helped me out a lot thx!!
