Chris King Baseplate not flush!

Author	Message

dannnny

Posted: Sep 29, 2012 at 7:29	Quote

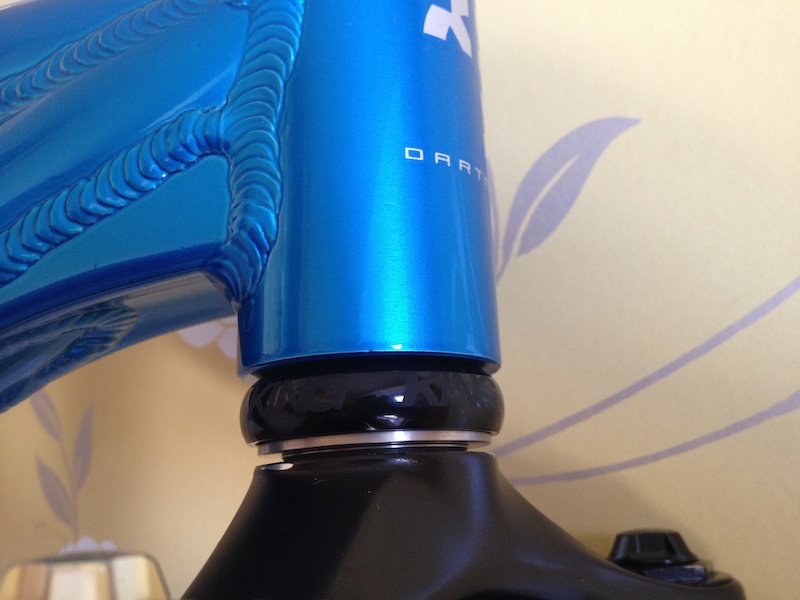

Just fitted the Chris King Baseplate onto my forks but there's a gap of a few mm ! I've definitely got it round the right way, why is there a gap!?

chris-adam-media

Posted: Sep 29, 2012 at 8:04

Quote

you sure its the right way up?? anyway, you need to push the race all the way down until it is sitting flush to the crown of the forks, i doubt you'd be able to preload it on there via the top cap.

dannnny wrote:

Just fitted the Chris King Baseplate onto my forks but there's a gap of a few mm !

I've definitely got it round the right way, why is there a gap!?

dannnny

Posted: Sep 29, 2012 at 8:36

Quote

chris-adam-media wrote:

you sure its the right way up?? anyway, you need to push the race all the way down until it is sitting flush to the crown of the forks, i doubt you'd be able to preload it on there via the top cap.

dannnny wrote:

Just fitted the Chris King Baseplate onto my forks but there's a gap of a few mm !

I've definitely got it round the right way, why is there a gap!?

Yeah it's deffo the right way up, the other way round it dosn't fit in with the bearings. And I followed the installation guide on king's page so there's no way it's round the wrong way.

I might be able to hit it down a bit further onto the steerer actually, but they'll still be a gap as the baseplate has a kind of rim thing at the bottom. Seems a bit weird if it's designed to be like that..

Anyway I've emailed King so hopefully they'll let me know what's up.

Cheers

bigburd

Posted: Sep 29, 2012 at 11:26	Quote
You should be able to knock it all the way down flush

BoardmanBoy

Posted: Sep 29, 2012 at 13:25

Quote

Hmmmm, I know its been said before, but check the crown race to make sure you have definitely got it the right way round, I know it sounds like a stupid thing, but a couple of my friends have managed to put it on upside down recently and judging by the picture, the part that sits in the part where the bearings contact the race is what is stopping it from going lower and it doesn't look like the race is flush enough in the cup to look the right way round.

superbikes

Posted: Sep 29, 2012 at 14:08	Quote
Yep im 100% that you have the crown race upside down

dannnny

Posted: Sep 30, 2012 at 3:56

Quote

Im pretty sure it's the right way round. I tried it the other way round before I fitted it and it didn't fit in with the bearings. I've tightened up the top cap and there's no play or anything, feels nice and smooth. Just its definitely not right for that gap to be there. Is there like different versions of the Baseplate? Maybe I got the wrong one..

And on Chris Kings website it said to install the baseplate 'conical side up', which is what I did.

superbikes

Posted: Sep 30, 2012 at 4:03

Quote

dannnny wrote:

take forks out and post a pic of the baseplate on the forks as it is now would help us if we can see more

dannnny

Posted: Sep 30, 2012 at 4:43

Quote

superbikes wrote:

dannnny wrote:

take forks out and post a pic of the baseplate on the forks as it is now would help us if we can see more

here you go

BoardmanBoy

Posted: Sep 30, 2012 at 4:48	Quote
Yeah, thats upside down.

superbikes

Posted: Sep 30, 2012 at 4:48	Quote
Did you use grease ?

dannnny

Posted: Sep 30, 2012 at 4:57

Quote

superbikes wrote:

Did you use grease ?

No, but how would that help the problem ?

dannnny

Posted: Sep 30, 2012 at 4:59

Quote

BoardmanBoy wrote:

Yeah, thats upside down.

Ah shit, really? Now to try and take it off without completely destroying it..

superbikes

Posted: Sep 30, 2012 at 5:06	Quote
Add a small amount of grease when you tap it back on. Use a old headset cup upside down on top of the baseplate hit with hammer . Hold forks up in the light to see if its flush . Job done

dannnny

Posted: Sep 30, 2012 at 5:22

Quote

superbikes wrote:

Add a small amount of grease when you tap it back on. Use a old headset cup upside down on top of the baseplate hit with hammer . Hold forks up in the light to see if its flush . Job done

Jobs a good un

thanks for your help!
