2020 Scott Genius 930, Shock & Fork upgrade

 Post Message | Latest Comment
Author Message
flag ReidMillerMtb
Posted: Feb 2, 2024 at 11:52 Quote
I have a 2020 Scott Genius 930 and I'm looking to run a more beefy "enduro" setup on it. I'm looking at a fox 38 160mm and a fox x2 rear shock, I'm pretty sure the fork will be fine but the shock is the issue. I'm wondering if anyone knows if it will fit and if anyone has tried it. I know that they will fit the ransom which has a similar geometry but I'm worried it wont fit when i pull the trigger to buy it.
flag boozed
O+
Posted: May 3, 2024 at 23:41 Quote
I realise it's now three months down the track but to answer your shock question, none of Fox's piggyback shocks will fit - the reservoir hits the frame before you even get it mounted. There are some Geniuses around with Super Deluxes on them, but it requires modifications to the shock.
flag MarsB
Posted: May 24, 2024 at 13:40 Quote
boozed wrote:
I realise it's now three months down the track but to answer your shock question, none of Fox's piggyback shocks will fit - the reservoir hits the frame before you even get it mounted. There are some Geniuses around with Super Deluxes on them, but it requires modifications to the shock.

Had this issue with the Super Deluxe Ultimate, and even the Deluxe Ultimate (no piggyback) on my '22 940. I ended up going with the '24 Float, anything with a piggy back is going to be problematic due to how Scott configured the rear triangle.
flag Gorba-Cory
Posted: Aug 29, 2024 at 9:31 Quote
MarsB wrote:
Had this issue with the Super Deluxe Ultimate, and even the Deluxe Ultimate (no piggyback) on my '22 940. I ended up going with the '24 Float, anything with a piggy back is going to be problematic due to how Scott configured the rear triangle.

Digging up an old thread, but would you have a picture of this install, and did you have to modify anything in the frame?
I would prefer to have the larger Fox Float shock, over the DPS version that the bike comes with, and none of my local suppliers have it in stock to do a test fit. Thanks for the help.
flag Gorba-Cory
Posted: Sep 7, 2024 at 4:58 Quote
I went down the path of the 24 Fox Float on a 2022 940, and it clears - if the adjust is left in the setting 3, and the 2-posn compression lever is left in open, and the rebound knob is positioned correctly it doesn't hit at bottom out. But on mine to use all the adjusters properly a notch in the frame was necessary. Twinloc has been removed completely.

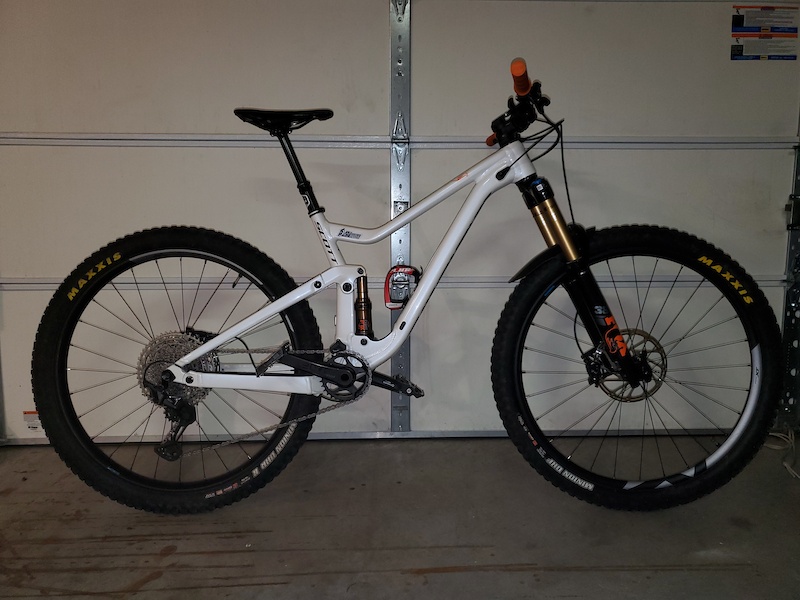

With Suspension upgrades
With Suspension upgrades

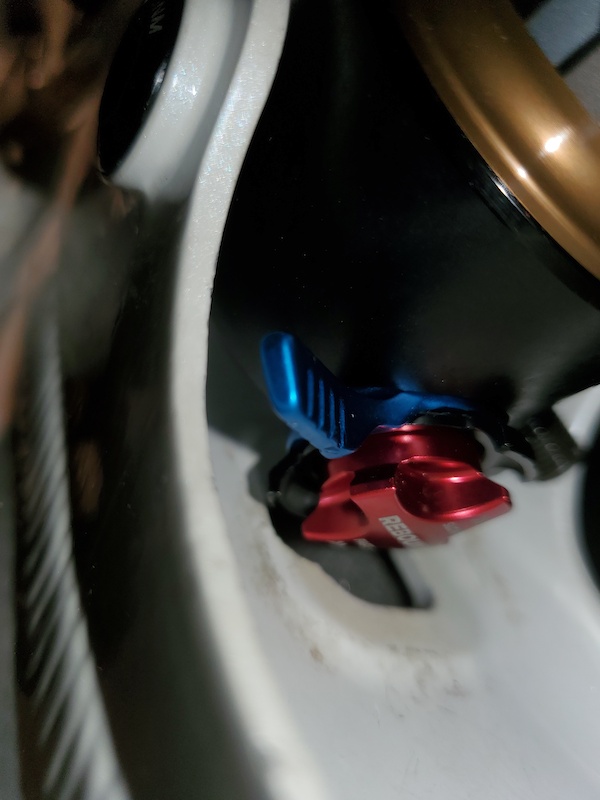

After Frame clearance added
After Frame clearance added

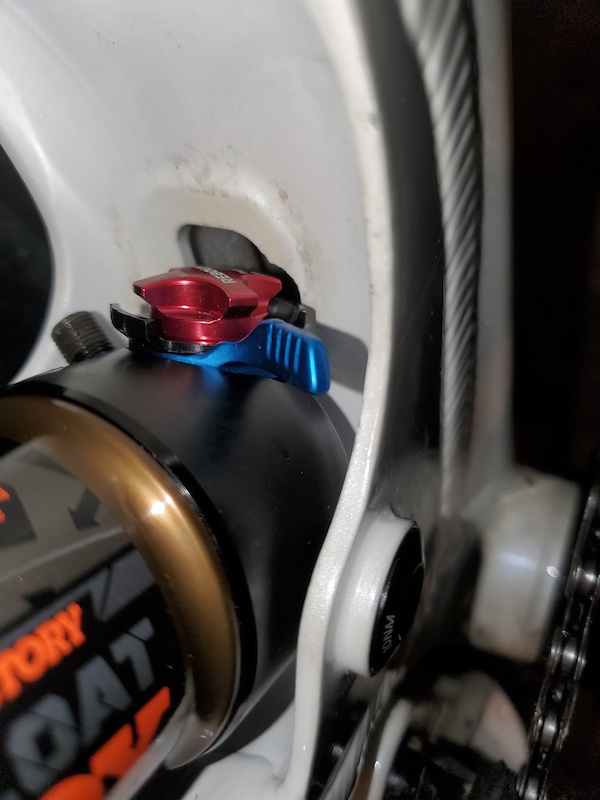

Frame clearance for shock controls
Frame clearance for shock controls

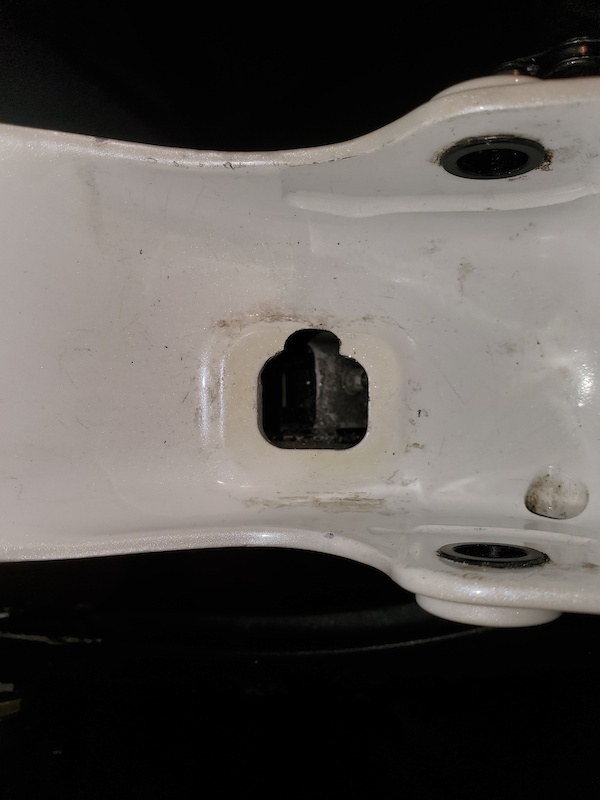

Clearance pocket
Clearance pocket

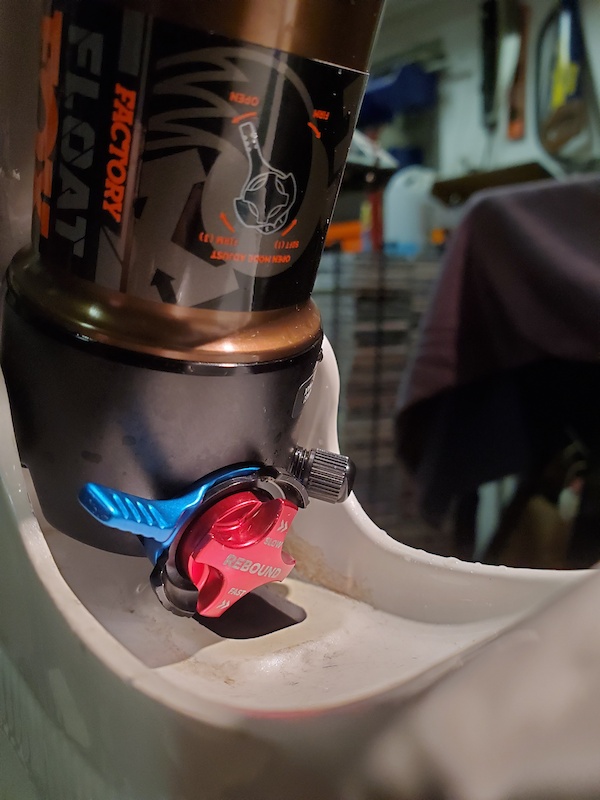

Before clearance added - shock controls collision on the frame
Before clearance added - shock controls collision on the frame
