Kona Hei Hei CR/DL - rocker bearing spacer - which way round?

PB Forum :: Kona
Kona Hei Hei CR/DL - rocker bearing spacer - which way round?

 Post Message | Latest Comment
Author Message
flag Krisu2icam
Posted: Jul 28, 2024 at 12:32 Quote
Hi all

I am reassembling the rocker lower linkage and on each side there are 2 bearings and a spacer inserted between them.

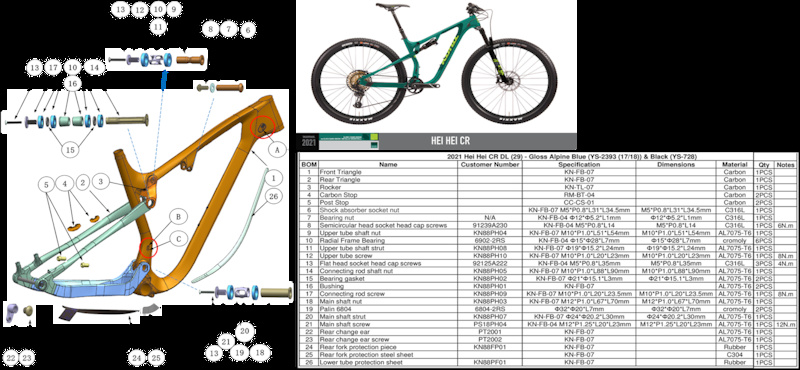

Kona seem to call this spacer a "bearing gasket". I've added an assembly diagram below (the spacers are no 15).

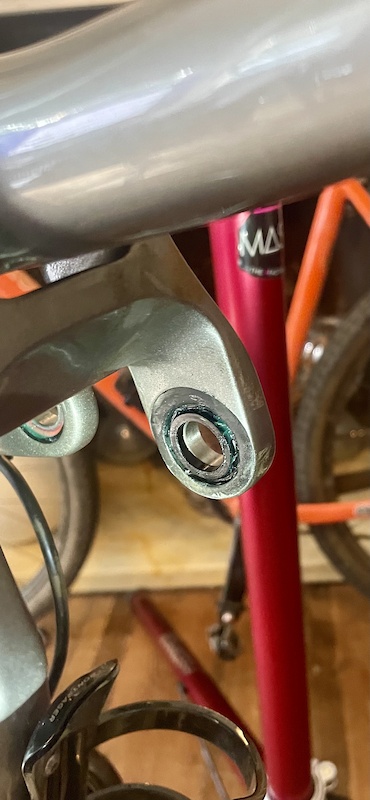

I am not sure which way around the spacer should be inserted given it is not the same on either side, there is an inner edge on one side which presumably rests against the inner race of a bearing. It seems to work either way but I'm sure there is a "right way". See the 2 pics below.

Any mechanics or Hei Hei CR owners out there that can tell me?

Many thanks

Kona Hei Hei CR assembly diagram
Kona Hei Hei CR assembly diagram

Hei Hei CR rocker bearing gasket
Hei Hei CR rocker "bearing gasket"

Hei Hei CR rocker bearing gasket
Hei Hei CR rocker "bearing gasket"
