Canyon Neuron Horst Bolts fall out…and a fix

 Post Message | Latest Comment
Author Message
flag iksea
O+
Posted: May 12, 2025 at 14:23 Quote

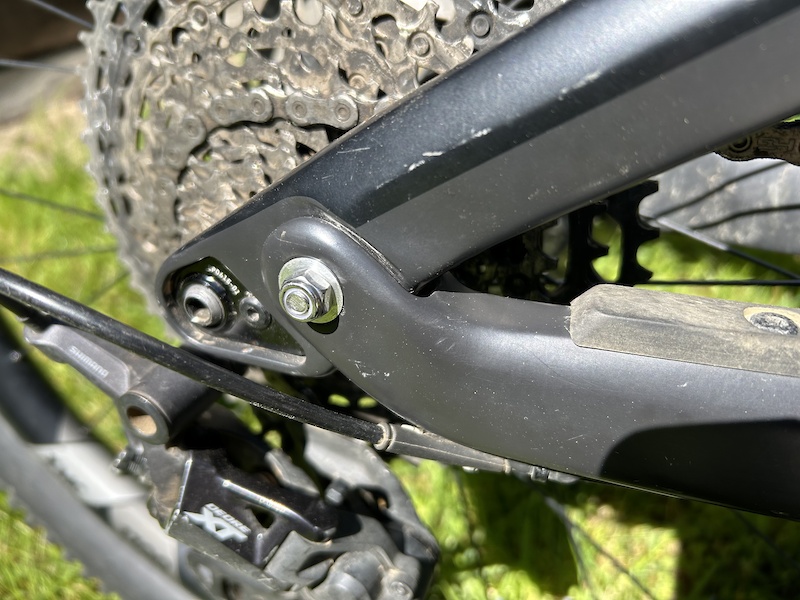

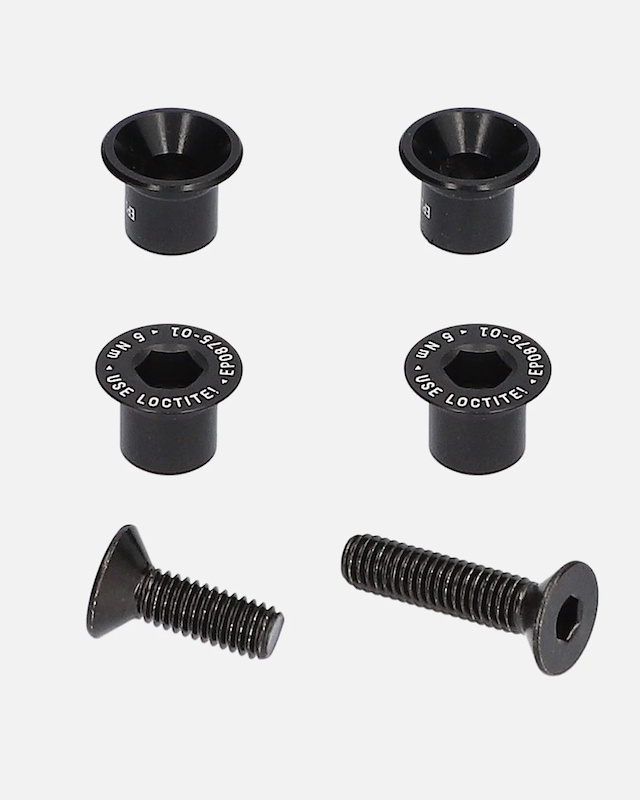

So my daughter’s 2022 Neuron CF 9 lost the Horst link bolt on a ride. Thinking it was a simple part, I looked it up and found it is a special kit w two machined spacers w 45 degree chamfer heads. No standard shoulder hardware here.

So I try to buy the “kit” for $40 and they say they are out of stock. I submit a complaint and they get back to me saying they don’t know when they will be back in stock, possibly 6-8 weeks. I can see that if I am in CA or UK, they show in stock. They tried to get some more transferred to the US office but then said they failed.

So the design is crap w the flat head screw not bottoming out to generate torque for locking, instead the thing is at a floating positing and the nut says “use locktite” on its head. Obviously a bad design that doesn’t work. They of course changed it on the 2023- versions.

So not wanting to wait all summer to be able to ride a $4000 bike because of a $5 spacer, I decided to make a replacement. It was good that I had the other side to measure from.

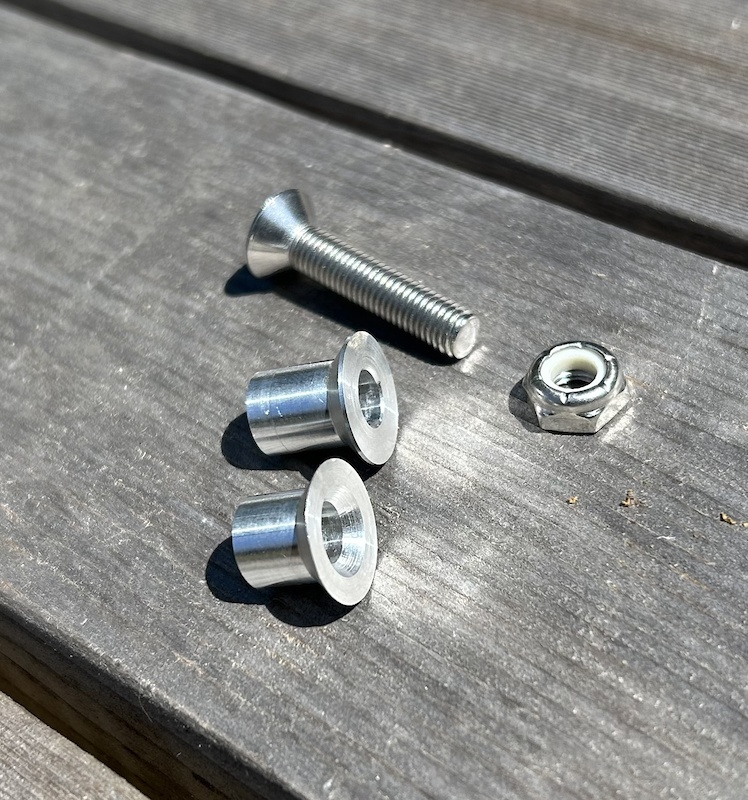

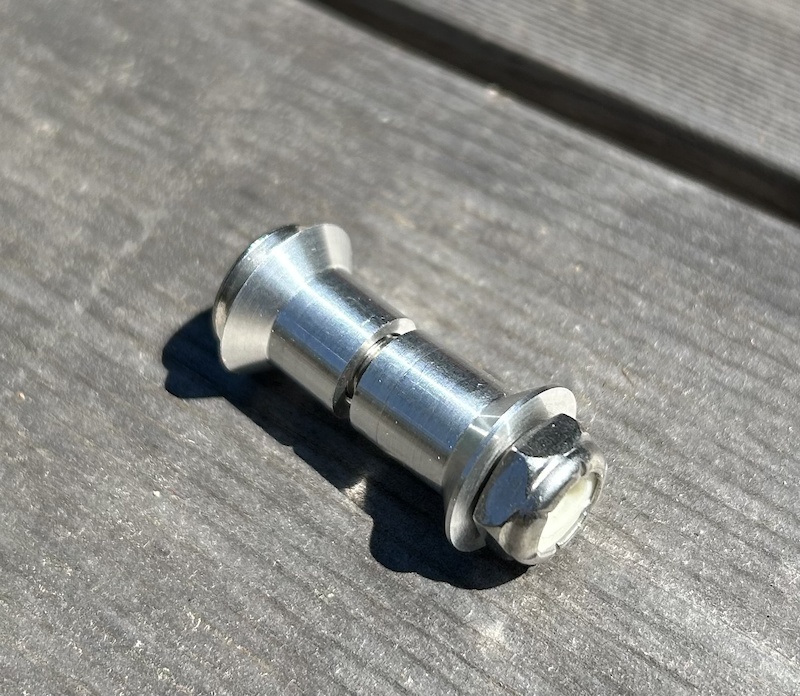

I ditched the blind socket nut feature and used a M6 flat head screw flipped w head inboard to allow for a nylock nut to be used on the outside. This should retain better and makes it so I don’t have to thread on spacer or figure out how to tighten it.

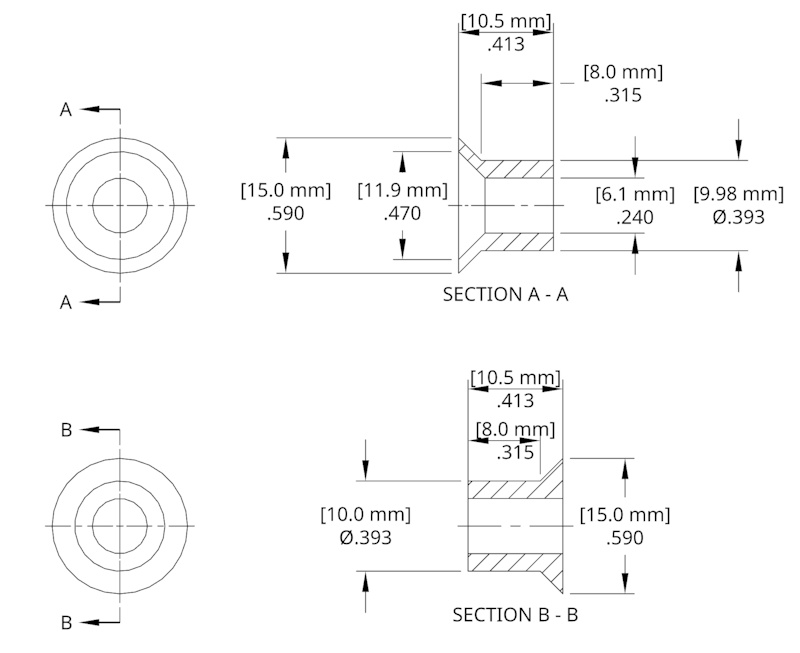

Dimensions in metric of OG parts.

Cleaned up drawing in of parts in OnShape (Free 3d CAD on the web)

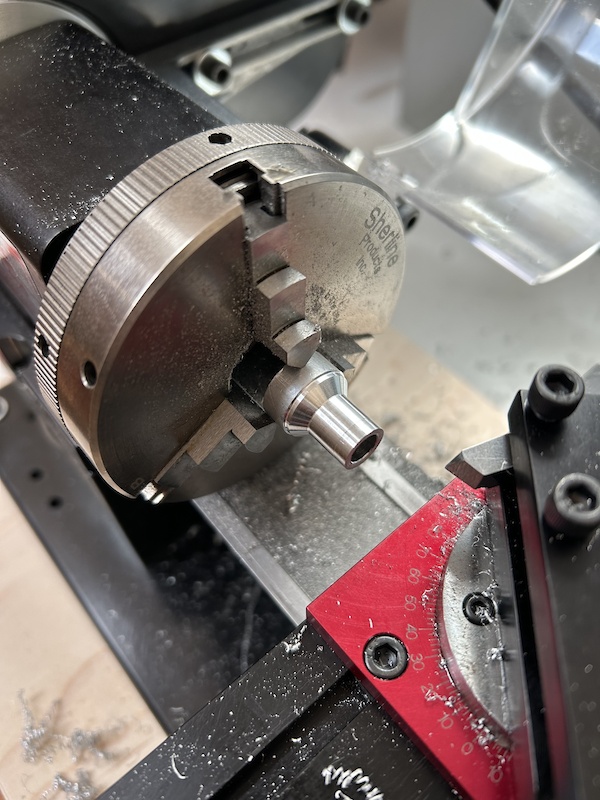

I borrowed a tiny Sherline Lathe to make them.
