Transition TransAM
(MSRP $2325)
—

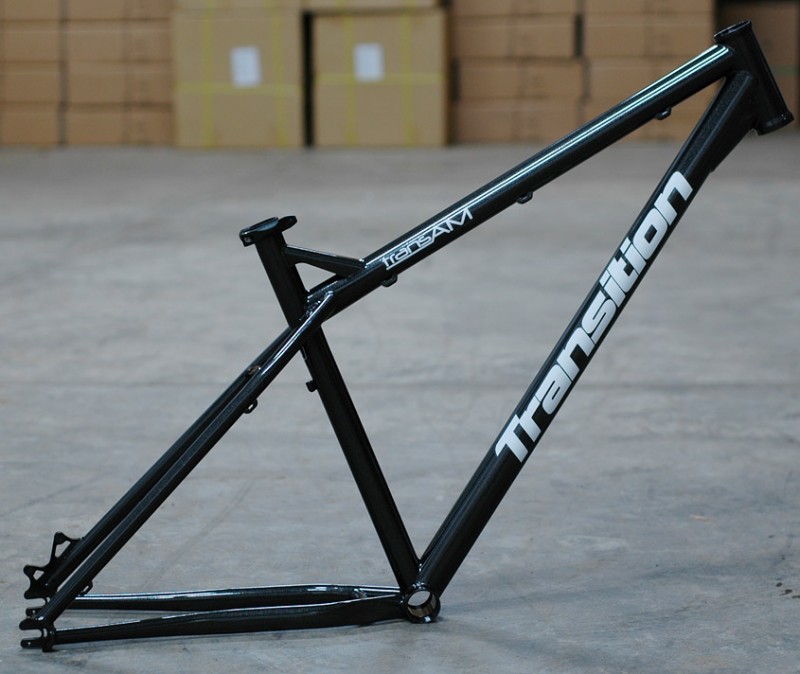

The TransAM hardtail brings back the basics of what true all mountain trail riding is all about. Simplicity, fun and versatility. At the core of the TransAM is double butted Japanese 4130 chromoly which gives the frame a forgiving feel on the trail while remaining amazingly responsive. Our custom dropout system allows you to run gears or singlespeed without the use of traditional bulky bolt on styles. This frame is all about being incredibly quick with sleak lines and enough strength to tackle gnarlier all mountain lines. The TransAM is quickly becoming a favorite around the Transition camp as the perfect winter rainy season bike as well as long epic rides where you don't want a full suspension bike slowing you down.
FRAME FEATURES:
Japanese Double Butted 4130 Cro-mo
Sizes: Small (16.5), Medium (18), Large (19.5)
Current Production Run Colors: Black, White, Orange
Frame Weight: 6 lbs. 2 oz.
Complete Bike Weight Range: 23 - 25 lbs. (Depends on Build)
Single-Speed compatible and Gear compatible
Campy Integrated Headset
Compatible with most 4-6" travel single crown forks
Accepts up to 8" Rear Disc Brake Rotors
Easily fits up to 2.5" rear tire
1 year defect warranty, Lifetime crash replacement
BUILD SPECS:
Bottom Bracket: Euro 73mm shell x 51mm chainline
Headset: Integrated 1 1/8" 45 degree angle Campy compatible
Seatpost: 30.0mm
Seat Clamp: 32.8mm (included with frame)
Rear Dropout Spacing: 135mm x 10mm (nutted axle & QR compatible)
Disc Brake Mount: International Standard
Various build options available. Price based on All Mountain spec and Fox 32 Float 140RLC
Price |
$2,325 |
|
Fork |
Fox 32 Float 140RLC |
|
Headset |
TBC Integrated |
|
Cassette |
SRAM PG 980 11 - 32 |
|
Crankarms |
Truvativ Stylo 175mm |
|
Bottom Bracket |
Truvativ Stylo |
|
Rear Derailleur |
SRAM X9 |
|
Chain |
KMC Z9000 |
|
Front Derailleur |
SRAM X9 |
|
Shifter Pods |
SRAM X9 |
|
Handlebar |
Truvativ Stylo 30mm rise |
|
Stem |
Truvativ Team 75mm |
|
Grips |
ODI Cross Trainer X Lock-on |
|
Brakes |
Avid Juicy 7 |
|
Wheelset |
TBC Revolution AM |
|
Tires |
Maxxis Highroller 2.35 60a (foldable) |
|
Seat |
TBC Park n Ride AM |
|
Seatpost |
Truvativ Team dual clamp |
|
