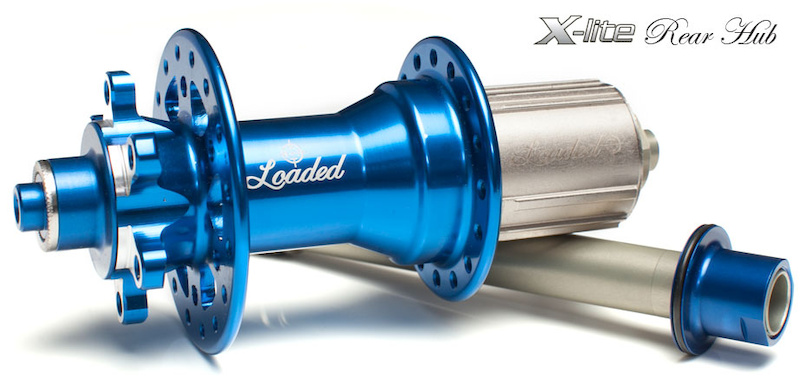

LoadedX-Lite Rear Hub
LoadedX-Lite Rear Hub
(MSRP $289.99)
—
Providing consistent engagement, low rolling-resistance, and race-proven durability, the X-Lite Rear Hub is the ultimate choice for today’s cross country racer. With a continual diameter throughout the rear axle, the X-Lite Rear Hub ensures strength and rigidity when pedal force meets the frame, transmitting precise energy to the 24 point, 3-pawl continuous engagement system.
Specifications Compare to other Hubs
| Price | $290 | |
|---|---|---|
| Weight | 295g | |
| Color Options | black, grey, silver, gold, red, green, blue | |
| Hub Bearings | 4 Sealed Bearings | |
| Spacing | 9x135mm, 12x142mm |
Spacing - most forks use a 20mm thru-axle (QR20), quick release/QR (9mm), or now, a 15mm hub. It is important to know which hub your fork needs as standard quick release hubs cannot be converted to use with a 20mm compatible fork. However, there are reducers for some hubs that can go from 20mm to standard QR. Rear hubs typically come in two sizes. The first is 150x12 and the second is 135x10. However, some bikes do use a 165mm hub and 135x12. It is important to know which rear hub is required on your bike so it will be compatible.
|
| Engagement count | 28 |
Engagement count - Engagement count is determined by the amount of pawls your hub uses. Each click your hub makes while coasting is an engagement. More engagement points means a more responsive hub, but an added weight bonus.
|
| Front or Rear | Rear | |
| Diameter | RFD: 49mm | LFD: 58mm |
