Mongoose PinnR Apprentice
-
+ 1
spdmnadam
(Sep 23, 2012 at 18:43)
If you want a bike that you can pedal to the top of the hill some of the time get this bike. The Freedrive doesn't feel much different than similar bikes and you get great efficiency with your pedalling. Spec'd a bit low but the components are tough. A fairly quiet bike with well placed velcro on the rear triangle. Geometry fits me great and the frame is beautiful.

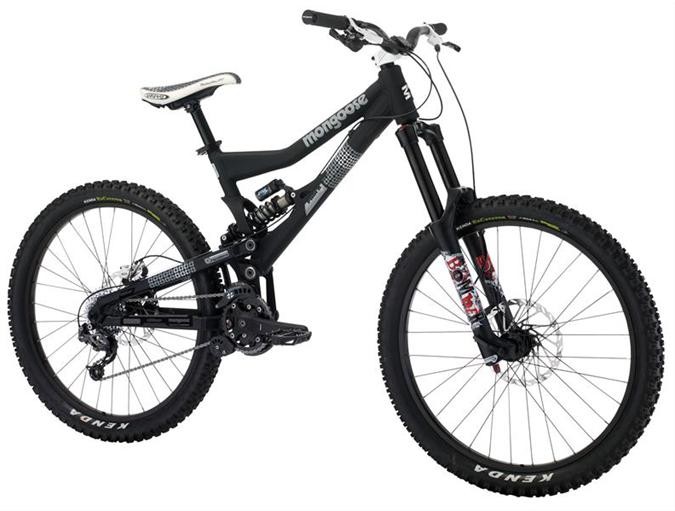

Mongoose PinnR Apprentice
(MSRP $2499.99)
—
Mongoose's Freeride Specialist, the Pinn'R.
Specifications Compare to other DH Bikes
| Release Date | 2009 | |
|---|---|---|
| Price | $2,500 | |
| Travel | 190mm | |
| Rear Shock | Fox Van R rebound and preload adjust, 229x70 mm w/ 19x8 mm hardware | |
| Fork | Marzocchi 66 RCV, 180 mm travel, rebound, compression, and preload adjust, 20 mm QR thru axle | |
| Cassette | SRAM PG-950 Cassette11-34T | |
| Crankarms | Gravity Step Up with cromoly pedal inserts 36T | |
| Bottom Bracket | Gravity ISIS (83 mm shell) | |
| Pedals | Mongoose Alloy platform | |
| Chain | Shimano HG73 | |
| Rear Derailleur | Shimano SLX, Shadow Mount GS cage | |
| Shifter Pods | Shimano Deore 9 speed | |
| Handlebar | Funn Fatboy triple butted AL7075 riser, 31.8x30x710 mm | |
| Stem | Funn Rippa 31.8x45 mm CNC alloy | |
| Grips | Mongoose Lock on | |
| Brakes | Avid Juicy 3 | |
| Hubs | Sealed bearing 150x12 thru axle casstte, 20mm Front. | |
| Spokes | 14G stainless | |
| Rim | SUN Ditch Witch 32 hole | |
| Tires | Kenda Excavator DH w/ Stick-E rubber 26X2.5 | |
| Seat | Custom Mongoose SDG Bel Air I-Beam | |
| Seatpost | SDG I-Beam 6061 alloy, 31.6x300 |
Dimensions
| Size | S | M | L |
|---|---|---|---|
| Frame Weight | |||
| Bike Weight | 43.2 lbs | 43.2 lbs | 43.2 lbs |
| Headtube Angle | 66 ° | 66 ° | 66 ° |
| Seattube Angle | 69 ° | 69 ° | 69 ° |
| Headtube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| BB Height | 352 mm | 352 mm | 352 mm |
| BB Width | |||
| Seat Post Diameter | |||
| Front Derailleur Width | |||
| HeadTube Diameter | 1.125 | 1.125 | 1.125 |
| Top Tube Length | 570 mm | 595 mm | 620 mm |
| WheelBase | 1106 mm | 1131 mm | 1156 mm |
| Standover Height | 764 mm | 771 mm | 788 mm |
