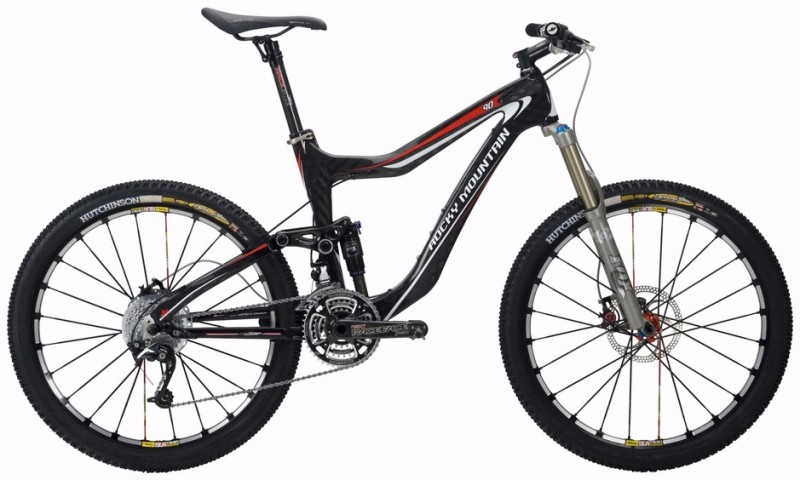

Rocky Mountain Altitude 90 RSL

Review Altitude 90 RSL

No reviews yet, be the first to write a review!

Login or Sign Up to write a review.
You must login to Pinkbike.
Don't have an account? Sign up

Join Pinkbike  Login
Write a Review

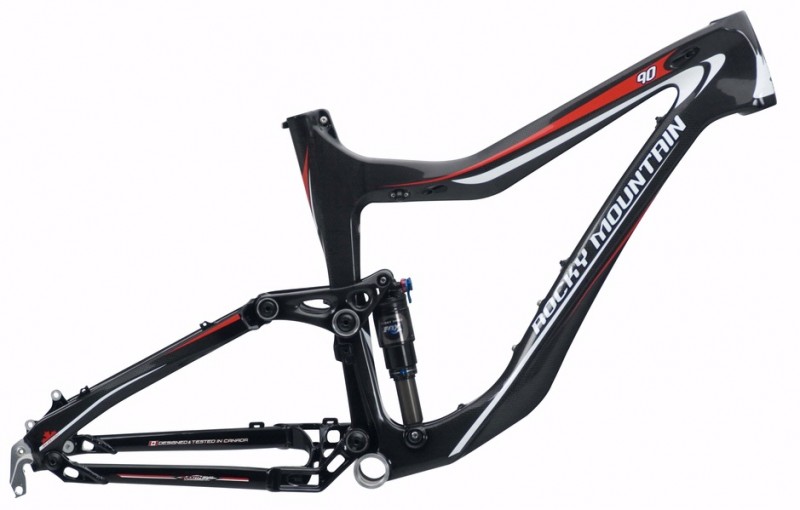

Rocky Mountain Altitude 90 RSL (MSRP $6499.99) — STRAIGHT UP We’ve got your back. With a first of its kind 76-degree seat angle, you’re in a position to defy gravity at every technical uphill climb. The Straight up geometry and its bio-mechanically correct seat position allows for maximum horsepower. Not only will you get an efficient ride, it’ll save your lower back and limits pressure on your “sensitive areas”... if you catch our drift. FORM Technology The heart of a bike is its frame. The geometry, the material, the feel, and the way it reacts under the rider are the very essence of the ride. That’s why we’ve introduced FORM™ – the design and manufacturing process of our high-performance frame tubing. Our philosophy behind FORM™ tubing is to push the limits of tube and frame design to create the frame’s unique riding feel. Engineered Ride Quality : FORM™ tubing is a line of high-performance tubes designed to elevate the superior ride quality for which Rocky Mountain Bicycles are known. Innovative design: With 25 years of innovation, we continue to push the boundaries of bicycle design. FORM™ tubing is the exciting new frontier of our creativity. Attention to detail: Every detail in a FORM™ tube set is carefully engineered and has a purpose: from the slightest variations in shape, to wall thickness, tapers, flares and bends. Uncompromised quality: FORM™ tube sets are manufactured with premium materials and delivered by the best suppliers in the industry to meet Rocky Mountain’s strict requirements. CARBON Designed to maximize your ride, this frame has been created with our usual stringent FORM ™ design and prototype testing processes. We didn’t just push the envelope on tube/frame design—we tore it wide open. And if that wasn’t enough, our frames were test driven by worldclass athletes in the harshest of conditions.

Specifications Compare to other All Mountain/Enduro/XC

Release Date 2009
Price $6,500
Travel 140mm
Rear Shock FOX Float RP23 Custom Valved, 140mm.
Fork FOX 32 Float RLC, 140mm, Lockout / compression 15mm axle
Headset Race Face Next XC carbon Low Riser 31.8mm 660mm
Cassette Shimano XT-9 11-34T
Crankarms Race Face Next X-Type 170-175mm 44/32/22T
Bottom Bracket Race Face Next X-Type
Pedals Crank Brothers Candy
Rear Derailleur Shimano XTR LP
Chain Shimano XTR
Front Derailleur Shimano XT Direct Mount
Shifter Pods Shimano XTR Rapid Fire 9spd
Handlebar Race Face Next XC carbon Low Riser 31.8mm 660mm
Stem Race Face Deus SL XC Ti Bolts 31.8 x 6° 70-90-100mm
Brakes Formula R1 hydraulic disc
Hubs Mavic Crossmax SLR disc
Spokes Mavic Crossmax SLR
Rim Mavic Crossmax SLR
Tires Hutchinson Python 26
Seat fi'zi:k Gobi
Seatpost Race Face Next XC SL 31.6mm


Size 15" 16.5" 18" 19.5" 20.5
Frame Weight
Bike Weight
Headtube Angle 69 ° 69 ° 69 ° 69 ° 69 °
Seattube Angle 76 ° 76 ° 76 ° 76 ° 76 °
Headtube Length 98 mm 98 mm 110 mm 130 mm 155 mm
Chainstay Length 428.7 mm 428.7 mm 428.7 mm 428.7 mm 428.7 mm
BB Height
BB Width
Seat Post Diameter
Front Derailleur Width
HeadTube Diameter 1.125 1.125 1.125 1.125 1.125
Top Tube Length 540 mm 565 mm 575 mm 595 mm 615 mm
WheelBase 1086.7 mm 1111.7 mm 1123.1 mm 1145.6 mm 1168.8 mm
Standover Height 674.8 mm 692.9 mm 718.6 mm 740.1 mm 770 mm
