Specialized SX Trail Frame
oooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo
I love mine, they arent that heavy meaning they can't go up hill, but the travel feels endless and plush on the way back down the hill. Just a pity about the old one having stupid length shocks on.
i loved the 2008 frame and colours, not to keen on the frame shape until i see one for real, but im sure its an insane frame, love the colour to !!!!!!!!!!!!!!!1
Sick do everything frame. Climbs up and kills it on the way down. Pretty pedal friendly for having 170mm of travel. Can also be built up nice and light.

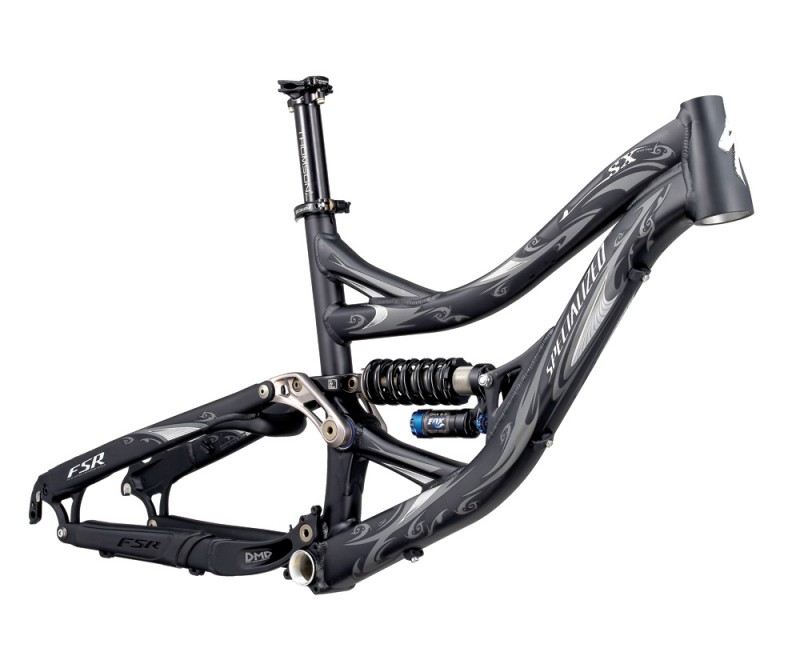

Specialized SX Trail Frame
(MSRP $1850)
—
If the trail ride turns into a freeride, the new for '09 SX Trail with 170mm of FSR travel shows no mercy when it comes to triple overhead drops and backcountry stunts.
Claw knows it: The SX Trail M5 Premium Aluminum frame delivers. ORE top/down tube, forged head tube and full cartridge bearings. Integrated ISCG mount. 170mm travel. Not for the meek.
The standard in coils: Fox DHX 5.0 rear shock with full adjustability - rebound, ProPedal and bottom-out control.
Claw knows it: The SX Trail M5 Premium Aluminum frame delivers. ORE top/down tube, forged head tube and full cartridge bearings. Integrated ISCG mount. 170mm travel. Not for the meek.
The standard in coils: Fox DHX 5.0 rear shock with full adjustability - rebound, ProPedal and bottom-out control.
Specifications Compare to other DH Bikes
| Price | $1,850 | |
|---|---|---|
| Travel | 170mm | |
| Rear Shock | Fox DHX 5.0 rear shock with full adjustability - rebound, ProPedal and bottom-out control. | |
| Seatpost | Thomson Elite Straight w/ 12 degree clamp, 367mm |
Dimensions
| Size | S | M | L |
|---|---|---|---|
| Frame Weight | 10.16 lbs | 10.16 lbs | 10.16 lbs |
| Bike Weight | |||
| Headtube Angle | 66 ° | 66 ° | 66 ° |
| Seattube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Headtube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| BB Height | 356 mm | 356 mm | 356 mm |
| BB Width | |||
| Seat Post Diameter | |||
| Front Derailleur Width | |||
| HeadTube Diameter | 1.125 - 1.5 | 1.125 - 1.5 | 1.125 - 1.5 |
| Top Tube Length | 532 mm | 553 mm | 581 mm |
| WheelBase | 1149 mm | 1167 mm | 1190 mm |
| Standover Height | 700 mm | 699 mm | 735 mm |
I've been taking this bike to go uphills and doing some light downhills as well..... it always keeps me amazed with its capability.
Definately want to buy another one if mine has come to replace.
