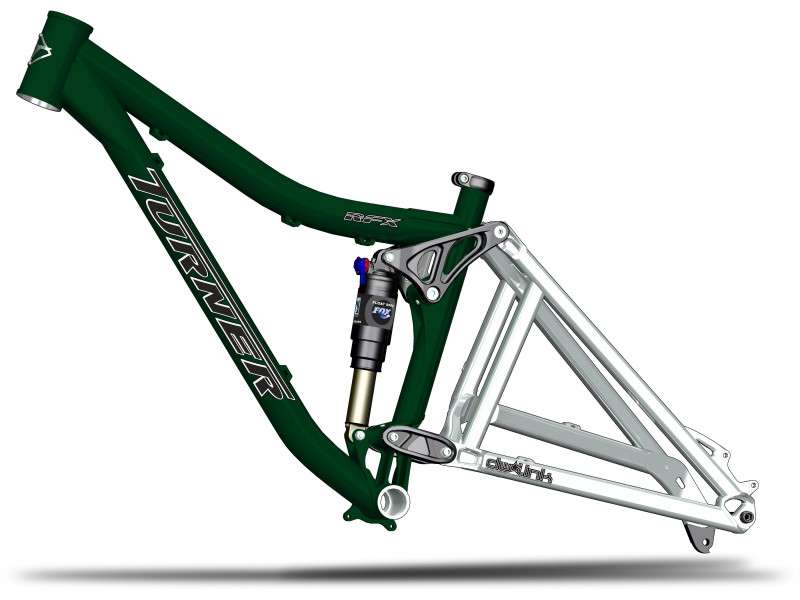

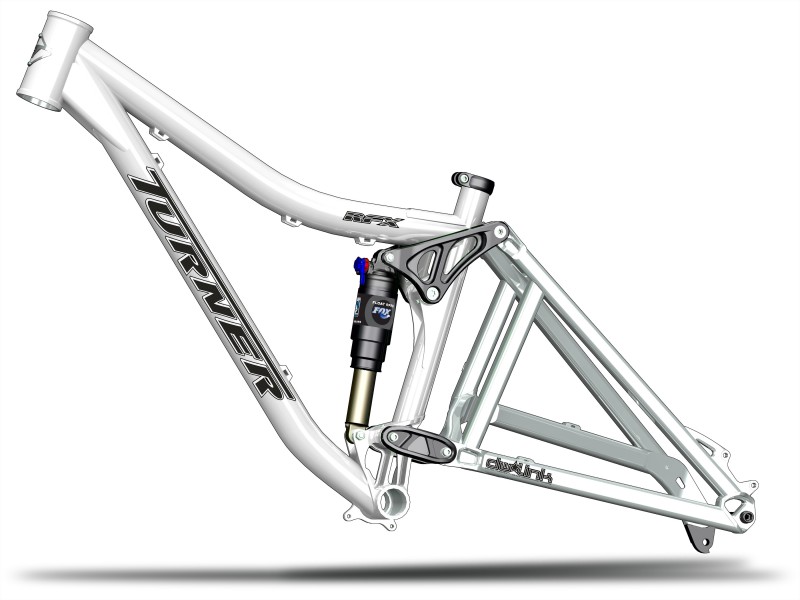

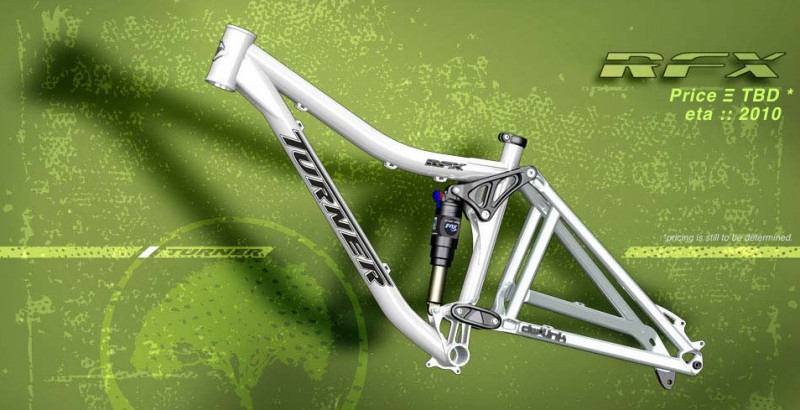

Turner RFX (MSRP $0) — The RFX's incredibly versatile frame encourages building the perfect bike for any terrain. The RFX can be built to 30lbs for a long legged trail bike, yet can handle the most potent slopes being ridden today. While this is no big drop park bike, build it with burly rolling stock and it can hold its own with the biggest sleds on the mountain. With 160mm of dw-link controlled travel this bike will climb with no dreaded pedal kick back or power snapping bob. Point it uphill and this light machine will climb through the roughest of rock gardens like you are levitating.

Specifications Compare to other All Mountain/Enduro/XC

Release Date 2010
Price
Travel 160mm
Rear Shock Fox RP23

Dimensions

Size S M L XL XXL
Frame Weight 7.2 lbs 7.2 lbs 7.2 lbs 7.2 lbs 7.2 lbs
Bike Weight
Headtube Angle 67 ° 67 ° 67 ° 67 ° 67 °
Seattube Angle 72.5 ° 72.5 ° 72.5 ° 72.5 ° 72.5 °
Headtube Length 96.5 mm 106.68 mm 124.46 mm 149.86 mm 175.26 mm
Chainstay Length 434.34 mm 434.34 mm 434.34 mm 434.34 mm 434.34 mm
BB Height 355.6 mm 355.6 mm 355.6 mm 355.6 mm 355.6 mm
BB Width 73 mm 73 mm 73 mm 73 mm 73 mm
Seat Post Diameter 30.9 " 30.9 " 30.9 " 30.9 " 30.9 "
Front Derailleur Width
HeadTube Diameter 1.125 1.125 1.125 1.125 1.125
Top Tube Length 556.26 mm 581.66 mm 604.52 mm 627.38 mm 650.24 mm
WheelBase
Standover Height 734.06 mm 762 mm 787.4 mm 812.8 mm 838.2 mm
