x fusion velvet lowering process

Apr 7, 2009 at 15:41
by Spencer Strauss
how to lower an x fusion velvet r.Velvet R

Travel Adjust Procedure

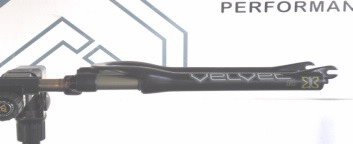

Step 1: Place fork or bike in work stand and rotate so fork is horizontal to the ground.
3233474

3233474

Step 2: Remove lower legs.
3233473

3233473

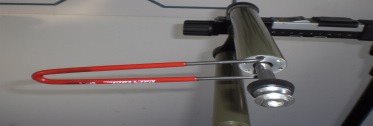

Step 3: Release air pressure from top cap, then remove air rod retainer plate using a park SPA-2 Red Spanner wrench.
3233472

3233472

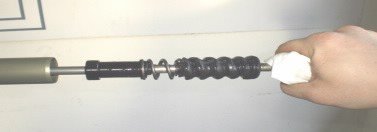

Step 4: Firmly grasp air rod and pull out of upper tube. Note the orientation of the travel spacer(s). The one in this picture is set at 100mm of travel, using a single 30mm spacer.
3233470

3233470

Step 5: Inspect Air Rod and set travel spacer to desired height.
See Pics…. Spacers go between bottom out spring perch and travel limiter
80mm - 1 - 30mm spacer
1 - 20mm spacer
3233469

3233469

130mm - No spacers
3233468

3233468

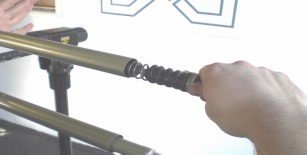

Step 6: Once spacers in place, Inspect air piston seal and grease air piston seal, and spring.
3233464

3233464

Step 7: Gently work Air rod assembly into fork leg and hand start the lower retainer plate.
Step 8: Tighten retainer plate and torque to 100 kgf-cm
3233460

3233460

Step 9: Use straight edge to align feet, and pressurize air chamber before installing lower legs.
3233459

3233459

Step 10: After you have cleaned and slick honey’d the seals. Carefully install Lower legs. Being cautious not to roll a seal under while sliding in place.
3233458

3233458

Step 11: Check to make sure feet have properly sat into the perches in the lower legs before hand starting the Lower bolts.
Torque lower leg bolts to 70 kgf-cm
3233457

3233457

Step 12: Clean grease and oil from fork, re-install… smile… and crack a beer… your velvet is now done.
3233455

3233455
