RockShox 2011 Revelation RLT Dual Air
-
+ 1
Joey-Propane
(Aug 24, 2011 at 7:54)
150mm, 15mm Maxle, Tapered Steerer version is light, stiff and supple as you like. Dual Air damper can be finicky to get really dialled in, but have patience with it, test after every setting/pressure change and eventually you'll find your "set and forget" settings.

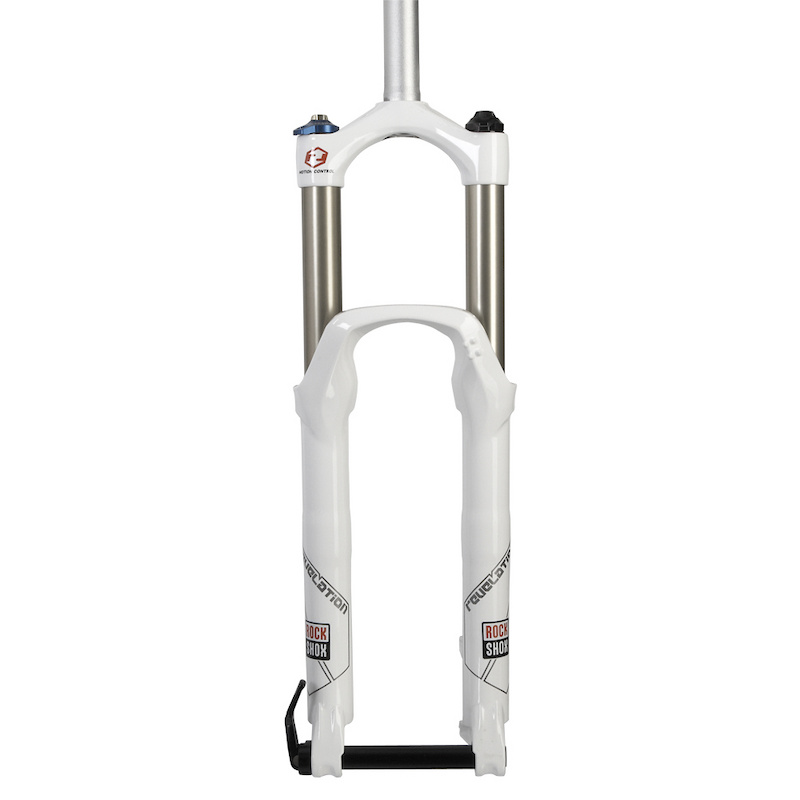

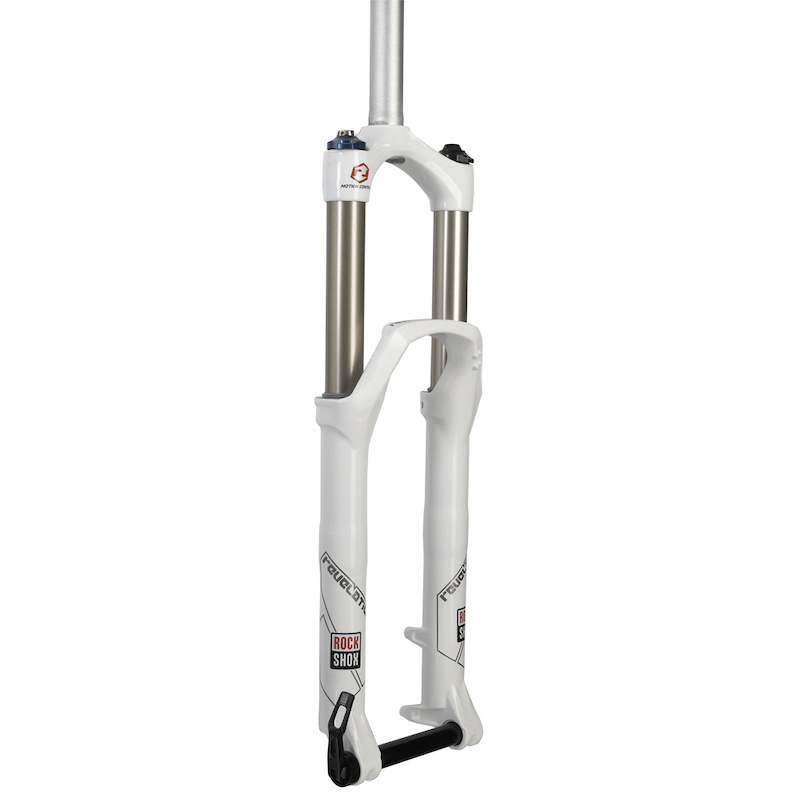

RockShox 2011 Revelation RLT Dual Air
(MSRP $0)
—
TODAY’S REVELATION: RIDE MORE.
This year’s Revelation brings an all-new Dual Position Air spring system to the table, adding approximately 30mm of sag-to-sag, on-the-fly,travel adjustment to this proven lightweight platform. The smooth responsiveness provided by the various Motion Control damping systems, paired with the confidence that comes from ultra-stiff 32mm aluminum upper tubes, Maxle Lite and 150mm travel options, is epic. Even when the trail is hell, this fork is pure heaven.
Specifications Compare to other Forks
| Price | ||
|---|---|---|
| Weight | 1620 g | |
| Color Options | Black, White | |
| Travel | 130/140/150 mm |
Travel - refers to the distance the wheel can move in respect to the frame. Typically measured in millimeters, most forks range from 80 to 203 mm of travel
|
| Spring | Air | |
| Crown | Single | |
| Body Type | Magnesium | |
| Rebound | External Beginning Stroke Rebound |
Rebound - is how quick your fork returns to a fully extended position after being compressed. Almost all after-market forks feature external rebound adjustment for easy fine tuning.
|
| Steer Tube | 1.125 | |
| Damping | Motion Control |
Damping - The process of absorbing the energy of impacts transmitted through the forks or rear shock during the compression stroke, and absorbing the energy of the spring during the rebound stroke.
|
| DropOut Options | Maxle | |
| Compression | Low Speed Compression |
Compression - This is the damping circuit that absorbs the compression energy force on the damper. Compression damping is used to adjust how quickly a fork or rear shock compresses when hitting a bump, and is adjustable on some products. When compression damping is too soft, this condition allows most of the available travel to be used without attaining control of the wheel. When it's adjusted too firmly, the wheel will jump or "dance" about when hitting small bumps, again failing to gain control of the wheel.
|
