PB Forum :: Trail Building
Quarter help

 Post Message | Latest Comment
Author Message
flag Gfromars
Posted: Nov 10, 2017 at 11:12 Quote
I wanna build a quarter for dirt, but I don't know what radius and height would be correct to use. Any suggestion?
something like this: https://prnt.sc/h8tjlw
flag thunder-nuggets
Posted: Jan 1, 2018 at 13:46 Quote
im working on the same kind of thing, i found that going to a skate park might help give some general specs of what to do.
flag Gfromars
Posted: Jan 1, 2018 at 14:59 Quote
I-want-your-bike wrote:
im working on the same kind of thing, i found that going to a skate park might help give some general specs of what to do.
post some pics of your build dude
flag thunder-nuggets
Posted: Jan 5, 2018 at 13:10 Quote
I'll see if I can clear it out. there's about 2 feet of snow here
flag Gfromars
Posted: Jan 5, 2018 at 13:49 Quote
damn..snow is a real drag!
flag thunder-nuggets
Posted: Jan 6, 2018 at 11:34 Quote
its a pain ill get some pics when it melts.
flag thunder-nuggets
Posted: Jan 6, 2018 at 13:07 Quote
I found it easier to have a hillside with a bit of a slope to dig into.
flag cmc4130
Posted: Jan 24, 2018 at 7:43 Quote
Gfromars wrote:
I wanna build a quarter for dirt, but I don't know what radius and height would be correct to use. Any suggestion?

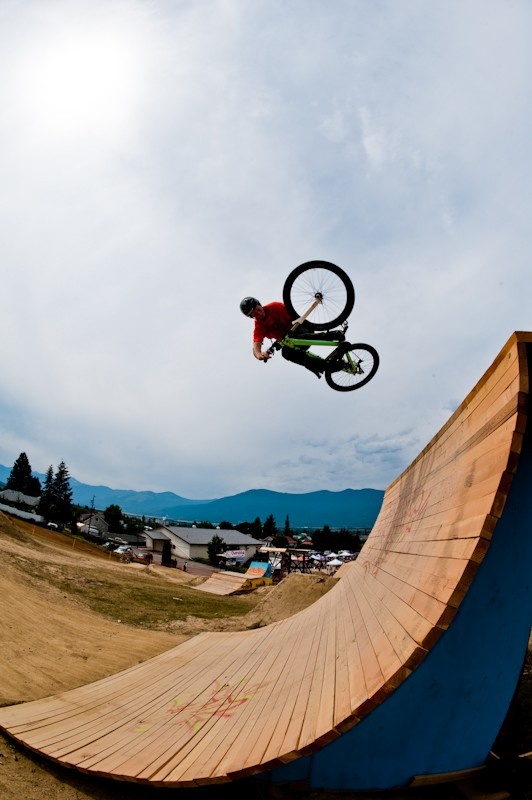

something like this:

In skateboarding and BMX, the most common radius for quarterpipes, bowls, etc. is 8 feet (2.44m). But, vert ramps sometimes use a 9 foot transition, sometimes even 10.



For MTB DJ/Slopestyle, though, people tend to go with a slightly larger radius, like 9 feet (2.74m). I don't know what the one in this photo is, exactly, but it looks larger than a standard 8 foot BMX quarter.

http://www.skaterscafe.com/showthread.php?99983-THRASHER-Skateboard-Ramp-Manual

http://www.rampplansonline.com/conmat/images/halfpipe_profiles_01.jpg

Most vert ramps have a 9' or 10' transition, with 1'-2' feet of vert.
http://www.fatbmx.com/uploads3/200711/wk45/vert50ftjustsheeted.jpg
