The Frame Specs;FRAME SPECS Material: AL 6061-T6 tubeset: triple butted down tube, custom shaped seat tube, tapered seat and chainstays, downtube FEM calculated gain (Gusset) Rear Shock: RockShox Bar R Rear Travel :: 95mm rear wheel mounting width: OLD 135 x 10mm Dropouts: D8 Nanox dropout system for integrated chain tensioner Maximum size: 26 × 2.35 " Seatpost degree: 30.9 Seat clamp size: 34.9 Headset: 1 1/8 "semi integrated headset systems BB : 1.37x24tpi, 73mm / Euro BB (BSA) ISCG-05 standard brake mount: IS-2000 Max disc diameter: 180mm Weight: 3.5 kg (including shock) Color: dark blue
GEO (Based on an axis-crown length of 494mm / equivalent to about 100mm travel / 30mm overrun) Top tube length: 501mm Reach: 416mm chainstay length: 405mm Seat tube angle: 65.2 ° head tube angle: 68 ° seat tube length: 330mm (CT) head tube length: 110mm BB height:-15mm below the axle line Wheelbase: 1075mm
SHOCK DATA Shock length: 165mm leverage ratio: 1:2.43 Buchsenmaß frame: 8x24W ID (inner diameter / width) Buchsenmaß diversion: 8x38W ID (inner diameter / width)
It was going to come out befour, under the name "Distric 8", but they were not allowed the name. here it is under its old name;http://www.pinkbike.com/news/Random-products-part-one-Eurobike-2011.html
oh... and then there is always someone willing to use their teeth to do some further testing;http://fstatic1.mtb-news.de/f/m8/wi/m8wisqymlcj3/large_Foto.jpg?0
though riding with the cables and bike does give a sort of cyborg sort of appearance;http://sphotos-h.ak.fbcdn.net/hphotos-ak-prn1/554166_292586127516857_497932149_n.jpg
Though with german construction ( onooka.com/wp-content/uploads/2012/09/onooka-prototyping-9401.jpg ) and attention to detail, as well as what seems like very modern frame testing (though these photos are of the "ronic" testing);http://onooka.com/wp-content/uploads/2012/09/IMG_9042.jpg
onooka.com/wp-content/uploads/2012/09/IMG_9057.jpg
the results being looked at by man and machien;http://onooka.com/wp-content/uploads/2012/09/IMG_9129.jpg
and the man seems to like what he finds;http://onooka.com/wp-content/uploads/2012/09/IMG_9193.jpg
though whether the frame probes ( onooka.com/wp-content/uploads/2012/09/onooka-ronic-developing.jpg ) help with the rigidity of the Ampak... its anyones guess.
wish I could ride one to find out.
Material: AL 6061-T6
tubeset: triple butted down tube, custom shaped seat tube, tapered seat and chainstays, downtube FEM calculated gain (Gusset)
Rear Shock: RockShox Bar R
Rear Travel :: 95mm
rear wheel mounting width: OLD 135 x 10mm
Dropouts: D8 Nanox dropout system for integrated chain tensioner
Maximum size: 26 × 2.35 "
Seatpost degree: 30.9
Seat clamp size: 34.9
Headset: 1 1/8 "semi integrated headset systems
BB : 1.37x24tpi, 73mm / Euro BB (BSA)
ISCG-05 standard
brake mount: IS-2000
Max disc diameter: 180mm
Weight: 3.5 kg (including shock)
Color: dark blue
GEO
(Based on an axis-crown length of 494mm / equivalent to about 100mm travel / 30mm overrun)
Top tube length: 501mm
Reach: 416mm
chainstay length: 405mm
Seat tube angle: 65.2 °
head tube angle: 68 °
seat tube length: 330mm (CT)
head tube length: 110mm
BB height:-15mm below the axle line
Wheelbase: 1075mm
SHOCK DATA
Shock length: 165mm
leverage ratio: 1:2.43
Buchsenmaß frame: 8x24W ID (inner diameter / width)
Buchsenmaß diversion: 8x38W ID (inner diameter / width)
Fork: Sountour SF12 Duro DJ - RC 20QLC air (aluminum Steurrohr)
rear damper: Rock Shox Bar-R 165mm (air - Solo Air, oil damping, air pressure and rebound adjustment)
Handlebar: Antitrust Backyard Mid AL6061-T6
Stem: Antitrust Sector Stem Pro - cold forged and CNC machined
handles: Antitrust Onion Griiffe
Headset: integrated cartel Empire Semi - sealed bearings
Front Brake: Avid Elixir 1 - 160 mm disc
Rear Brake: Avid Elixir 1 - 160 mm brake
caliper: Leafcycles 80s Seat - Pivotal System
Seatpost cartel Piv post - Pivotal System
Crank: Antitrust Vector crank 3-piece 100% CroMo / 16 tooth spindle
BB: Cartel Euro BB - 4-way sealed bearings
Sprocket: Antitrust Essential chainring 25T AL6061-T6
chain: KMC Z401
Pedals: Antitrust Cosmos pedals
front hub: Antitrust Bonfire FR with disc brakes - 20mm thru axle system - sealed bearings
rear hub: Antitrust Bonfire Dirt - industrial bearings - - 11Zähne Driver System 6 pawls - Female
Rims cartel Santana Dirt rim - hollow - AL 6061-T6
Tires: Maxxis DTH 26 "x2.3
Weight: 13.6 (including pedals)
Color: dark blue
oh and a quick Note / Apology to the world;
(Assume) I do not own these bikes.
my bikes are not worth the internet's time.
neither is my riding skill,
or photography,
or videos.
I just sometimes come across others that are,
and so hope to share their genius with others.
I take no Credit for the shots or riding.
I am just another member of the Audience.
here it is under its old name;http://www.pinkbike.com/news/Random-products-part-one-Eurobike-2011.html
onooka.com
frame in snow...

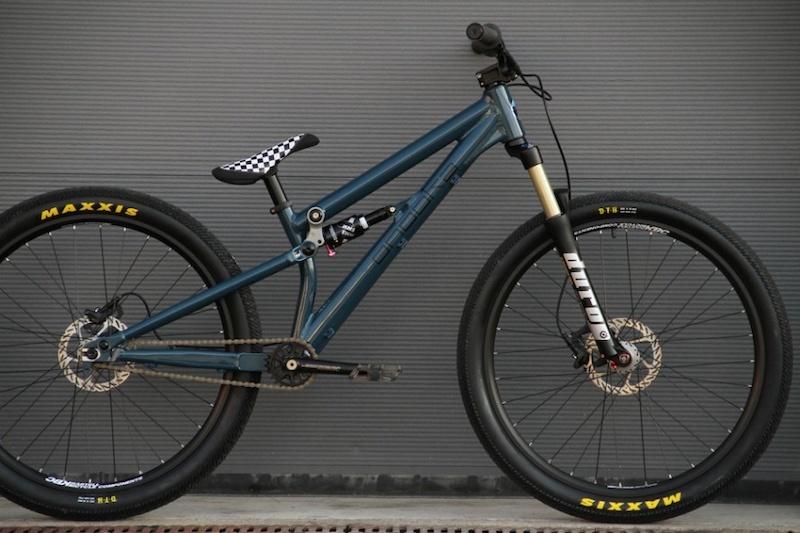

built up onooka!
