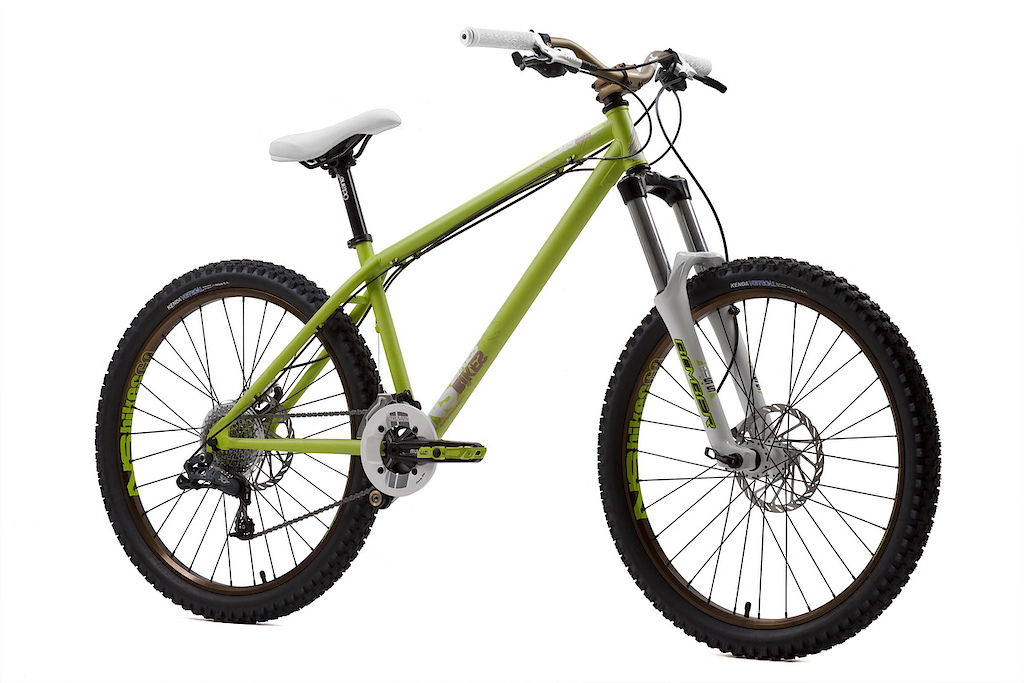

The Core 1 is a top-of-the-line freeride machine, packed with a bunch of high-end parts - you will get the new Marzocchi 55RS fork with a custom alloy steer tube for weight saving, lightweight Kenda tires with a special rubber compound, Sram X7 rear derailleur, a sealed bearing front hub by Octane One, NS Fundamental rims, a double ring chainguide and many more great additions, all mounted on the beautiful multi-butted cromoly NS frame.

Currently browsing: NS-Bikes-2011-Complete-Bikes Photo 47 of 58

ns-bikes

1,386 Views

1 Comment

8 Favs

Photo info

Album: NS-Bikes-2011-Complete-Bikes
Category: Bikes - Dirt/Street/Park
Date Posted: Nov 24, 2010 at 9:02
Nov 24, 2010
Location: Gdańsk, Poland
Trail: NS Bikes Showroom
Riders: none yet
Articles: NS Bikes 2011 Complete Bikes

Photo details

Photo Size:

1 Comment

ns-bikes (Nov 24, 2010 at 10:03)

Specs:
Frame: NS 100% Cromoly
Fork: Marzocchi 55RS, 160 mm travel, 20 mm axle, alloy steer tube
Headset: Prestine, loose ball
Stem: NS Quark
Handlebar: NS Mint
Grips: NS Martin Söderström Slim w/o flange
Brakes: Avid Juicy 3 185mm / 185mm
Shifters: SRAM SX5
Derailleurs: SRAM X5 front / X7 medium cage rear
Bottom bracket: Truvativ Howitzer 73 mm
Crank: Truvativ Ruktion 36/24T, 175 mm
Chain guide: Truvativ dual-ring chainguide
Chain: KMC Z9000
Cassette: Sram PG-950 9 speed 11-34
Rims: NS Fundamental
Hubs: Octane One 20mm (sealed bearing) front, Joytech cassette 10 mm q-r rear
Spokes: Velogross black spokes w/14mm DT Swiss nipple, laced 3 cross
Tires: Kenda Nevegal Stick-E 60tpi, 26x2.35
Seatpost: Octane One 27.2
Saddle: Octane One
Pedals: NS Aerial
Colours: Flat Sour Lime
Weight: 16.4 kg

Note: Bike comes complete with front and rear brakes

Geometry:
Frame size: M 381mm / 15”, L 405 mm / 16”
Head angle: 67 deg
Seat tube angle: 71 deg
Chainstay: 415 mm / 16.3”
Top tube length (c-c): M 572 mm / 22.5”, L 586 mm / 23.0”
Top tube length (horizontal): M 596mm / 23.5“, L 615 mm / 24.2“
BB height: 330 mm / 13”
