Jul 16, 2021 at 21:54

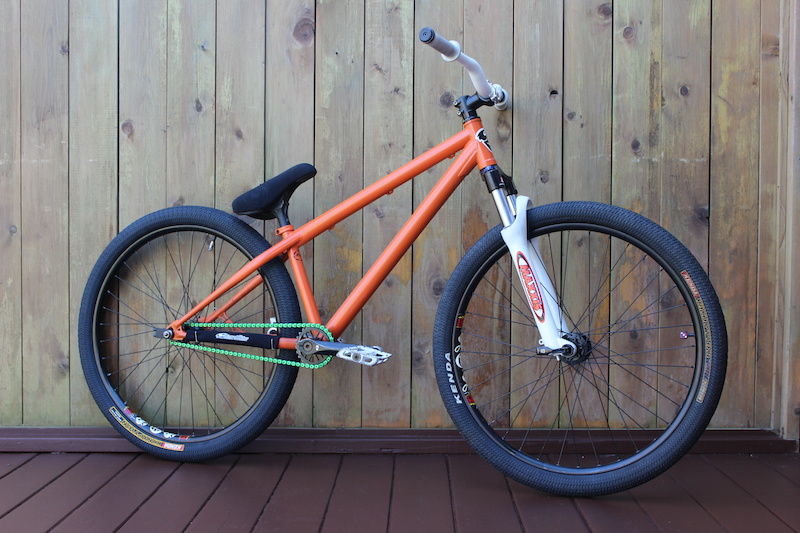

Jul 16, 2021NS Capital Frame - BRAND NEW
$550 CADI bought this Capital frame on impulse - I have come to the conclusion that I would rather build a frame with disc brakes instead.
My loss is your gain - save a few bucks - this frame is selling for 699 CAD not including tax+shipping on LamaCycles.
I still have the box it shipped in...
Frame Specs:
The Capital is a dedicated street frame. Available in one version for 26”, with radical geometry and ultra short chain stays. The Capital uses multi butted tubes that are super strong in critical stress areas but also not too thin in overall - therefore more resistant to dents resulting from crashing and throwing the bike - something that is inevitable in street riding. Don't worry too much about the weight... you will see abused bikes built on Capital frames hitting the 9 - 10kg weight mark. We made the frame strong enough even for the most hardcore riders. This radical frame is the brainchild of "RNS" our test rider and product manager. The Capital comes with a narrow seat stays and U-brakes which are the better solution for street, providing plenty of power, modulation and a clean looks with nothing to catch on your trousers. It has completely removable brake hardware so it will look pure for those who prefer to go brakeless. The Capital is not a big street BMX cruiser. The geometry is radical but you can still use short travel suspension. But the parts that you should spec come straight from 20” world - a BMX hub (110x14), Spanish BB, integrated headset, integrated pivotal post, removable U-brakes bosses in the case you need them... simply a pure street frame.
integrated tapered headtube
compatible with all suspension forks
not compatible anymore with RNS fork
gyro tabs
dedicated pure street frame with radical geometry super short CS, steep HA, high BB
110x14 dropouts, Spanish BB, U-brake mounts, integrated headtube
ride quality & classic slim look for chromoly frame lovers
high-end tube-set with offset multi butted Tange cromoly
for 2019 available in 26” version only
Material: custom butted 4130 cromoly
Recommended fork travel: 60-100mm or rigid forks 420-440mm
Headset: integrated tapered IS42/IS52, head tube stack: 115mm / 4.5”
Fits forks: compatible with all suspension forks, not compatible anymore with RNS fork
BB: Spanish BB, 68mm
Biggest chainring: biggest chainring: up to 30t - depending on cranks, axle length, BB spacers, chain line, hub used
Sprocket: sprockets with guards e.g. Odyssey MDS will fit only without internal guard
Hub spacing: BMX hub spacing 110x14, accepts both right & left side drive hubs
Use of pegs: Capital is the only NS frame that accept use of pegs
Brakes: removable U-brakes hardware (cable guide, cable stopper and brake pivots)
Seat post: 25.4 / clamp included.
Max tyre size: 26”x2.2”
Weight: 2.59 kg + 0.03kg U-brakes hardware
Thanks for looking
