Specifications
|
|
Price
|
$1900
|
|
|
Travel |
190mm |
|
|
Rear Shock |
Fox Vanilla R coil, rebound adjust, 8.5x2.25", rebound adj., S:450, M:500, L:550 |
|
|
Fork |
Marzocchi Z1 Sport for Specialized, 160mm travel, coil spring, rebound adj., 20mm thru-axle, 1-1/8" to 1.5" tapered alloy steerer tube |
|
|
Headset |
1-1/8" to 1.5" Threadless, alloy, cartridge bearing |
|
|
Cassette |
SRAM PG-830, 8-speed, 11-32t |
|
|
Crankarms |
Truvativ Ruktion, 170mm |
|
|
Chainguide |
SBC chain guide |
|
|
Bottom Bracket |
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell |
|
|
Pedals |
Specialized Lo-Pro alloy |
|
|
Chain |
KMC X8, 8-speed w/reusable missing link |
|
|
Rear Derailleur |
SRAM X-7, 9-speed, short cage |
|
|
Shifter Pods |
SRAM X4-R, trigger, 8-speed |
|
|
Handlebar |
Specialized DH rise bar, 31.8mm bar, 8 degree up, 8 degree backsweep, 640mm wide |
|
|
Stem |
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged |
|
|
Grips |
Specialized thin lock on grip, alloy bar ends |
|
|
Brakes |
Avid Juicy 3 full hydraulic, metallic brake pads |
|
|
Hubs |
Specialized Hi-Lo disc, 20mm thru-axle, 36h. Rear: Specialized bolt-on, 135mm, machined flange, sealed cartridge bearing, 5mm QR, 36h |
|
|
Spokes |
2.0mm stainless, black, brass nipples |
|
|
Rim |
Specialized P-Disc, 32mm, 36h |
|
|
Tires |
Specialized Clutch SX 26x2.3", 60 TPI, aramid bead, cap ply, soft dual compound |
|
|
Seat |
Specialized Enduro, 8mm steel rails, SL foam |
|
|
Seatpost |
6061 butted alloy, two-bolt, 0 offset, 30.9x300mm |
|
|
Size:
|
S |
M |
L |
|
Frame Weight:
|
|
|
|
|
Bike Weight:
|
39.44 lbs |
39.44 lbs |
39.44 lbs |
|
Headtube Angle:
|
65.5 ° |
65.5 ° |
65.5 ° |
|
Seattube Angle:
|
71 ° |
71 ° |
71 ° |
|
Headtube Length:
|
120 mm |
120 mm |
120 mm |
|
Chainstay Length:
|
426 mm |
426 mm |
426 mm |
|
BB Height:
|
365 mm |
365 mm |
365 mm |
|
BB Width:
|
73 mm |
73 mm |
73 mm |
|
Seat Post Diameter:
|
30.9 " |
30.9 " |
30.9 " |
|
Front Derailleur Width:
|
|
|
|
|
HeadTube Diameter:
|
1.125 - 1.5 |
1.125 - 1.5 |
1.125 - 1.5 |
|
Top Tube Length:
|
535 mm |
554 mm |
576 mm |
|
WheelBase:
|
1162 mm |
1185 mm |
1207 mm |
|
Standover Height:
|
758 mm |
763 mm |
750 mm |
|

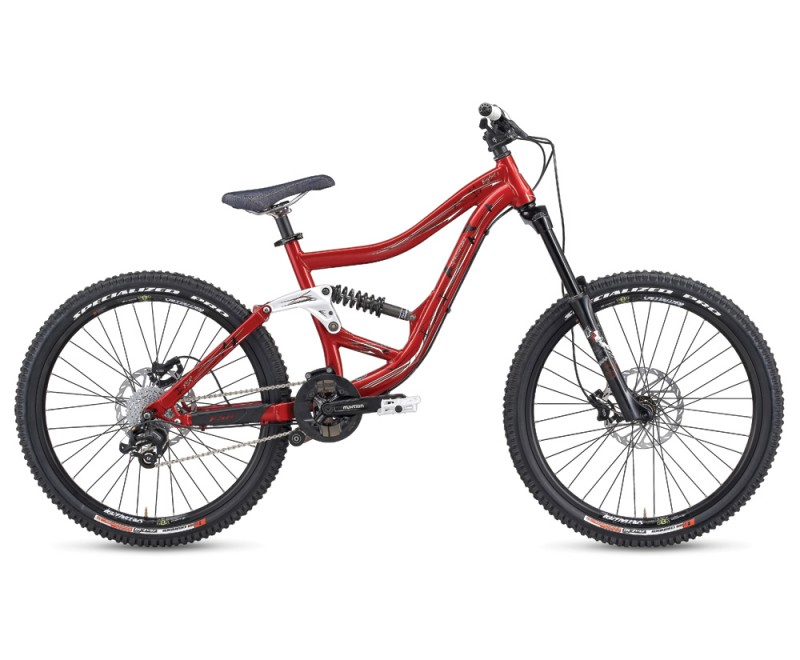

Specialized BigHit FSR I (MSRP $1900) - A TOP-DOLLAR RIDE AT AN ENTRY-LEVEL PRICE. Borrowing generously from our Demo technology, the new Big Hit lives up to its name on punishing terrain with a stout frame and 6.75 to 7.5 inches of travel. The new design with lower standover and more seatpost adjustment makes this bomb-proof ride even more accessible to a larger range of riders.
A SRAM X-7 rear derailleur guarantees precise shifting with minimum effort. The short cage increases shifting performance and minimizes the risk of snapping off the derailleur.
A Fox Vanilla R coil shock custom-tuned for the BigHit's FSR telemetry. External rebound adjust prevents bucking after big hits.
With 160mm of coil-sprung travel, the Marzocchi Z1 Sport fork is perfectly matched to the BigHit's FSR rear suspension. A 20mm thru-axle boosts stiffness for enhanced steering precision.
Specialized Aggro stem features an oversized diameter and four-bolt clamp for extra durability.
Avid Juicy 3 hydraulic brakes feature Tri-Align caliper positioning for trouble-free use, Juicy 3 levers are ergonomic and add control and comfort. Metallic pads work dependably in any situation and have superior durability. Large 203mm rotors provides additional stopping power.
Avid Juicy 3 levers feature an ergonomic geometry that adds control and comfort even in tough situations and mates well to trigger shifters.
Angles are based on LOW BB setting.
