"Whippy" - trail building log

Feb 2, 2009 at 4:41
by Duane Walker

Log for trail-building comp.

Just a bit of a log of our new trail we are building on some private land in North Wales.
Started in November 08, progress has been quite slow (lots of learning to do, and had exams etc), but slowly picking up the pace.

Main building (and planning) is done by myself (Duane Walker) and 2e (Tom Elmore), but we are reguarly helped by others (thanks all!)

Mates got some land (just under half is wooded) with a couple little tracks dotted about.

Started building a new trail, have wanted a nice flowy "freeride" type trail for a while, with nice smooth jump gaps, berms, bits of northshore type stuff etc, so hopefully this new trail will be sweet.

Land is kinda split into 3 sections length ways by 2 fireroads, and the new track will hopefully go from top to bottom.

The other trails on the piece of land tend to be down-hill type tracks, so we are aiming to build a smooth flowy trail with lots of gaps, big berms, drops, northshore (wallrides etc)- just a fun track really!

I know Im late entering this comp, and obviously a lot of work has already been done. Im gonna stick a load of pics of the stuff already built in this blog, but if you wanna read a proper log, see here;
http://www.southerndownhill.com/forum/index.php/topic,175833.0.html

And all the pics are here;
http://minimole.pinkbike.com/album/Llanfair-TH/

Oh, and everything except for the berm has been built after 10th Dec 2008


_______________________________________________________________________________

20th March- stuff already built.

Right, as said above, this trail was started very end of last year ( 2008 ).

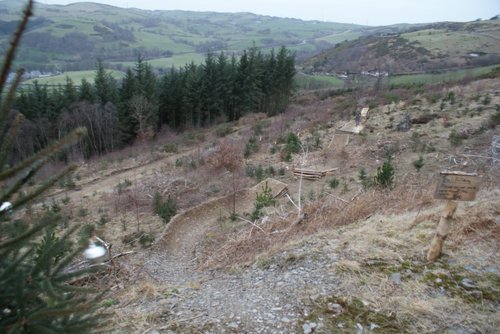

Basically, as it stands now, you can see most of the trail from here;
3119313

3119313


So we have a steep roll-in from the fireroad, into the 1st gap (slight left hip), then straight into the 2nd gap, then over a smooth ladder roller thing, then down a smooth bit of singletrack linking up to the middle fireroad.


Some pics as we went along;

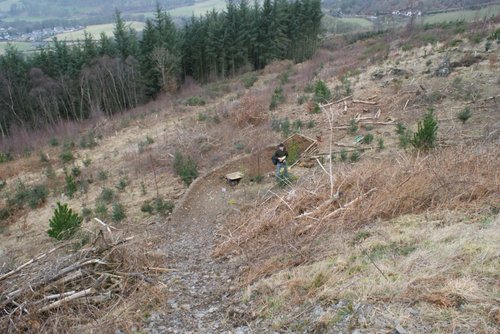

Roll-in/berm/1st gap takeoff
2949550

2949550

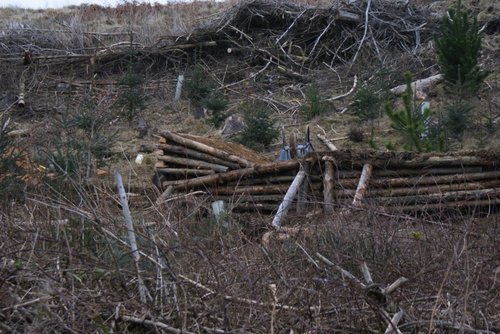

Back of berm/1st gap crib;
2949482

2949482

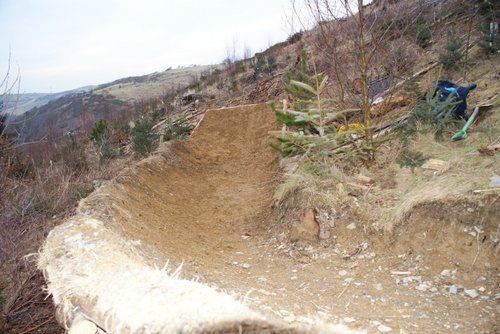

Berm into gap;
2949470

2949470

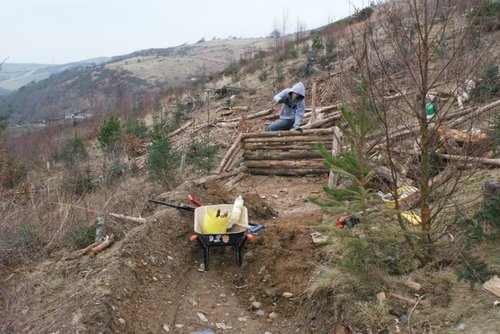

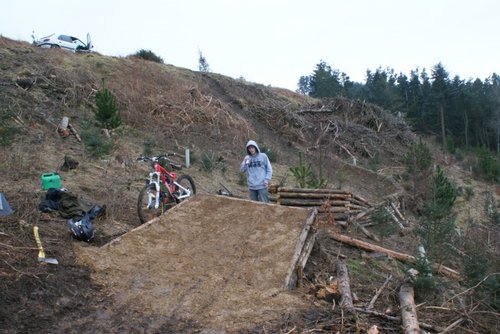

1st gap;
2949580

2949580

3000701

3000701

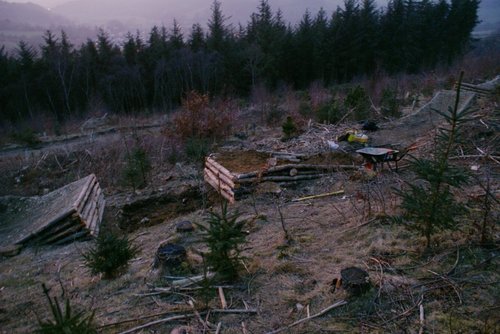

3135446

3135446

(^havent finished extending landing yet)

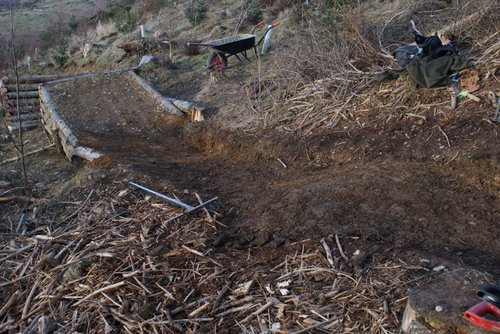

2nd gap;
3101500

3101500

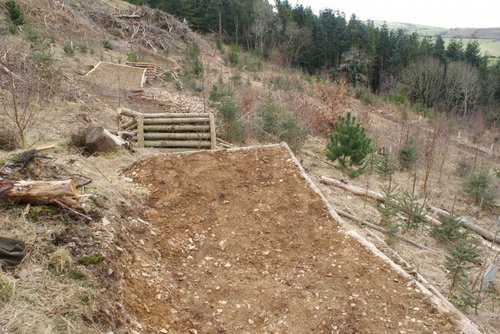

3091102

3091102

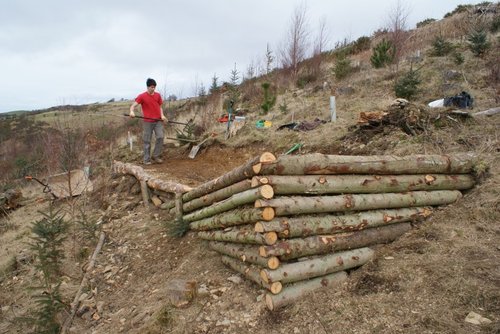

3091120

3091120

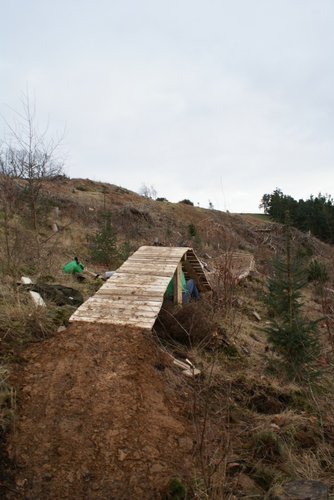

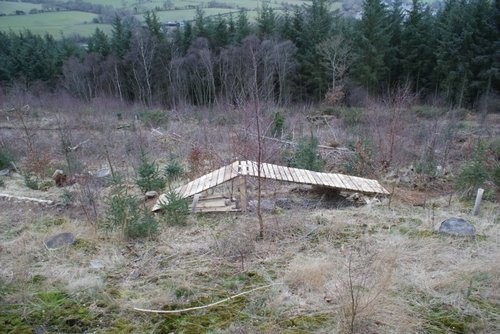

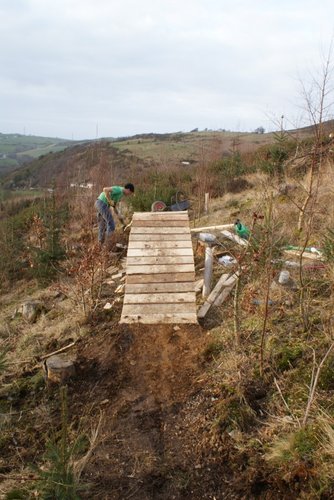

Wooden roller;
3119381

3119381

3119336

3119336

3119359

3119359

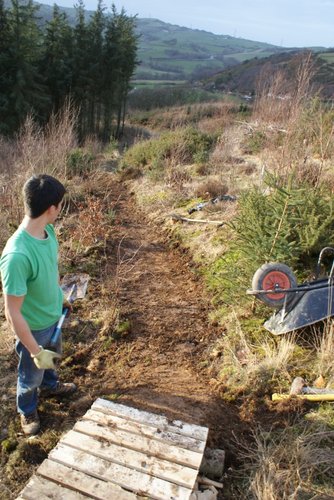

Short singletrack leading down to the fireroad;
3119369

3119369

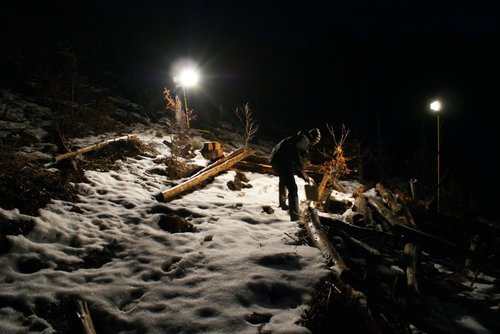

And some general building shots;

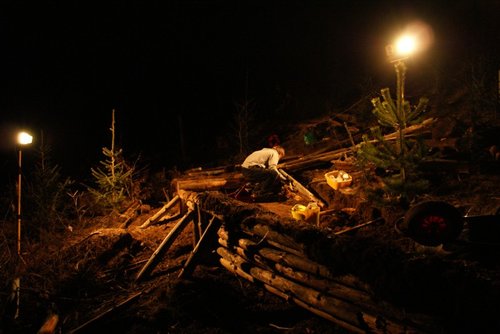

Dedication!
2942787

2942787

2989058

2989058

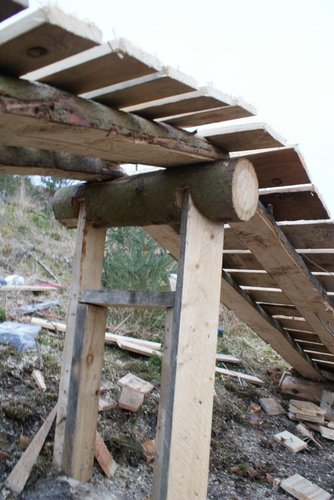

Notching
3119802

3119802

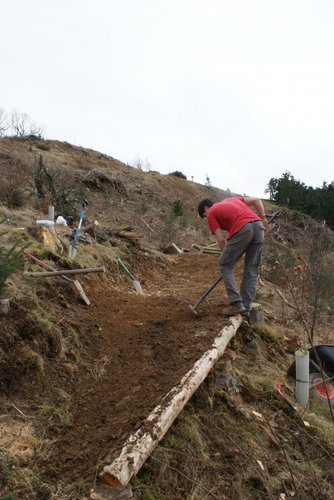

Shelfing
3091087

3091087

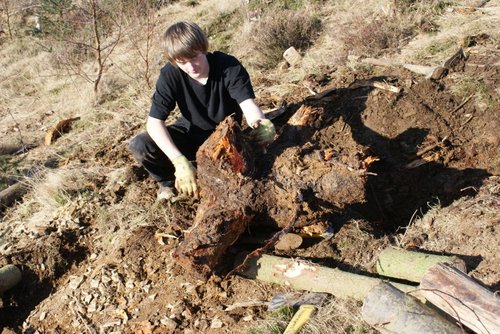

Yay for stumps!
3032735

3032735

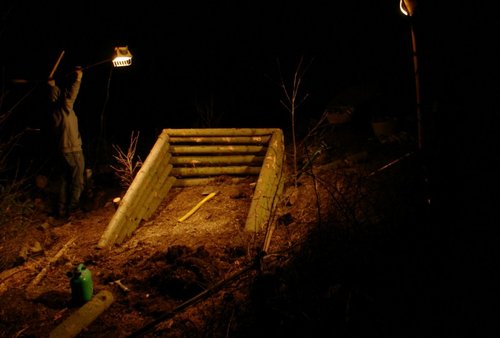

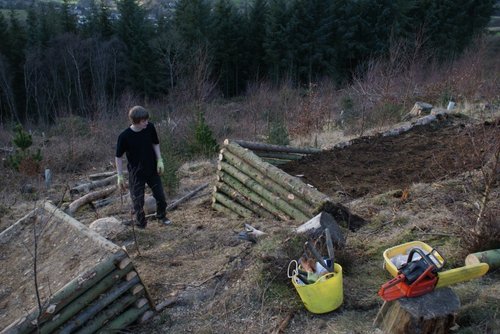

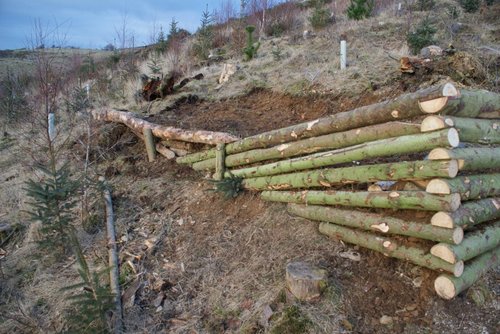

Cribbing
3020976

3020976

3032662

3032662

3032643

3032643




So thats where we're up to so far, hopefully heading up tomorrow, so should have another update soon!

Duane + Tom.



_______________________________________________________________________

UPDATE: 21st March

Tom and I went up again today.

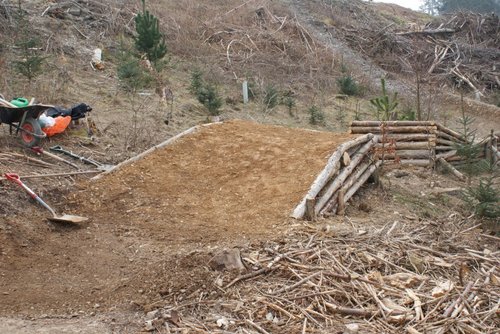

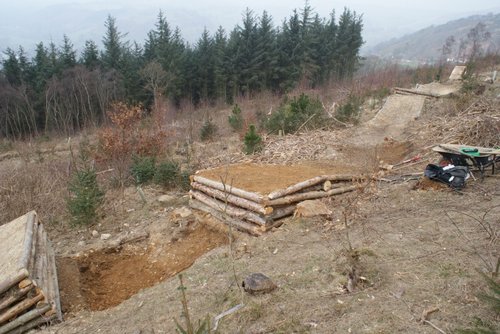

Firstly, finished sorting out the landing of the 1st gap (after extending it the other night);
3150810

3150810

3150763

3150763


We hit it a bit later on, and it works sweet Smile You can hit it a fair bit quicker, so you have a lot more speed going into the 2nd gap (no need to pedal now).
After we both did what there is of the trail so far (berm, 2 gaps, ladder roller), we were well happy Big Grin Flows really nicely, and is just fun to hit Smile

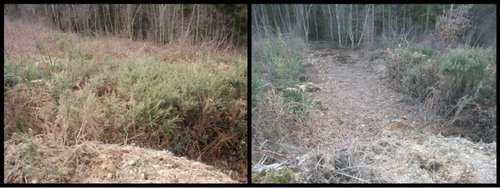

Anyway, we went up yesterday, and this is what we did (before and after) (Tom had done half of it the other week). The bushes/brambles are over 6ft tall in places;
3151198

3151198


What is it? Well, its for the landing area (obviously not finished yet) for a rrooaaddggaapp Big Grin

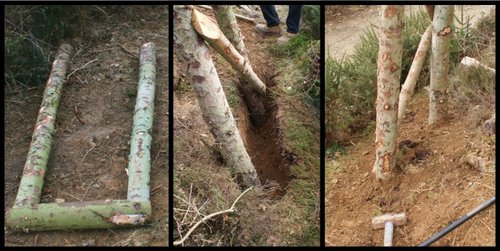

Firstly, some pics of putting up the front A-frame;
3150703

3150703

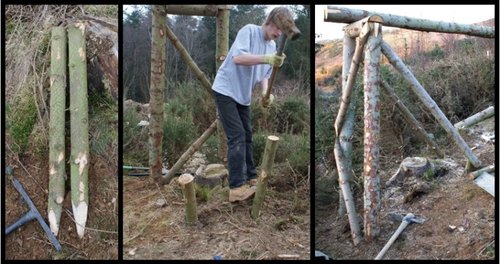

Then the diagonal supports (nailed to the stakes) for the A-frame;
3150812

3150812

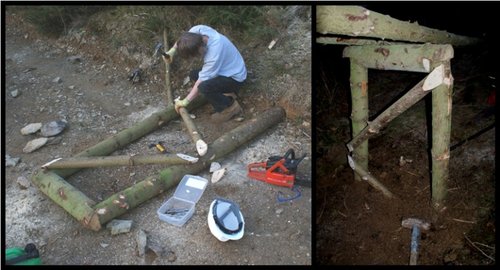

Then the middle A-frame;
3150814

3150814

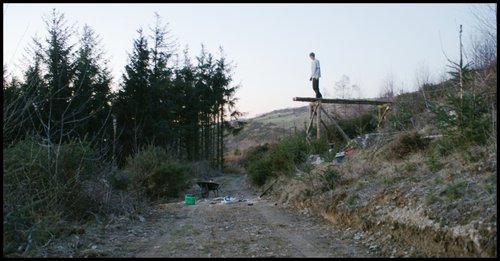

And finally, a mock-up of the actual roadgap (stringers are just placed on top, but both A-frames are in the ground mega-solidly).
3150719

3150719


Will have lots more diagonal supports.
Extension of stringers past the front A-frame may or may not be removed, depending on how it goes.
Getting a vaguely steep landing should be interesting. Theres a big pile of dirt at the top of the landing area (see 3rd pic) which will be pushed/raked down onto the fairly shallow landing area to steepen it up.
Yes, Im going to be (very) scared hitting it.


_______________________________________________________________________

UPDATE: 7th April

Not really an update as such, just a pic and couple clips from 2 Saturdays ago (I know, I just havent got round to adding them to this blog)

Pic of Tom (in front) and me hitting the two gaps by Ste Price;

3181048

3181048



Helmet cam of the trail so far;
Views: 1,725    Faves: 9    Comments: 15



Helmet cam of our trail, and then hopping onto the roadgap track, and onto bottom section in the woods;

Views: 1,362    Faves: 8    Comments: 15



______________________________________________________________________

UPDATE: 11th April


Just a quick update from todays digging (didnt ride at all).

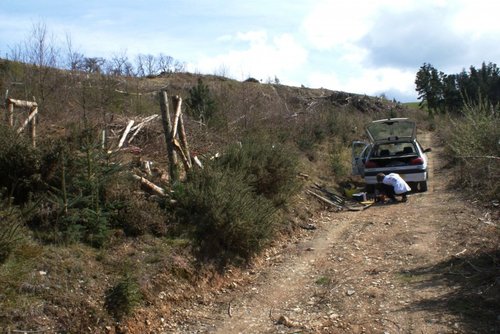

Firstly, its pretty awesome being able to drive right down to where we're building, means we can take the tools and food down, have music etc, pretty handy Big Grin
3252193

3252193



After mocking up the roadgap the other week, we decided we wanted to lower it a bit, mainly because the landing area is not steep at all, so would be mega-harsh.

We were initially going to pull the whole front A-frame out and cut the bottom of the legs off, but decided to take the tops off instead, make a new horizontal piece, and refit the 3 affected diagonals.

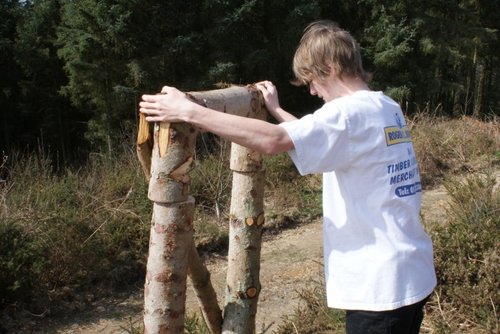

Depressing Frown Cutting the top off;
3252206

3252206

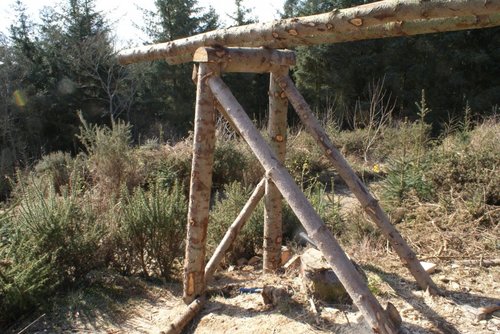

All re-done (stringers not nailed on);
3252189

3252189

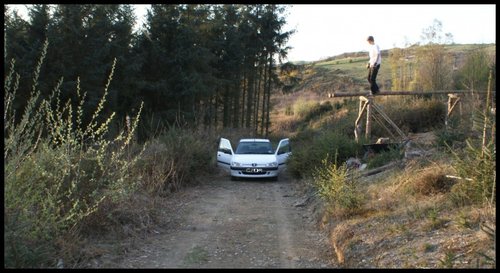

Lowered RG (stringers just placed ontop)
3252174

3252174

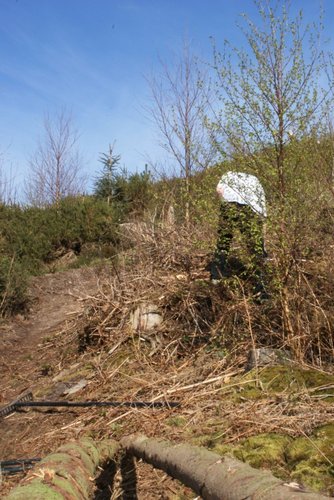

Then it was a matter of sorting the run-in area. The path we originally cleared/made was totally off, as shown here (path on the left);
3252183

3252183


The run-in wanted to go right through a nice wood pile, so we started clearing that. There was a stump at the top/start and bottom/end of the pile (bottom one is visible in above pic), so we decided to go over them with some northshore ladder stuff.

So we set about collecting some logs/putting in posts and supports/clearing the ground etc etc.

The run-in ladder will be in 3 kind of sections, an up bit, along, and then down, joining onto the roadgap stringers- hopefully the runin will give you a good amount of speed Smile

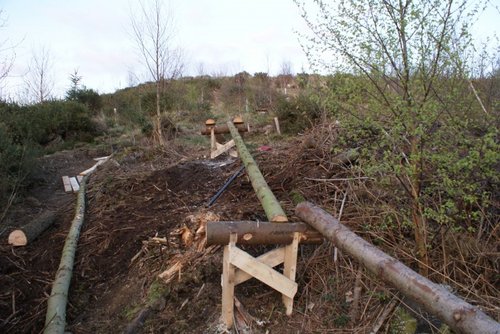

Supports etc, and a few logs mocked up;
3252169

3252169

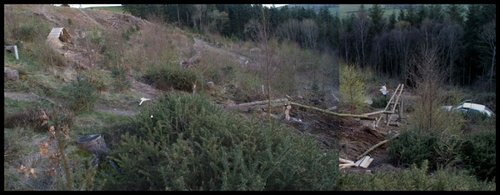

And an amazing stitch, showing the mocked up logs, and how it is joined to the rest of the trail (steep runin to the berm/gaps is visible on the far left);
3252164

3252164



Thats all we managed to do really, hopefully next time we're up we'll carry on with the run-in, start slatting, and then its on to sorting the landing/runout, and then hitting it Big Grin


To finish;

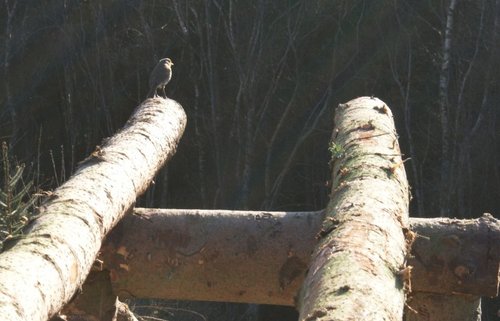

Lil bird checking out the RG landing;
3252176

3252176


2e practicin his moovez;
3252170

3252170



Voila Smile

______________________________________________________________________

Update: 14th April

Tom and I had another good day up there today.
Actually did a bit of riding to start with, which was a nice change Big Grin

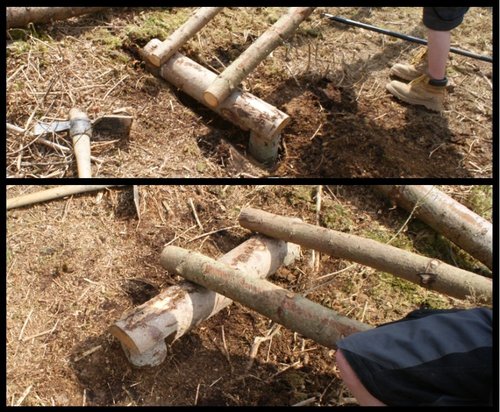

Digging wise, we started by putting in a horizontal support for the start of the roadgap stringers to rest on- managed to reuse the top of the main A-frame which we had cut off last week Smile
3269980

3269980

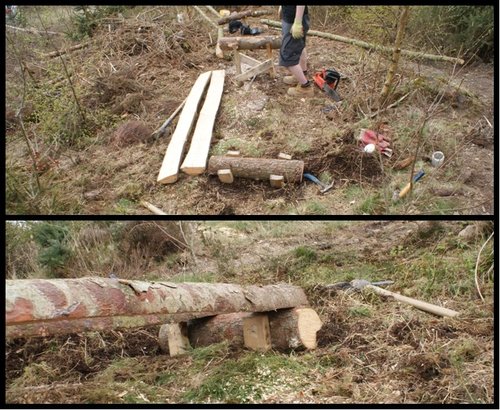

Then we put in another support for the very start of the wooden run-in to the RG,

3269979

3269979



Once this was done, we mocked all the stringers up to sort out how they would all fit together etc, and then put flats on the undersides so they dont roll on the supports. Then nail everything together with numerous 6" nails Smile

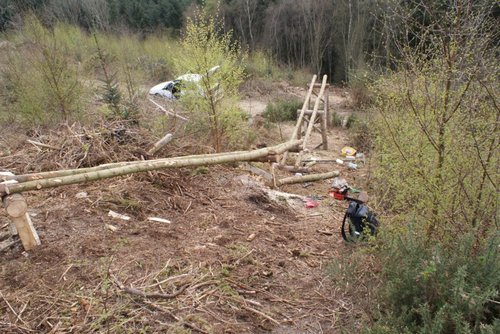

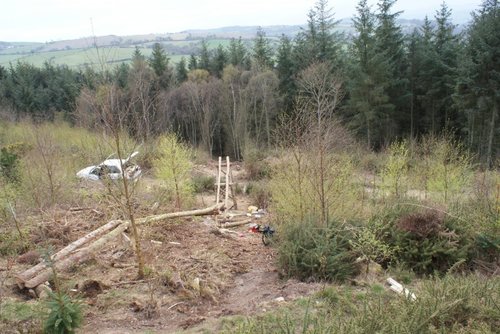

Can get a rough idea of how it all looks here;

3269978

3269978


3269967

3269967

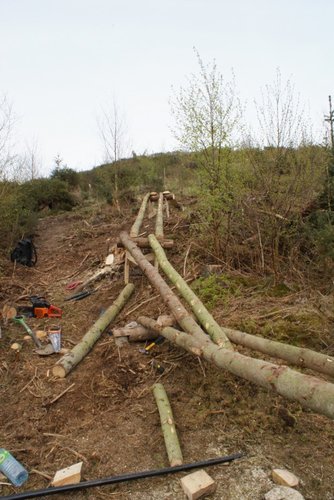

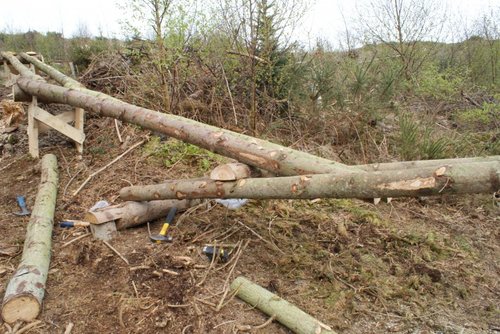

If we had the last section of the wooden run-in join onto the very start of the RG stringers (ie were we put the support in shown up there ^^), it would be a pretty harsh angle, so we decided to join them further along. To keep it strong (and not have the weight of stringers/riders on the nails), we made a piece which fitted between the two RG stringers, and the two run-in stringers sat on this piece;
3269953

3269953


3269927

3269927

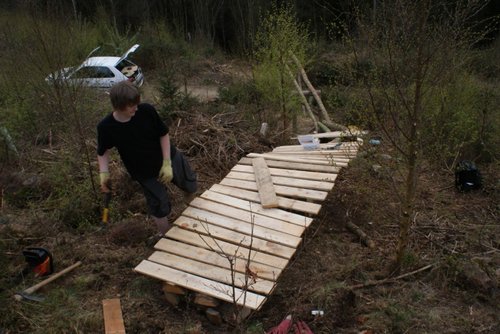

Once everything was nailed in place etc, we went and grabbed a load of the slats we brought up a while back, and started slatting the run-in section;

3269918

3269918



Unfortunately we run out of slat wood before we got to the end of the RG, but we were'nt far off. Cut the slats we did get down to length.

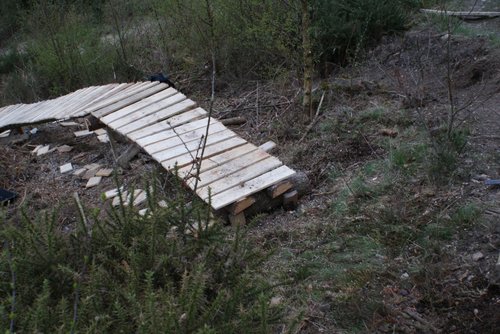

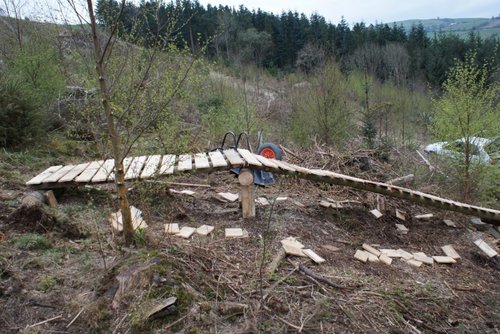

Finished run-in;

3269880

3269880


3269855

3269855



So yeah, there you go Smile

Hopefully next we'll finish slatting, sort the dirt berm onto the ladder out, as well as putting some dirt at the very start so you can actually get onto the ladder Smile
And then its to sorting out the landing/runout (will require a fair bit of work Frown ).

We're hoping to put some more diagonal supports on the RG stringers too.


______________________________________________________________________

Update: 25th April


Just a little update from last Saturdays work for now (was lazy uploading pics).

I headed up, and met Ben and Adam there (Tom was err, suffering the effects of the previous nights activities...), who kindly helped do some digging Smile

The landing for the RG was pretty horrible, it was flat for a fair few feet, and then went shallowly down. So we basically dug a hole load of it up, dragged it up to the top, so it went above the level of the fireroad by about a foot, but also making the landing quite a lot steeper.

Does now mean that if you case it it wont do you any good, but ah well, at least it shouldnt be like hucking to flat Big Grin

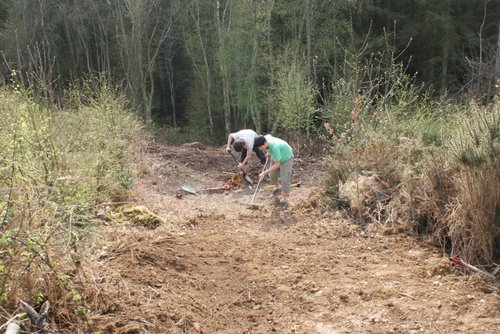

Me raking, Adam attacking another stump;
3322411

3322411

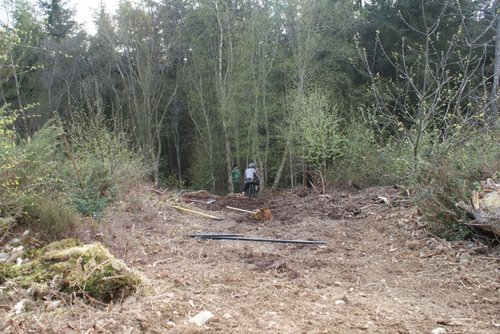

3 nice stumps in the run out;
3322392

3322392

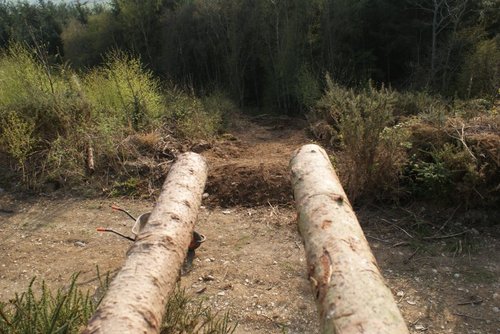

Looking past stringers at finished landing (you can see where the dirt has been built up at the top);
3322417

3322417

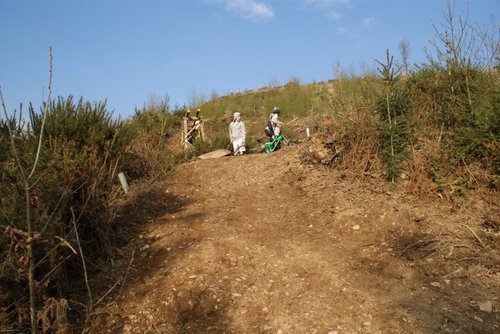

Looking up the landing;
3322391

3322391



Hopefully will get another update from todays acivities up later Big Grin

______________________________________________________________________


Update: 25th April

OK, here we go.
Was a fair few of us up today- Loz, Chris, Ste, Jamie, Tom, and myself. Really good day, lots of progression, nice BBQ etc Big Grin
Also meant we had some help with digging which was ace Smile

Anyway- roadgap. So after last weeks digging, there were just a few things to do to get it rideable- put dirt/bit of a berm onto the run-in ladder (forgot to get pics), finish slatting, and sort out the stumps in the run-out area.

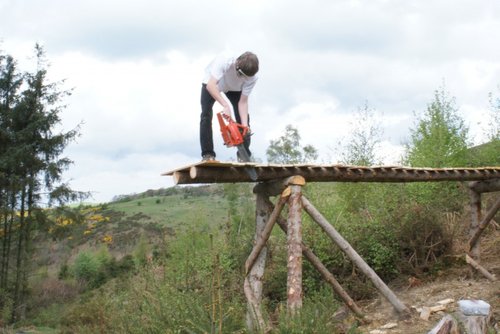

Tom cutting the last slats to size;
3323441

3323441

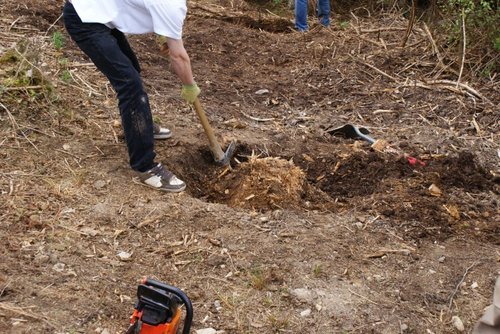

Stumps- there was one right in the middle of the runout, and then two larger ones at the very bottom (you can see them in the pics from last weeks digging). Tom cut the worst of the top stump away (old chain in the saw Smile ) so it was level with the ground, and we just stuck some mud infront of the bottom stumps so you can roll over them.
3323345

3323345

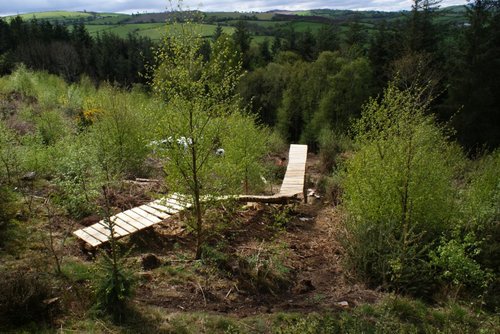

Then it was to step back and check out the finished piece Big Grin

(Now has dirt smoothly onto it)
3323425

3323425

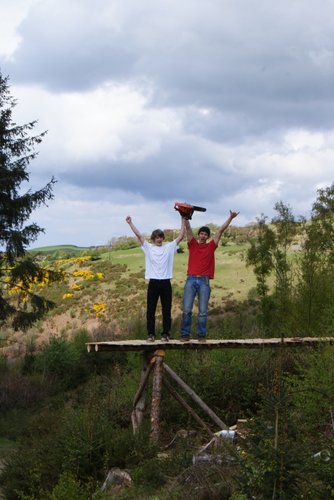

Da builderz (Tom and me)
3323433

3323433


[PI=pbpic3323415 size=m align=c]pbpic3323415[/PI]

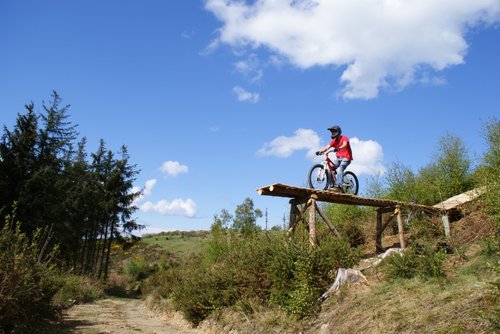

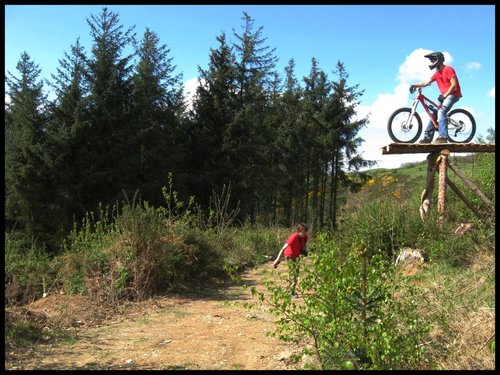

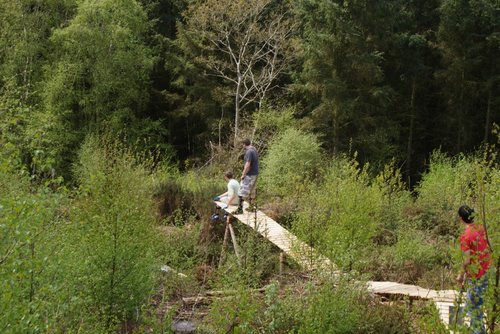

Checking out the gap;
3323369

3323369


3324405

3324405


3323452

3323452



Went and faffed about for a bit, and then came back to hit it Big Grin

Was kinda worried about stopping in the runout (without killing myself on stumps/trees), and also getting the right speed.

Anyway, physched myself up (:P) and hit it. Turned out you needed a bit more speed :-\ Razz Cased the top of the landing nicely (thought Id ripped the pedal off/mangled the rear wheel) However, stopping wasnt really an issue, plenty of time to slam on the anchors.
3323742

3323742


Was kinda wierd, when we were rolling up to the edge (and looking at it from the side), it didnt seem that big, but as soon as I was in the air, wowah, its huge! Well, seemed it to me anyway, think its the biggest thing Ive hit.

Hit it a few more times, with a bit more speed Smile

Various pics;

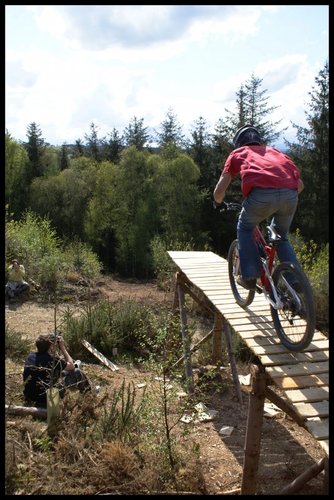

Yay for paps;
3323795

3323795


We have takeoff;
3323749

3323749


3323738

3323738

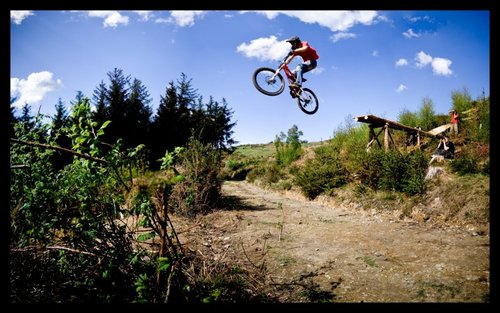

And a pretty sweet pic/edit (IMO) from Loz;
3323326

3323326

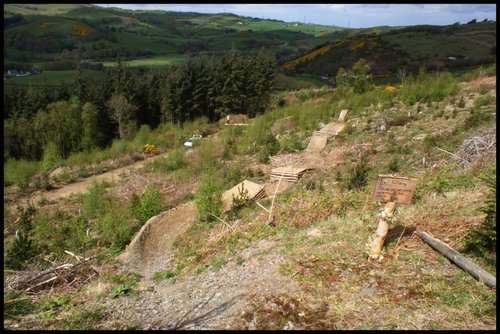

Lastly, the trail as it stands at the moment Smile
3323287

3323287



Sorry for all the pics- guess thats what happens when you have 3 guys with dSLRs walking around Big Grin

And yeah, guess its a bit overhyped, but still, "awesome" Big Grin


______________________________________________________________________


Update: 1st July

Just a short vid from ages ago;
http://www.vimeo.com/4850134

______________________________________________________________________

So there you go Smile


Duane + Tom
