Bronx (Rigid MTB fork); new 2-pcs BMX cranks
Thorn with welded 22mm axle; re-designed
Fever pedals; new DH stuff with
Quantic hub,
Nitro handlebar and
Rage stem; the very special
Charge headsets; our new grips designed by
Shamann and many more...
Thorn cranks
THORNNew ultralight and super strong 2-pcs cranks from Dartmoor with axle welded to right arm. With assembling and disassembling tools included.
Product Features:- fully heat treated 4130 Cr-Mo steel
- 22mm hollow axle
- 48 splines
- special welded gusset to make the pedal assembling area stronger
- hollow sprocket bolt
- two sprocket holes (possibility to assemble sprockets smaller than 23T)
Arms length: 170mm.
Weight: 735g
Availability: March 2011
Rider: Marek Łebek
Marek Lebek riding Cody equipped with Thorn cranks

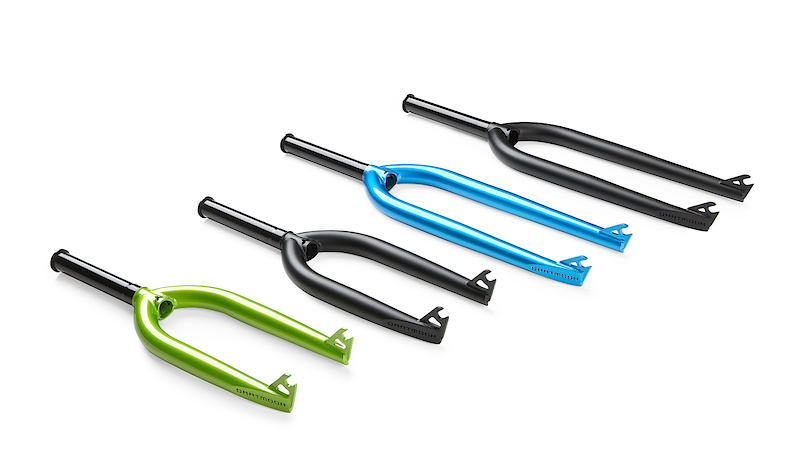

Bronx and Saito forks
BRONXProbably the lightest cr-mo fork for 24” and 26” wheels. Made of triple butted Cr-Mo 4130 steel and heat treated after welding. With integrated crown race and threaded cap.
Product Features:- extremely light but still as strong as before
- steerer and legs machined inside for weight reduction
- shorter dropouts make all the tricks even easier than before
- tapered legs with laser cut logo in the bottom section
Height: 430mm.
Offset: 25mm.
Steerer length: 180mm.
Weight: 985g.
Availability: January 2011
Riders: Sebastian Weszler, Piotrek Przywecki
SAITOBMX fork made of triple butted Cr-Mo 4130 steel. Heat treated after welding. With integrated crown race and threaded cap.
Product Features:- super light and strong
- steerer and legs machined inside for weight reduction
- shorter dropouts
- tapered legs with laser cut logo in the bottom section
Height: 316mm.
Offset: 32mm.
Steerer length: 165mm.
Weight: 835g.
Availability: January 2011
Riders: Maciek Kiwak, Rafał Kierc
Sebastian Weszler 180 over the bar with his Cody/Bronx frameset
New Yuki from Maciek Kiwak with Saito fork
Flare cranks
FLARELight and strong 2.5-pcs cranks with axle pressed inside right arm. With assembling tool included (for disassembling use standard ISIS tool).
Product Features:- fully heat treated 4130 Cr-Mo steel
- 19mm hollow axle
- 48 splines
- special welded gusset to make the pedal assembling area stronger
- hollow sprocket bolt
- two sprocket holes (possibility to assemble sprockets smaller than 23T)
Arms length: 170mm.
Weight: 814g
Availability: January 2011
Rider: Maciek Kiwak
Maciek Kiwak in action
Keipo cranks
KEIPOLightweight 3-pcs cranks with strong 19mm cr-mo axle. Now coming with steel crank bolts and special gusset to make the pedal assembling area stronger.
Product Features:- fully heat treated 4130 Cr-Mo steel
- 19mm hollow axle
- 16 splines
- cr-mo crank bolts (to avoid bolts breaking when over tightened)
- alu crank bolts available optionally
- special welded gusset to make the pedal assembling area stronger
Arms length: 175mm.
Weight: 825g
Availability: January 2011
Riders: Szymon Godziek, Dawid Godziek (BMX bike), Rafał Kierc, Thomas Zejda
Thomas Zejda is flying high with his Shine
Fever pedals
FEVERUltra light pedals made of cold forged and CNC machined aluminium with cr-mo steel axle.
Product Features:- 2 sealed (cartridge) bearings and bushing for perfect rotation
- extremely flat profile
- new body shape
- new black pins (now eight per side)
Platform size: 90x100mm.
Height: 16mm.
Weight: 375g.
Availability: January 2011
Riders: most of Dartmoor Team riders
Canadian Scott Alleyn jumping with his Shine at Dreamland. He is also riding Fevers
Quantic hub
QUANTICOne of the lightest downhill rear disc hubs on the market. With alu body, side caps, cassette and inner axle.
Product Features:- 4 Japanese sealed (cartridge) bearings
- alu 7075 inner axle and side caps
- alu 7075 cassette body
- CNC machined disc brake mount and body
- cuts in disc side flange
Size: 150x12mm.
Holes: 36, 32.
Pawls: 3.
Weight: 290g.
Availability: February 2011
Rider: Michał Śliwa (top two Polish DH rider)
Michal Sliwa in night downhill action with his Dartmoor wheelsets
K-Drive hub
K-DRIVELightweight singlespeed rear disc hub for dirt/street. With cr-mo axle and 12mm long alu nuts.
Product Features:- 10T cr-mo driver
- 4 Japanese sealed (cartridge) bearings
- cr-mo hollow axle
- new side caps and washers
- CNC machined disc brake mount and body
- cuts in disc side flange
Size: 135x10mm.
Holes: 36, 32.
Pawls: 4.
Weight: 460g.
Availability: February 2011
Riders: all dirt/street Dartmoor Team riders
Jackson Crowe from Melbourne, Australia riding his Cody
Vee-One hub
VEE ONEVery light cassette rear disc hub with 6mm female bolts system .
Product Features:- 4 Japanese sealed (cartridge) bearings
- alu 7075 inner axle and side caps
- alu 7075 cassette body
- CNC machined disc brake mount and body
- cuts in disc side flange
Size: 135x10mm.
Holes: 36, 32.
Pawls: 3.
Weight: 320g.
Availability: February 2011
Rider: Remek Oleszkiewicz
Remek Oleszkiewicz freeriding with his Hornet in the forest near Zamosc

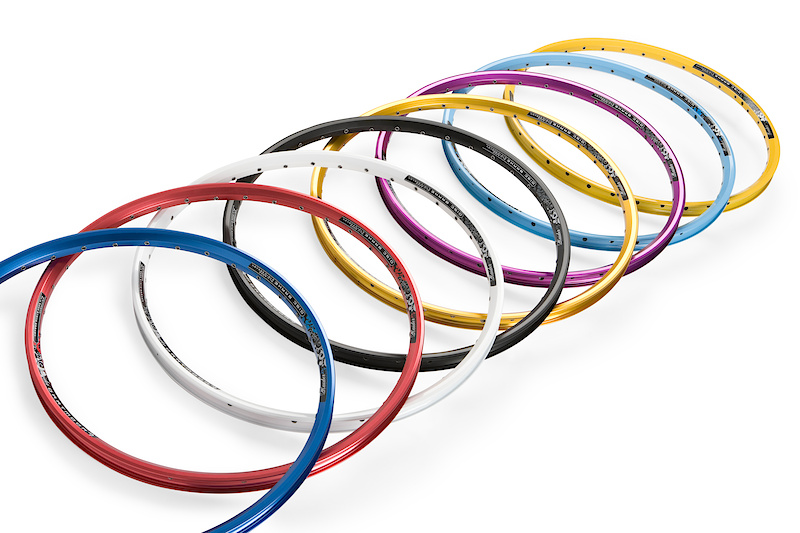

Raider rim
RAIDERVery light rim for dirt/street/BMX/4X/FR/ DH use. Available in 26”, 24” and 20” sizes. Used by top Polish and international riders in DH (Michał Śliwa), DJ (Scott Alleyn, Thomas Zejda, Szymon Godziek, Dawid Godziek, Marek Łebek, Piotrek Krajewski), street (Alexey Sinayko, Jackson Crowe, Piotrek Przywecki, Sebastian Weszler), 4X/FR (Remek Oleszkiewicz) and BMX (Maciek Kiwak, Rafał Kierc).
Product Features:- disc brake only (or brakeless)
- double wall
- single eyelets
- perfect weight to stiffness/durability ratio
Sizes: 26”, 24”, 20”.
Holes: 36, 32.
Outer width: 31.4mm.
Inner width: 24mm.
Height: 21mm.
ERD: 533.6mm (26”), 481.6mm (24”), 380.6mm (20”).
Weight: 570g (26”), 520g (24”), 435g (20”).
Availability: January 2011
Riders: Most of Dartmoor Team riders (in DJ/4X/FR/DH/BMX)
Piotrek Krajewski (DJ rider) with Quinnie and Robert Kulesza (4X rider) with Phantom at Kazoora in Warsaw
Rage stem
RAGELightweight downhill stem with custom body shape. Designed to be stiff and strong. Fits Boxxer, Fox, Dorado etc.
Product Features:- custom body 2-pcs design
- cold forged and CNC machined alu 7075 body
- Direct Mount standard
Bar bore: 31.8mm.
Extension: 45mm.
Weight: 139g (including frontplate bolts).
Availability: February 2011
Rider: Szymon Żarłok (one of the most talented Polish DH young rider)
Funky stem
FUNKYFunky comes now with completely new body shape and still is one of the lightest gravity stems.
Product Features:- custom body shape
- cold forged and CNC machined alu 6061 body
- 2-pcs frontplate design
- all bolts in M6 size
Bar bore: 25.4/31.8mm.
Extensions: 35mm (25.4mm)/40mm (31.8mm).
Angle: 0°.
Weight: 148g (25.4mm)/170g (31.8mm).
Availability: February 2011
Riders: most of Dartmoor Team riders
Alexey Sinayko is flying higher than bullets. Alexey is also a Funky rider
Nitro handlebar
NITROExtremely wide and flat DH handlebar made of butted alu 7075.
Center diameter: 31.8mm.
Width: 780mm (30.7”).
Rise: 0.5”.
Upsweep: 5°.
Backsweep: 9°.
Weight: 320g.
Availability: February 2011
Riders: Szymon Żarłok (in DH), Marek Łebek (in DJ)
Marek Lebek at Eurobike contest with his Cody and Nitro bar

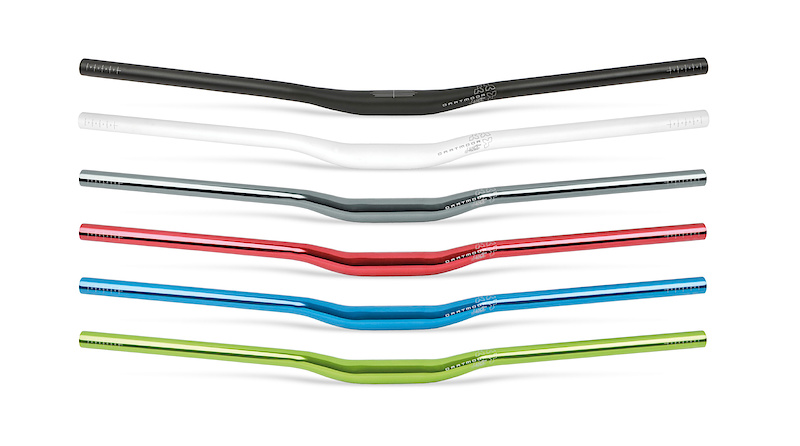

Swing Low handlebar
SWING LOWLightweight DJ handlebar made of butted alu 7075 with significantly increased width. Improved, smooth bending shapes.
Center diameter: 25.4mm.
Width: 750mm (29.5”).
Rise: 2”.
Upsweep: 6°.
Backsweep: 7°.
Weight: 348g.
Availability: January 2011
Rider: Szymon Godziek
Szymon Godziek has fallen in love with new Swing Low handlebar. Here with his new Cody at Little Woodward skatepark in East Germany
Toxic handlebar
TOXICStreet handlebar with high rise, comfortable geometry and perfect shapes made of double butted and heat treated Cr-Mo 4130 steel.
Center diameter: 22.2mm.
Width: 720mm (28.35”).
Rise: 3.5”.
Upsweep: 5°.
Backsweep: 8°.
Weight: 445g.
Availability: January 2011
Rider: Piotrek Przywecki
Piotrek Przywecki testing Toxic handlebar in Poznan, Poland
Flow handlebar
FLOWExtra wide and high BMX handlebar with comfortable geometry and modern outlook. Made of heat treated Cr-Mo 4130 steel tubes from custom butted molds.
Center diameter: 22.2mm.
Width: 760mm (30”).
Rise: 8.95”.
Upsweep: 3°.
Backsweep: 12°.
Weight: 765g.
Availability: April 2011
Rider: Rafał Kierc
Rafal Kierc testing Flow handlebar
Charge headsets
CHARGEUltralight and durable 1.1/8" headsets with custom body shape and custom Ride Your Way top cap. Made of high quality alu 2014 alloy. Stack height: 12.7+13.1=25.8mm. Weight: 99g (without top cap).
Product Features:- top quality sealed (cartridge) bearings with anti-rust titanium coating
- deep cups for better alu head tubes protection with drilled holes for weight reduction
- low profile top section fitting perfectly Dartmoor Funky stem
- strong bottom cup with oversized bearing
Stack height: 12.7+13.1=25.8mm.
Weight: 99g (without top cap).
Availability: January 2011
Rider: Dawid Godziek
Dawid Godziek at his backyard with Charge headsets in his Two4Player
Shamann grips
SHAMANNNew BMX Dartmoor grips signed by Szymon “Shamann” Godziek. New rubber material is making them comfortable but with significantly increased durability.
Length: 150mm.
Weight: 149g (including plugs).
Availability: January 2011
Riders: Szymon Godziek, Dawid Godziek, Marek Łebek, Maciek Kiwak.
Dartmoor 2k11 catalogYou can turn the pages and zoom them to study exactly the whole 2011 collection.
Photos by: Adam Klimek, Kuba Konwent, Janek “Elvis” Kiliński, Bartek Woliński, Matt Butterworth, Huns, James Patterson, Jakub Vlcek.
